For Sale by National Machinery Exchange
Surplus Record Dealer Since 1939
Location: Newark, NJ
Contact Sales / Andreia
Phone Number: 973...> Show Phone Number 973-358-7208
Let the seller know you found their listing on Surplus Record!
Description
SPECIFICATIONS:
MANUFACTURER - CAUFFIEL/MCKAY
LINE DIRECTION - LEFT TO RIGHT
MATERIALS - PLAIN CARBON STEEL, COLD ROLLED, HOT ROLLED (PICKLED OR BLACK)
THICKNESS - .375" MAX. UP TO 60" WIDE, .312" MAX. UP TO 72" WIDE, .063 MIN.
COIL WIDTH - 72" MAX.
COIL WEIGHT - 50,000# MAX.
COIL OUTSIDE DIAMETER - 84" MAX.
COIL INSIDE DIAMETER - 24" TO 34"
SHEET LENGTH - 240" MAX. (720" W/ SPECIAL HANDLING) 36" MIN.
SHEET WIDTH - 72" MAX., 34" MIN.
STATUS - INSTALLED AND OPERATING
LINE COMPONENTS:
COIL STORAGE AND LOADING RAMP
STATIONARY COIL LIFT

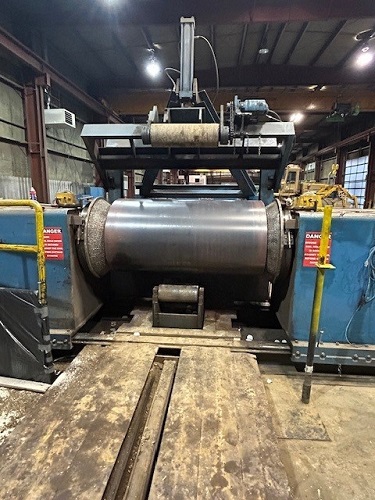

DUAL CONE UNCOILER
FLOOR MOUNTED HOLD DOWN ROLL
PEELER BLADE
PINCH ROLLS

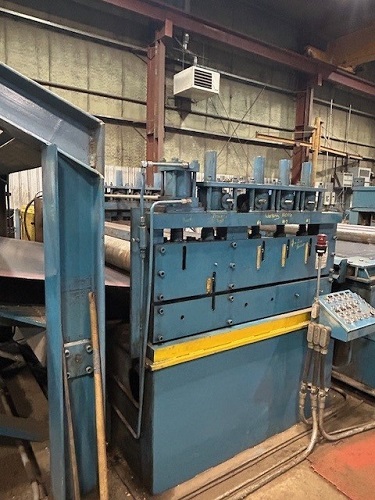

7 ROLL, 8" DIAMETER STRAIGHTENER / FLATTENER
ROLLER TYPE SIDE GUIDES
SIDE TRIMMER
SCRAP WINDERS - NOT INCLUDED
STRIP INSPECTION TABLE w/ CONVEYOR ROLL SUPPORT

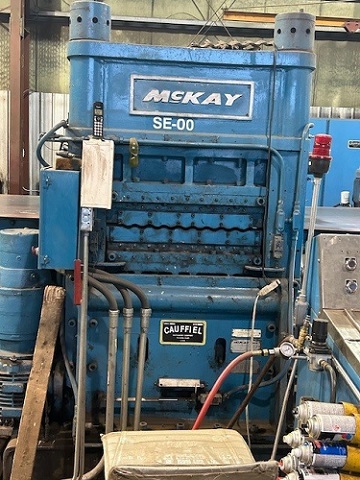

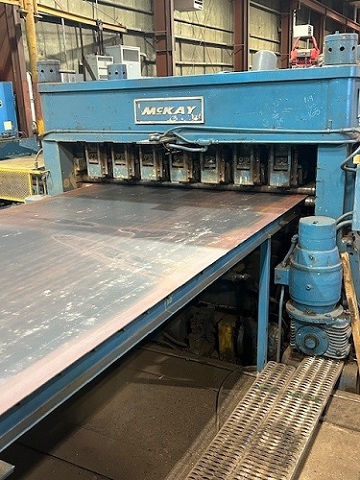

MCKAY 19 ROLL, 2.500" DIAMETER LEVELER
STRIP INSPECTION TABLE w/ CONVEYOR ROLL SUPPORT
PINCH ROLLS
STRIP MEASURING WHEEL

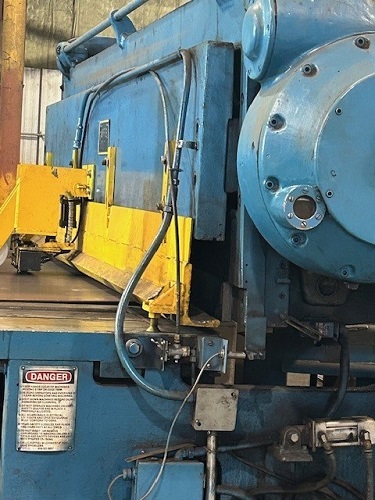

DOWNCUT MECHANICAL CUT OFF SHEAR
22' FOOT SHEET STACKER w/ ROLLER TYPE STRIP SUPPORTS AND SIDE TAMPING
46' FOOT PACK RUNOUT CONVEYOR w/ END DISCHARGE CHAINS
OPERATOR CONTROL STATIONS
AC CONTROLS
DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
MANUFACTURER - CAUFFIEL/MCKAY
LINE DIRECTION - LEFT TO RIGHT
MATERIALS - PLAIN CARBON STEEL, COLD ROLLED, HOT ROLLED (PICKLED OR BLACK)
THICKNESS - .375" MAX. UP TO 60" WIDE, .312" MAX. UP TO 72" WIDE, .063 MIN.
COIL WIDTH - 72" MAX.
COIL WEIGHT - 50,000# MAX.
COIL OUTSIDE DIAMETER - 84" MAX.
COIL INSIDE DIAMETER - 24" TO 34"
SHEET LENGTH - 240" MAX. (720" W/ SPECIAL HANDLING) 36" MIN.
SHEET WIDTH - 72" MAX., 34" MIN.
STATUS - INSTALLED AND OPERATING
LINE COMPONENTS:
COIL STORAGE AND LOADING RAMP
STATIONARY COIL LIFT
DUAL CONE UNCOILER
FLOOR MOUNTED HOLD DOWN ROLL
PEELER BLADE
PINCH ROLLS
7 ROLL, 8" DIAMETER STRAIGHTENER / FLATTENER
ROLLER TYPE SIDE GUIDES
SIDE TRIMMER
SCRAP WINDERS - NOT INCLUDED
STRIP INSPECTION TABLE w/ CONVEYOR ROLL SUPPORT
MCKAY 19 ROLL, 2.500" DIAMETER LEVELER
STRIP INSPECTION TABLE w/ CONVEYOR ROLL SUPPORT
PINCH ROLLS
STRIP MEASURING WHEEL
DOWNCUT MECHANICAL CUT OFF SHEAR
22' FOOT SHEET STACKER w/ ROLLER TYPE STRIP SUPPORTS AND SIDE TAMPING
46' FOOT PACK RUNOUT CONVEYOR w/ END DISCHARGE CHAINS
OPERATOR CONTROL STATIONS
AC CONTROLS
DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
