72" x .25" Paxson, Cut-To-Length line, 2 levelers, 50000 lb., 150 FPM, complete line

72" X 1/4" X 50,000# PAXSON CTL LINE W/ TWO LEVELERS
THICKNESS RANGE: .040" - .250"
COIL CAPACITY: 50,000#
COIL WIDTH: 8" - 73"
COIL ID: 20" - 24"
COIL OD: 42" - 80"
LINE SPEED: 150 FPM
BACKED UP HEAVY FLATTENER: .135" - .250"
BACKED UP LIGHT LEVELER: .040" - .135"
SHEET CUT LENGTH: 24" - 240" (360" MAX ON END DISCHARGE)
COMPLETE LINE WITH:
PAXSON L-TYPE COIL CAR
FLOOR STANDING / SELF CONTAINED HYDRAULICS

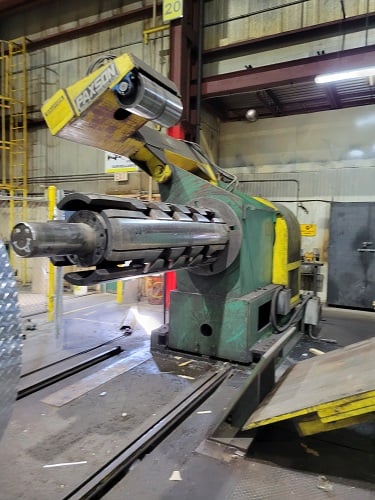

MANDREL UNCOILER
SLIDING BASE
SLIDING OUT BOARD BEARING SUPPORT
POWERED HOLD DOWN ROLL
HYDRAULIC EXPANSION
WATER COOLED BRAKE
PEELER TABLE
11 ROLL PAXSON HEAVY GAUGE FLATTENER
4 FLIGHTS OF TOP & BOTTOM BACK-UPS
MOTORIZED BACK-UP ROLL ADJUSTMENT
ENTRY PINCH ROLLS
EDGE GUIDES
212 HP DC DRIVE
HYDRAULIC BACK UP ADJUSTMENTS
MOTORIZED TILT
17 ROLL PAXSON LIGHT GAUGE LEVELER
SLIDING BASE
5 HIGH DESIGN
17 WORK ROLLS
7 FLIGHTS TOP & BOTTOM BACK-UPS
5 FLIGHTS MOTORIZED WITH INDIVIDUAL ADJUSTMENTS
ENTRY PINCH ROLLS
159 HP DC MOTOR
LOOPING PIT CASCADE ROLLS
LOOPING PIT CROSS OVER TABLE
DC SERVO FEED MEASURING ROLL 32 HP
PAPER INTERLEAVE
PAXSON HIGH SPEED SHEAR
HYDRAULIC ENTRY EDGE GUIDES
MOTORIZED KNIFE ADJUSTMENT
DOWN CUT DESIGN
PAXSON STACKER
DROP TYPE DESIGN
LIFT TABLES
SIDE SQUARING
MOTORIZED END STOP
30' MOTORIZED EXIT CONVEYOR
OPERATOR PUSH BUTTON STATION
UNICO DIGITAL READOUTS
SPARE ROLLS
