Description

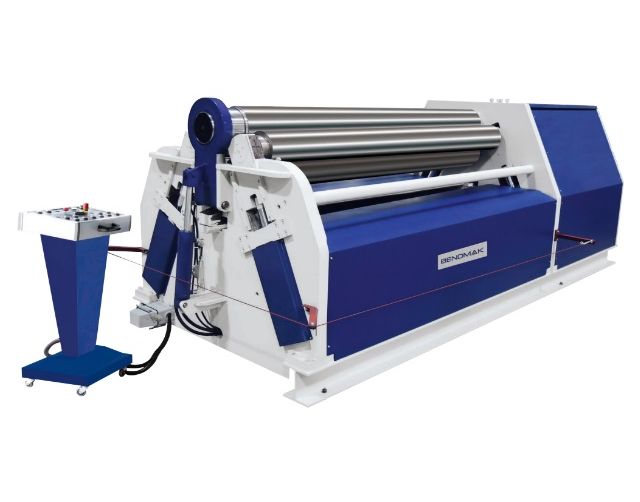

New Bendmak 6' x 1/4" Four Roll Plate Roll
Specifications: (All Capacities Are Rated In Mild Steel - 36,000 Yield)
Maximum Rolling Capacity ............. 6' x .315" to a 37.40" Diameter
Maximum Pre-Bending Capacity .... 6' x .250" to a 37.40" Diameter
Length ......................................... 80"
Roll Diameter ................................. 7.48"
Main Drive Motor ............................ 4 H.P.
Machine Weight ............................. 7,400 Lbs.
Equipped With:
• Top & Pinch Rolls Are Driven
• Forward & Reverse From Console
• Power Adjusted Side Rolls From Console - Side Rolls Travel In Linear Guides
• All Three Rolls Are Independently, Hydraulically Adjusted From Console
• Cone Rolling Attachment
• Hardened Rolls - 52 to 55 Rockwell
• Digital Readout On Side Rolls
• Machine Controls Mounted On Moveable Operator Console
• Emergency Stop Button
• 230/460 3 Phs. Electrics
Terms: Check With Order
F.O.B. Location
Specifications: (All Capacities Are Rated In Mild Steel - 36,000 Yield)
Maximum Rolling Capacity ............. 6' x .315" to a 37.40" Diameter
Maximum Pre-Bending Capacity .... 6' x .250" to a 37.40" Diameter
Length ......................................... 80"
Roll Diameter ................................. 7.48"
Main Drive Motor ............................ 4 H.P.
Machine Weight ............................. 7,400 Lbs.
Equipped With:
• Top & Pinch Rolls Are Driven
• Forward & Reverse From Console
• Power Adjusted Side Rolls From Console - Side Rolls Travel In Linear Guides
• All Three Rolls Are Independently, Hydraulically Adjusted From Console
• Cone Rolling Attachment
• Hardened Rolls - 52 to 55 Rockwell
• Digital Readout On Side Rolls
• Machine Controls Mounted On Moveable Operator Console
• Emergency Stop Button
• 230/460 3 Phs. Electrics
Terms: Check With Order
F.O.B. Location
