Description

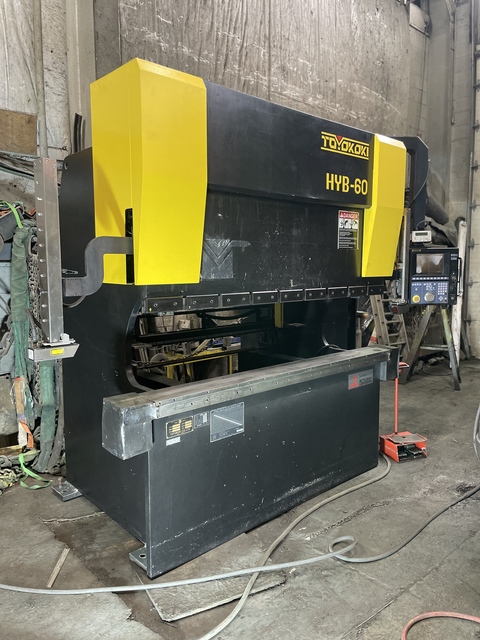

Pre Owned Toyokoki HYB-60-20 CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 72 Tons
Overall Length of Bed & Ram 78.74”
Distance Between Housings 66.3”
Open Height 11.4”
Stroke 5.9”
Throat 16.14”
Working Height 35”
Back Gauge Range
Speeds
Rapid Approach 22 - 4.2” Per Sec
Press 0- 0.5” Per Sec
Return 0- 7.7” Per Sec
Main Motor Horsepower 2 KW X 2
EQUIPPED WITH

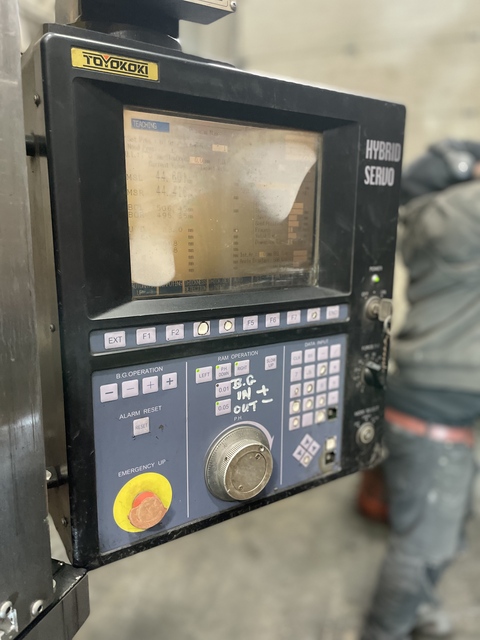

Multi Axis CNC Control
Y1 Y2 Dual Ram Encoders
Crowning

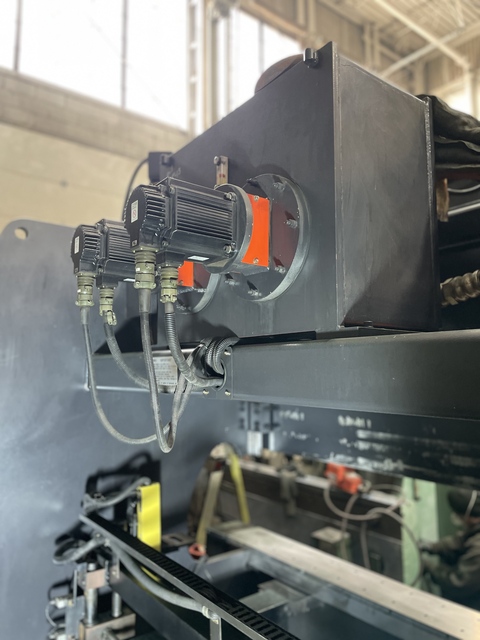

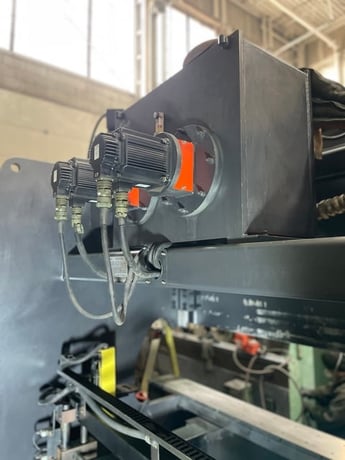

6-Axis (X, R Z1, Z2) Back Gauge
Y1 - Y2 Dual Ram Encoders
Sectional Wilson Quick Change Ram Clamps
Pedestal Palm Button Station / Electric Foot Switch
Lazersafe Light Curtains
Lube System
Electrics
Approximate Overall Dimensions
Approximate Overall Weight 10,803
Get Your Price from Aleco Machinery Sales!
