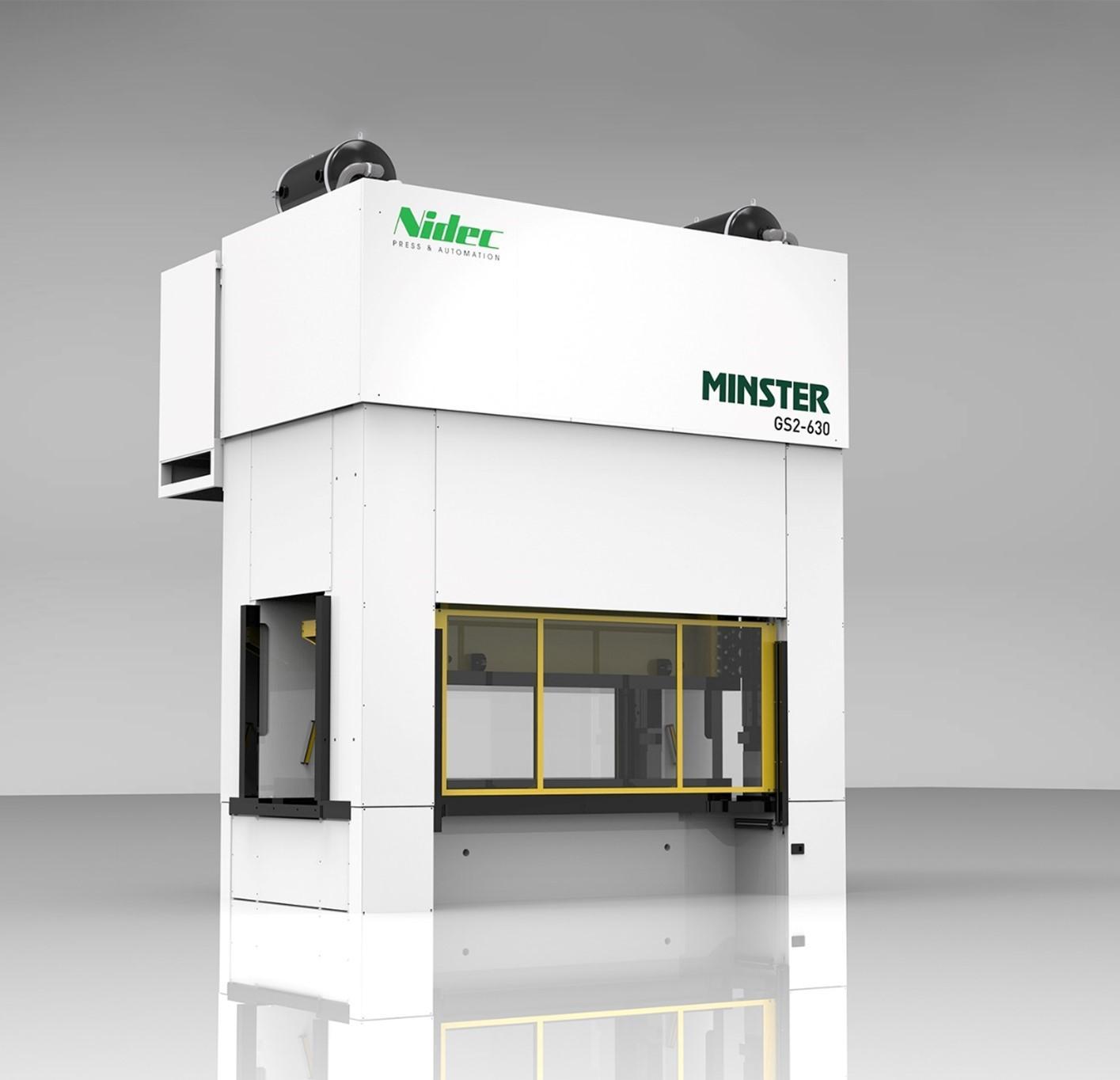

710 Ton, Minster #GM2-630-365x150, straight side double crank 2-pt mechanical press, 17.7" stroke, 40.3" Shut Height, 15.7" adj., 59" x143" bed, 120 SPM, 59" x143" bed, 59" passline, 2024, new

SPM 120

Tonnage 710 tons

Stroke 17.71 inches

Shut Height 40.35 inches

Vari Speed (Yes/No) yes

Bed W 59 inches

Bed L 143 inches

Crank (Single/Double) double

SPECIFICATIONS

Press Specifications

Model Number........................................................ GM2-630-365x150

Force × Distance off Bottom.................................. 6300 kN x 7 mm (710 tons x 0.27 in.)

Energy..................................................................... 60 kJ (265.5 in-tons) @ 25 spm

Connection Points................................................... 2

Lube Unit Location................................................. Standalone Floor Level

Approximate Press Weight..................................... 125,000 kg (276,000 lbs.)

Scale and Display Units.......................................... Inch/Metric

Shop Air Pressure, Minimum.................................. 5.9 bar (590 kPa) (85 psi)

Press Slide Specifications

Stroke Length.......................................................... 50 to 450 mm (1.97 to 17.71 in.) variable

Max. Speed at 450 mm (17.71 in.)....................... 45 spm

Max. Speed at 400 mm (15.75 in.)....................... 50 spm

Max. Speed at 300 mm (11.81 in.)....................... 60 spm

Max. Speed at 200 mm (7.87 in.)......................... 75 spm

Max. Speed at 100 mm (3.94 in.)......................... 100 spm

Max. Speed at 50 mm (1.97 in.)........................... 120 spm

Area of Slide, R-L × F-B........................................ 3650 x 1500 mm (143 x 59 in.)

Slide Face Machining.............................................. Standard

Overload travel........................................................ 25 mm (0.98 in.)

Overload recovery time........................................... 120s

Maximum Upper Die Weight................................. 7,000 Kg (15,430 lbs.)

Press Bolster Specifications

Bolster Plate Material.............................................. Steel

Bolster Plate Thickness........................................... 190 mm (7.5 in.)

Area of Bolster, R-L × F-B..................................... 3650 x 1500 mm (143 x 59 in.)

Opening in Bolster, R-L × F-B............................... None

Bolster Plate Machining.......................................... Standard

Press Frame Specifications

Upright Passline Opening, F-B............................... 1500 mm (59 in.)

Area of Bed, R-L × F-B.......................................... 3650 x 1500 mm (143 x 59 in.)

Opening in Bed, R-L (F-B ribs) × F-B................... 3100 (3) x 650 mm (122 x 25.6 in.)

Bed/Slide Deflection at 67% of Die Area............... 0.125 mm/m (0.0015 in/ft)

Shutheight SDAU @ 50 mm Stroke....................... 1025 mm (40.35 in.) Bolster to Slide

Shutheight SDAU @ 100 mm Stroke..................... 1000 mm (39.37 in.) Bolster to Slide

Shutheight SDAU @ 200 mm Stroke..................... 950 mm (37.40 in.) Bolster to Slide

Shutheight SDAU @ 300 mm Stroke..................... 900 mm (35.43 in.) Bolster to Slide

Shutheight SDAU @ 400 mm Stroke..................... 850 mm (33.46 in.) Bolster to Slide

Shutheight SDAU @ 450 mm Stroke..................... 825 mm (32.48 in.) Bolster to Slide

Shutheight Adjustment........................................... 400 mm (15.7 in.)

Accuracy of Slide Adjustment................................ 0.1 mm
