Description

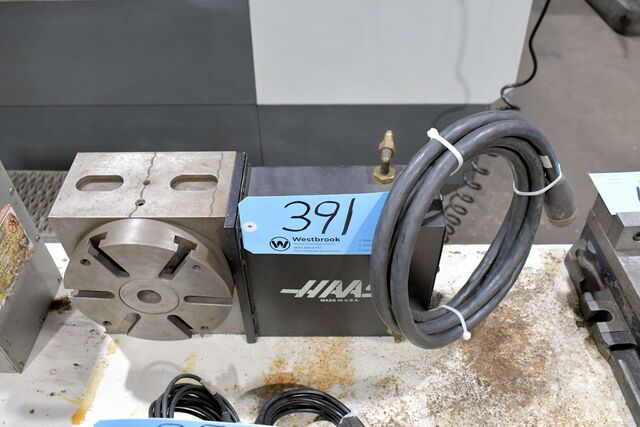

HAAS HRT-7 CNC rotary table with 7" platter diameter, servo control, and versatile mounting options. Features precise 0.001 indexing, 15 arc-sec accuracy, RS-232, M-code interface, and continuous rotation. Ideal for complex machining needs.
Brand: Haas
Model: HRT-7
Specifications:
Platter Diameter: 7"
Table Type: CNC servo rotary table (4th axis)
Control: Haas Servo Control (stand-alone or CNC interface)
Indexing Resolution: 0.001
Positioning Accuracy: Approximately 15 arc-sec
Repeatability: Approximately 10 arc-sec
Maximum Programmable Rotation: 999.999 per command
Mounting: Horizontal or vertical
Drive: Precision worm gear with AC servo motor
Through Hole: Approximately 1"
Gear Ratio: Approximately 90:1
Power: 115 VAC, single phase
Weight: Approximately 100-120 lbs.
Maximum Speed: Approximately 50/sec
Brand: Haas
Model: HRT-7
Specifications:
Platter Diameter: 7"
Table Type: CNC servo rotary table (4th axis)
Control: Haas Servo Control (stand-alone or CNC interface)
Indexing Resolution: 0.001
Positioning Accuracy: Approximately 15 arc-sec
Repeatability: Approximately 10 arc-sec
Maximum Programmable Rotation: 999.999 per command
Mounting: Horizontal or vertical
Drive: Precision worm gear with AC servo motor
Through Hole: Approximately 1"
Gear Ratio: Approximately 90:1
Power: 115 VAC, single phase
Weight: Approximately 100-120 lbs.
Maximum Speed: Approximately 50/sec
Get Your Price from Westbrook Engineering Co!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
6.3" Haas #HRT160, CNC rotary table, 6.3" x 6.3" table, 2013
Category: CNC Rotary Tables and Indexers
Seller: Wheeler Machinery Sales
Location: Pomona, CA
Mfr: Haas
Model: HRT160
Year: 2013
2013 HAAS HRT160, Table Size-X. 6.3", Table Size-Y. 6.3".
6.3" Tsudakoma #TWA-160, tilting rotary table, control cables & air lines, 2017
Category: CNC Rotary Tables and Indexers
Seller: Machinery Network Inc
Location: Encino, CA
Mfr: Tsudakoma
Model: TWA-160
Year: 2017
2017 TSUDAKOMA TWA-160 2 AXIS CNC ROTARY TABLE, Tilt Range. -30 ~+107, Table Dia. 6.3", Height at 0. 9.25", Center Height at 90. 7.09", Indexing Accuracy. 15 arc sec, Tilting Accuracy. 22.5 arc sec, Dimensions. 22.7" x 18.3" x 11.2"H, Weight. 280 lbs, Control Cables & Air Lines.
6.7" Nikken #5AX-2" MT-170-200FA, Dual-Axis Trunnion, Fanuc Servo, 2005
Category: CNC Rotary Tables and Indexers
Seller: Liberty Machinery Co
Location: Lincolnshire, IL
Mfr: Nikken
Model: 5AX-2MT-170-200FA
Year: 2005
New - 2005, Serial No. 2004, Number of Rotary Axis Spindles.2, Diameter of Table Face Plates.6.69", Pitch Distance between Spindles.7.87", Diameter of Spindle Hole.1-5/8", Center Height.5-3/16", Width of T Slots.0.5", Workload on Table - Maximum., Weight - Approximate.600 Lbs., Fanuc servo, Instruction Manual ...more
JUST ADDED!
8.27" Haas #HRT-210, brushless 4th axis CNC rotary table, 160 ft.lb. torque, 200 ft.lb. brake, 6 T-slots, pneumatic brake, in crate, 2022, Never Used
Category: CNC Rotary Tables and Indexers
Seller: Generation Machine Tools
Location: Sarasota, FL
Mfr: Haas
Model: HRT-210
Year: 2022
HAAS BRUSHLESS HRT-210 4th Axis Rotary Table New In Box Never Used USA #8472, ImperialMetricDimensions 20” x 25” x 16” H 20” x 25” x 16” H Weight 185lbs 185lbs HAAS BRUSHLESS HRT-210 4th Axis Rotary Table New In Box Never Used USA #8472, Reference #8472, Model # HRT-210 P-12, Serial ...more
JUST ADDED!

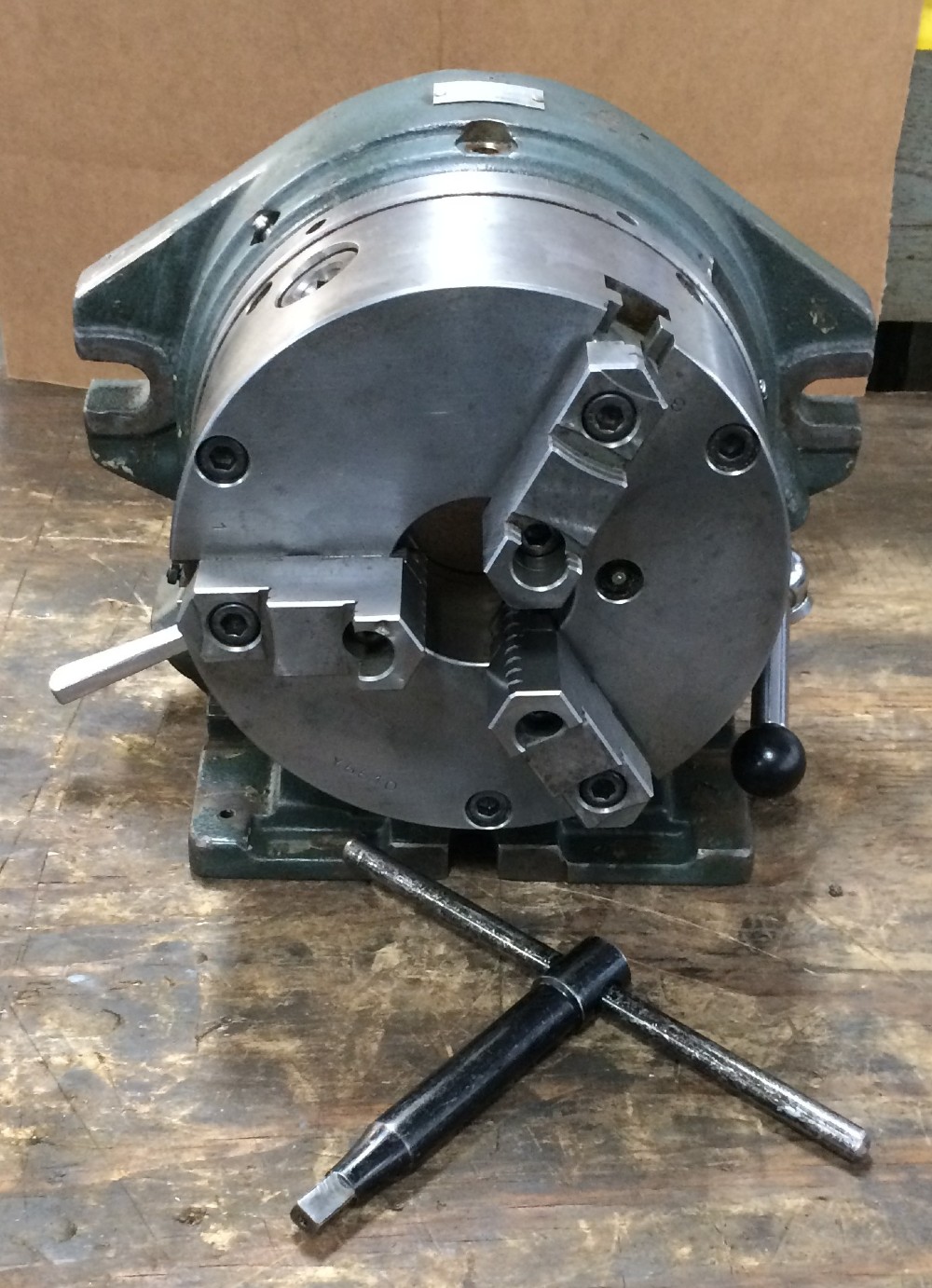

8" Yuasa #550-007, super spacer rotary indexer, 3-jaw chuck, 2.48" hole diameter, 5.87" center height, 25 sec. indexing accuracy
