Description

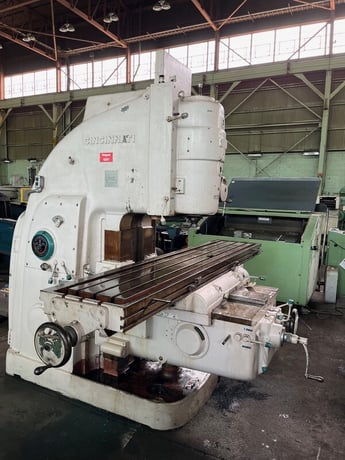

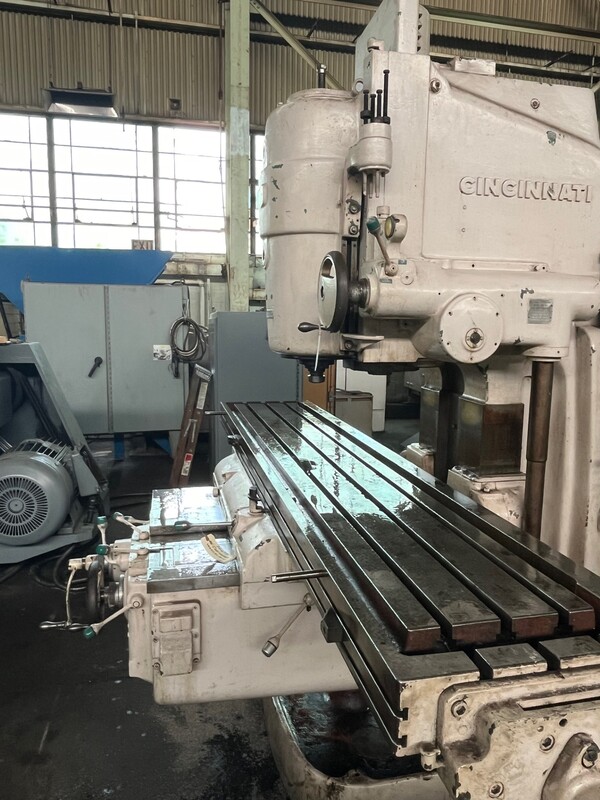

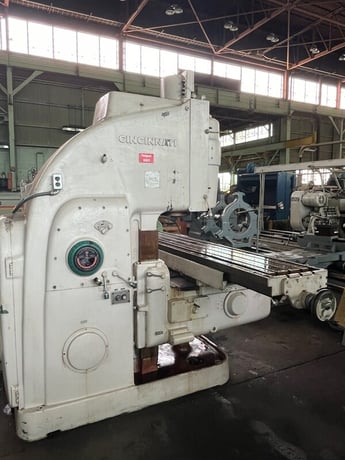

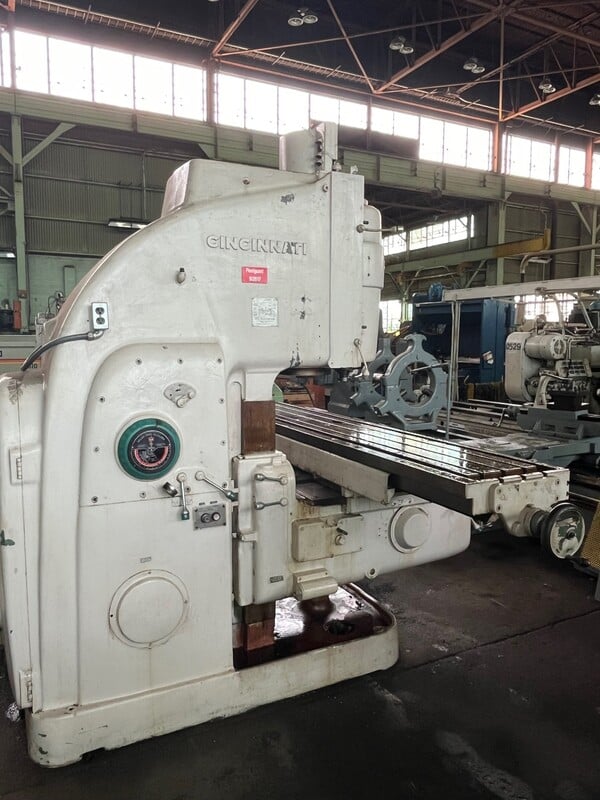

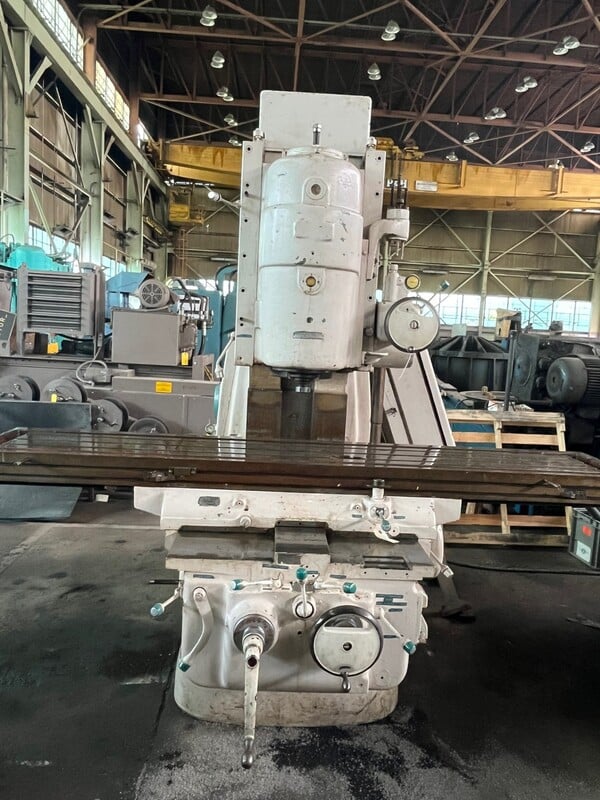

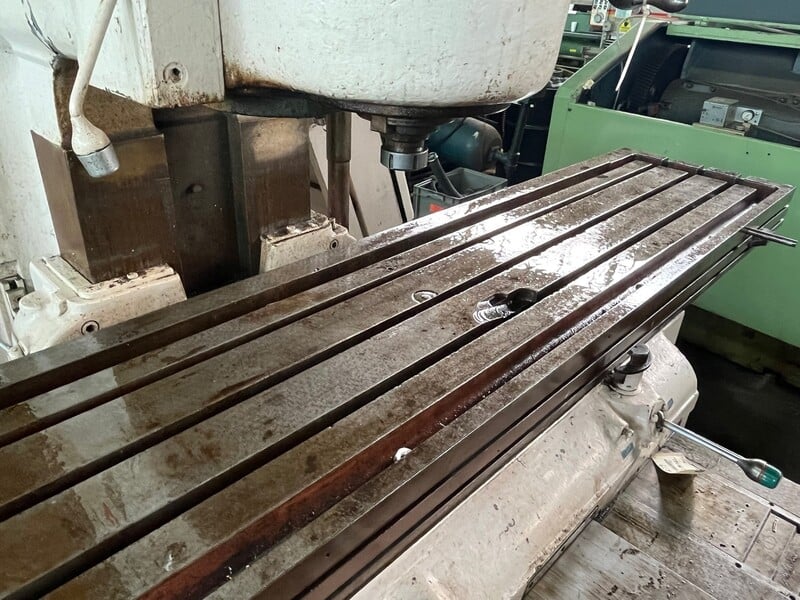

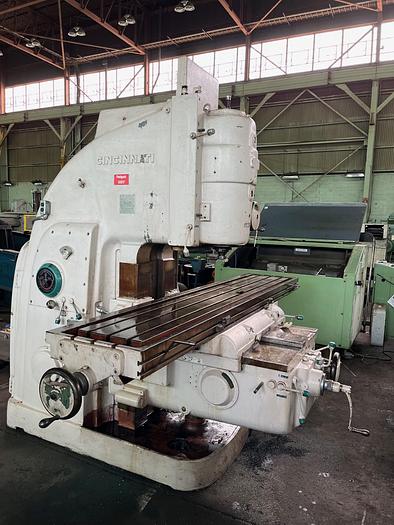

625-20 CINCINNATI-MILACRON "HIGH-POWER" DIAL-TYPE VERTICAL MILL Serial No. 4J6V5F-2, Model "LA" 625-20 CINCINNATI-MILACRON "HIGH-POWER" DIAL-TYPE VERTICAL MILL Serial No. 4J6V5F-2, Model "LA" EQUIPPED WITH: Motor On Knee Wide Knee & Saddle Turret Depth Stops CATALOG SPECIFICATIONS: Table Size, Overall, L x W 20" x 104-1/2" Table Working Surface, L x W 20" x 104-1/2" Longitudinal Table Travel 60" Cross Saddle Travel 18" Vertical Knee Travel 16" Spindle-Face to Table, Minimum 0" Spindle-Face to Table, Maximum 22" Spindle Taper #50 NSTD (24) Spindle Speeds, Range 14 to 1400 RPM (32) Longitudinal and Cross Feeds 3/8 to 90 IPM (32) Vertical Feeds, Range 3/32 to 22.5 IPM (32) Vertical Head Feeds, Range 3/16 to 45 IPM Power Rapid Traverse, Long. & Cross 150 IPM Power Rapid Traverse, Vertical 37.5 IPM Power Rapid Traverse, Spindle Head 75 IPM Spindle Motor, Horsepower 25 HP Feed Motor, Horsepower 5 HP Floor Space Required, W x D 11'3" x 15'3" Weight, Approximately 18,100 LBS F.O.B. OUR WAREHOUSE
SERIAL. 3J5V5J-3, AREA OF TABLE. 94-1/2" X 20", SPINDLE SPEEDS. (24) 14 TO 1400 RPM, LONGITUDINAL AND CROSS FEEDS. (32) 3/8 TO 90 IMP, VERTICAL FEEDS. (32) 3/16 TO 45 IPM, LONGITUDINAL TRAVEL. 50", CROSS TRAVEL. 18", VERTICAL TRAVEL OF HEAD. 8", VERTICAL TRAVEL OF KNEE. 16", DISTANCE SPINDLE TO TABLE. 0" MIN TO 22" ...more
Gorton LARS Model JIC-EGP Vertical Mill, Machines in good condition and has been well cared for. All major mechanical movements function smoothly., Model: Gorton LARS Model JIC-EGP, Motor: 200v 3ph, Table Size: 7”x20”, Table Travel: X, Y, and Z (Manual) with 15” rotary vise (removeable), Spindle ...more
KMA-3 SHARP HEAVY-DUTY BED TYPE VERTICAL MILL - 20 X 87 Table - Align Power Draw Bar - 59 X - 24 Y - 27.6 Z - NST #50 Taper, KMA-3 SHARP HEAVY-DUTY BED TYPE VERTICAL MILL, Serial No 5504, Model KMA-3, SerieS Bed Type, Newall DP 1200 3-Axis Digital Readouts, Align Power Drawbar w/Foot Pedal Control, Pendant Control ...more
