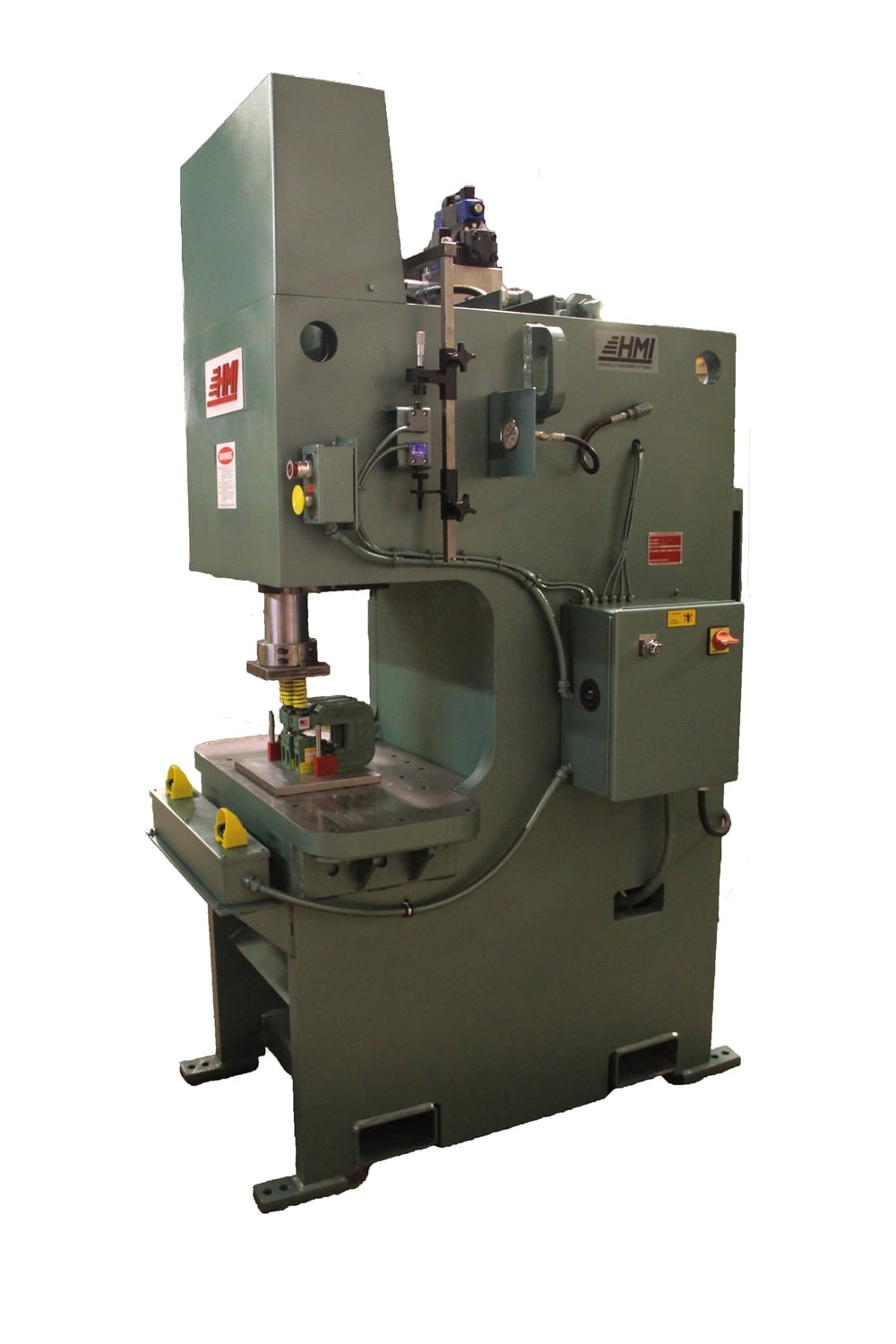

62 Ton, Betenbender #6014, Hydraulic C-Frame Press, 8" L Stroke, 14" D x 18" H Throat, 42" x 17" Press Platen, 22.5" between housings, 15 HP, 220 V, new

Description

Betenbender HMI 62 Ton Hydraulic C-Frame Press

Inventory # 6903

Model: 6014

Made in USA

Specifications:

Tonnage Capacity: 62 Tons

Length of Stroke: 8″

Throat Depth: 14″

Throat Height: 18″

Press Platen: 42″ x 17″

Floor to Press Platen: 36″

Distance Between Housing: 22 1/2″

Open Height: 18″

Shut Height: 7″

Rod Diameter: 3″

Cylinder Bore Diameter: 8″

1″ Cycles per Minute: 44

Pump Capacity: 11 GPM

Motor: 15 HP / 220v / 3ph

Standard Features:

Large heavy duty design of the press frame to limit the deflection

Press bed bolted on, not welded, to prevent distortion. Can be easily removed for regrinding or adding more tapped holes

Large rectangular tubes used at base of machine to give safe, instant portability. Oil reservoir is located vertically between the side plates to keep the machines foot print as small as possible

Hydraulic system is equipped with a wire mesh strainer on the suction side and a 10 micron filter on the return side to keep the system clean

Pump, motor, valve and reservoir are all easily accessible for maintenance

Large press bed to accommodate a variety of tooling other than just punching

Reservoir filled with oil

Lock out – Tag out accommodations

Operators manual

Mechanical Specifications:

Dimensions: 52″ x 42″ x 81.8″ H

Weight: approx. 8,100 lbs.

Contact us for special pricing

FOB Factory – Approximate 8 – 12 Week Lead-Time
