Description

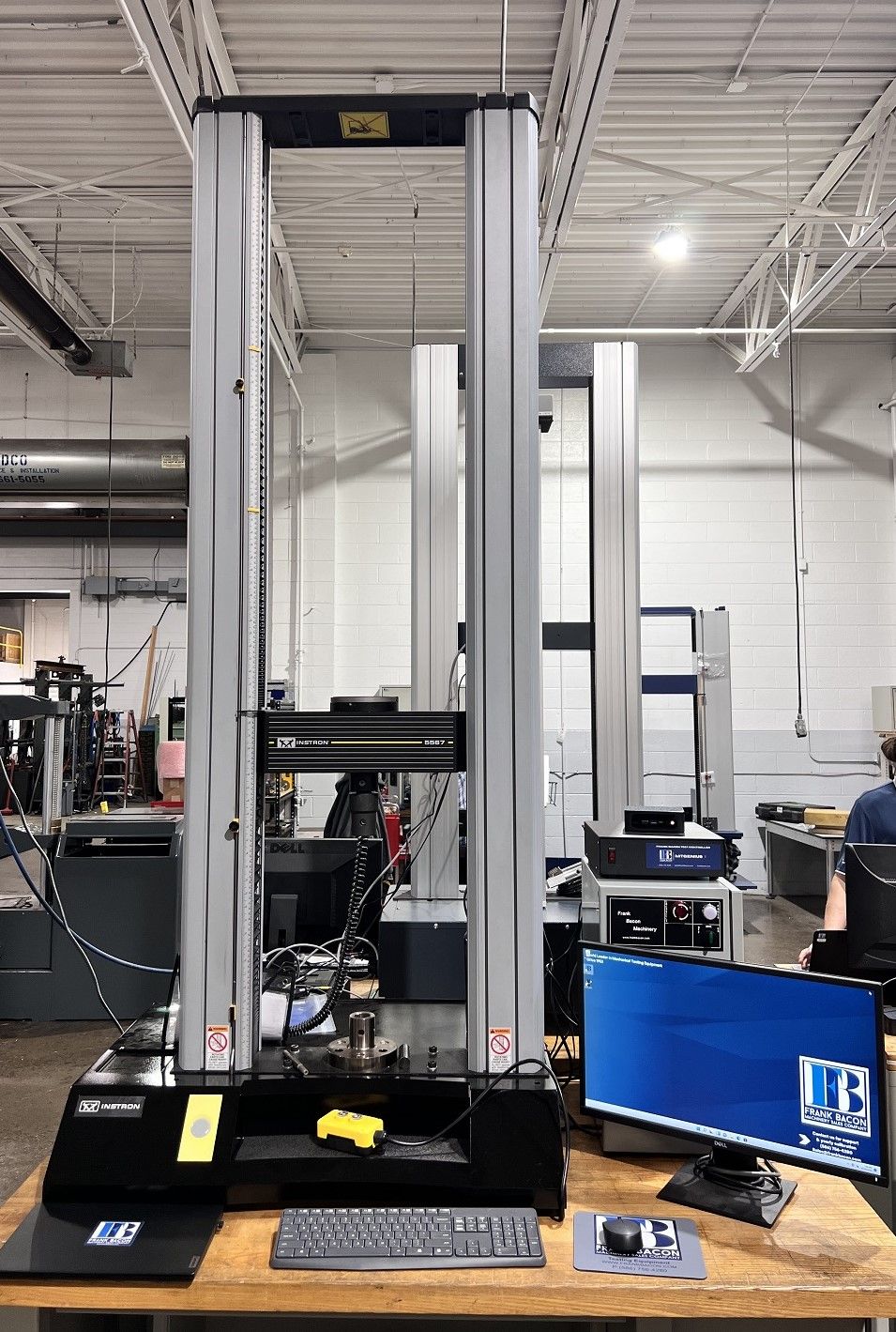

6K (30kN) Instron 5567 Tension and Compression Testing Machine
Instron 5567
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 65"
Compression Testing Opening (Less Tooling): 65"
Distance Between Columns/Screws: 16"
Testing Stroke: 65"
Testing Speed (IPM): .00002-20
Crosshead Adjusting Speed (IPM): 20
Position Resolution: .00024"
Approximate Overall Dimensions:
Load Frame (W x D x H): 33" x 31" x 86"
Approximate Weight (lbs): 700
Electrical Requirements: 230V, 60Hz, 1Phase
EQUIPPED WITH:
- Computer System with Keyboard & Mouse.
- 24" LED-Backlit LCD Color Monitor
- Microsoft Windows 10 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
- New Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
- 30kN Tension & Compression Load Cell
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
*Representative Images
| #13236-00
DOWNLOAD SPEC SHEET
