600 Amp. ABB, BreakMaster, 15 KV switch, 1 Section - NEMA 3R enclosure, 600 A Bus, 3 Phase/3 Wire, 15 kV, 95 kV BIL, 50/60 Hz, new

ABB BreakMaster 15kV Load Interrupter Switch - Unused Spare Equipment

Overview

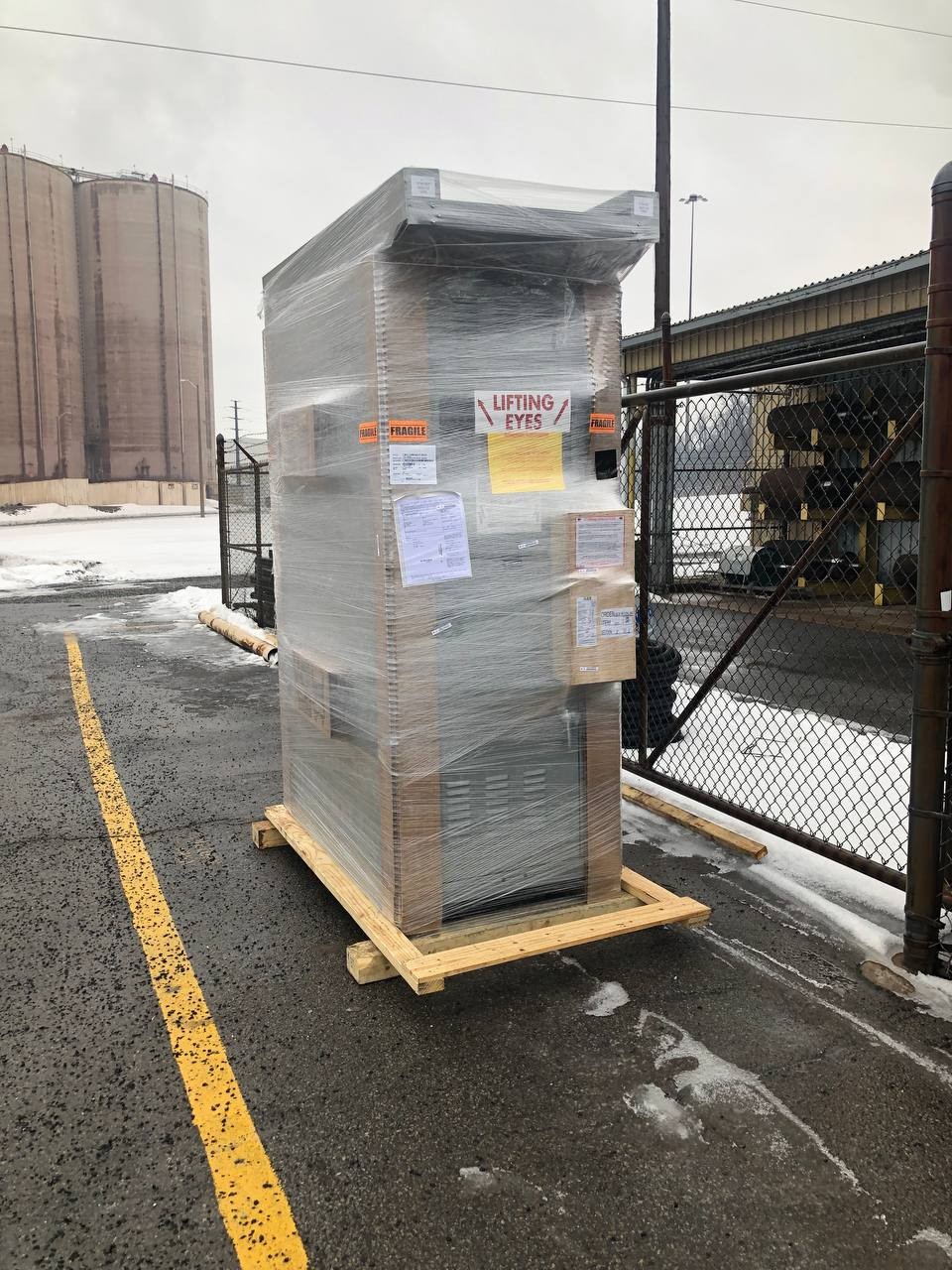

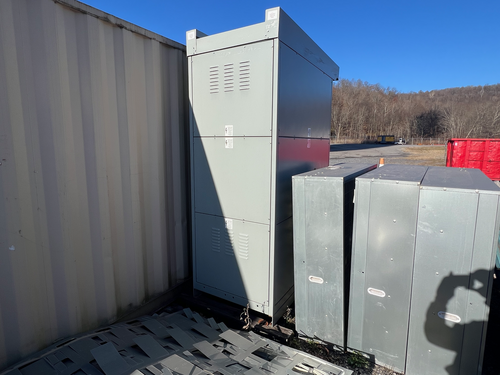

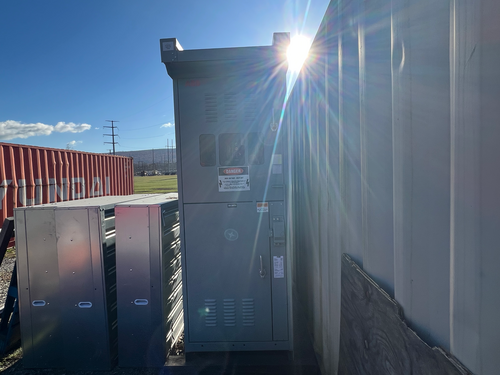

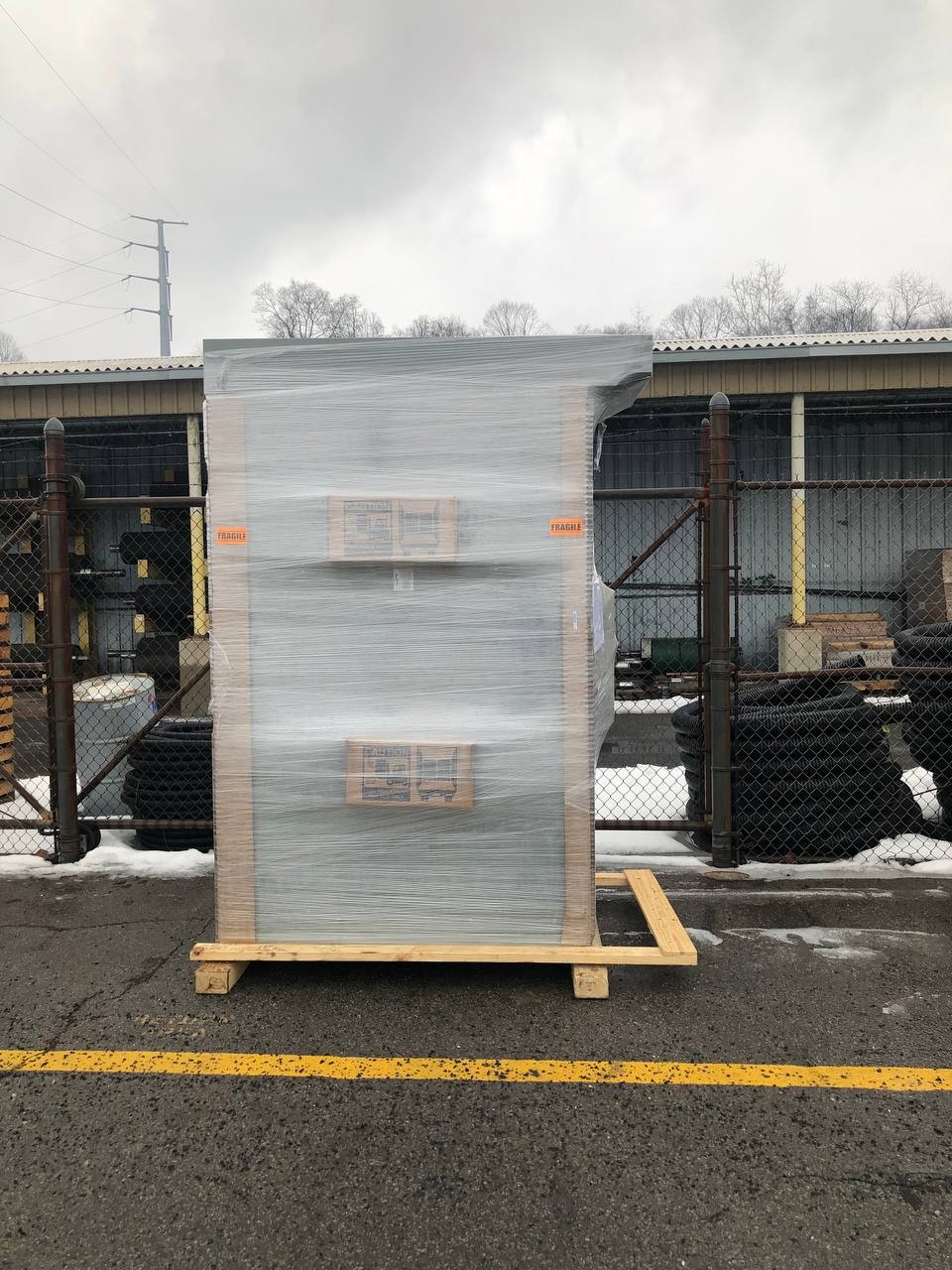

We are offering for sale an unused ABB BreakMaster Medium Voltage Load Interrupter Switch that was purchased new from the manufacturer in 2022 as spare equipment for our facility. This switchgear has been stored outdoors and has never been energized or put into service. It remains in new, factory condition.

Product Details

• Manufacturer: ABB
• Model: BreakMaster Load Interrupter Switch
• Configuration: Single switch, 1 section
• Condition: New/Unused - Purchased as spare equipment

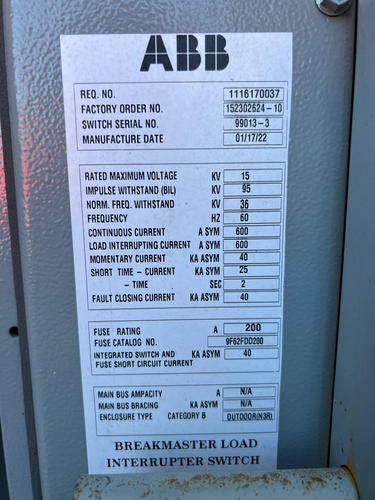

Electrical Specifications

• Rated Voltage: 15 kV
• Basic Impulse Level (BIL): 95 kV
• Normal Frequency Withstand: 36 kV
• Frequency: 60 Hz
• Continuous Current: 600 A
• Load Interrupting Current: 600 A Sym
• Momentary Current: 40 kA Asym
• Short Time Current: 25 kA Sym for 2 seconds
• Fault Closing Current: 40 kA Asym
• Bus Configuration: 3 Phase/3 Wire, Copper-Silver
• Grounding System: Solidly grounded

Physical Specifications

• Dimensions: 35" W x 99" H x 50" D
• Weight: 1,550 lbs
• Enclosure Type: NEMA 3R Outdoor
• Paint Finish: ANSI-61 Light Gray
• Access: Front and Rear Required

Included Features & Options

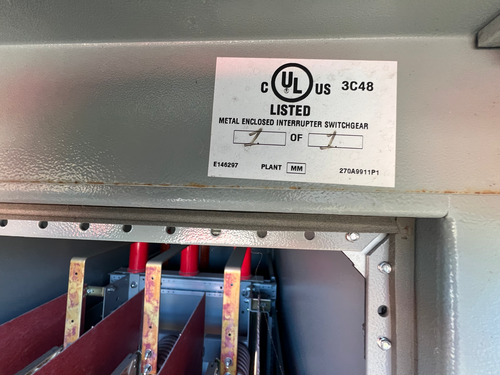

• UL Listed (File E146297)
• 99-inch height enclosure
• Bottom enclosing plate
• NEMA 3R dust resistant construction

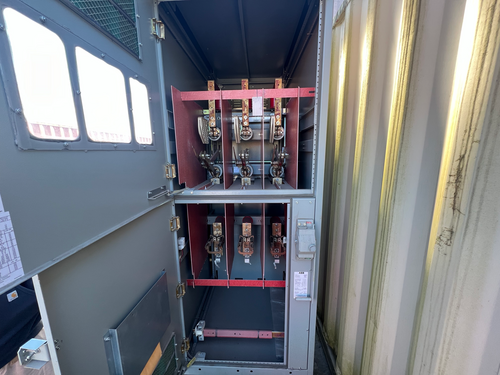

• Horizontal and full vertical barriers
• Front and rear door pad locks
• Non-removable handle
• Rodent barriers
• Space heaters (120/240 VAC) with thermostat
• Top entry: (1) 300 kcmil per phase, NEMA drill only
• Bottom exit: (1) 300 kcmil per phase, NEMA drill only
• Current limiting fuse model: 9F62FDD200
• Double barrel fuse clips

Compliance Standards

• ANSI C37.20.3
• ANSI C37.20.4
• ANSI C37.57
• ANSI C37.58
• CSA C22.2
• IEC 298
• IEC 420
• IEC 694
• IEC 60265-1
• UL File E146297

Additional Information

• Original ABB documentation and drawings included
• Suitable for indoor or outdoor installation (NEMA 3R)
• Category B switchgear
• Integrated switch and fuse design
• Fuse short circuit current rating: 40 kA Asym

This equipment represents an excellent opportunity to acquire high-quality, unused ABB switchgear at a significant discount from new equipment pricing. Perfect for industrial facilities, data centers, mining operations, or utility applications requiring reliable 15kV switching capability.

Location: Seward, PA Availability: Immediate Terms: As-is, where-is

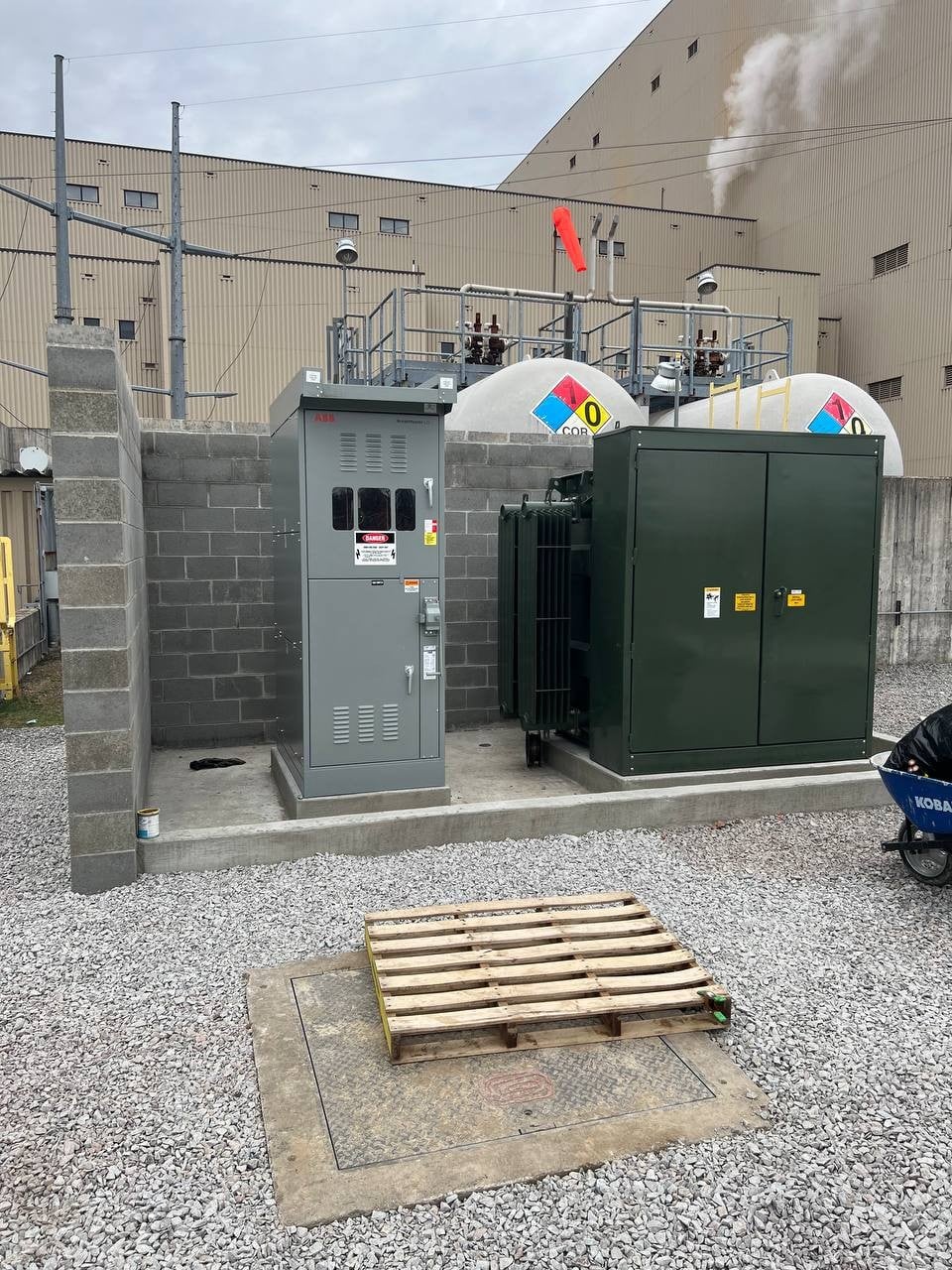

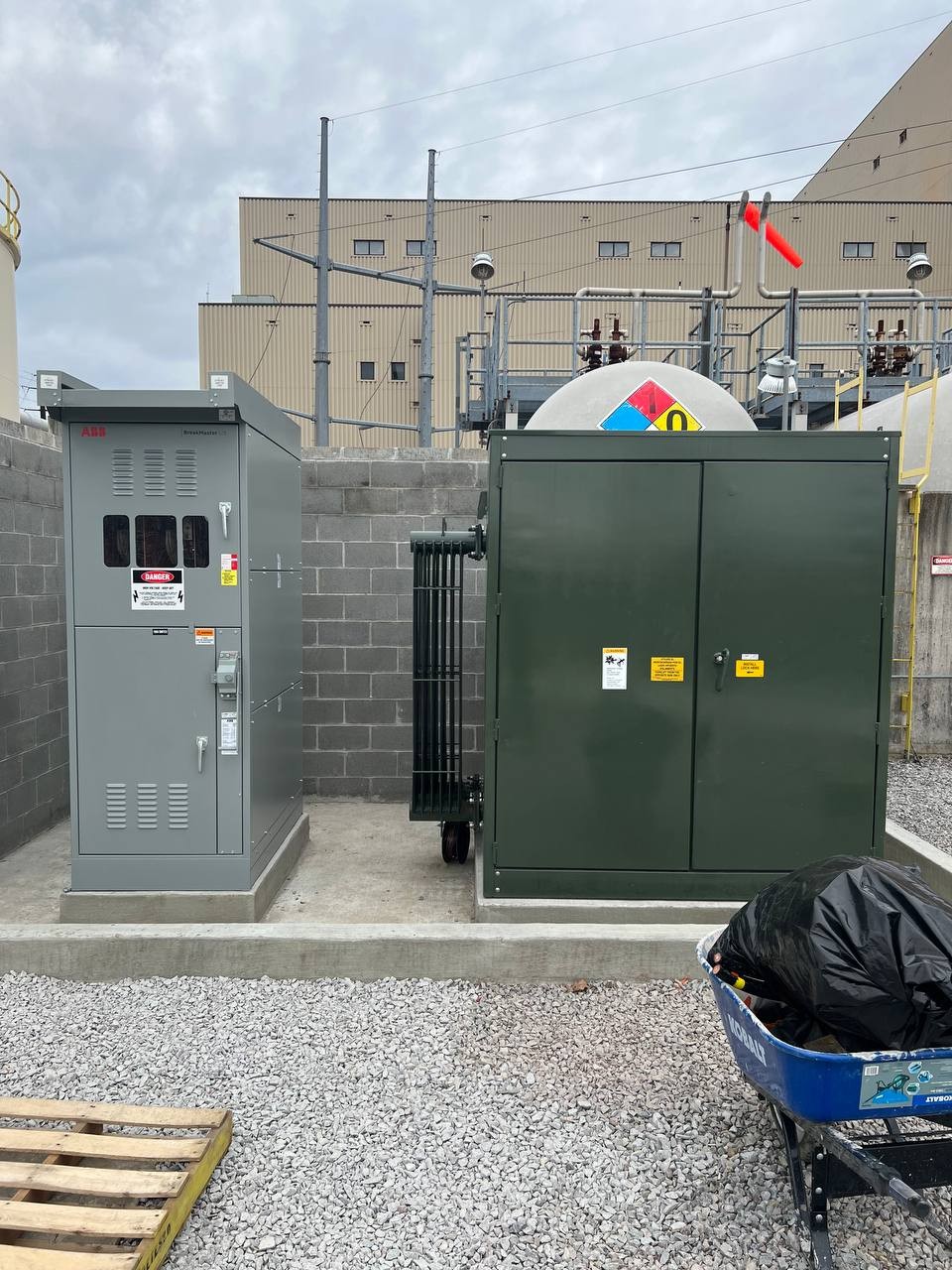

Note: The photos of the installed unit are the same exact unit that is in service. This unit is a new spare and not in service but on-site.

All reasonable offers will be considered. Please contact for additional information, photos, or to arrange inspection.
