60 HP William & Davis #780, horizontal firetube steam boiler, fully enclosed

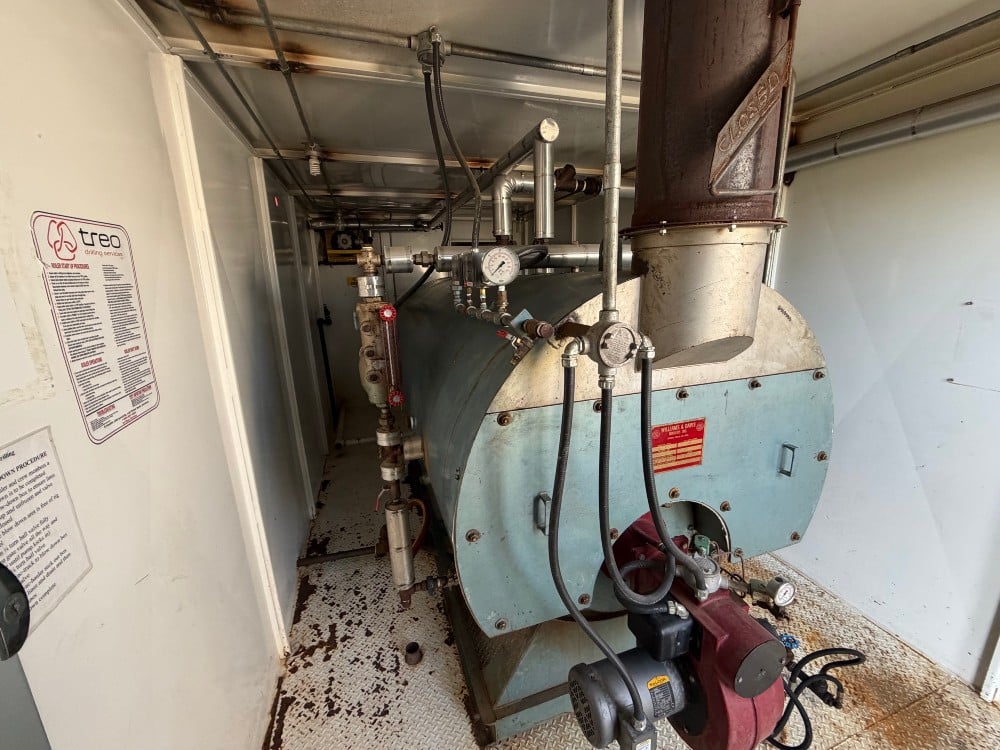

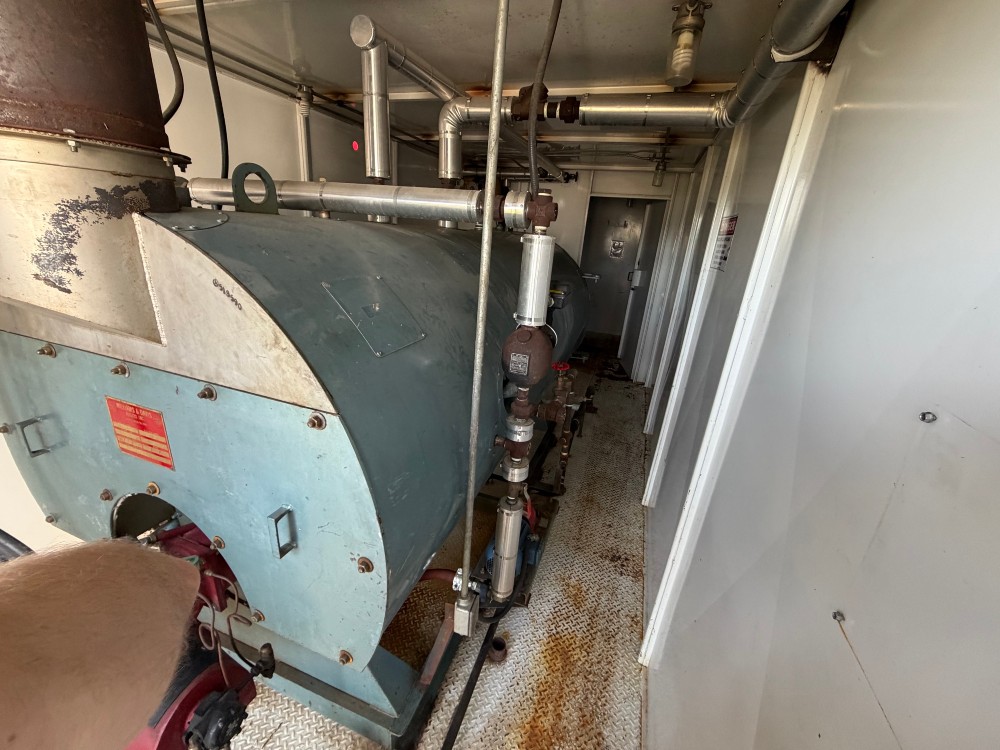

Williams & Davis Model 780 horizontal firetube steam boiler, fully enclosed in a portable boiler building. The boiler has been inspected internally, and the tubes are in excellent condition. The unit is complete and ready to be put to work.

Specifications:

• Manufacturer: Williams & Davis Boilers Inc.
• Boiler size: 60 HP
• Model: 780
• Serial number: 9153
• Estimated year: 2004
• Type: Horizontal firetube steam boiler
• Approximate output: 2,008,500 BTU/hr
• Approximate steam capacity: 2,070 lb/hr
• Tubes: 54
• Tube size: 2.5-inch diameter × 96 inches long
• Tubes are in excellent condition

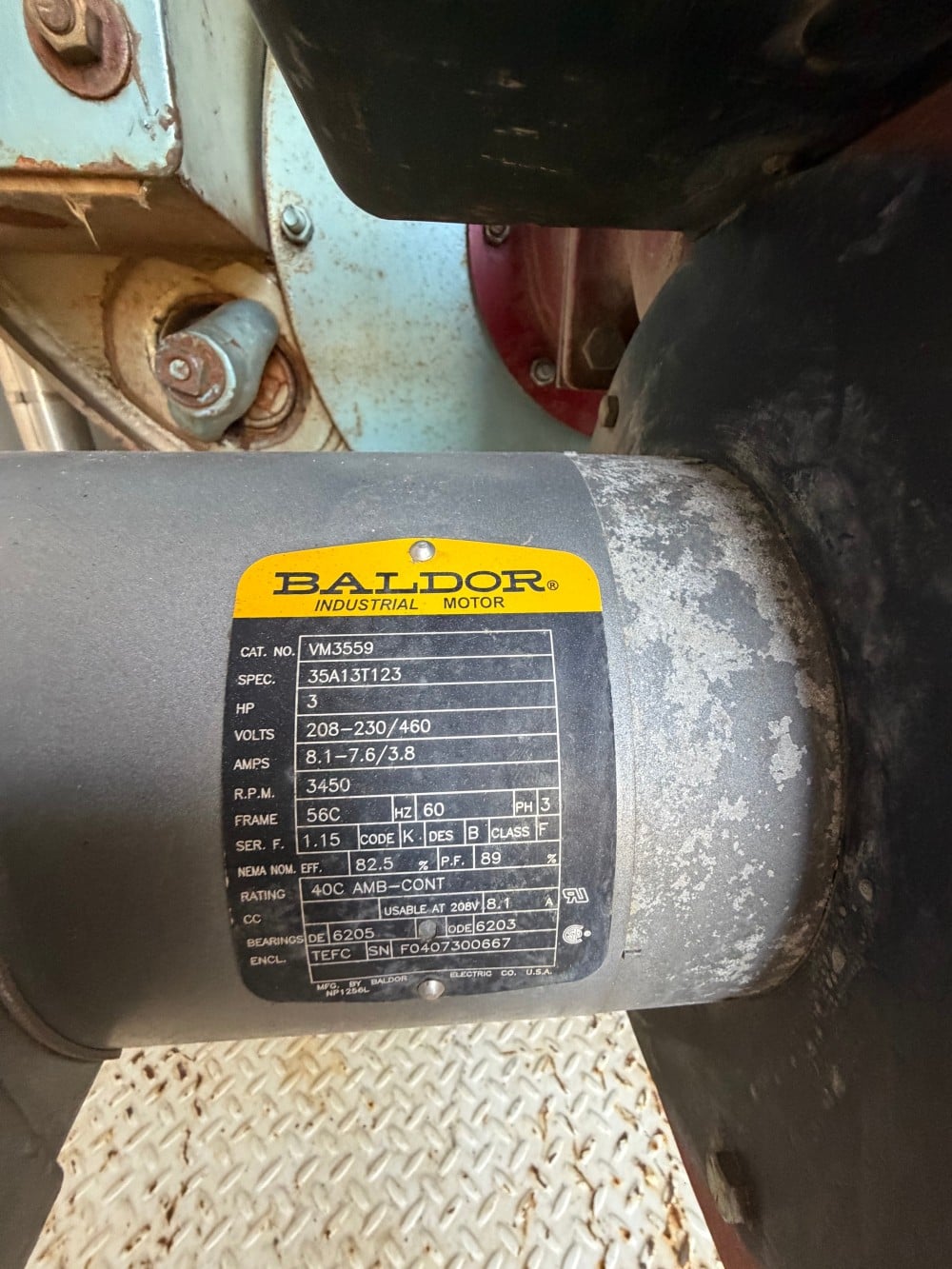

• Baldor 3 HP burner motor
• Motor power: 208–230/460 V, three-phase, 60 Hz
• Motor speed: 3,450 RPM

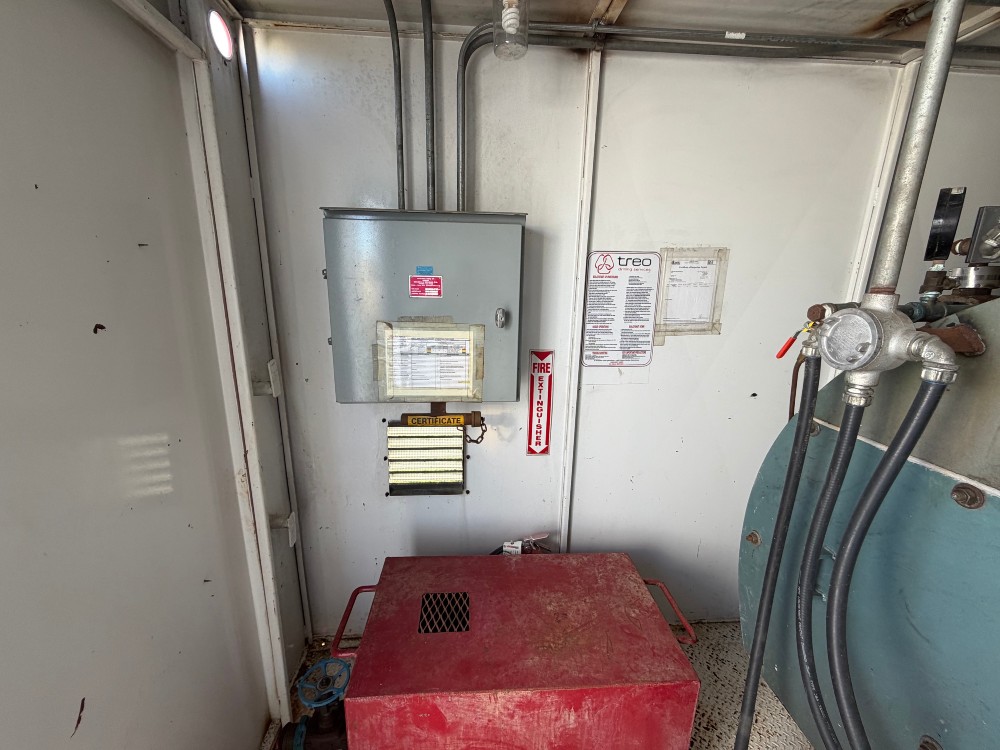

• Package electrical supply: 208 V, three-phase, approximately 30 A
• Control voltage: 120 V
• Boiler building manufactured by Dupre Boilers & Welding Ltd.
• Complete with burner, pressure gauge, sight glass, water-level controls, low-water cutoff, valves, piping and stack connection
• Enclosed portable boiler-room package

This is a solid, work-ready boiler package suitable for industrial steam requirements, temporary boiler service, facility backup, service rigs and other heating applications.
