6" x 18" Jones & Shipman #540E, surface grinder, 8" x 0.5" x 1.25" grinding wheel, 6" x 18" chuck, 2 HP, 1998

$9,950 USD

Request Formal Quote

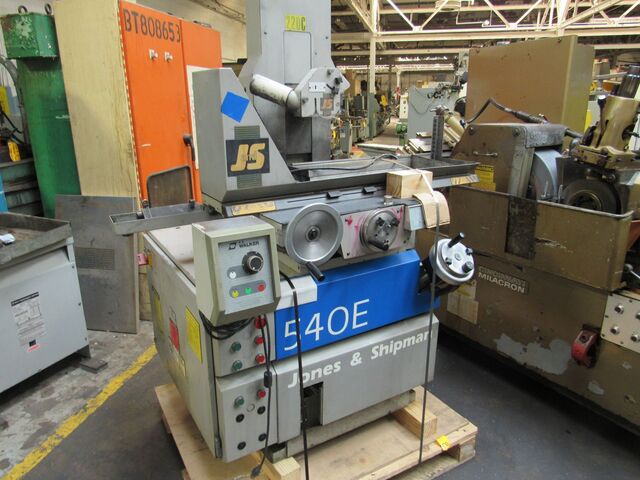

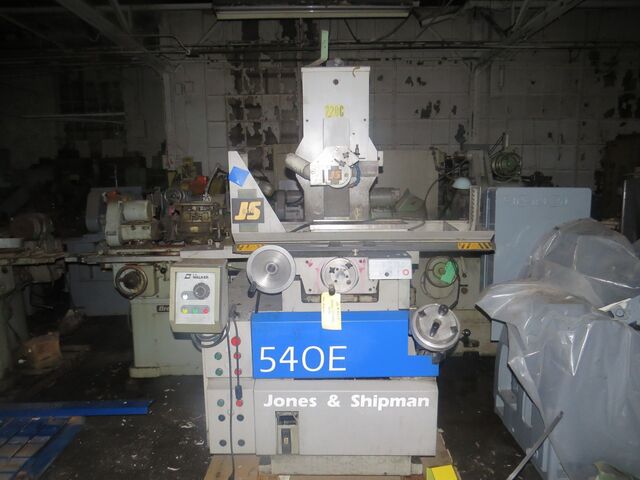

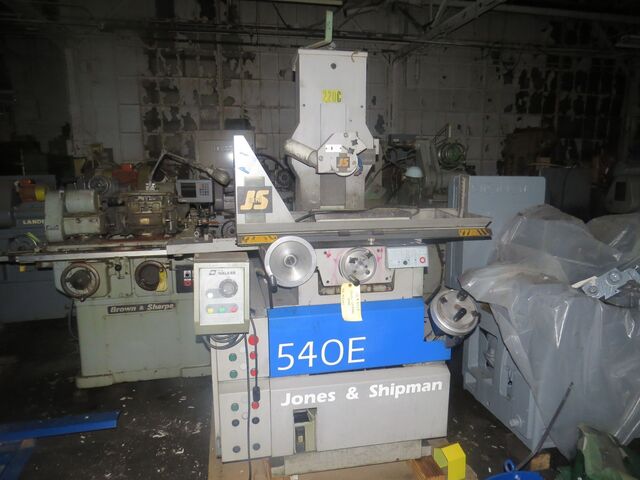

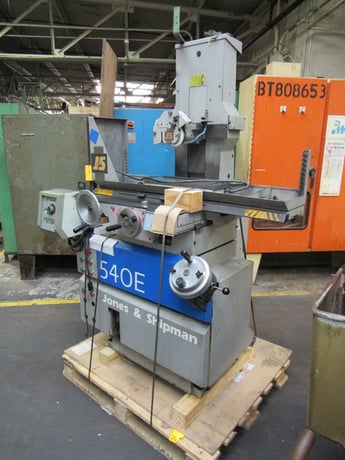

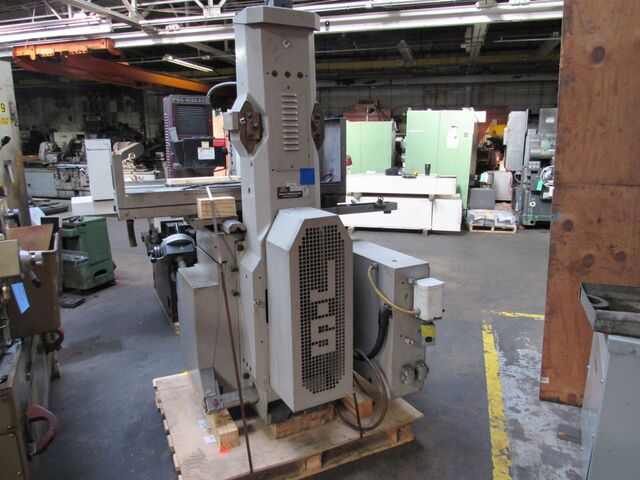

1998 Jones & Shipman 540E Horizontal Surface Grinder. Compact design, microprocessor control, and electric crossfeed. Features 8" grinding wheel, 6"x18" table size, 2 hp power, and hydraulic table traverse. Equipped with coolant system and VFD.
JONES & SHIPMAN 540E SURFACE GRINDER
S/N M20411 YEAR:1998
STANDARD SPECIFICATIONS
CONTROL PANEL:
"THE 540E MICROPROCESSOR HAS A TOUCH SENSITIVE CONTROL
PANEL WITH LED INDICATOR LIGHTS. THE CONTROL ALLOWS
THE OPERATOR TO SELECT CYCLE, CROSSFEED AND TABLE
FUNCTIONS, INDIVIDUALLY AND COMBINED. THE CROSSFEED
CAN OPERATE INTERMITTENTLY OR CONTINUOUSLY AND HAS
REVERSING OR SINGLE PASS AND TRIP FACILITIES. THE
CROSSFEED IS ELECTRICALLY OPERATED AND CONTROLLED,
WHILE THE TABLE TRAVERSE IS HYDRAULICALLY ACTUATED
AND ELECTRONICALLY CONTROLLED WITH PROXIMITY SWITCH
REVERSE DOGS."
WIDTH& LENGTH GROUND .................... 6" X 18"
TABLE:
LONGITUDINAL TABLE TRAVEL, HYDRAULIC .... 18.50"
LONGITUDINAL TABLE TRAVEL, MANUAL ...... 18.75"
HYDRAULICALLY POWERED TABLE SPEED ....... 6' TO 80' FPM
TABLE TRAVERSE PER REV. OF HANDWHEEL .... 2.4"
CROSSFEED:
CROSS TRAVEL ............................ 6.5"
MOVEMENT PER REV. OF HANDWHEEL .......... 0.2"
AUTO CROSSFEED INCREMENT ................ 0.005" TO 0.10"
CONTINUOUS FEED RANGE ................... 1" - 20"
CROSS FEED HANDWHEEL GRAD. .............. 0.001"
FINE CROSS FEED KNOB GRADUATED IN ....... 0.0001"
VERTICAL:
MOVEMENT PER REV. OF HANDWHEEL .......... 0.008"
VERTICAL HANDWHEEL GRAD. ................ 0.0001"
POWERED RISE & FALL ..................... YES, 14" IPM
MAX. VERTICAL MOVEMENT OF WHEELHEAD ..... 19.5"
CAPACITY BETWEEN WHEEL & TABLE .......... 15.75"

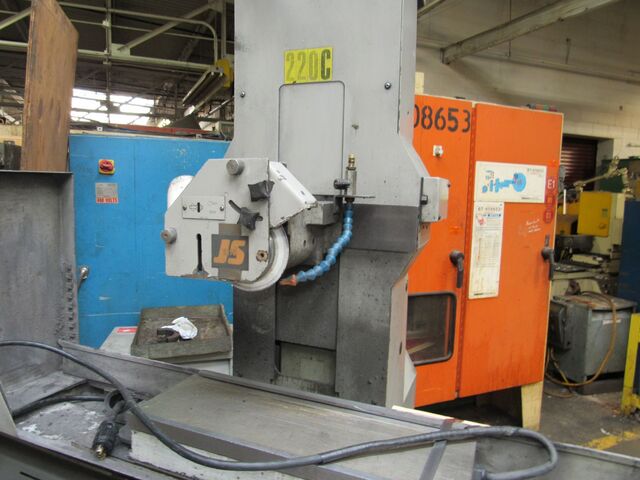

SPINDLE:
STANDARD GRINDING WHEEL ................. 8" X 1/2" X 1- 1/4"
SPINDLE MOTOR ........................... 2 H.P
WEIGHTS AND DIMS.:
APPROX. MACHINE WEIGHT .................. 2,100 LBS
MAX. LENGTH WITH TABLE TRAVERSING ....... 66.75"
MACHINE HEIGHT .......................... 73.75"
MACHINE DEPTH REQUIRED .................. 45.25"
MACHINE FEATURES:
COMPACT DESIGN, PERFECT FOR A HIGH-END TOOLROOM
MICROPROCESSOR CONTROL, DESCRIBED ABOVE
SELF-CONTAINED HYDRAULIC SYSTEM
HYDRAULIC LONGITUDINAL TABLE TRAVERSE
AUTOMATIC ELECTRIC CROSSFEED
POWER RAPID WHEELHEAD POSITIONING UP & DOWN
WHEELHEAD OPERATES ON BALL AND ROLLER SLIDE
ASSEMBLY FOR HIGH SENSITIVITY AND PRECISION.
EQUIPPED WITH:
COOLANT SYSTEM WITH FILTRATION
ELECTRONIC AC VFD, INFINITELY VARIABLE SPINDLE SPEEDS
O.S. WALKER FINE-DIVISION "LBP" ELECTRO-MAGNETIC CHUCK
O.S. WALKER "SMART SERIES" NEUTROFIER

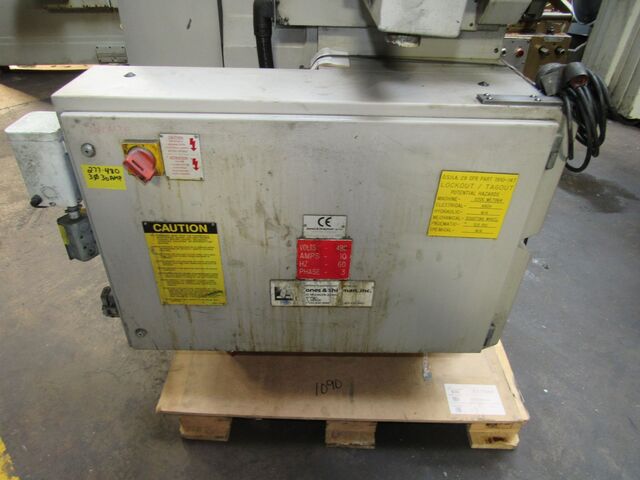

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
