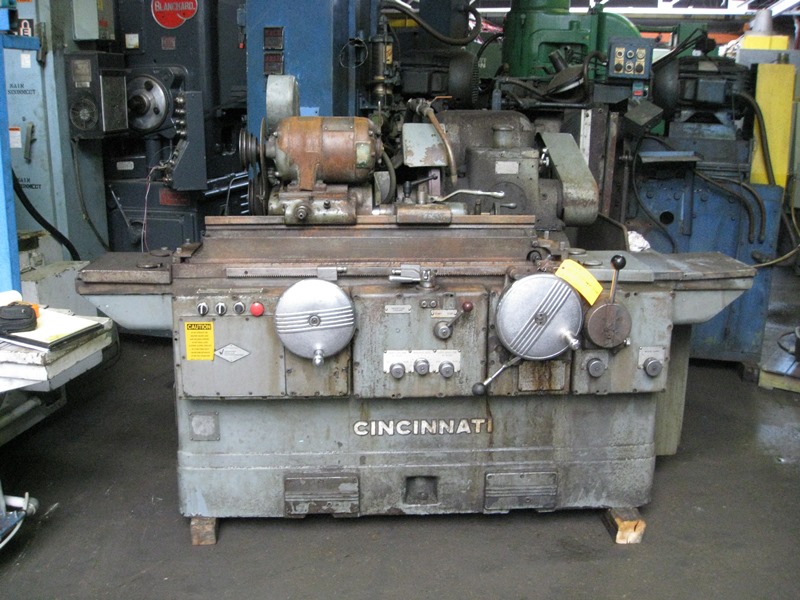

6" x 18" Cincinnati, plain cylindrical grinder, 6" diameter work capacity, 24" diameter x 4.5" width grinding wheel, 7.5 HP

6 x 18 Cincinnati Plain Grinder, 6" Swing, 18" Between Centers, 24" x 4.5" x 12" Grinding Wheel
6 x 18 CINCINNATI PLAIN CYLINDRICAL GRINDER
S/N 3P1A1L-8
STANDARD CATALOG SPECIFICATIONS
Maximum swing over table........................... 6
Maximum diameter machine will grind with full
size wheel (24 diameter)..........................6
Minimum diameter machine will grind with worn
out wheel.......................................... 0
Nominal distance between centers................... 18
Swivel table graduated towards wheel head.......... 12 Degrees
To angle of away from wheel head................... 5 Degrees
Swivel table graduated towards wheel head.......... 5
Taper per foot away from wheel head................... 2
GRINDING WHEEL HEAD(Grinding wheel not supplied)
Diameter of spindle................................ 3 5/8
Center distance between bearings................... 18 7/8
Distance between inner edge of wheel and front
edge of front bearing.............................. 3/8
IN FEED ADJUSTMENT
Wheel head movement per revolution of in feed
hand wheel(direct)................................ .050
Minimum in feed increment,diameter reduction...... .0001
Automatic in feed at table reversal, minimum....... .0004
Diameter reduction................. maximum........ .0028
One graduated space on dial, dia. reduction........ .0004
MISCELLANEOUS
Distance floor to work centers..................... 41 1/2
POWER REQUIREMENTS
Wheel head motor, HP...............................7.5 H.P.
Hydraulic pump motor, HP........................... 1 1/2
Head stock motor, HP............................... 3/4 or 1
Spindle lubricating motor, HP...................... 1/3
Coolant pump motor, HP............................. 1/4
TABLE TRAVERSE
Number of table traverse rates..................... Infinite
Range of table traverse rates, inches per min...... 3 - 220
Minimum movement of table necessary for
automatic reversal................................. 3/32
Accuracy of table reversal at all traverse rate.... .004
Table tarry adjustment............................. 0-5 sec.
Hand table traverse rate per revolution of
hand wheel......................................... 1
EQUIPMENT FEATURES
24 Wheel diameter x 4.5wide
R.H. L.H tarry
Level operated tail stock
FLOOR SPACE SHIPPING DATA
Floor space required............................... 84 1/4 x 112
Net weight......................................... 7,500 lbs.
Specifications are deemed accurate, however, subject to verification or prior sale.
