For Sale by C.W. Wood Machinery Inc
Surplus Record Dealer Since 1965
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 800...> Show Phone Number 800-745-6008
Let the seller know you found their listing on Surplus Record!
Description

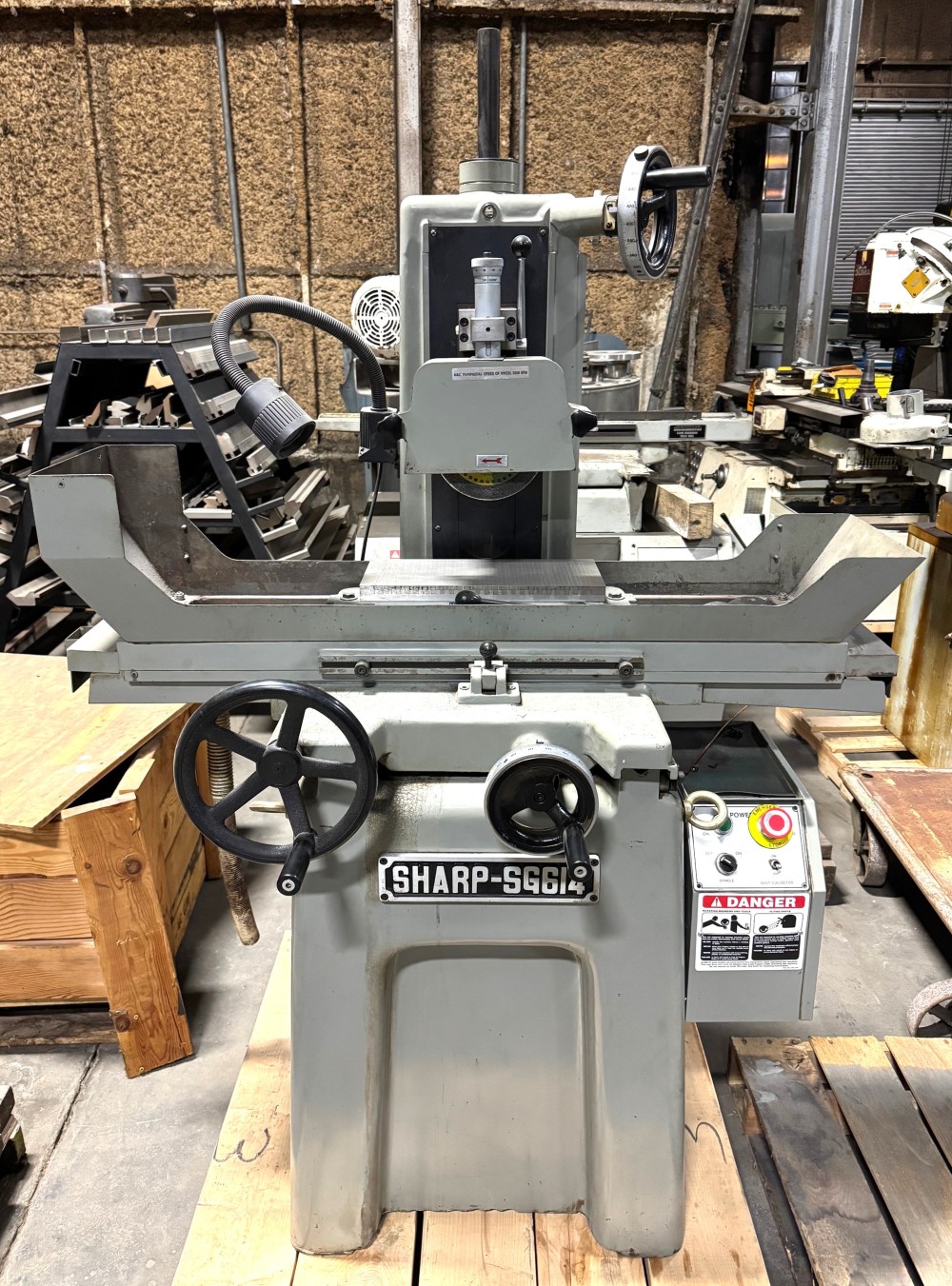

SHARP SURFACE GRINDER
MODEL: SG614
SERIAL NUMBER: 86C1316
GENERAL SPECIFICATIONS
Maximum Grinding Length: 14.5"
Maximum Grinding Width: 6.3"
Maximum Distance From Spindle Center To Table Surface: 15.7"
Working Surface Area: 14.3" x 6"
Maximum Longitudinal Movement: 15"
Maximum Cross Movement: 7"
Longitudinal Movement Of Table Hand Feed Per Revolution: 4.2"
Cross Movement Of Saddle Handwheel Per Revolution: 0.2"/rev
Graduation Of Handwheel: .00005"
Vertical Movement Of Wheel Head Per Revolution: .05"/rev
Graduation Of Handwheel: .0002"
EQUIPPED WITH
2 HP Spindle Motor
6" x 14" Walker Ceramax Permanent Magnetic Chuck
Dresser
Approximate Weight:
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
MODEL: SG614
SERIAL NUMBER: 86C1316
GENERAL SPECIFICATIONS
Maximum Grinding Length: 14.5"
Maximum Grinding Width: 6.3"
Maximum Distance From Spindle Center To Table Surface: 15.7"
Working Surface Area: 14.3" x 6"
Maximum Longitudinal Movement: 15"
Maximum Cross Movement: 7"
Longitudinal Movement Of Table Hand Feed Per Revolution: 4.2"
Cross Movement Of Saddle Handwheel Per Revolution: 0.2"/rev
Graduation Of Handwheel: .00005"
Vertical Movement Of Wheel Head Per Revolution: .05"/rev
Graduation Of Handwheel: .0002"
EQUIPPED WITH
2 HP Spindle Motor
6" x 14" Walker Ceramax Permanent Magnetic Chuck
Dresser
Approximate Weight:
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
