Manufacturer: Chevalier
Model: FSG-2A618
Year: 1998
Width/Cross: 6.0
Length/Longit.: 18.0
Stock # GMT-8315
Price: $6,950 USD
1 / 10
Click to zoom in
1 / 10
For Sale by Generation Machine Tools
Surplus Record Dealer Since 2018
Location: Sarasota, FL
Contact Matthew Schulman
Phone Number: 800...> Show Phone Number 800-638-8888
Let the seller know you found their listing on Surplus Record!
$6,950 USD
Description
Description

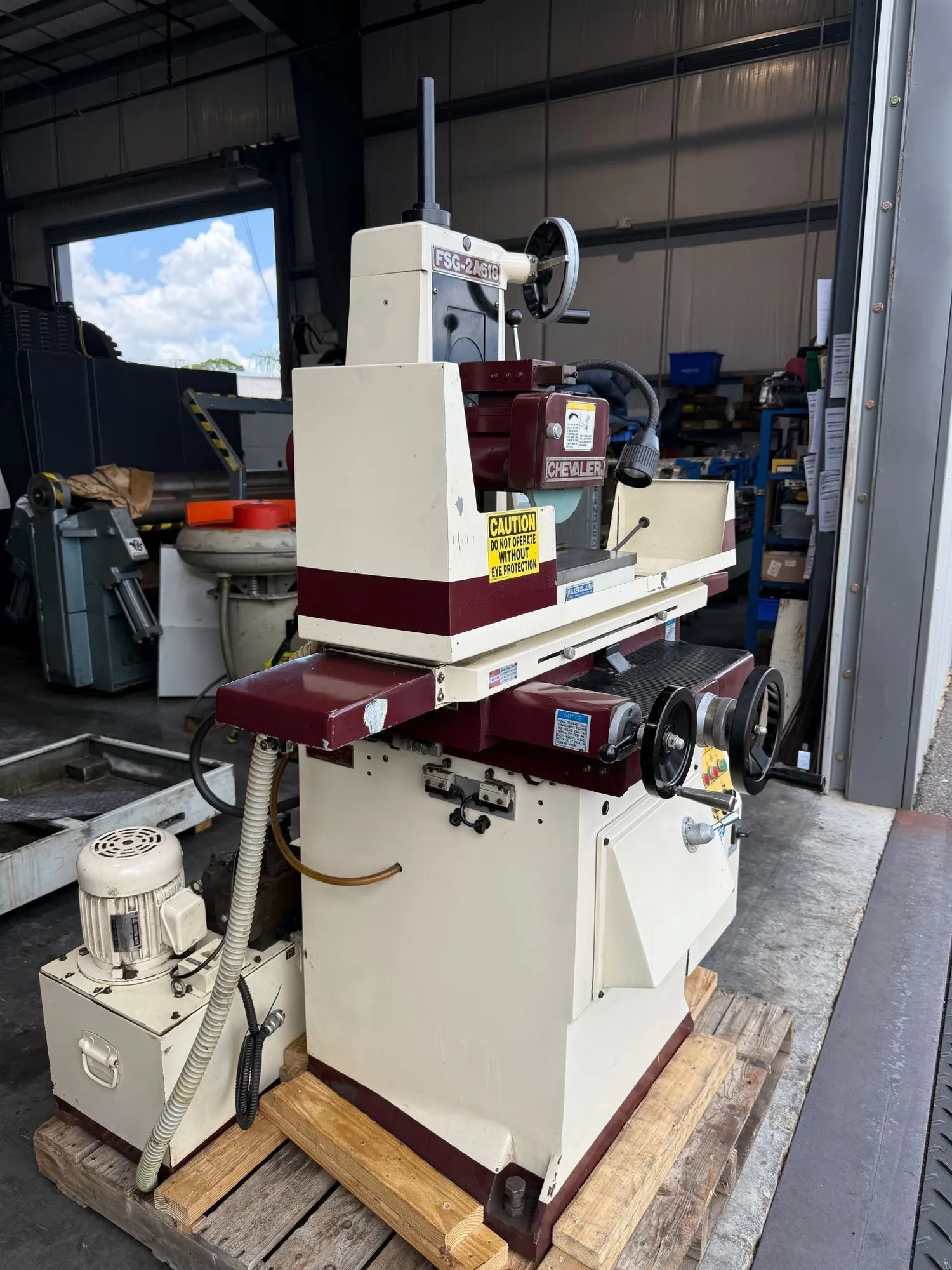

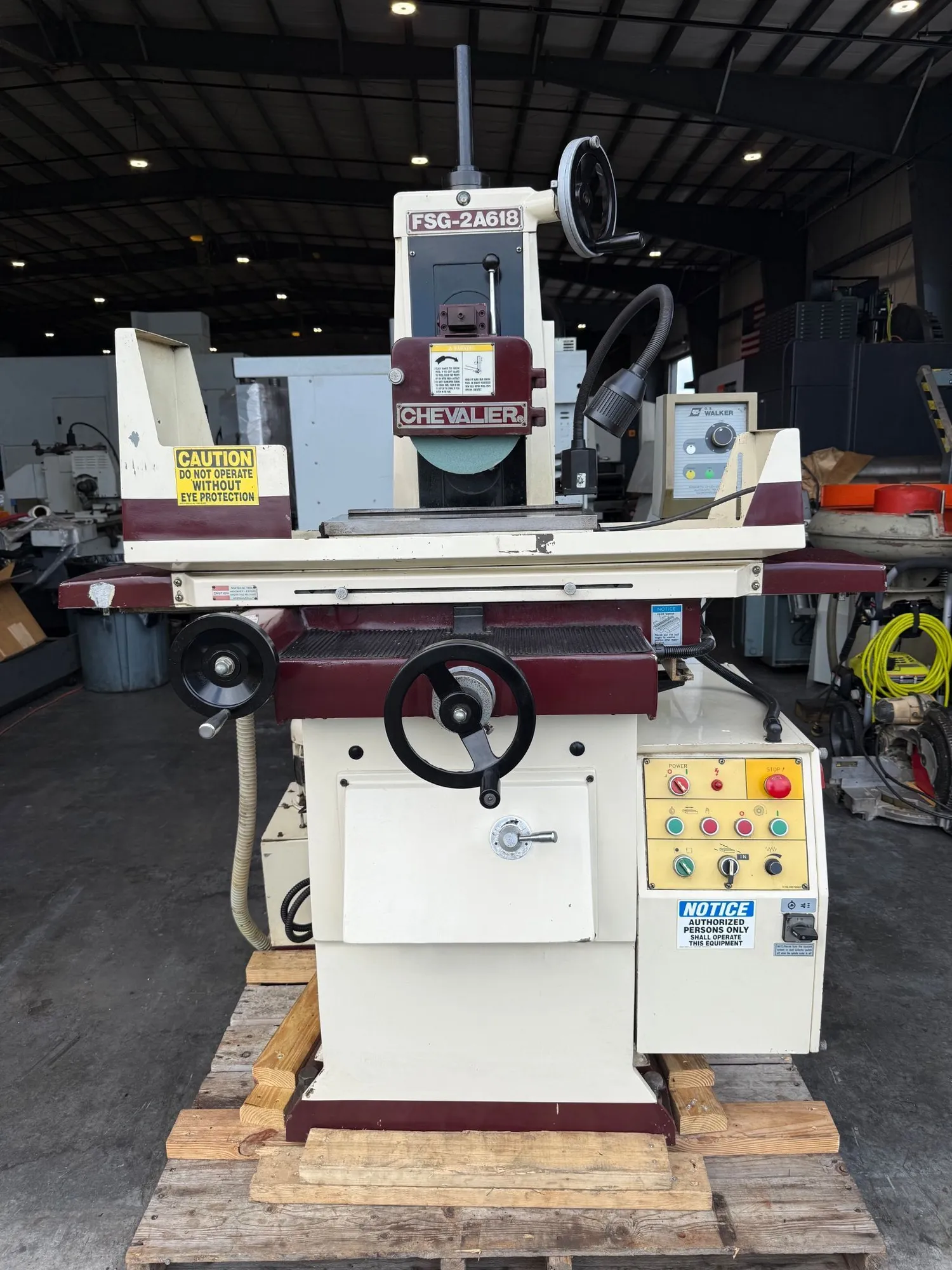

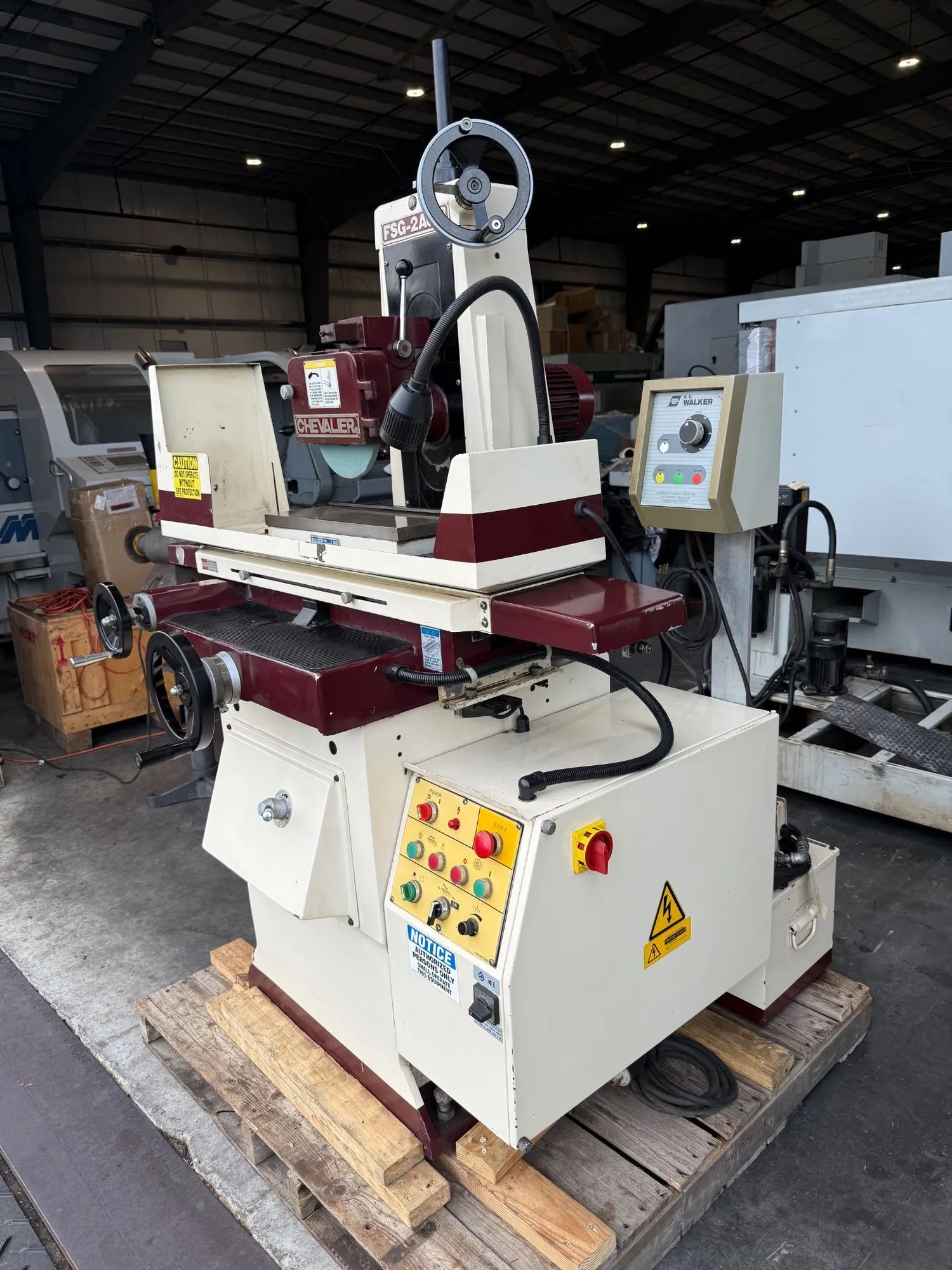

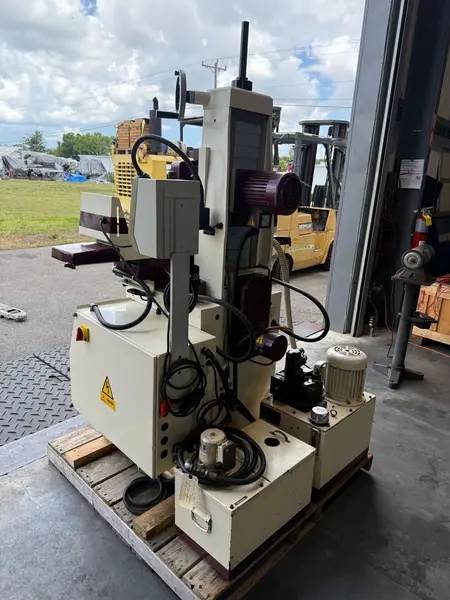

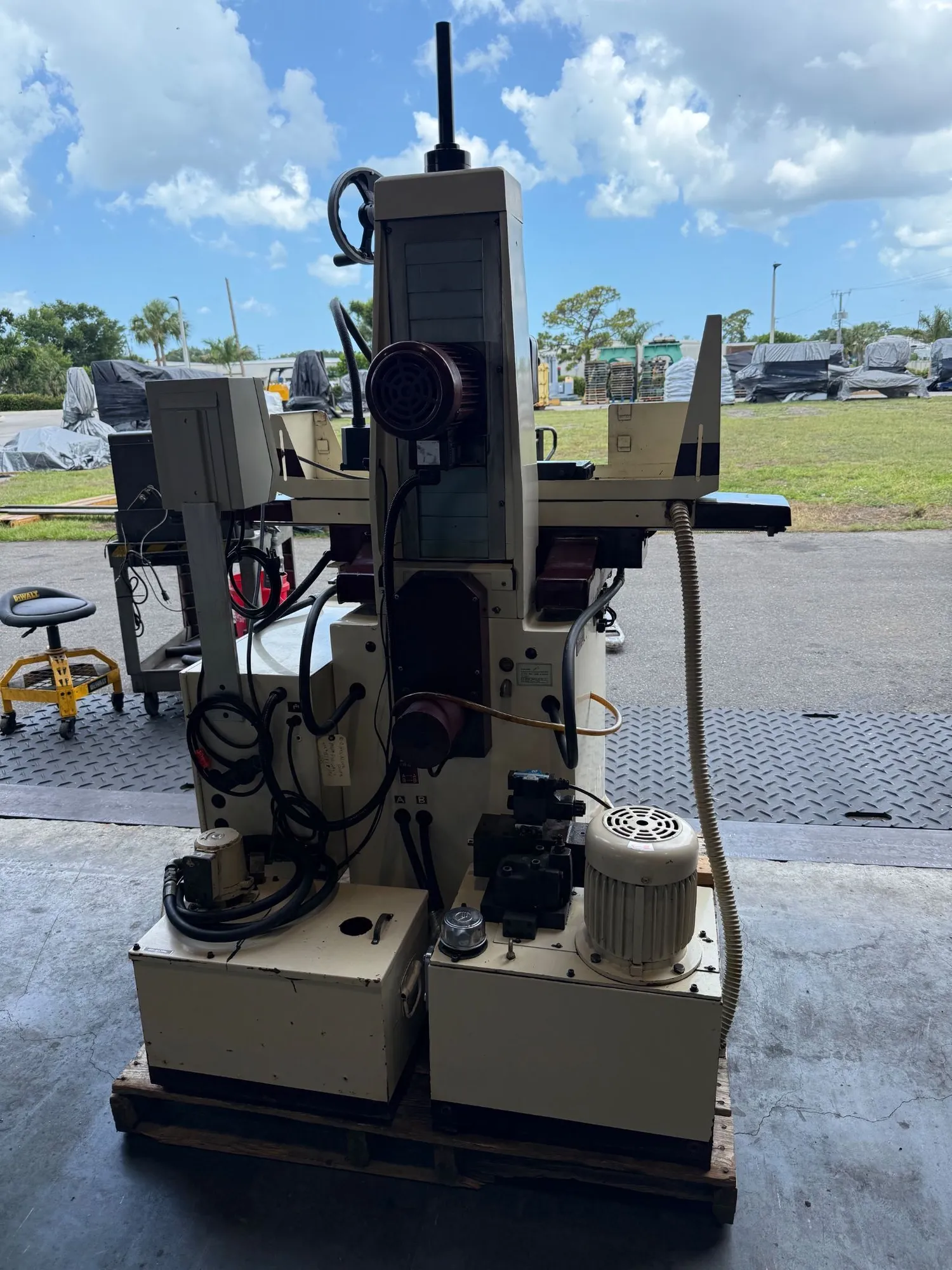

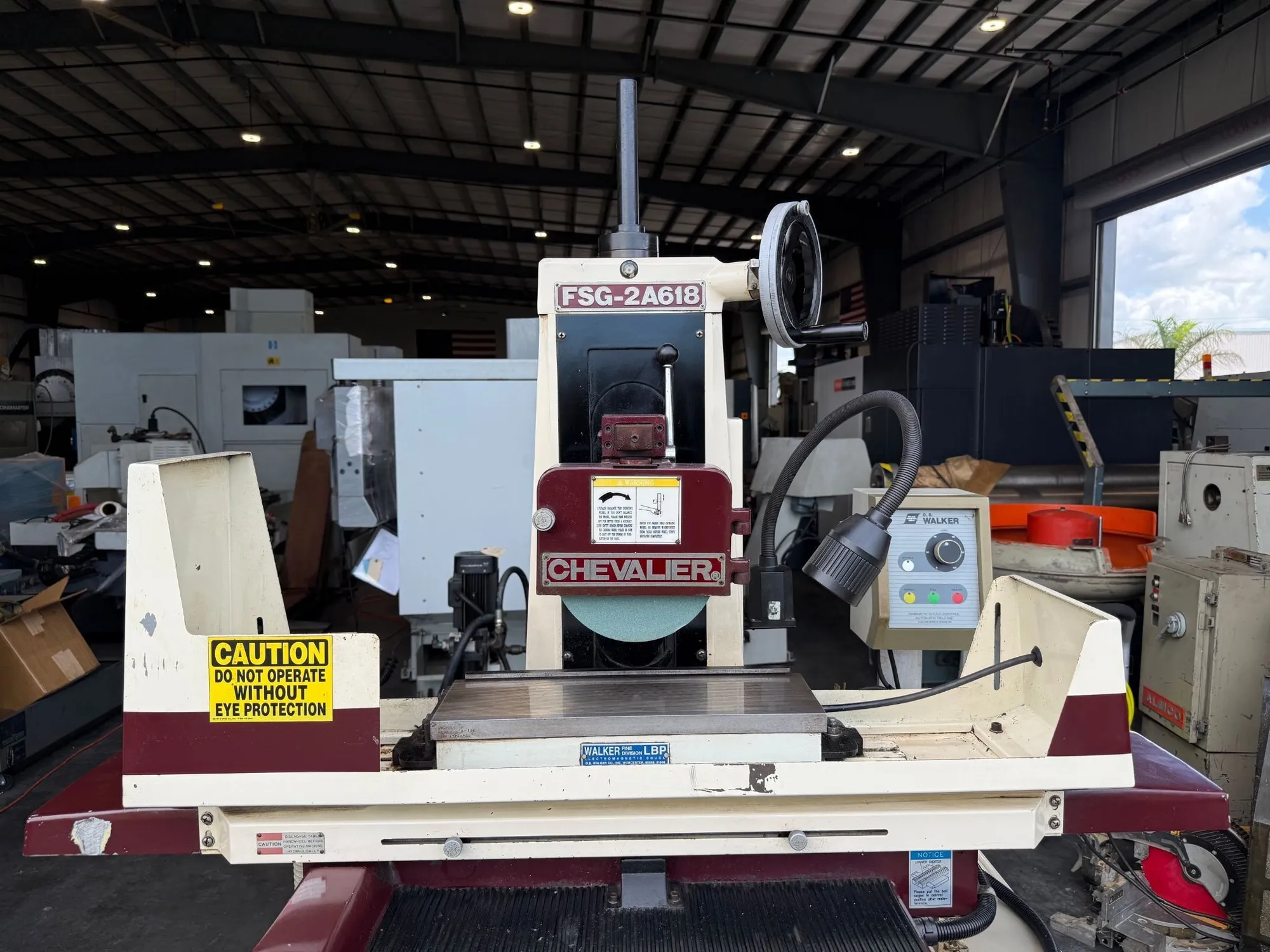

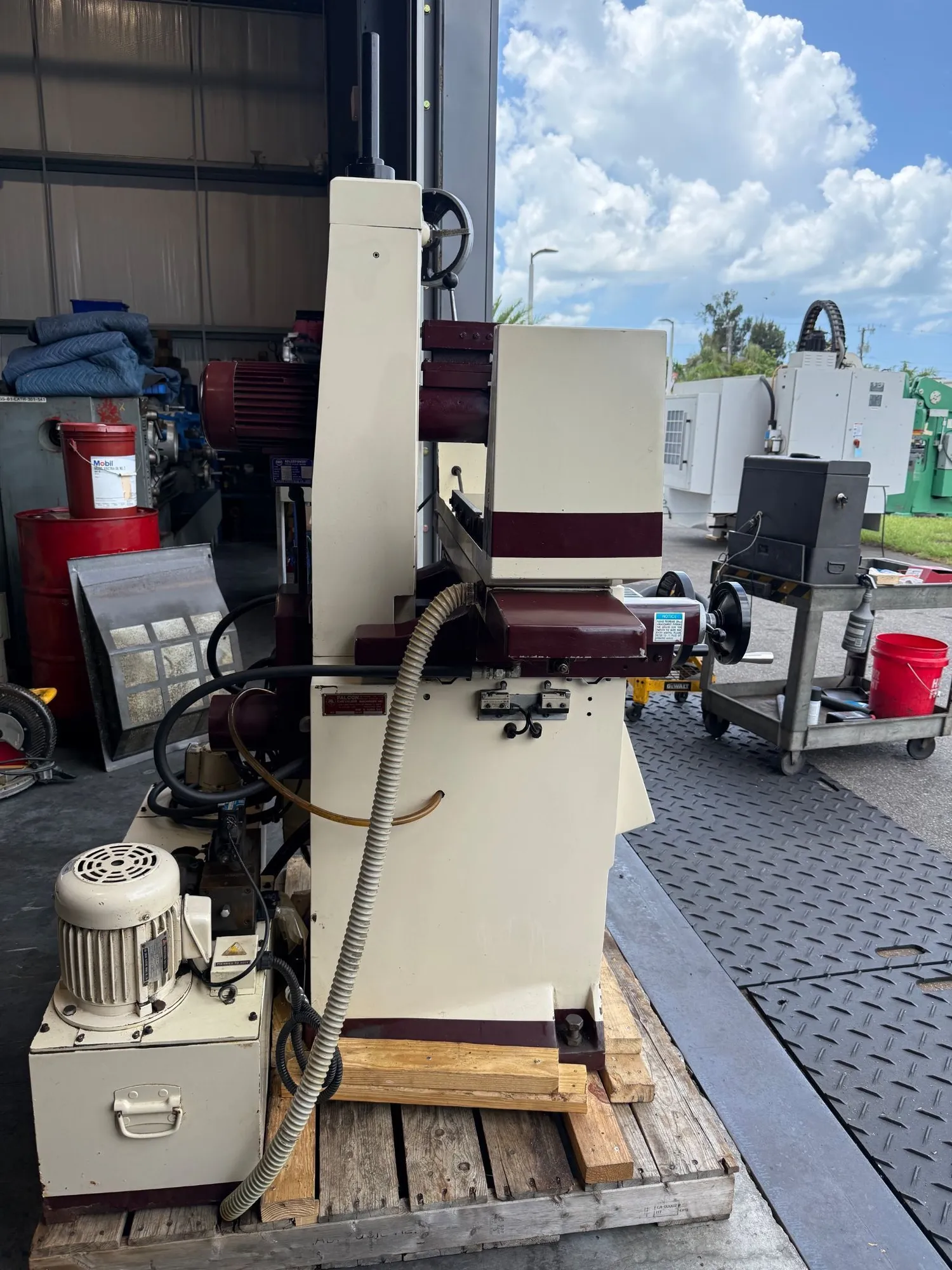

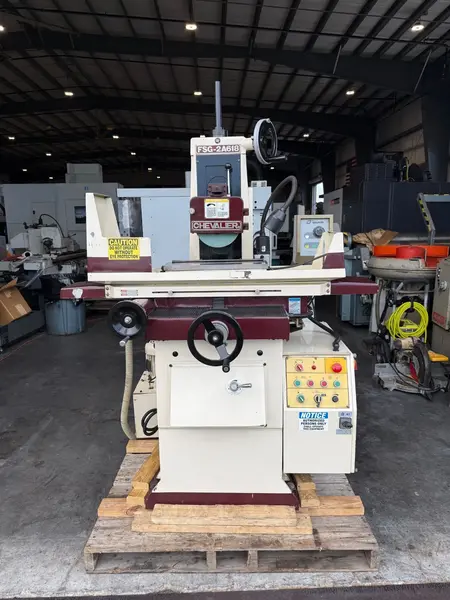

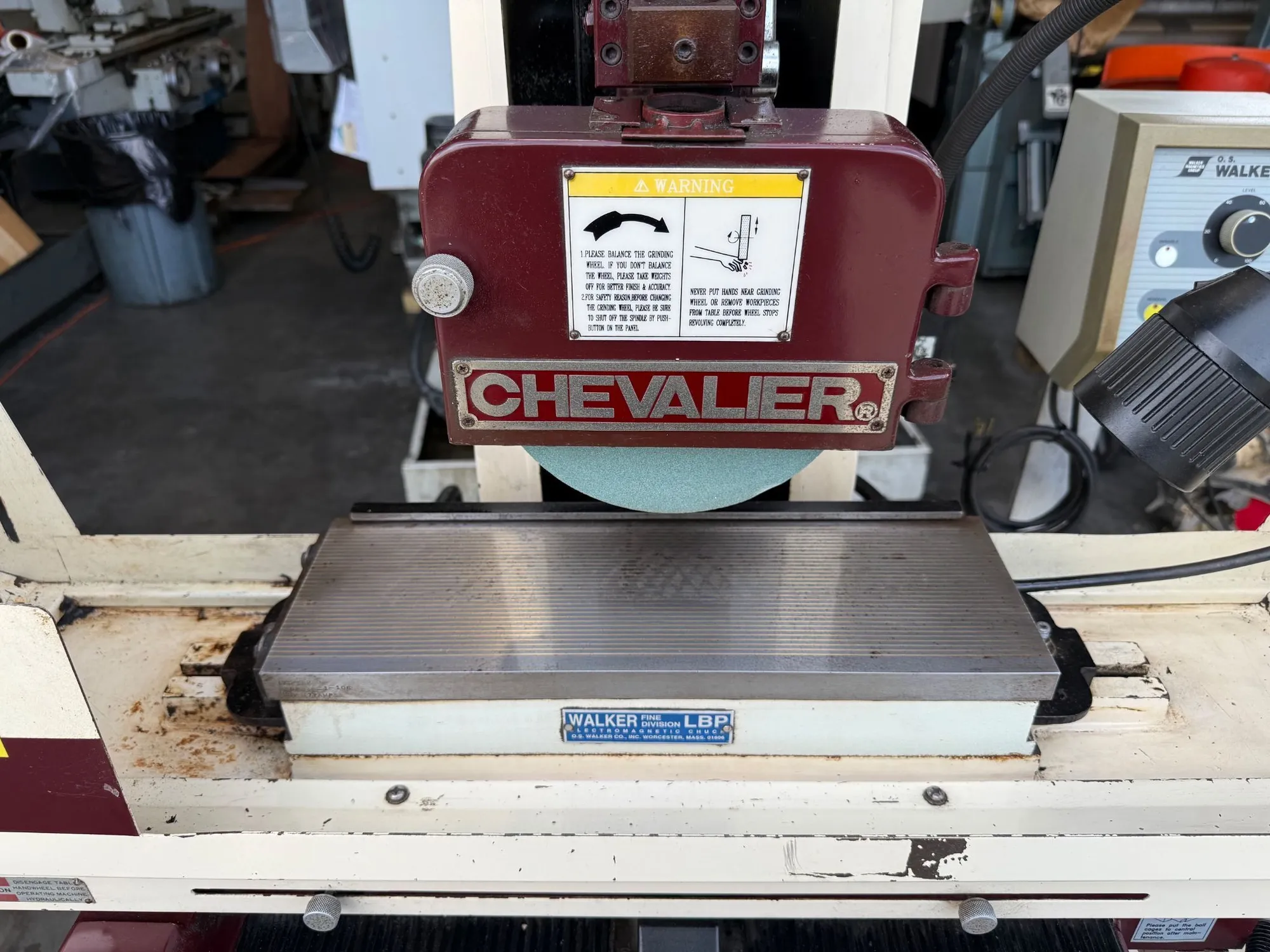

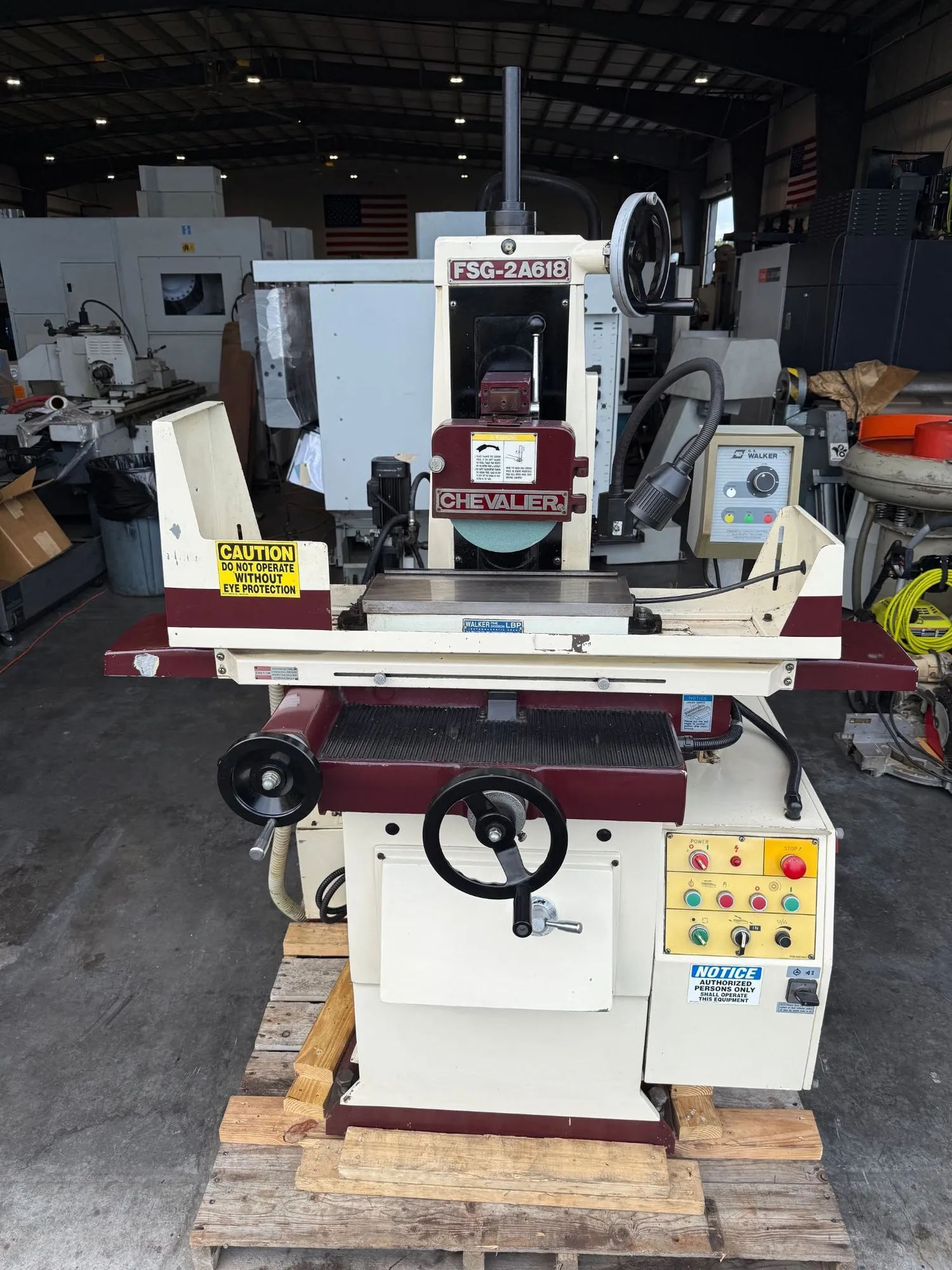

CHEVALIER FSG-2A618 6” x 18” 2 Axis Hydraulic Surface Grinder #8315
Specifications
Equipped With
Hydraulically actuated longitudinal table feed
Table and saddle guide ways made of special steel rails with high accuracy steel rollers (ball bearings)
Precision needle roller bearings used on the elevating guide ways
Turcite-B laminated and hand-scraped machine slideways
Meehanite cast iron construction
Walker Electromagnetic chuck & Rectifier
CHIBA lubrication system
External coolant tank & pump
1/8 H.P. Coolant pump motor
1 H.P. Hydraulic pump & tank
1.3 H.P. 3/60/230-460 volt spindle drive motor
Machine is wired for 230 volt operation.
Machine weight- 1750 Lbs.
Machine dimensions- 48” W x 40” L x 70’’ H
Machine location- F.O.B. Sarasota, Florida
CHEVALIER FSG-2A618 6” x 18” 2 Axis Hydraulic Surface Grinder #8315
Specifications
CHEVALIER FSG-2A618 6” x 18” 2 Axis Hydraulic Surface Grinder #8315
Reference #8315
Model # FSG-2A618
Serial # B7871001
Year of manufacture- 1998’
Table size- 6’’ x 18’’
Maximum distance, top of table surface to centerline of spindle- 18”
Longitudinal travel of table, hydraulic- 19-3/4"
Maximum manual travel- 20”
Infinitely variable table speed- 16-82 F.P.M.
Rapid table travel speed- 38 I.P.M.
Automatic transverse increment- 0.02" to 0.24"
Maximum manual transverse travel- 7”
Maximum cross travel, electro-mechanically actuated- 6-3/4”
Cross feed handwheel graduated in increments of- .0005”
Cross feed travel per manual revolution of handwheel- 0.1”
Wheelhead handwheel graduated in increments of- .0001”
Wheelhead travel per revolution of handwheel- .05”
Grinding wheel diameter- 7”
Grinding spindle speed- 3,450 R.P.M.
Equipped With
Hydraulically actuated longitudinal table feed
Table and saddle guide ways made of special steel rails with high accuracy steel rollers (ball bearings)
Precision needle roller bearings used on the elevating guide ways
Turcite-B laminated and hand-scraped machine slideways
Meehanite cast iron construction
Walker Electromagnetic chuck & Rectifier
CHIBA lubrication system
External coolant tank & pump
1/8 H.P. Coolant pump motor
1 H.P. Hydraulic pump & tank
1.3 H.P. 3/60/230-460 volt spindle drive motor
Machine is wired for 230 volt operation.
Machine weight- 1750 Lbs.
Machine dimensions- 48” W x 40” L x 70’’ H
Machine location- F.O.B. Sarasota, Florida
Inquire Further with Generation Machine Tools!
