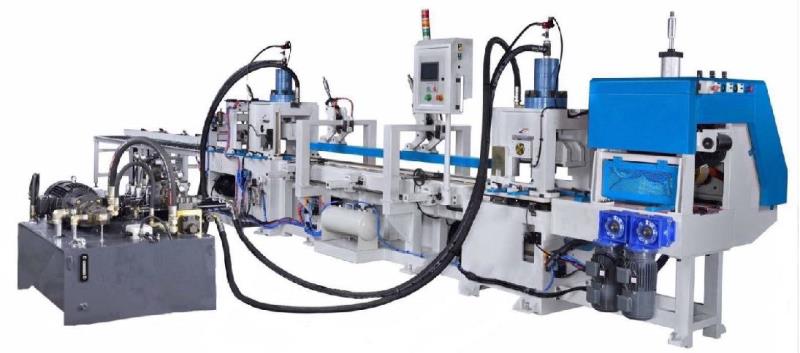

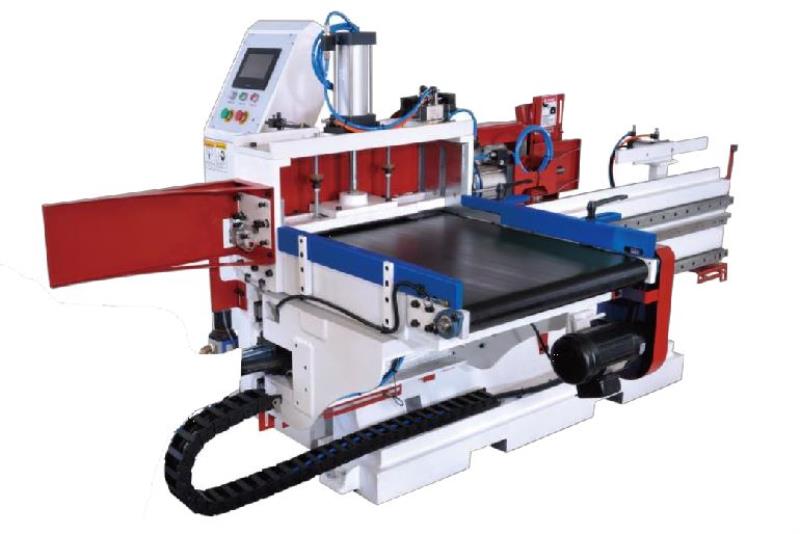

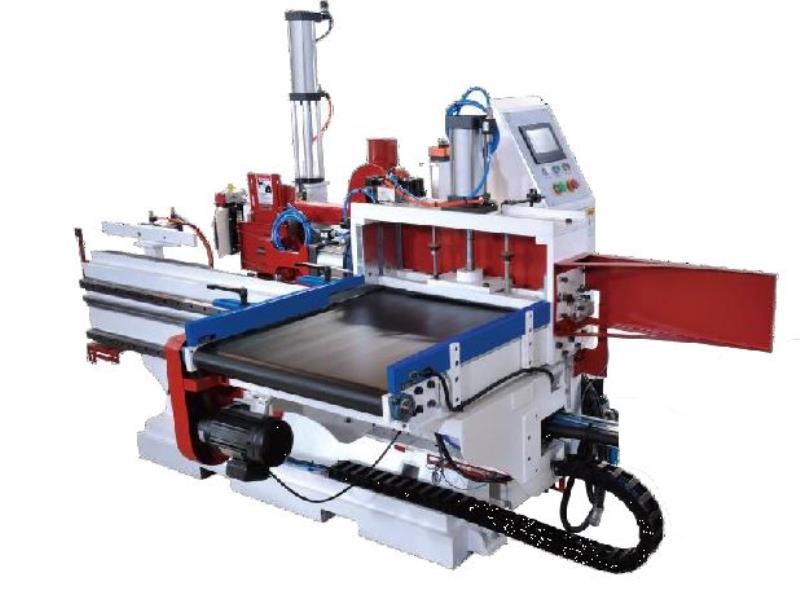

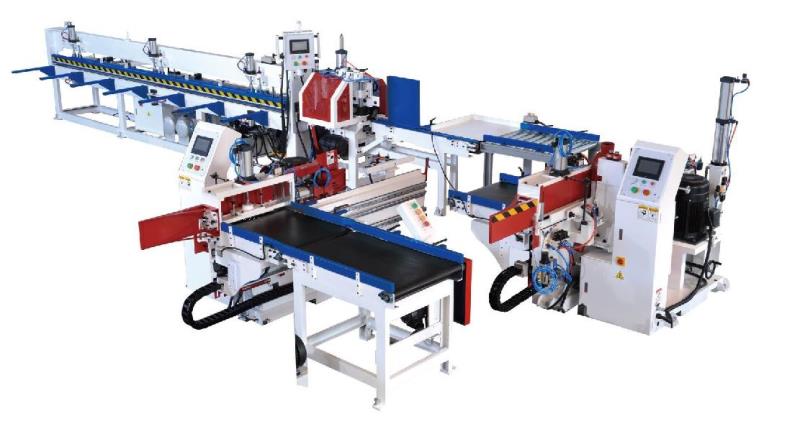

6" high x 12" wide Cam-Wood #HIAT-620-205X, Continuous In-Line Finger Jointer, unlimited length capacity, 31.5" L x 12" width block, 6.1" max. block thickness, 125 HP

CAM-WOOD HIAT-620-205 WITH 6"; HIGH X 12"; WIDE X Unlimited Assemble LengthContinuous in-line Finger JointerTECHNICAL SPECIFICATIONS:Incoming Block Requirements: --Incoming block lengths from 150 mm to 800 mm (6" to 31.5") --Blocks must be at least 50% longer than their width. --Block thickness from 15 mm to 155 mm (5/8" to 6.1") --Block width from 35 mm to 305 mm (1 /3/8"; to 12") - --Assembled lengths from Unlimited --For use with PVAC adhesives --Works equally well with soft & hardwoods. --Moisture content preferred from 8% to 12% --Blocks should be surfaced (4) sides to ± 0.2 mm with 90 right-angle corners. To be supplied by the customer: --Electric power supply to electrical cabinet --Constant voltage with deviations of 5% or less --Temperature range for computer control should not exceed 35C. --Maximum humidity for computer control system under 65% --Hydraulic oil AW68 -- Dust extraction (2) X 3" (6) X 4" and (2) X 5" dust hood --Skilled operating and maintenance personnel -- Noice control -- Lighted working environment -- Computer cable if machine be with monitoring --Motor Control Center with under-voltage and overload protection; includes UL and CSA approved electrical components. Electric parts only, not the complete machine. --Total electricity demand: 95 KW, 125 HP --30 HP Compressor with a 50-to-60-gallon Air Receiver PRODUCTION CAPACITIES:Shaper Capacity: --Shift = 480 minutes --Finger length to buyer’s requirement -- Average infeed length at the finger jointer line 600 mm (24") --As an example: 155 mm X 305 mm (6" X 12") --Shaper max. speed of (4) table strokes per minute --Table cycles will change as block widths become “wider"; or “taller"; at the Shapers --Table accepts up to (4) blocks when vertical finger jointing 6" X 12""; example blocks. --Table accepts up to (2) blocks when horizontal finger jointing 6" X 12" example blocks.Press Capacity: --Assembly Press with 18 meter/minute -- Pressing length: UnlimitedProduction Calculations: --VERTICAL Finger Jointing : -- Capacity of the shaper when finger jointing 155 mm X 305 mm x 600 mm (6" X 12" X 24") long blocks: (4) tables stroke per minute X 4-blocks per table load 24" average infeed block length x 480 minutes per shift X 0.8 rate of utilization = 3,624 Meter/shift (11,778' lineal feet per shift --HORIZONTAL Finger Jointing : -- Capacity of the shaper when finger jointing 155 mm X 305 mm X 600 mm (6" X 12" X 24") long blocks: (4) table strokes per minute X 2 blocks per table load x 2’ average infeed block length x 480 minutes per shift X 0.8 rate of utilization = 1,843 Meter (11,036 lineal feet) per shift -- Capacity of the press -- 18 meter/min X 480
