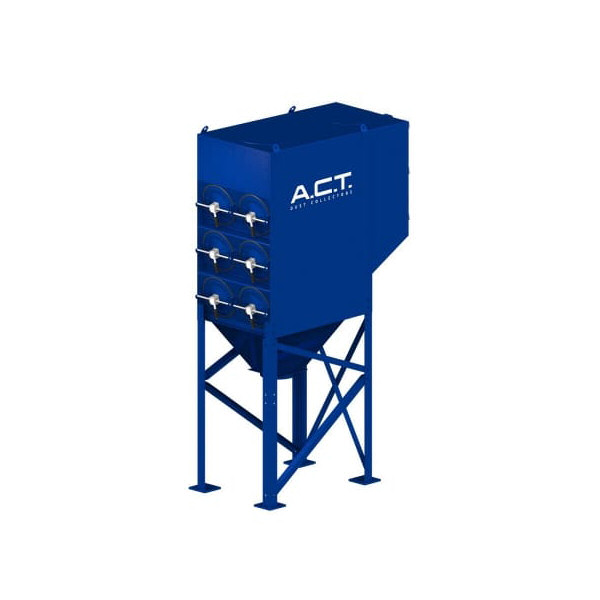

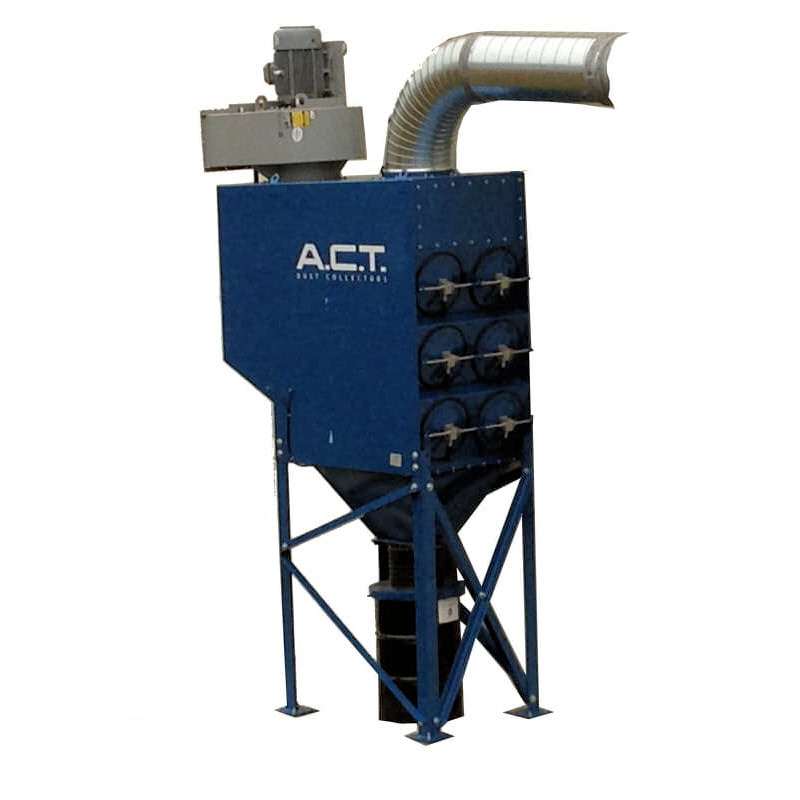

5800 cfm ACT #3-12, cartridge dust collector, 460 volts, 12 Nano Elite, merv 15, 3046 sq.ft., reverse pulse filter, magnetic motor starter 16" inlet, 2026, new

ACT 3-12 Cartridge Dust Collector Cartridge style downflow dust collector rated at 6,000 CFM @ 13". Heavy-duty with 7 and 10 gauge construction. Specifications: -- Blower, 15 HP rated at 6,000 CFM. @ 13" -- (12) Poly-Elite, spun-bond polyester media with 100 Sq. Ft. of media per filter filter (total 1,200 Sq. Ft.) that are 99.9% efficient. -- Reverse pulse filter cleaning system. -- 15HP All-in-one starter/disconnect/timer board/digital pressure gauge 460V 3ph -- DK-XP – explosion rated drum kit with quick-lock easy-access filter doors. -- 16" inletEquipped with: -- TCBI 15 HP Blower with direct drive, top mount. -- Automatic reverse jet cleaning via compressed air, (1) pulse valve per (2) cartridges for a total of (6) pulse valves. Goyen solenoids and diaphragm. -- Heavy Duty steel legs position unit approximately 4' above the ground made with 7 and 10-gauge construction. Includes: -- Silencer for TCBI 15. -- 15HP All-in-one starter/disconnect/timer board/digital pressure gauge 460V 3phOptional Return Air Includes: -- Shut off landing spot in control panel for explosion isolation valve. -- Explosion Vent installed with hardware, 24" x 36" explosion relief panel. 5.72 sq ft vent area. Domed for durability. KST value required. -- Sprinkler coupler for collectors with 1 module. -- Solenoid heater kit with 1 heat trace kit for cold weather installation. -- 14" VF - Explosion Isolation Valve Assembly (dirty air to dust collector), Must be installed between 14' and 55' from the dust collector inlet. If an elbow exists, minimum distance is 21'. -- Custom - Explosion Isolation Valve, 16" VF - Explosion Isolation Valve Assembly (clean air return to building). Must be installed between 24' and 55' from the dust collector outlet. -- 10 year workmanship and materials warranty -- Made in the USAPhoto does not represent the actual model
