For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Jim Smith
515-23...> Show Seller's Phone Number 515-233-6330 Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Swing Over Bed | 59 inches |
| Swing Over Cross Slide | 35.4 inches |
| Max Turning Diameter 2 Turrets | 29.5 inches |
| Distance Between Centers | 160 inches |
| Width of Bed | 39.4 inches |
| Spindle Bore | 7.1 inches |
| Spindle motor | 50 / 60 HP (30 min) |
| Type of Spindle Nose | A2-15 |
| Number of Speed Ranges | 6 650 |
| Spindle Speed | V8 Hydraulic (Std), H4 or H6 (Opt) |
| Max. Stroke (X-Axis) | 28.9 inches |
| Rapid Traverse (X-Axis) | 236 in/min |
| Rapid Traverse (Z-Axis) | 236 in/min |
| Servo Motor (X-Axis) | 5.3 HP |
| Servo Motor (Z-Axis) | 8.0 HP |
| Ball Screw (X-Axis) | 1.41, P6 |
| Ball Screw (Z-Axis) | 2.48, P12 |
| Tailstock Quill (nose, taper, bearing) | A-1-8, M.T. # 6, 33024 |
| Tailstock Quill Diameter | 9.4 |
| Tailstock Quill Travel | 7.0999 inches |
| Overall Dimensions (L x W x H) | 305" X 151" X 91" |
| Machine Weight | 31372 pounds |
| Total Power Required | 100 KVA |
Equipped With
Equipped With
Features:

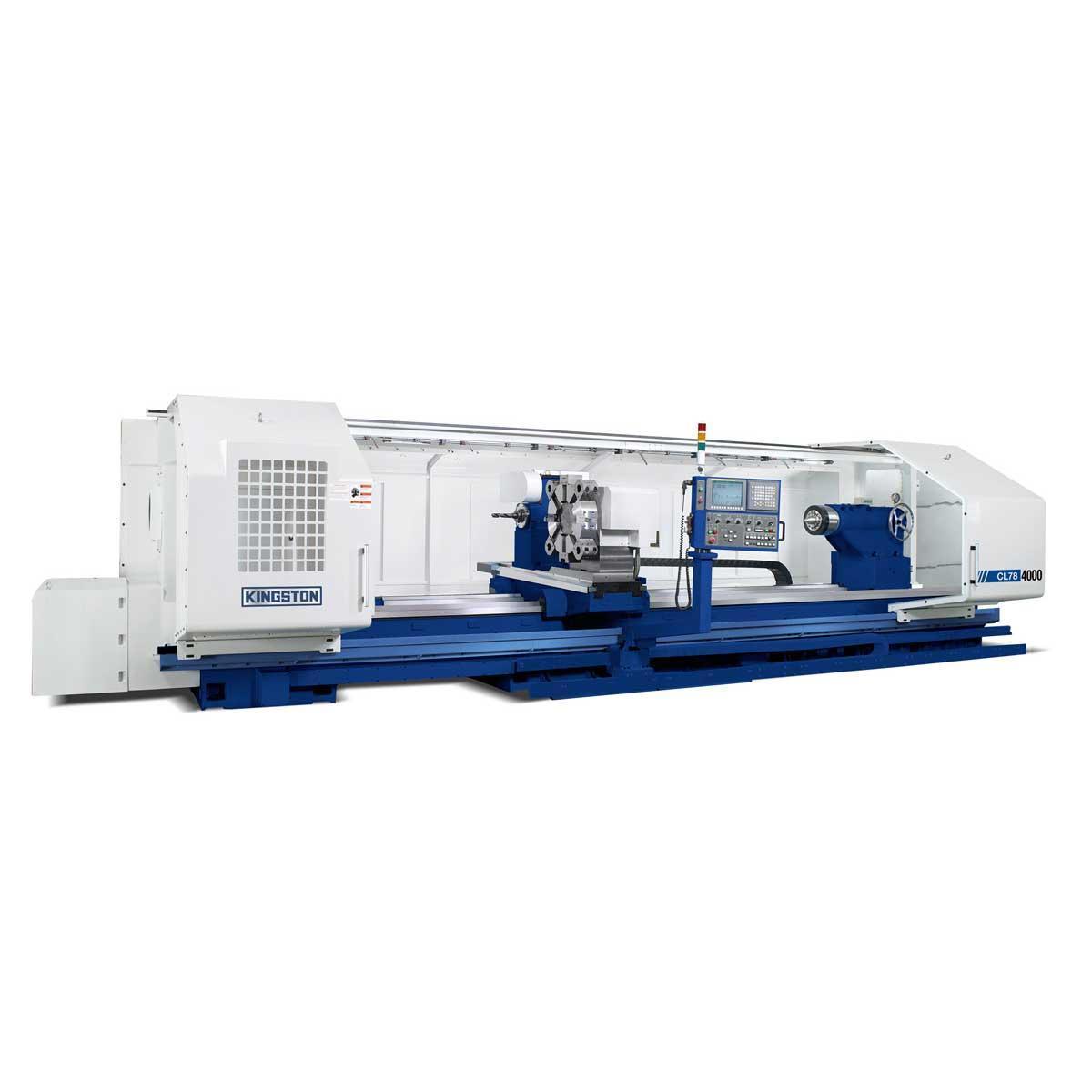

• Kingston's CSX is the largest and brawniest entry in its heavy-duty lineup, boasting an impressive 59" swing (35.4" over cross slide) for your largest work pieces – and a colossal 1-meter (39.4") bed width for maximal stability during the heaviest cutting. Spindle bore sizes up to 14.7" and lengths to 240" between centers – plus a powerful 60 HP motor – mean this machine can tackle anything.
Equipped With:
Equipped With:
• 50 / 60 HP (30 min) Fanuc α40i AC Spindle Motor, 220V (only), 3 Phase, 60 Cycle
• Fanuc 0iTF-Plus Controller with Manual Guide i & Threading Repair, 10.4” LCD Monitor
• Box Way Cross Slide and Carriage
• Front & Rear Chuck Ready Spindle
• Rear Spindle Safety Door
• V8 or H4 Hydraulic Turret (front)
• Coolant System
• 39.4” Bed Width
• Tailstock with Built-in Center
• Tailstock Movable by Engaging with Carriage
• Dead Center for Tailstock MT#6
• Auto Lubrication System
• Two Doors and Full-Length Back Splash Guard
• Center Chip Conveyor (beneath bedway)
• Halogen Light
• Foundation Pads, Leveling Screws
• Tool Box & Tools
• Operation, Electric, Controller & Parts Manual
Standard Tooling Package:
• Turret V8
• Tool Center Height 1-1/4”
• Wedge Block 8 Sets
• Facing Tool Holder 1-1/4” 2 pcs
• Radial Ext. Tool Holder 1-1/4” 2 pcs
• Boring Bar Holder 2”-1/2" 4 pcs
• Boring Bar Sleeve: 2” 2 pcs,1-1/2” 2 pcs, 1-1/4” 2 pcs, 1” 2 pcs, 3/4” 2 pcs, 5/8” 2 pcs, 1/2” 2 pcs
• Drilling Sleeve MT#3 2”-1/2" 1 pc
• Drilling Sleeve MT#4 2”-1/2" 1 pc
Optional Features:
Standard Tooling Package:
• Turret V8
• Tool Center Height 1-1/4”
• Wedge Block 8 Sets
• Facing Tool Holder 1-1/4” 2 pcs
• Radial Ext. Tool Holder 1-1/4” 2 pcs
• Boring Bar Holder 2”-1/2" 4 pcs
• Boring Bar Sleeve: 2” 2 pcs,1-1/2” 2 pcs, 1-1/4” 2 pcs, 1” 2 pcs, 3/4” 2 pcs, 5/8” 2 pcs, 1/2” 2 pcs
• Drilling Sleeve MT#3 2”-1/2" 1 pc
• Drilling Sleeve MT#4 2”-1/2" 1 pc
Optional Features:
• 31.5” Steady Rest with Two Sets of Sleeves (17.7” ~ 25.7”, 25.6” ~ 31.5”) $22,300
• Roller Bracket (24.4” – 41.3”) $17,700
• 7” Boring Bar Support $11,000
• 4” Sleeve For 7” Boring Bar Support $ 3,800
• Other Boring Bar Support Sizes + Sleeves Upon Request
• Custom Steady Rests Upon Request
• Fanuc Arbitrary Speed Threading + Thread Lead Teach: Spindle FWD $ 2,500
• Fanuc Arbitrary Speed Threading + Thread Lead Teach: Spindle FWD + REV $ 3,000
• 74.7” Swing Over Bed Upgrade Upon Request
• 82.6” Swing Over Bed Upgrade Upon Request
• 90.4” Swing Over Bed Upgrade Upon Request
• 98.3” Swing Over Bed Upgrade Upon Request
• Headstock Cooling Unit $ 2,800
• Transformer 480V to 220V $ 7,900
• Transformer with Voltage Regulator $12,700
• Full Enclosure Upon Request
• Additional Chip Conveyor
Front Rear
80” C.C. $ 7,600 $22,800
120” C.C. $ 8,700 $25,300
160” C.C. $10,700 $25,900
200” C.C. $11,500 $29,500
240” C.C. $12,800 $33,900
TURRET OPTIONS
• Sauter BMT-85 V12 Live Tooling Turret + 2.5° Spindle Indexing Upon Request
• Rear-Mounted H4 Hydraulic Turret (HP-350) [Factory Install] $29,900
• HP-350 H4 Hydraulic Turret in Front Position (No V8 Turret) [Factory Install] $ 8,000
• Tool Holders for V8, V12 & H4 Turret Upon Request
WORKHOLDING
• 50” 4-Jaw Independent Chuck w/ 2-pc Jaws (Taiwan Made) $ 31,500
• Soft Jaw Set (4 Jaws) for 50” 4-jaw Chuck Above $ 2,250
• 40” 4-Jaw Independent Chuck w/ 2-pc Jaws (Taiwan Made) $ 25,000
• 24” 3-Jaw Hydraulic Chuck + System for 7.1” Bore (6.4” bar capacity) $ 39,500
• 24” 3-Jaw Hydraulic Chuck + System for 10.1” Bore (8.0” bar capacity) $ 45,500
• Other Hydraulic, Air, & Manual Chucks Upon Request
• Roller Bracket (24.4” – 41.3”) $17,700
• 7” Boring Bar Support $11,000
• 4” Sleeve For 7” Boring Bar Support $ 3,800
• Other Boring Bar Support Sizes + Sleeves Upon Request
• Custom Steady Rests Upon Request
• Fanuc Arbitrary Speed Threading + Thread Lead Teach: Spindle FWD $ 2,500
• Fanuc Arbitrary Speed Threading + Thread Lead Teach: Spindle FWD + REV $ 3,000
• 74.7” Swing Over Bed Upgrade Upon Request
• 82.6” Swing Over Bed Upgrade Upon Request
• 90.4” Swing Over Bed Upgrade Upon Request
• 98.3” Swing Over Bed Upgrade Upon Request
• Headstock Cooling Unit $ 2,800
• Transformer 480V to 220V $ 7,900
• Transformer with Voltage Regulator $12,700
• Full Enclosure Upon Request
• Additional Chip Conveyor
Front Rear
80” C.C. $ 7,600 $22,800
120” C.C. $ 8,700 $25,300
160” C.C. $10,700 $25,900
200” C.C. $11,500 $29,500
240” C.C. $12,800 $33,900
TURRET OPTIONS
• Sauter BMT-85 V12 Live Tooling Turret + 2.5° Spindle Indexing Upon Request
• Rear-Mounted H4 Hydraulic Turret (HP-350) [Factory Install] $29,900
• HP-350 H4 Hydraulic Turret in Front Position (No V8 Turret) [Factory Install] $ 8,000
• Tool Holders for V8, V12 & H4 Turret Upon Request
WORKHOLDING
• 50” 4-Jaw Independent Chuck w/ 2-pc Jaws (Taiwan Made) $ 31,500
• Soft Jaw Set (4 Jaws) for 50” 4-jaw Chuck Above $ 2,250
• 40” 4-Jaw Independent Chuck w/ 2-pc Jaws (Taiwan Made) $ 25,000
• 24” 3-Jaw Hydraulic Chuck + System for 7.1” Bore (6.4” bar capacity) $ 39,500
• 24” 3-Jaw Hydraulic Chuck + System for 10.1” Bore (8.0” bar capacity) $ 45,500
• Other Hydraulic, Air, & Manual Chucks Upon Request
