Description

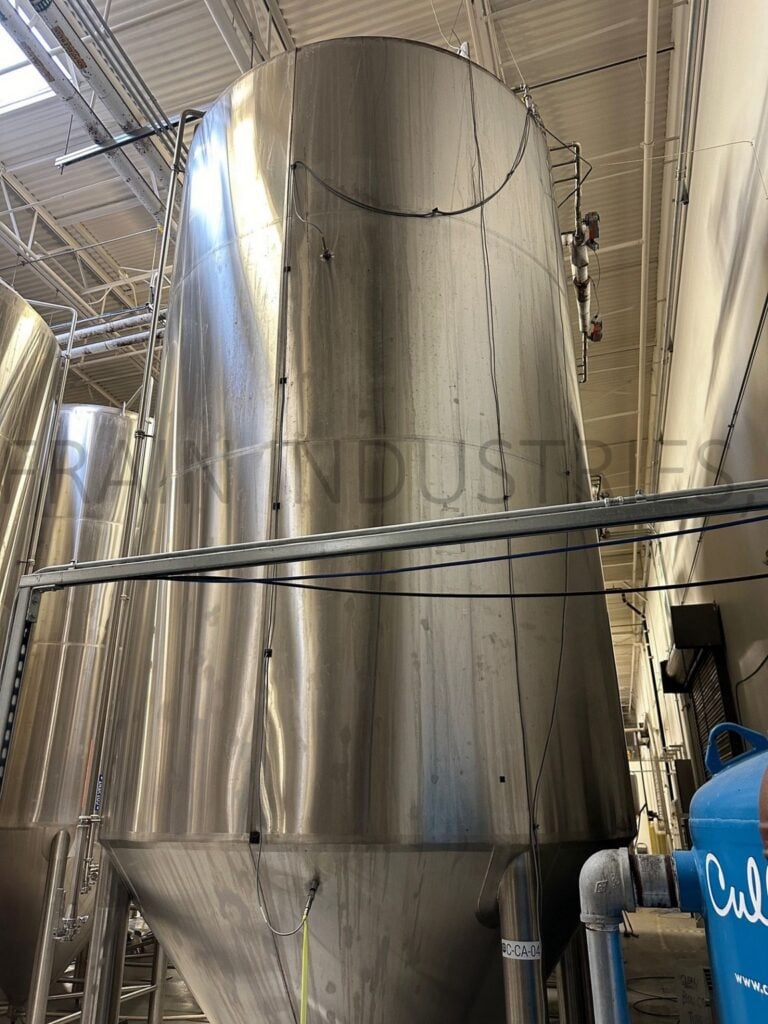

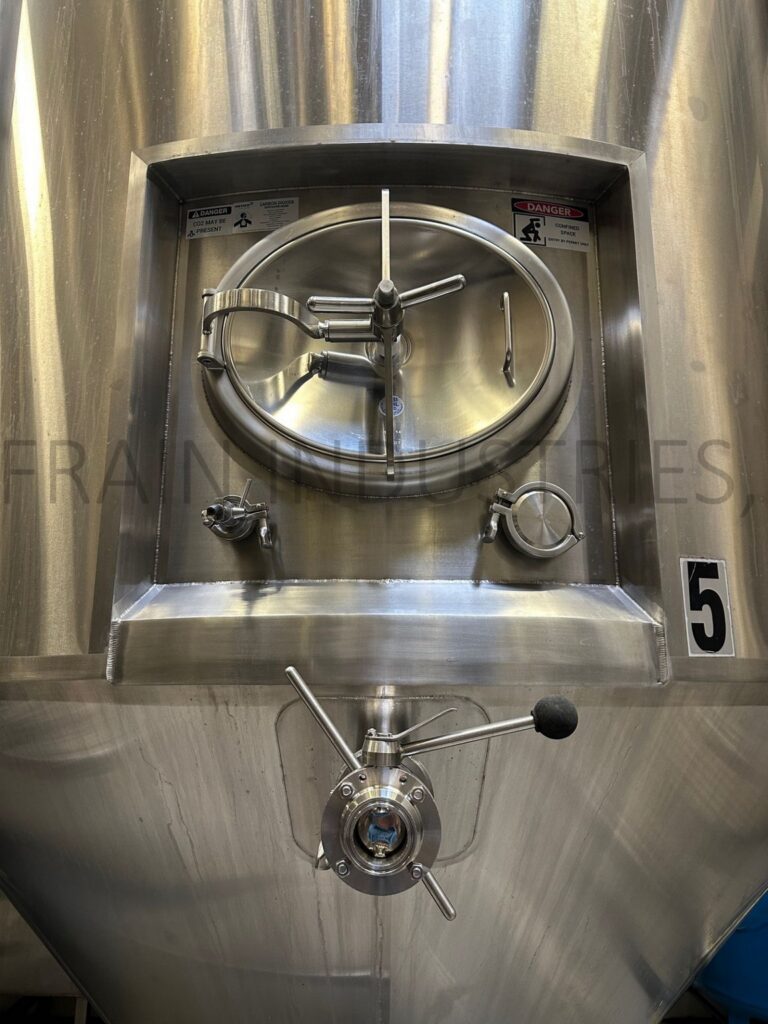

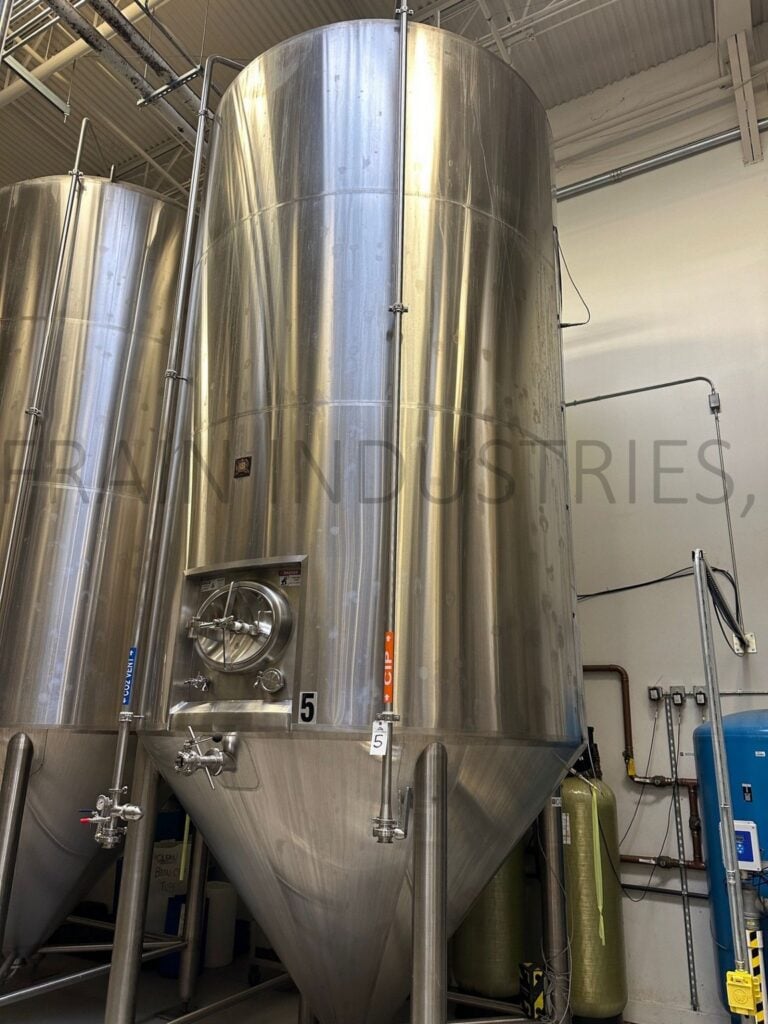

NSI Newlands, 5,400 gallon, 304 stainless steel, low pressure jacketed and insulated tank. Vessel Dimensions: 92" diameter x 156" straight wall with a cone bottom. Equipped with 16" x 20" side manway with bolt down cover, (2) thermowells and 2" Tri-clamp discharge with 10" ground clearance.

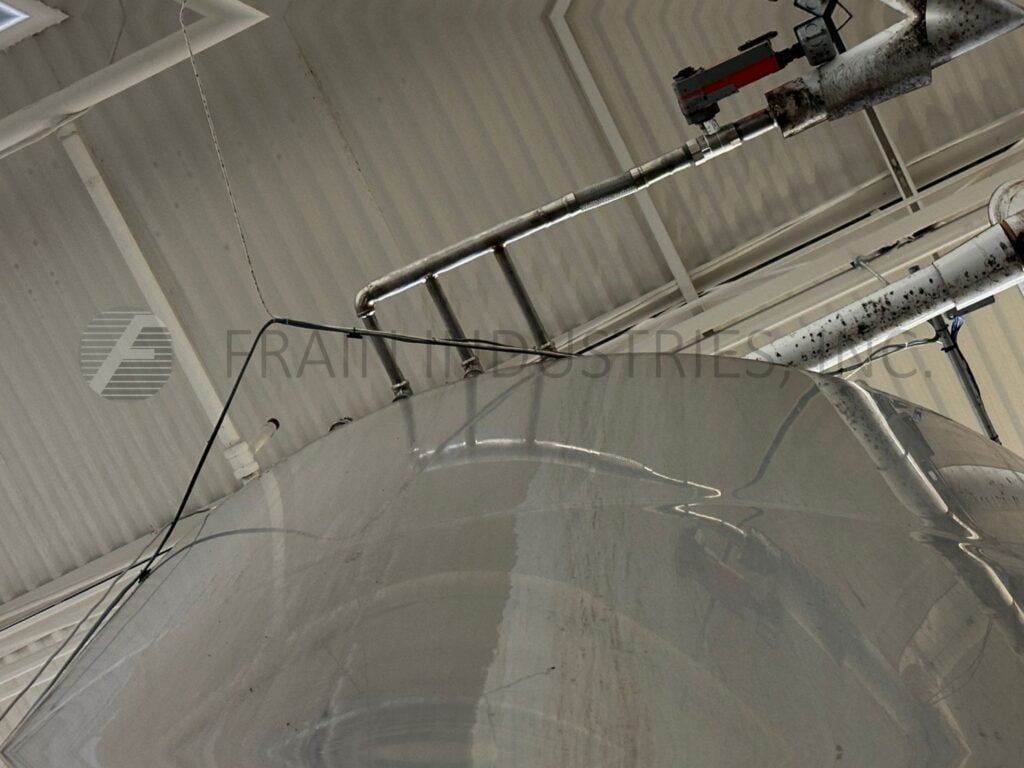

Top Access:
(1) 6" Tri-Clamp
(1) 4" Tri-Clamp
(1) 2" Tri-Clamp
Side Access:
(1) 3" Tri-Clamp
(1) 2" Tri-Clamp
(1) 1½" Tri-Clamp
Jacket Access:
(6) ¾" NPT
OAD: 102"L x 98"W x 247"H
