Width: 54.000
Stock # 19592
Price: $3,500 USD
For Sale by JM Industrial LLC
Surplus Record Dealer Since 1993
Sheldon Sharp
304-27...> Show Seller's Phone Number 304-273-0795 Let the seller know you found their listing on Surplus Record!
Description

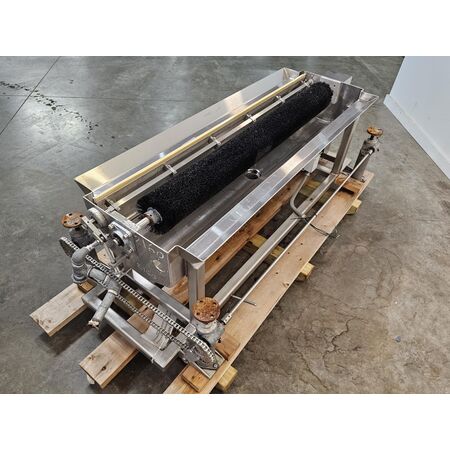

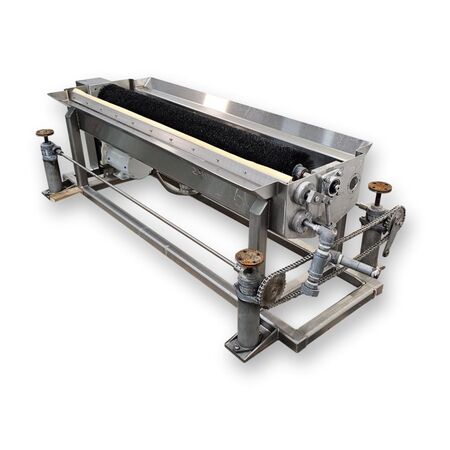

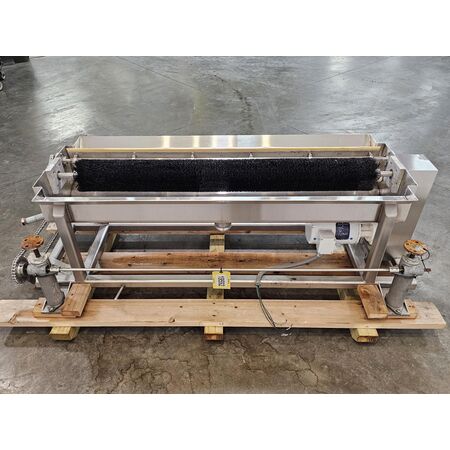

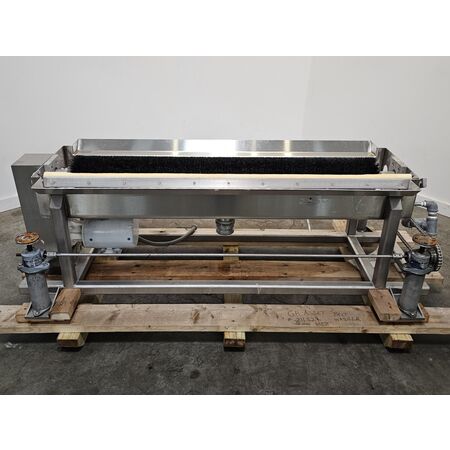

Used 1/2HP Motorized Sanitary Conveyor Belt Washing System - 54"W
Conveyor belt washing and scraping system for installation under the belt return (while conveyor operating)
Formed stainless steel wash-down trough measuring 62" across, and 24" in direction of belt travel with 10" depth
Welded stainless steel square tube support frame with base mount area of 74"W X 33"L
Coil type rotary brush is 5.75" diameter X 54"W black nylon bristle material (54RPM working speed)
Installed spray bar for the brush 5.5" spaced, flat spray nozzles, rotatable
Full-width neoprene rubber belt wiper with adjustable height (edge shows some un-even wear)
The entire assembly shall be base mounted under conveyor frame, can be connected to frame if applicable
1/2HP washdown gearmotor with chain drive (230/460V, 60Hz, 3ph)
Unit is raised and lowered with manual jack screw actuators (8" travel)
Belt wash drain is installed with a 3" cam-lock fitting with cap, on center
Total Height of the unit is 22.5"
Video Available.
Conveyor belt washing and scraping system for installation under the belt return (while conveyor operating)
Formed stainless steel wash-down trough measuring 62" across, and 24" in direction of belt travel with 10" depth
Welded stainless steel square tube support frame with base mount area of 74"W X 33"L
Coil type rotary brush is 5.75" diameter X 54"W black nylon bristle material (54RPM working speed)
Installed spray bar for the brush 5.5" spaced, flat spray nozzles, rotatable
Full-width neoprene rubber belt wiper with adjustable height (edge shows some un-even wear)
The entire assembly shall be base mounted under conveyor frame, can be connected to frame if applicable
1/2HP washdown gearmotor with chain drive (230/460V, 60Hz, 3ph)
Unit is raised and lowered with manual jack screw actuators (8" travel)
Belt wash drain is installed with a 3" cam-lock fitting with cap, on center
Total Height of the unit is 22.5"
Video Available.
Inquire Further with JM Industrial LLC!
