Description

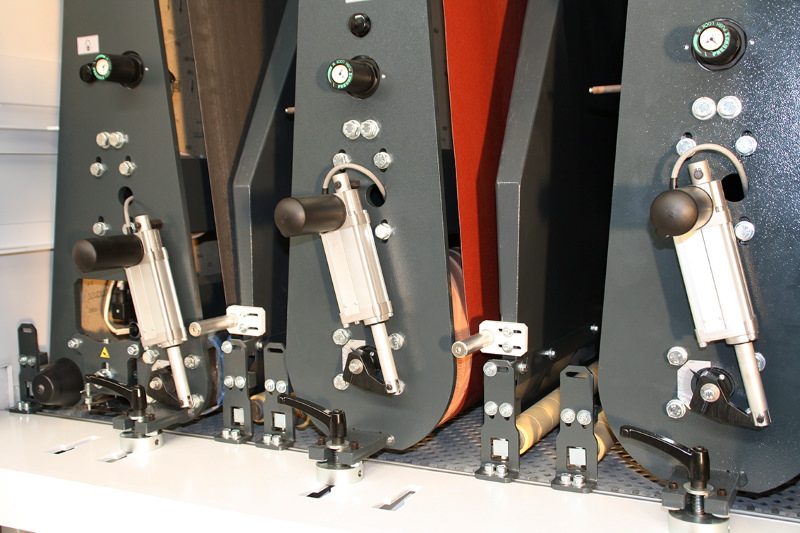

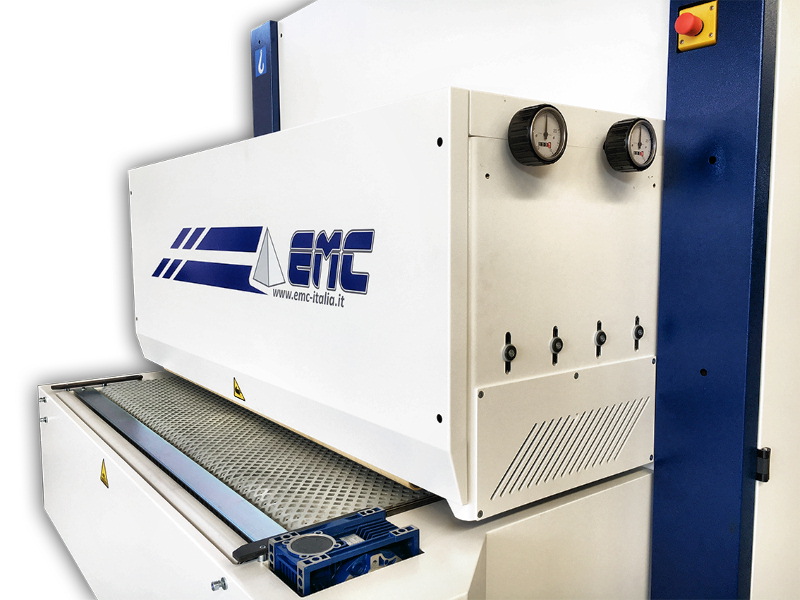

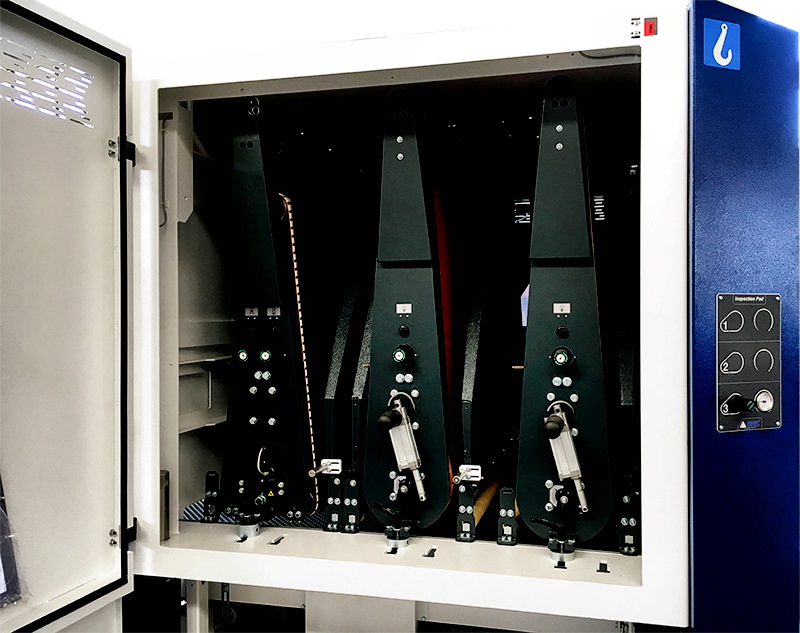

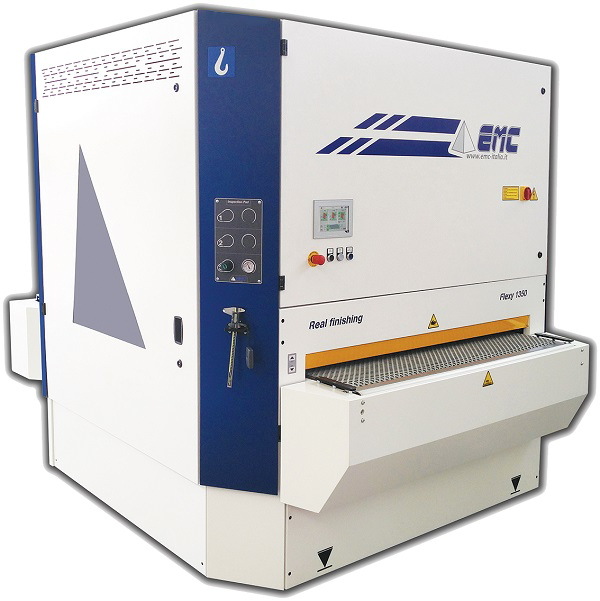

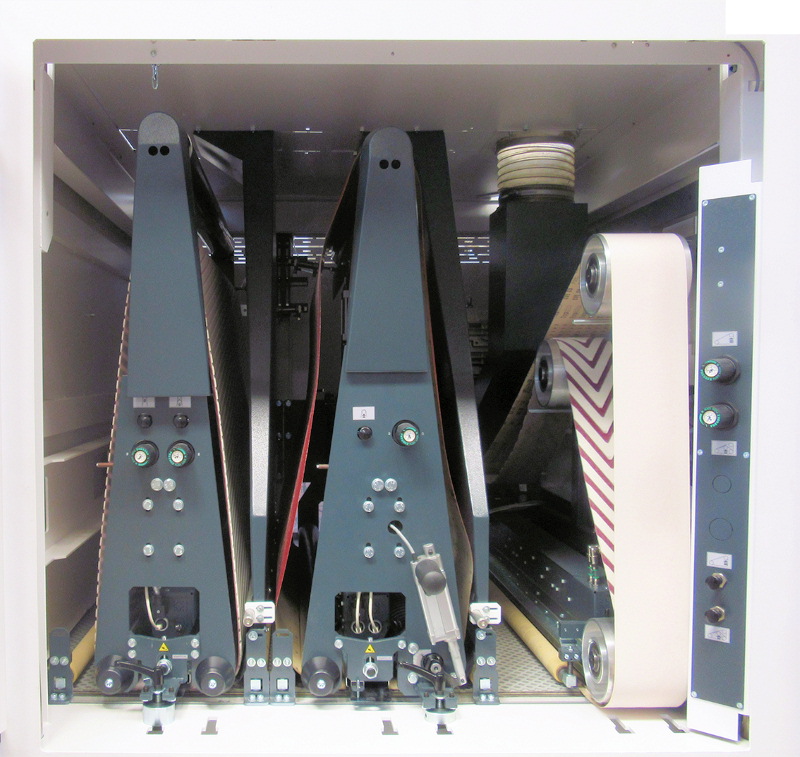

EMC FLEXY 1350 3WRK Abrasive Planer / Wide Belt Sander with (3) Heads; Knife Head, Roller, Combination Head Roller/Pad.Useful working width 1,350 mm (53"). Working thickness min./max. 3 - 190 mm (1/8" - 7-1/2").Head configuration: 1st Head: Knife Planer Head "W" -- Cutter head knives diameter 140 mm (5-1/2"). -- Shaft for helicoidal position knives with (380) Interchangeable knifes with 4 cutting edges, 14 x 14 x 2 mm. -- Sectioned pressure bars in 24 independent segments. -- Anti kickback protection made of 70 independent elements. -- On-Off pneumatic cylinder for planer. group in working position. -- Working pressure adjustment. -- Motor power 15 kW (20 HP). -- Automatic Star-delta starter. -- Speed rotation: 35 m/Sec (115 FPS).2nd Head: Steel Roller "R", Belts dimensions: 2,620 x 1,370 mm (103" x 54"). -- Roller diameter: 250 mm (10"), spirally grooved. -- Electronic motorized roller pressure adjustment "Grit-set system". -- Constant control to any position with accuracy 0.02 mm. -- Rotation: Against feed (clockwise). -- Motor power 15 kW (20 HP). -- Automatic star-delta starter. -- Abrasive Belt cutting speed: 18 m/Sec (59 FPS). -- Air Jet Blower for abrasive belt cleaning.3rd Head: Combination Head "K", Belt dimensions: 2,620 x 1,370 mm (103" x 54"). -- 3 roller diameter mm 150, Roller rubber covered, hardness 45 shores, Roller pressure adjustment control and "grit-set system" -- ON-OFF selector switch control for 3 roller, including pneumatic piston -- PNEUMATIC aluminum pad, lamina 40 mm, ON-OFF -- Quick changing system; extractable blade with felt, rubber and graphite -- Abrasive belt motor power 15kW (20hp) Soft starter for slow starting 15kW Rotating cutting speed 18 m/sec. -- Air Jet Blower for abrasive belt cleaning.Feed system:Constant pass line, 900 mm (35.4") from floor -- Idle table rollers support in infeed and outfeed. -- Rubber covered presser rollers, grooved. -- Variable feed belt speed, adjustable from 3 to 18 m/Min (9.8 - 59 FPM) Inverter Controlled. -- Large diameter screws on machined guides with columns and pistons. -- Automatic feed belt centering device.General Machine Features: -- Independent main motors. -- Analog ammeters, for each motor, on main control cabinet. -- Electronic motorized grit set system, control from touch screen for each (head) working group. Electronic programmable color Touch Screen display, 10" wide -- PLC with micro-processor of latest generation, modular and expandable. -- Connection USB, RS232, Ethernet 10/100/1000. -- Memory capacity: 100 working programs or more. -- Graphic synoptic to facilitate programming.Software facilities: -- Automatic motor sequence starting. -- Command, programming and display for all electronic pad functions. -- Command, programming and display for thickness. -- Command, programming and display for feeding. -- Command, programming and display for all inverters. -- Command, programming and display for selected groups
CAM-WOOD WP-1400H 52"; Heavy Duty Planer with Spiral Cutter Head55" Cap. solid cast iron construction planer with powerful 25 HP motor.s & : -- Precision ground cast iron table with motorized worktable raising & lowering, manual adjustment by hand wheel via (2) large lead screws. -- Digital thickness display ...more
Heesemann Model LSM 8 Four Head Wide Belt Sander 53" wide capacity 1/8" minimum to 5-1/2" maximum thickness capacity 1st HEAD: Cross sanding unit - CSD segmented pad with chevron belt 2-speed motor - 20/26 HP motor Abrasive belt size - 6" x 189" Sanding belt speed - 39/78 FPS Electronic braking 2nd HEAD: Wide belt ...more
Timesavers Model 3321-25-20 Two Head High Production Planer/Sander : Abrasive size: 52" x 75" Main motors: 40, 30HP Maximum width stock: 51" Minimum part length measured roll to roll: 19" Maximum thickness opening: 6" Minimum finish thickness with planer head: 1/2" Infeed loading area: 30" Feed speed: 15-45 FPM ...more
The Timesavers 243-2KAIC is a heavy-duty, two-head wide belt planer-sander designed to combine aggressive stock removal with precision finishing in a single pass.If you are considering a used Timesavers 237-2KAIC for your shop, here is why it remains a top-tier choice for industrial woodworking:- Two Machines in One ...more
