Manufacturer: Delta
Year: 1994
kVA: 5000.0
Primary Voltage: 34500
Secondary Voltage: 4160 - 2400
Stock # T-5174
1 / 2
Click to zoom in
1 / 2
For Sale by Belyea Company Inc
Surplus Record Dealer Since 1926
Location: Easton, PA
Contact Shepard Belyea
Phone Number: 610...> Show Phone Number 610-515-8775
Let the seller know you found their listing on Surplus Record!
Description
STOCK #T-5174:

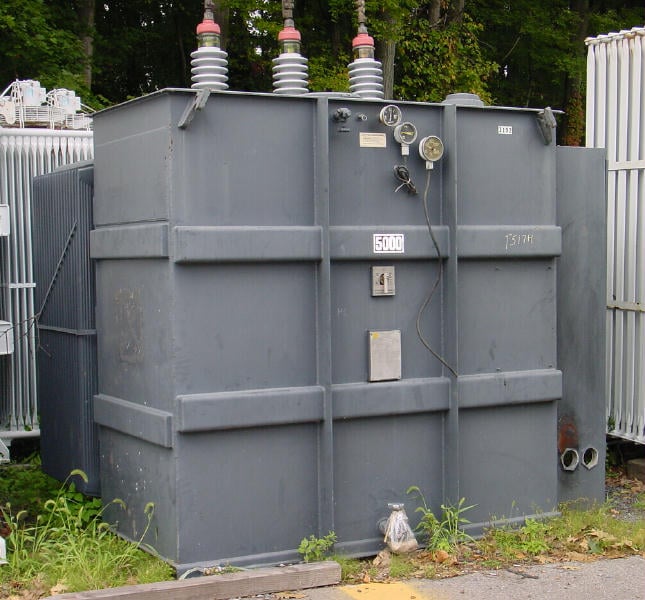

ONE (1) 5000 KVA, SQUARE D, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ., CLASS OA,
55 DEGREES C RISE, 7.4% IMPEDANCE, WITH TOP MOUNTED HIGH VOLTAGE
BUSHINGS, SIDE MOUNTED LOW VOLTAGE BUSHINGS IN AIR TERMINAL CHAMBER,
WITH LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, PRESSURE RELIEF DEVICE
DIAL TYPE THERMOMETER, DRAIN & SAMPLE VALVE
HIGH VOLTAGE: 34500 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 60 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 27408 LBS.
CORE & COILS: 11308 LBS.
TANK & FITTINGS: 6672 LBS.
OIL: 1274 GALLONS 9428 LBS.
DIMENSIONS: 115"H X 110.5"L X 87"D
ONE (1) 5000 KVA, SQUARE D, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ., CLASS OA,
55 DEGREES C RISE, 7.4% IMPEDANCE, WITH TOP MOUNTED HIGH VOLTAGE
BUSHINGS, SIDE MOUNTED LOW VOLTAGE BUSHINGS IN AIR TERMINAL CHAMBER,
WITH LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, PRESSURE RELIEF DEVICE
DIAL TYPE THERMOMETER, DRAIN & SAMPLE VALVE
HIGH VOLTAGE: 34500 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 60 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 27408 LBS.
CORE & COILS: 11308 LBS.
TANK & FITTINGS: 6672 LBS.
OIL: 1274 GALLONS 9428 LBS.
DIMENSIONS: 115"H X 110.5"L X 87"D
