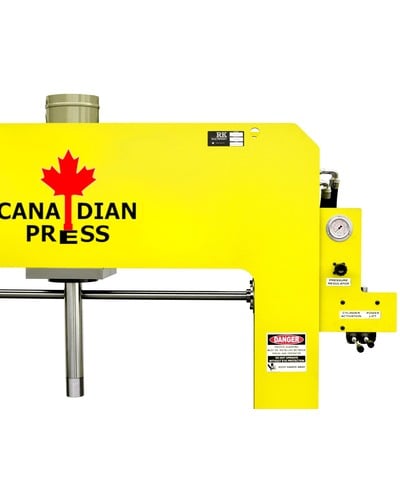

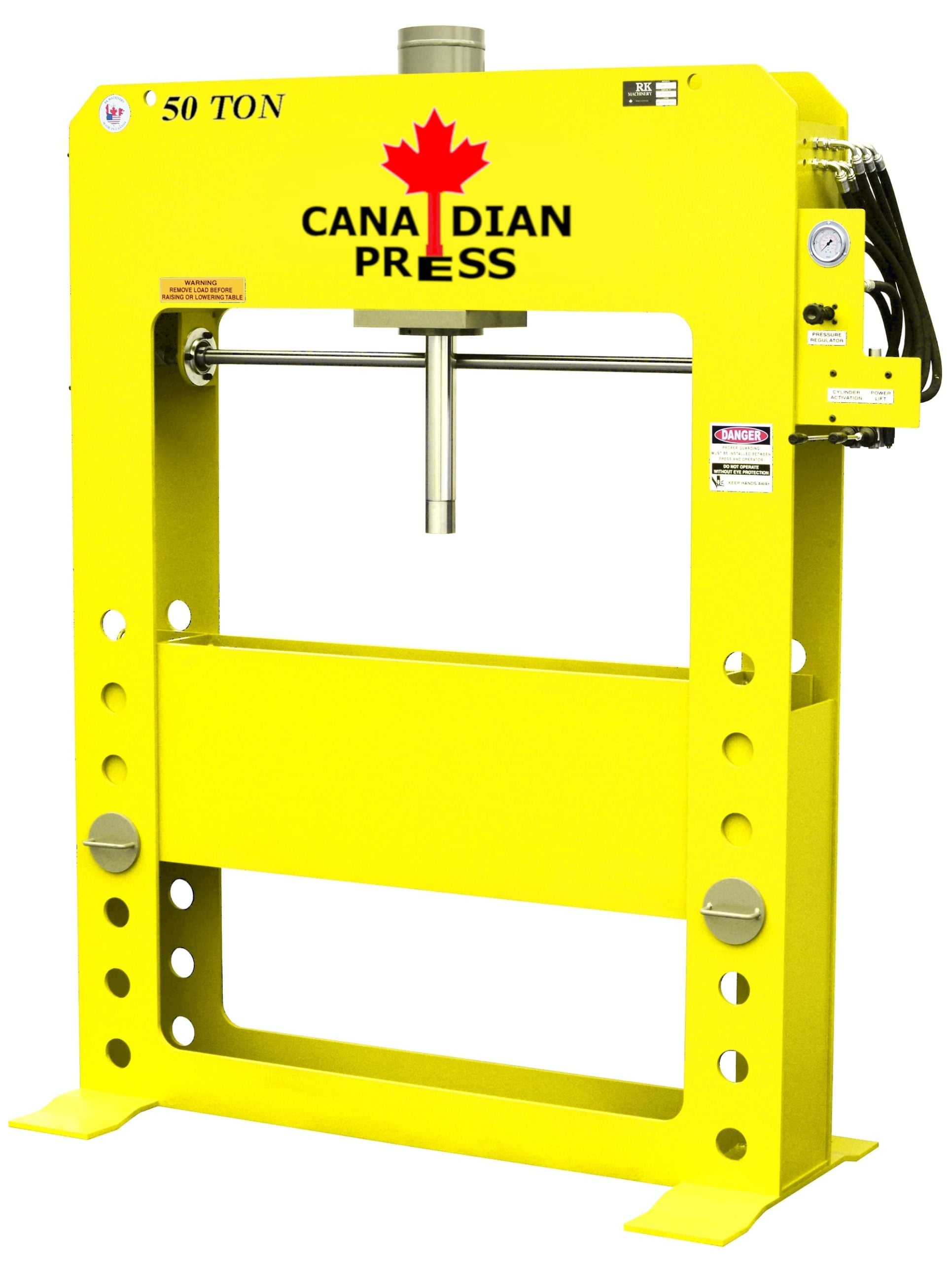

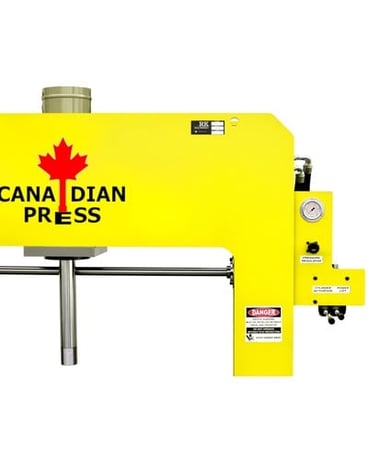

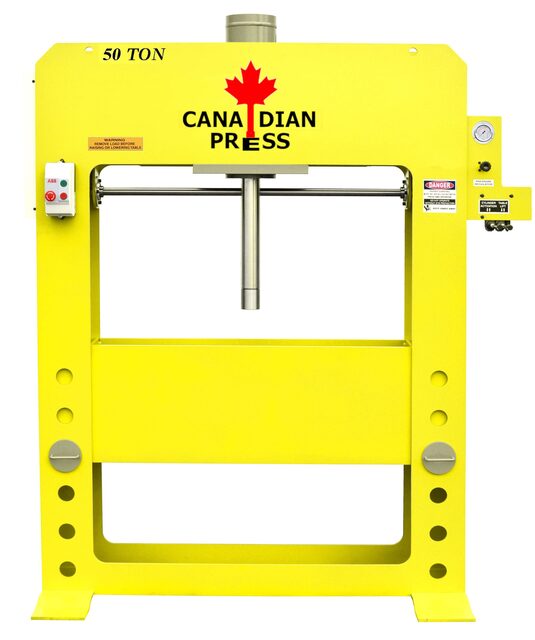

50 Ton, MachineCo (Canadian Press Division) #HFP-50, H-Frame Hydraulic Press, 16" Stroke, 7" Bore, 3" Rod, 50" L x 82" width x 98" H, 18/22 IPM Ram, 1 Ph., 5 HP

(in 2023, call for current pricing)

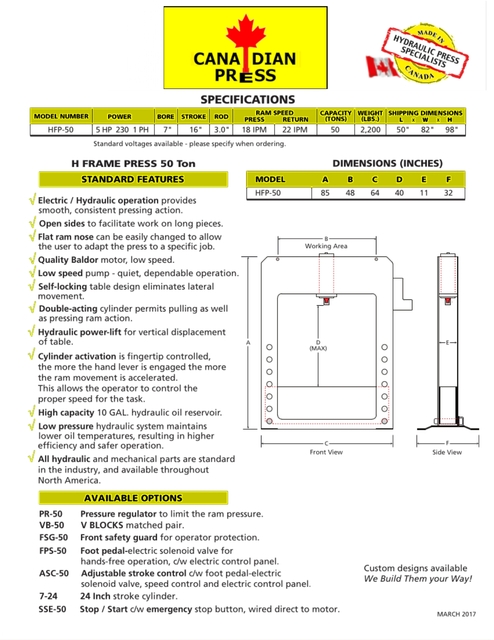

Specifications:

Capacity: 50 Tons / 100,000 lb. 45,500 kg
Model Number: HFP-50
Manufacturer: MachineCo (Canadian Press Division)
Power: 5 HP, 1 Phase -or- 3 phase 230/460 or 575 V.
Bore: 7″
Stroke: 16″
Rod diam: 3.0″
Ram speed: Pressing – 18 IPM, Return – 22 IPM
Weight: 2,200 lbs (1000 kg.)
Dimensions: 50″ Length x 82″ Width x 98″ Height
Parts from USA; assembled in Canada

NOTE * Solid 1-Piece CNC -cut Frame. NO Welds !
* Pressure Regulator- Included

*** All Standard 3 Phase Industrial Voltages Are Available At The Same Price,
Options (extra) include: wider frame, longer stroke, safety guards, moving head, foot pedal, V-blocks, Emerg Stop.
Remote controls and more. CALL Now 514-867-3131

Specifications:

Capacity: 50 Tons / 100,000 lb. 45,500 kg
Model Number: HFP-50
Manufacturer: MachineCo (Canadian Press Division)
Power: 5 HP, 1 Phase -or- 3 phase 230/460 or 575 V.
Bore: 7″
Stroke: 16″
Rod diam: 3.0″
Ram speed: Pressing – 18 IPM, Return – 22 IPM
Weight: 2,200 lbs (1000 kg.)
Dimensions: 50″ Length x 82″ Width x 98″ Height
Parts from USA; assembled in Canada

NOTE * Solid 1-Piece CNC -cut Frame. NO Welds !
* Pressure Regulator- Included

*** All Standard 3 Phase Industrial Voltages Are Available At The Same Price,
Options (extra) include: wider frame, longer stroke, safety guards, moving head, foot pedal, V-blocks, Emerg Stop.
Remote controls and more. CALL Now 514-867-3131

Our ALL New, All N. American Heavy Hydraulic Presses are carefully crafted using:

1. US components
2. Assembled in Canada
3. Used everywhere.

“It’s The All American made heavy-duty press – for YOU”
” We make it YOUR way.” Tell us what you want.

CALL Now 514-867-3131. Experts are standing by

“Canadian Press” 50 Ton H-Frame Hydraulic Press quantity
