Description

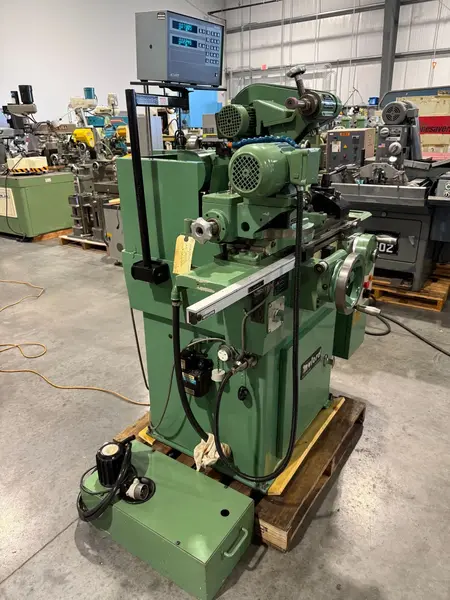

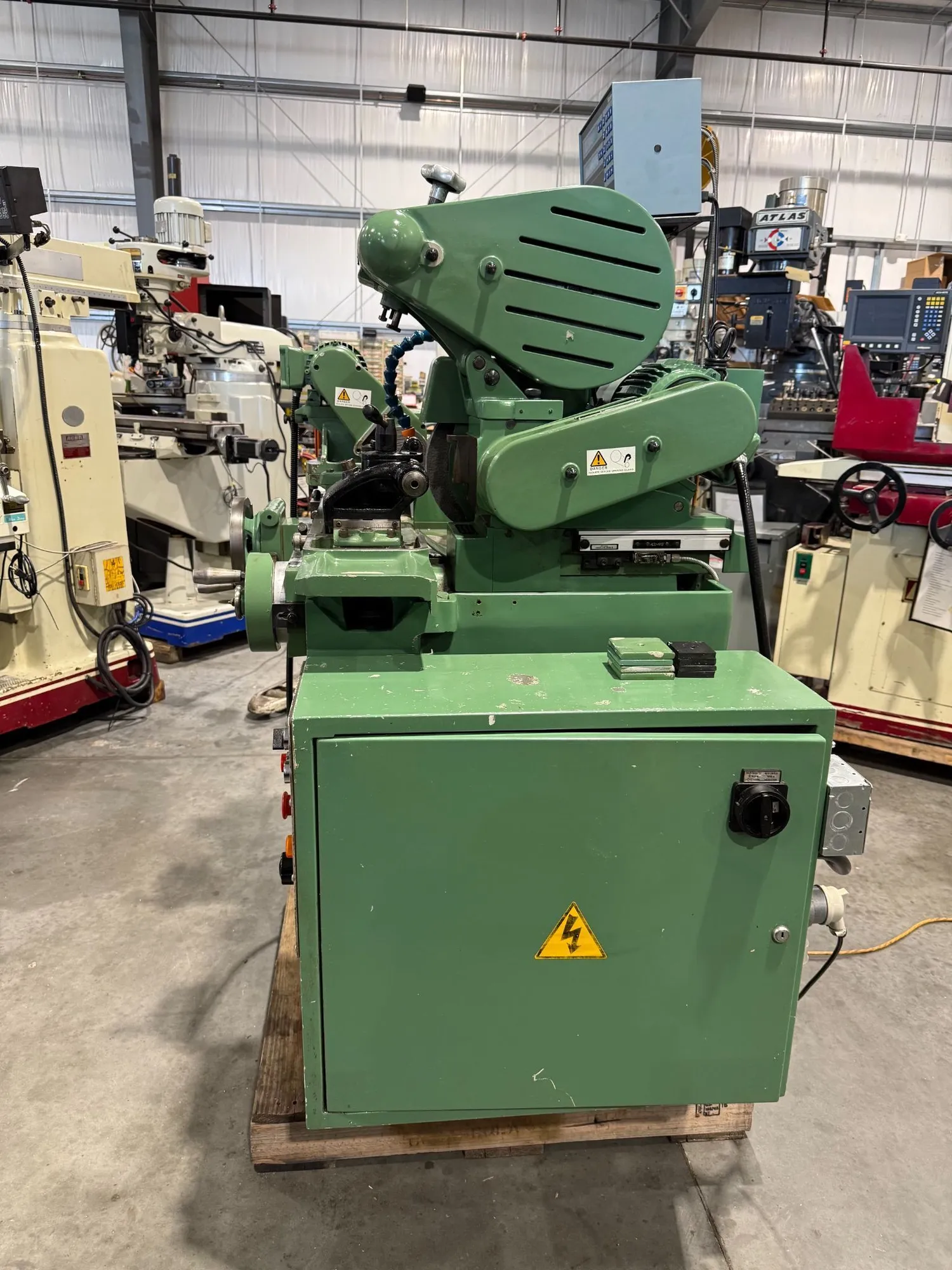

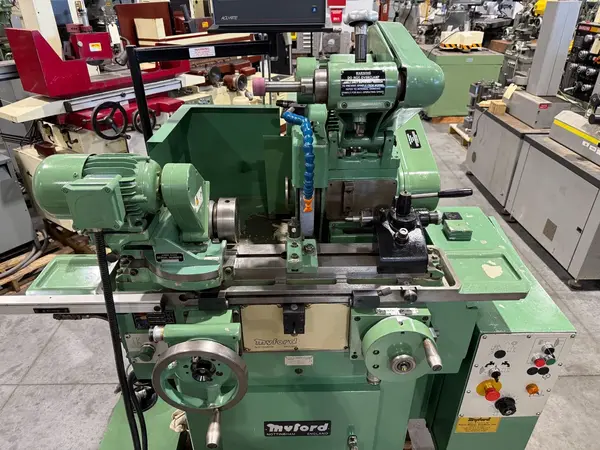

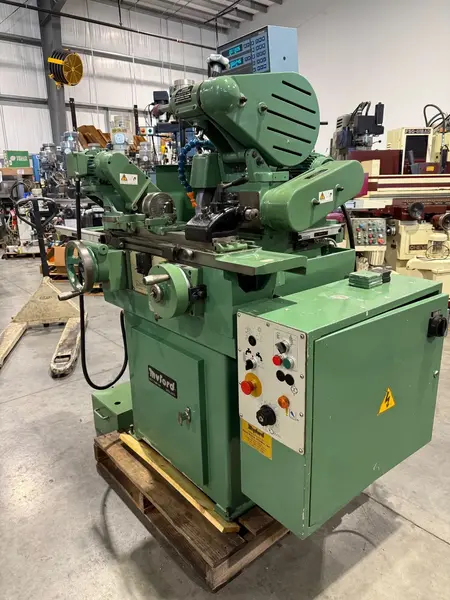

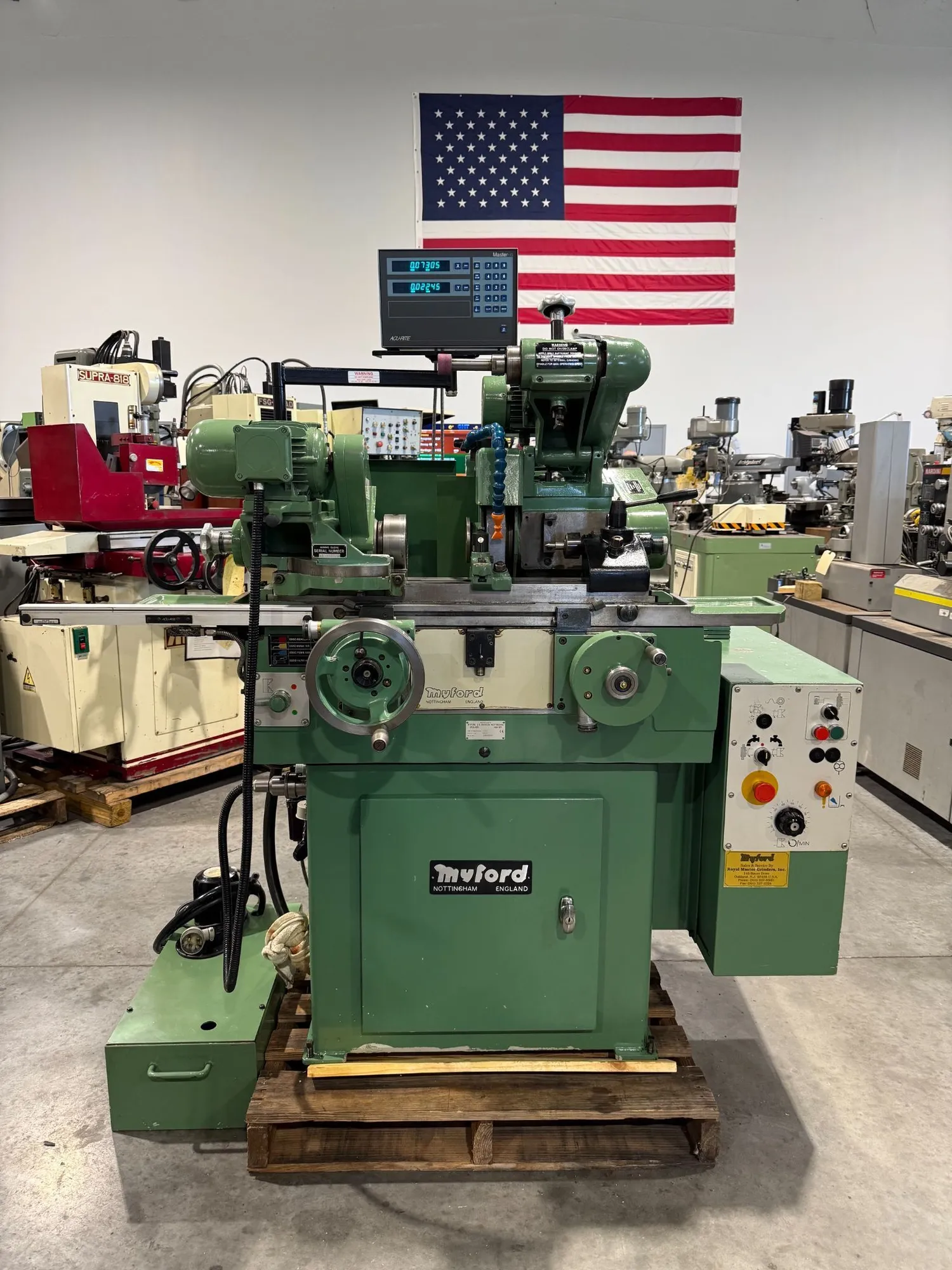

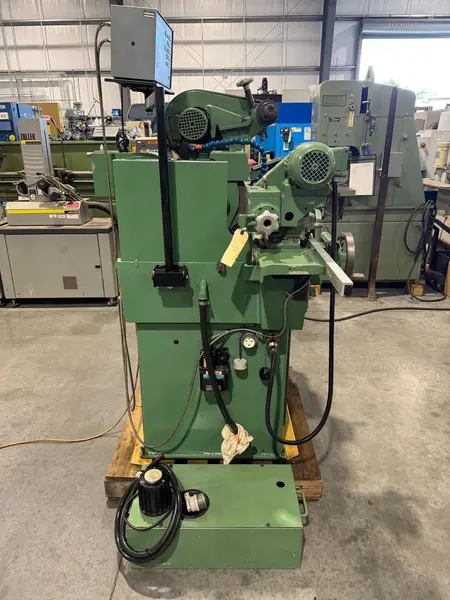

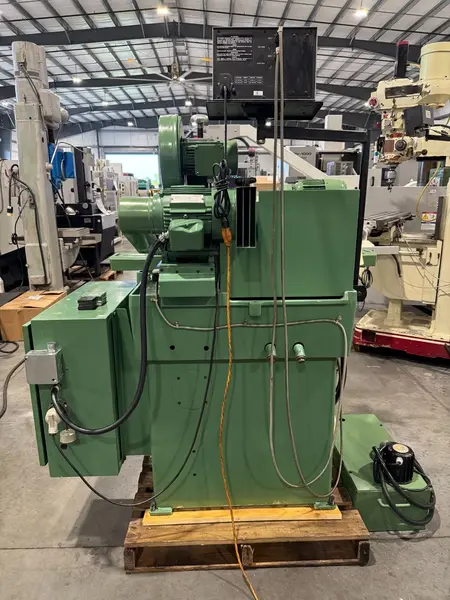

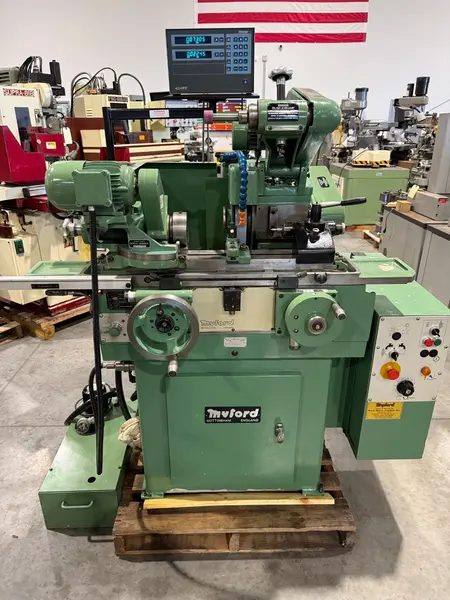

Description MYFORD #MG12 5” x 12”cc Cylindrical Grinder with OD attachment DRO 1997’ #8441 Reference #8441 Model # MG12 Serial # SM169812 Year of manufacture- 1997’ Maximum grinding diameter- 3” Maximum swing over table- 5” Capacity between centers- 12” Maximum table traverse- 13-1/2” Table travel per revolution of handwheel- Fine- .7”/ Coarse- 2.04” Table swivels either way- 7 Degrees Grinding wheelhead travel by feed screw- 3” Handwheel dial for infeed reads to- .0001” One division of the handwheel dial gives- .0002” reduction on workpiece diameter Fine feed knob for infeed reads to- .000025” One division of the fine feed knob gives- .00005” reduction on workpiece diameter Grinding wheelhead speeds-2,200 & 2,500 R.P.M. Grinding wheel size- 10” diameter x 1” wide x 5” bore (12) Motorized workhead speeds, two ranges- 75 – 780 R.P.M. Maximum collet capacity- ½” Specifications
MYFORD #MG12 5” x 12”cc Cylindrical Grinder with OD attachment DRO 1997’ #8441 Reference #8441 Model # MG12 Serial # SM169812 Year of manufacture- 1997’ Maximum grinding diameter- 3” Maximum swing over table- 5” Capacity between centers- 12” Maximum table traverse- 13-1/2” Table travel per revolution of handwheel- Fine- .7”/ Coarse- 2.04” Table swivels either way- 7 Degrees Grinding wheelhead travel by feed screw- 3” Handwheel dial for infeed reads to- .0001” One division of the handwheel dial gives- .0002” reduction on workpiece diameter Fine feed knob for infeed reads to- .000025” One division of the fine feed knob gives- .00005” reduction on workpiece diameter Grinding wheelhead speeds-2,200 & 2,500 R.P.M. Grinding wheel size- 10” diameter x 1” wide x 5” bore (12) Motorized workhead speeds, two ranges- 75 – 780 R.P.M. Maximum collet capacity- ½”

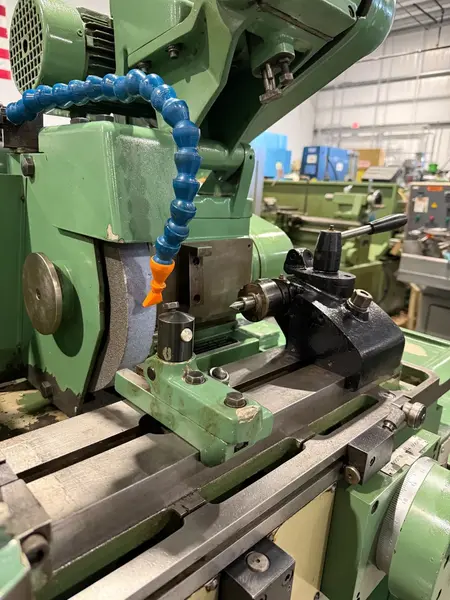

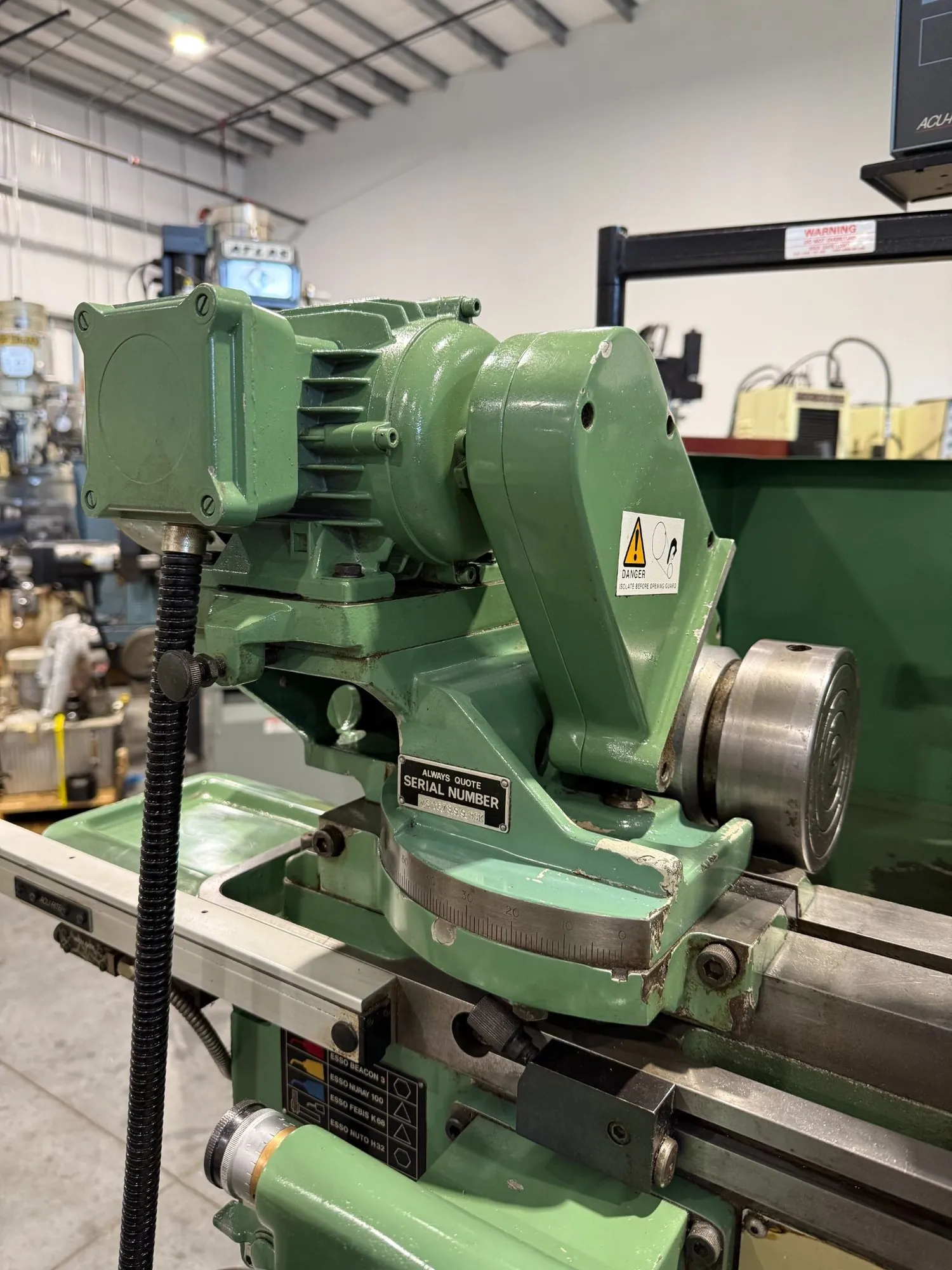

Equipped With ACURITE 2 Axis DRO Digital Read Out Drop Down Internal Grinding Attachment Hand operated longitudinal table traverse and wheelhead advance/retraction Motorized workhead with screw-type drawbar, Myford type 3C collet, and dead center spindle (capable of live center operation with live center assembly) Tailstock Table mounted dresser Coolant system with external coolant pump and tank (10 Gallon) 1/4 H.P 3/60/220 volt DC workhead motor 2 H.P 3/60/220-440 volt grinding wheelhead motor and electrical controls Machine is wired for 220 volt operation Machine weight- 1,500 Lbs. Machine dimensions- 50” x 40” x 60” H Machine location- F.O.B. Sarasota, Florida
