For Sale by Arlington Machinery

Surplus Record Dealer Since 1998
Location: Lake Zurich, IL
Contact Chris / Garrett
Phone Number: 847...> Show Phone Number 847-957-9731
Let the seller know you found their listing on Surplus Record!
Description
Description

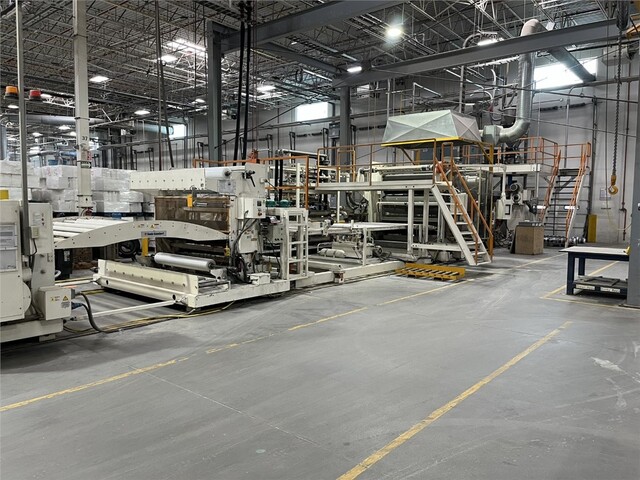

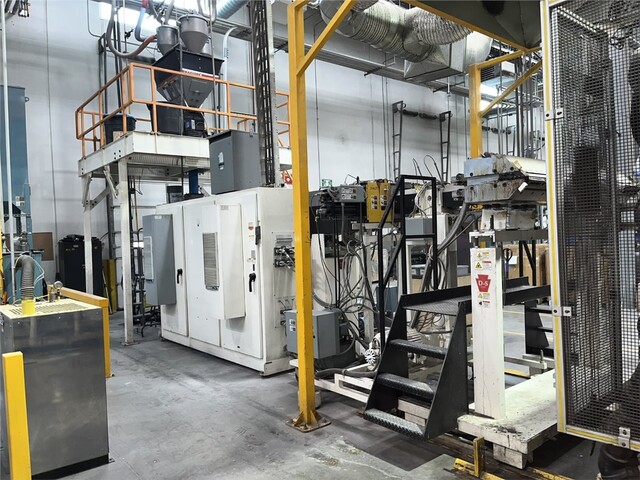

- Used 80" Wide Davis Sheet Line With 5" (130MM) 34:1 Extruder, New In 2009
- Maguire WSB-940T Gravimetric Blender
- 5 Inch (130 mm), 34:1 L/D, Thermatic III, 13.85:1 Gearbox Ratio, Model 130MM45T, Water Cooled, 8 Barrel Zones, Vented Barrel, 300 HP (222 KW) AC Drive System, Yaskawa Drive With Line Choke, S.O. 36917

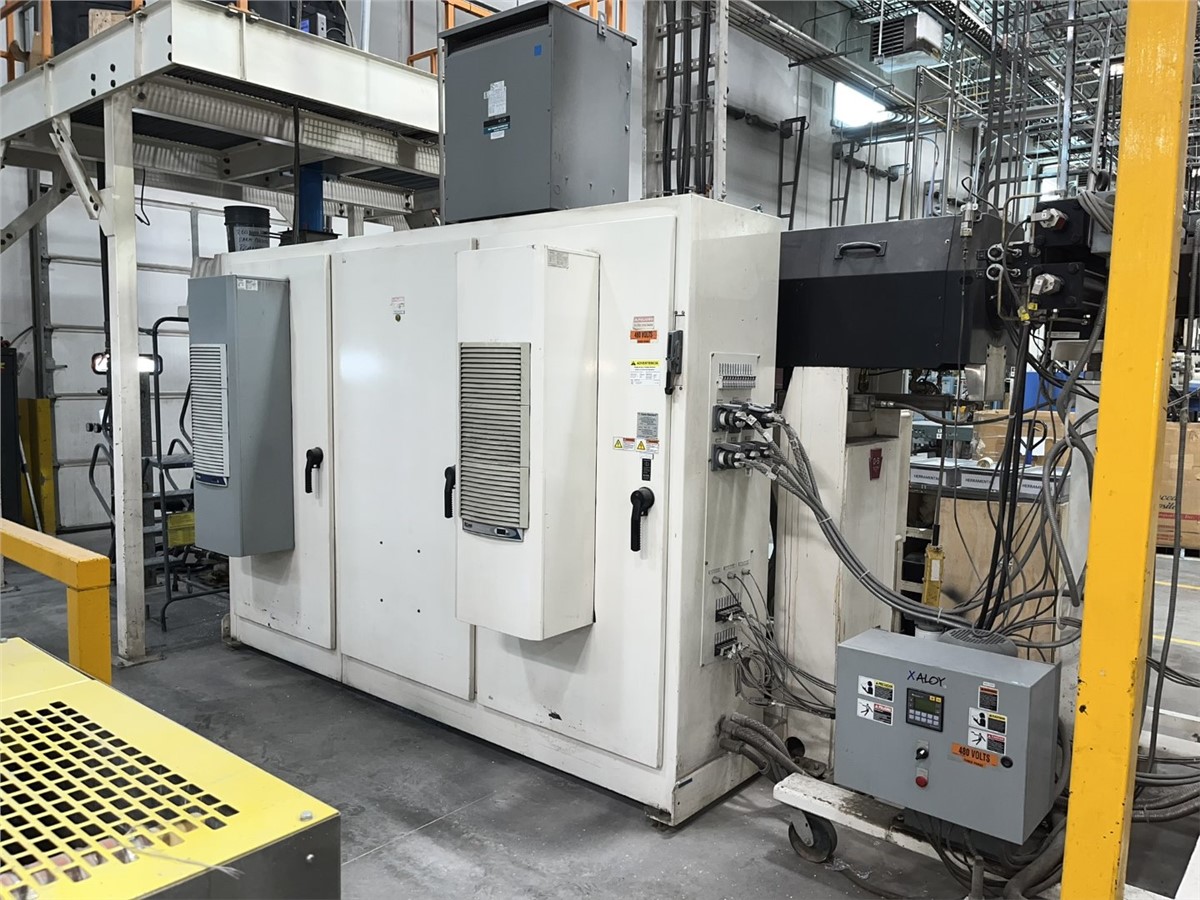

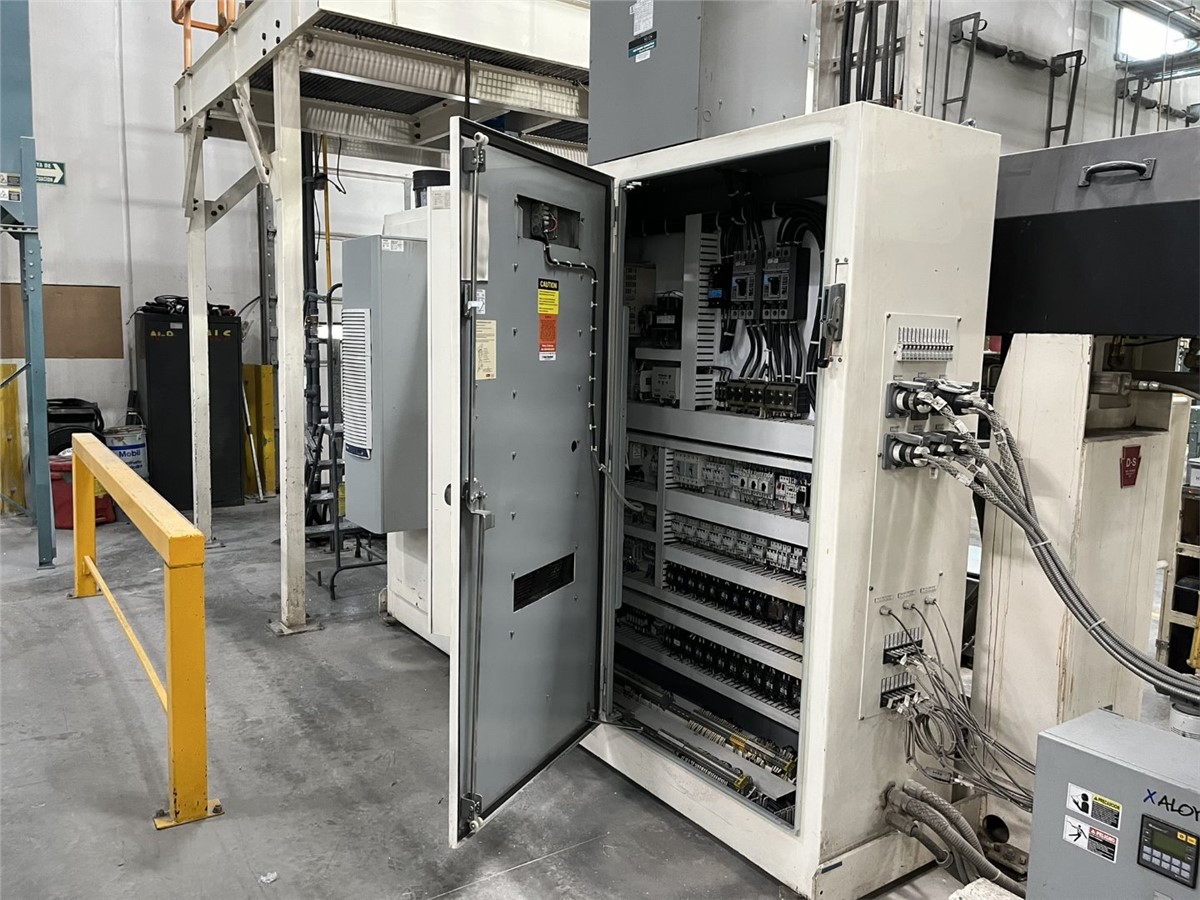

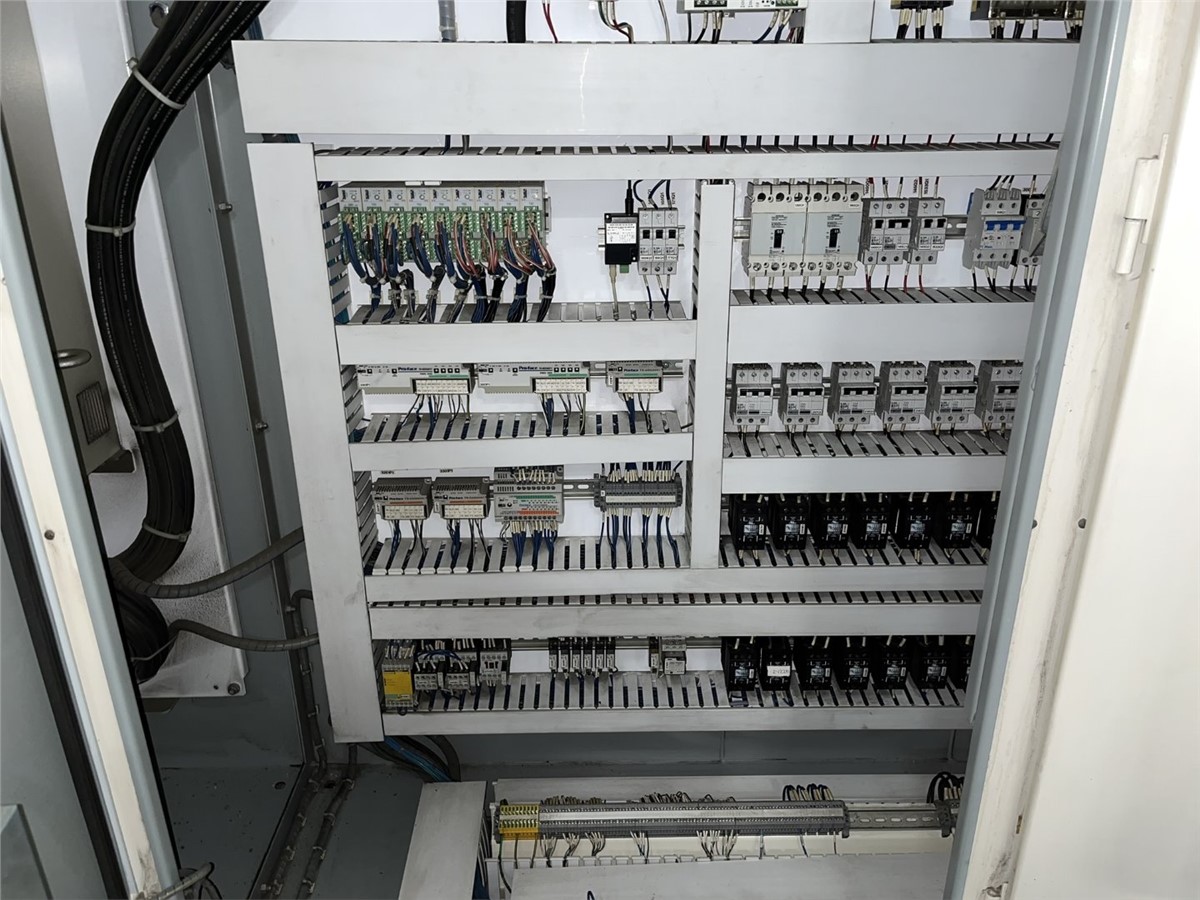

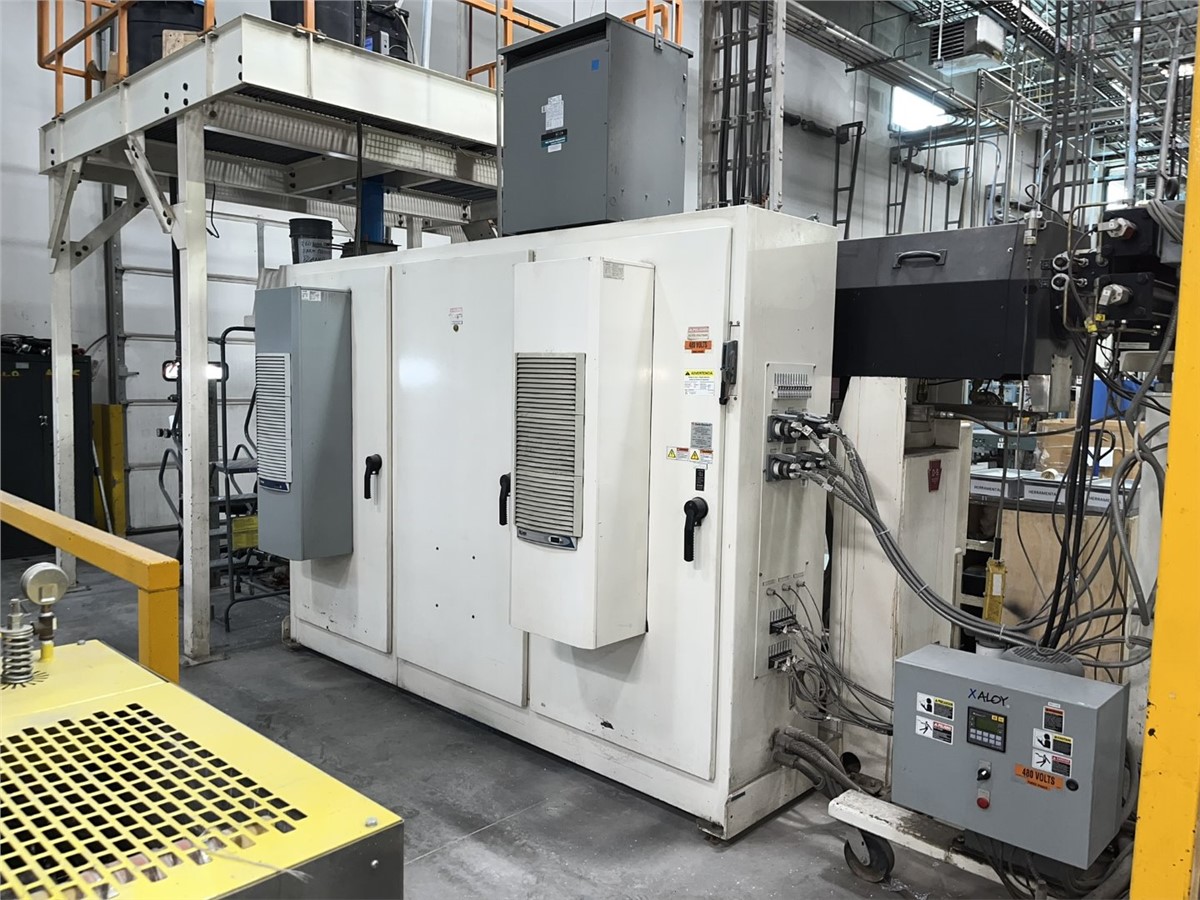

- Davis-Standard TPC Control Panel, Pre-wired and Pre-mounted Control and Drive Cabinets, HMI Interface

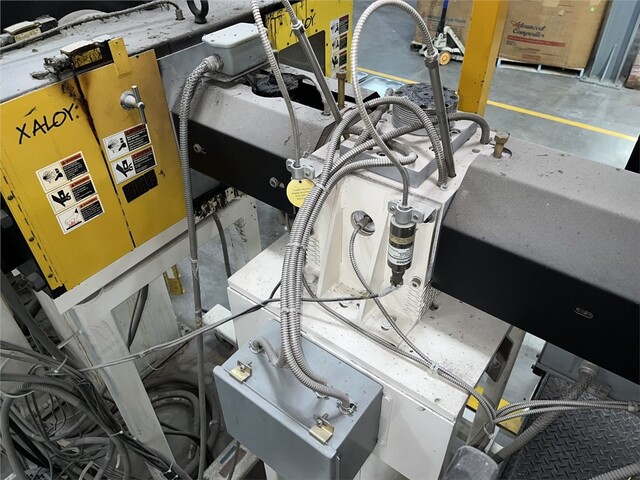

- Xaloy Dual Bolt DBC-379 Hydraulic Screen Changer, Support Stand, Hydraulic Power Unit
- Polymer Melt Pump System, Static Mixer in Downstream Adapter, 20 HP AC Motor

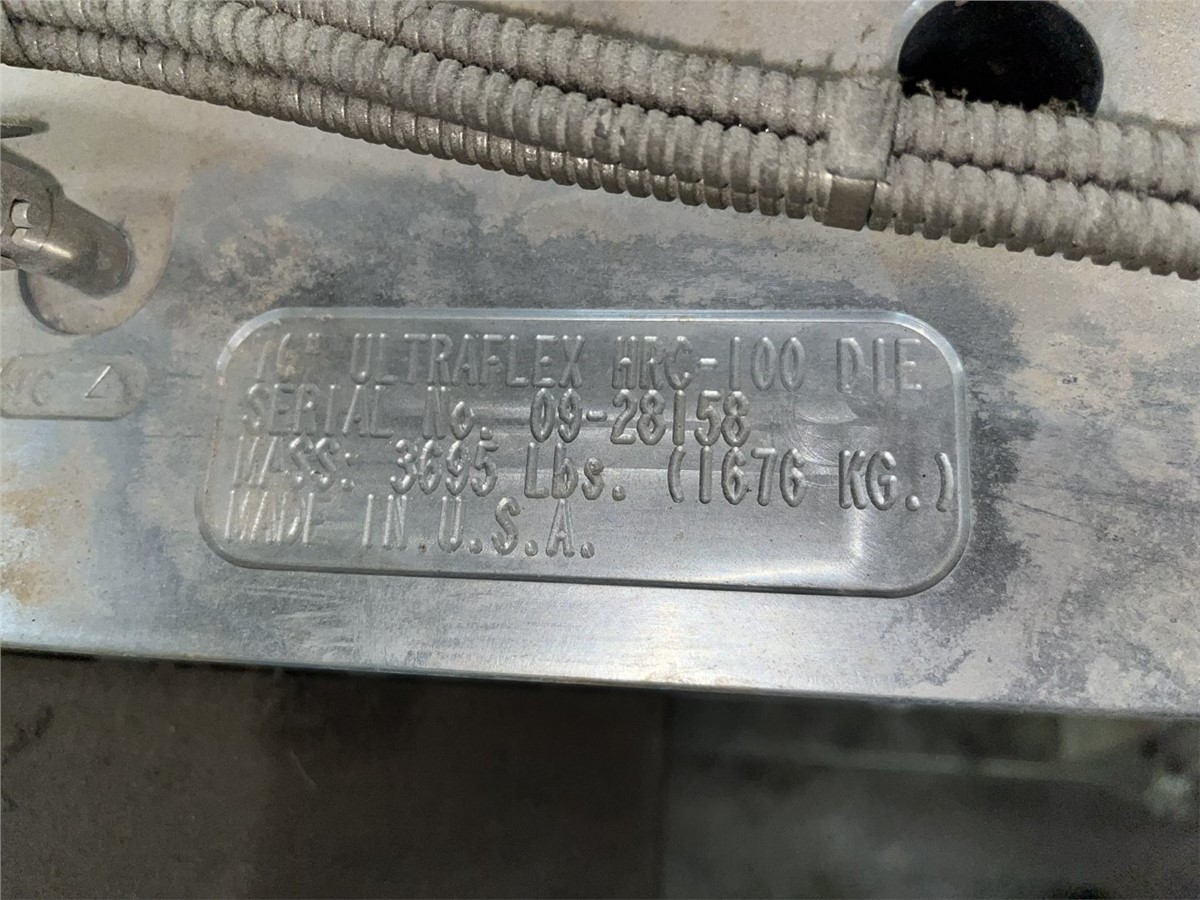

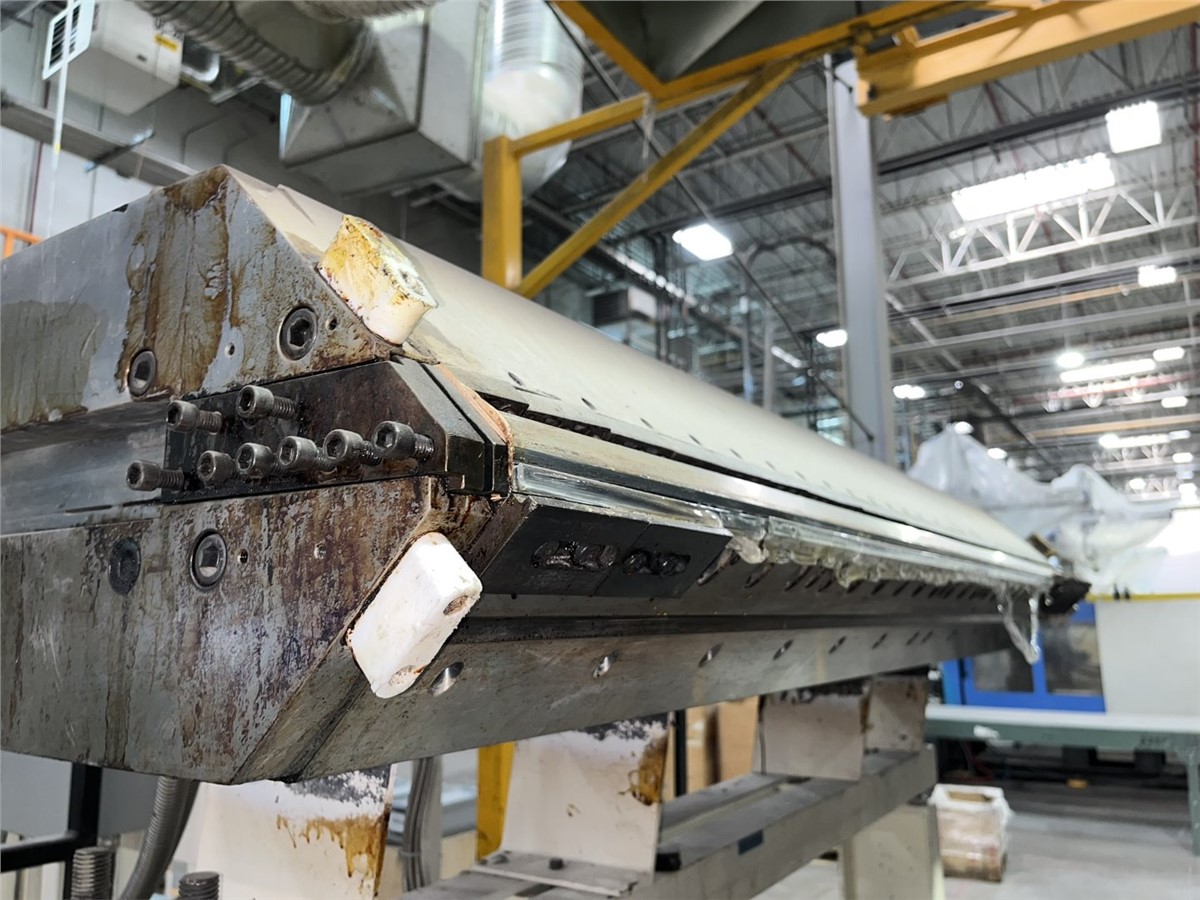

- 76" (1930 mm) Wide Sheet Die, .10 Die Gap, 0-2.54MM Range, External Side Mount Deckling, Heavy Duty Die Cart with Work Platform, 76" Ultraflex, S/N 09-28158

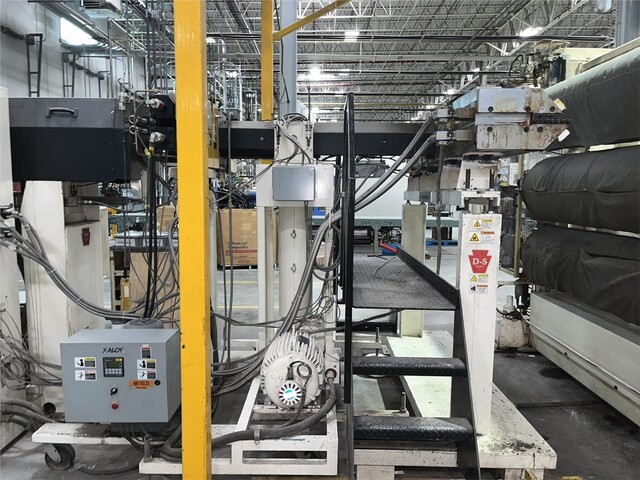

- 80" Wide Sheet Line, 20" Diameter Rolls, Individual Roll Drive System with Planetary Gear Boxes, Yaskawa F7 Drives, Vertical Downstack Orientation, Hydraulic Roll Pressure
- Closed Loop Colling System With (3) 18KW) Heaters, PLC Controlled, XP EXPRESS Series Stand System
- 25" Long Conveyor, First 10 Idlers Are Water Cooled
- 80" Wide X 8" Diameter Rubber Pull Rolls, Pneumatic Pressure, Yaskawa F7 Drives
- 72" Wide Famco Shear, 1/2 Inch ABS, S/N NOS-01106826
- Previously Running PS (Polystyrene) Crystal
- 3 Spare Chrome Rolls And 1 Spare Rubber Pull Roll
- Additional Specifications And Photos Available, Contact Your Arlington Salesperson.
- 480/3/60
- Line No Longer Installed, Located In Arlington Machinery Warehouse In Lake Zurich, IL
- This Sheet Line That We Have For Sale Was Previously Running Optical Polystyrene
