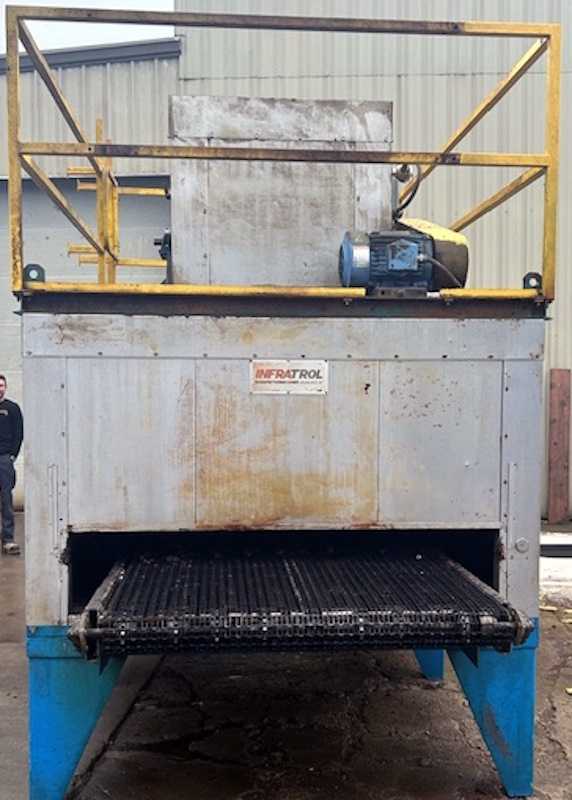

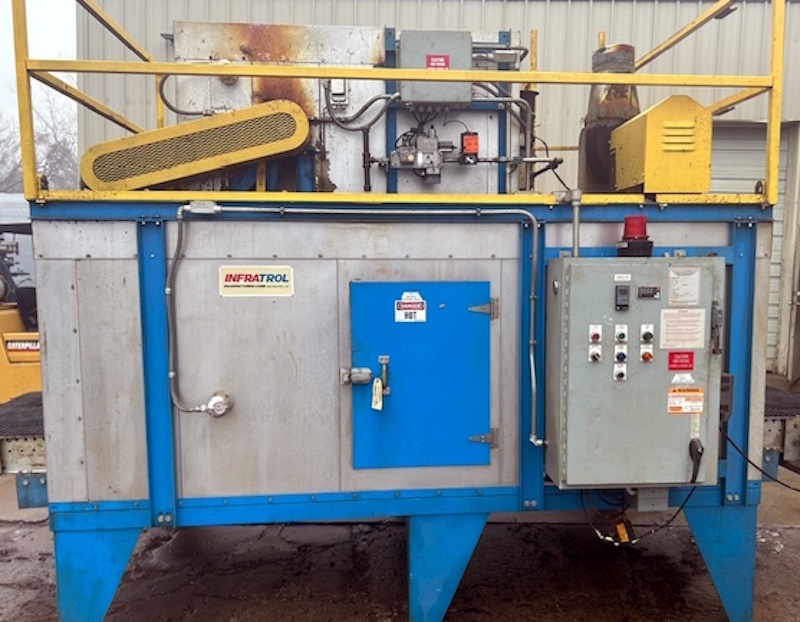

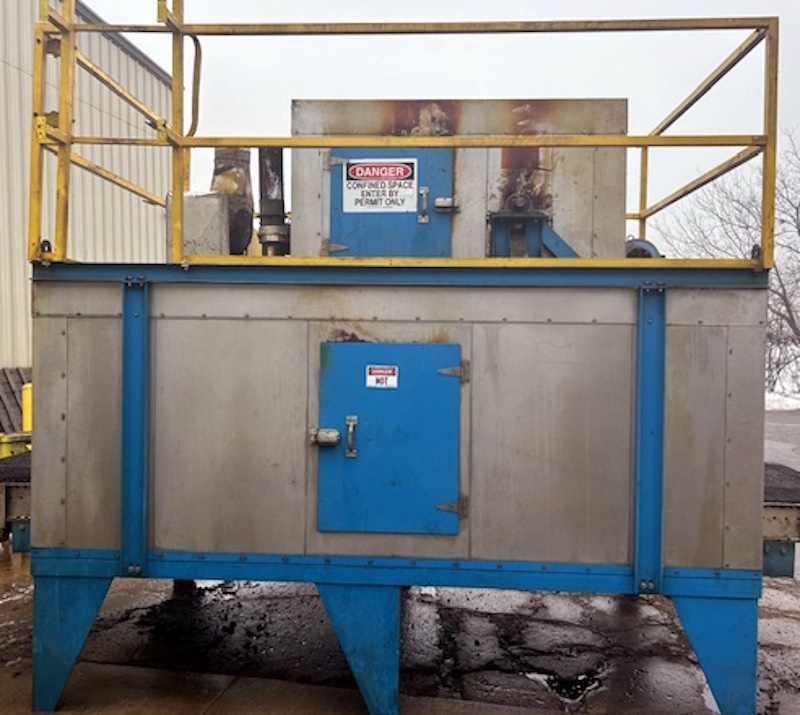

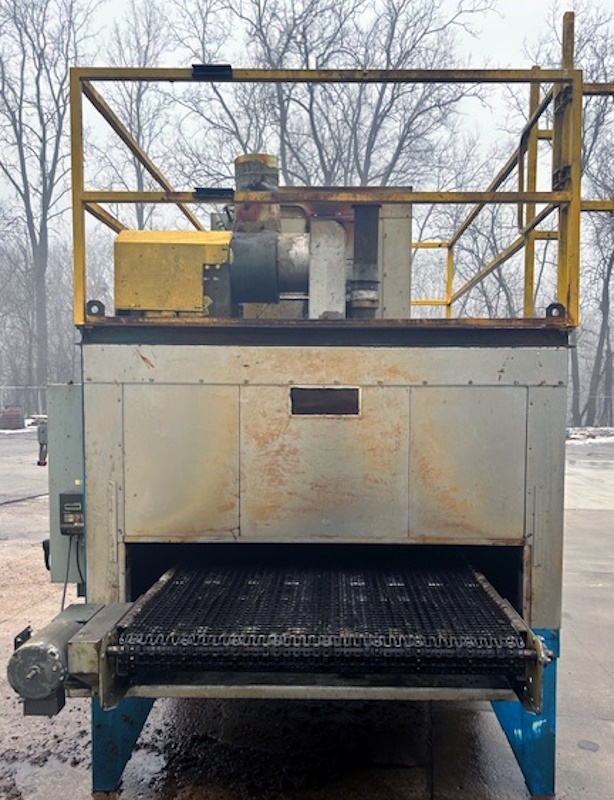

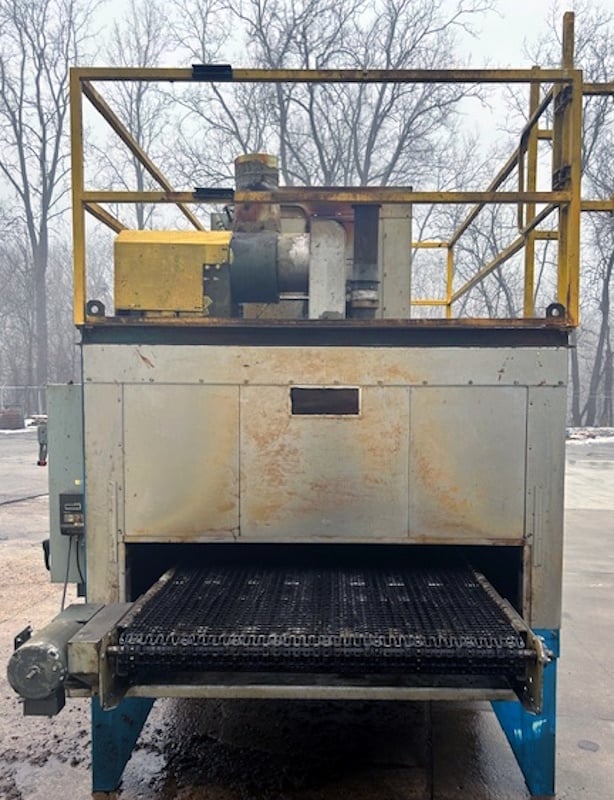

48" width x 5" H x 120" L Infatrol, continuous flat wire belt furnace, 480 V., 400°F, 400000 BTU, Future Design Controls FDC8100 controller, Autronics TC400 Over-Temp Controller

Manufacturer: Infratrol Manufacturing

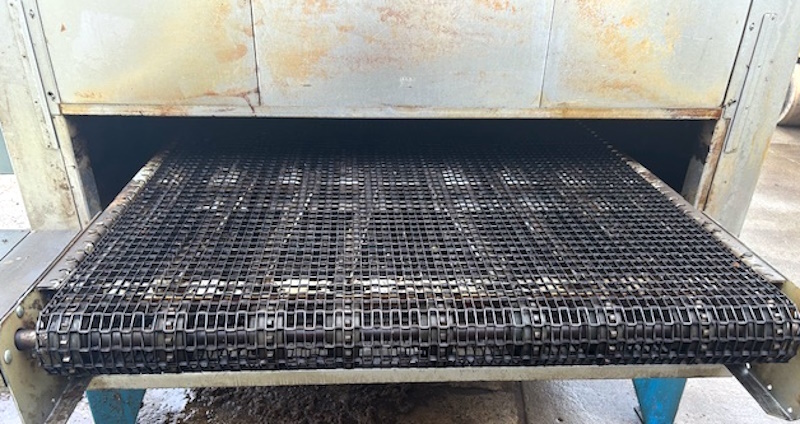

Type: Continuous Flat Wire Belt Furnace
Serial Number: 0V7428S1C01L06

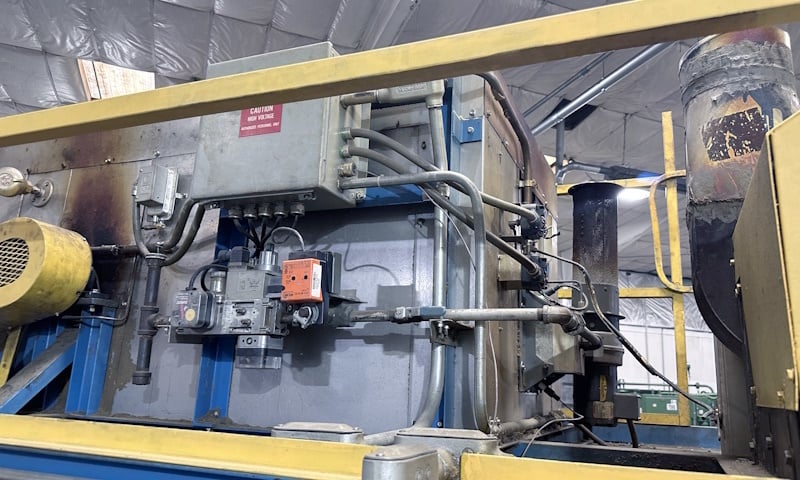

Heating: Natural Gas, 400,000 BTU
Working Dim’s: 48” wide x 5” clear height x 10’ of heating
Note: Clear height can be increased.
Overall Dim’s: 9’8” wide x 15’ long x 9’8” high
Power: 480 Volts / 3-Phase / 60 Hz
Load Area: 30”
Unload Area: 33”
Load Height: 36” from Floor
Max Temp: 400°F

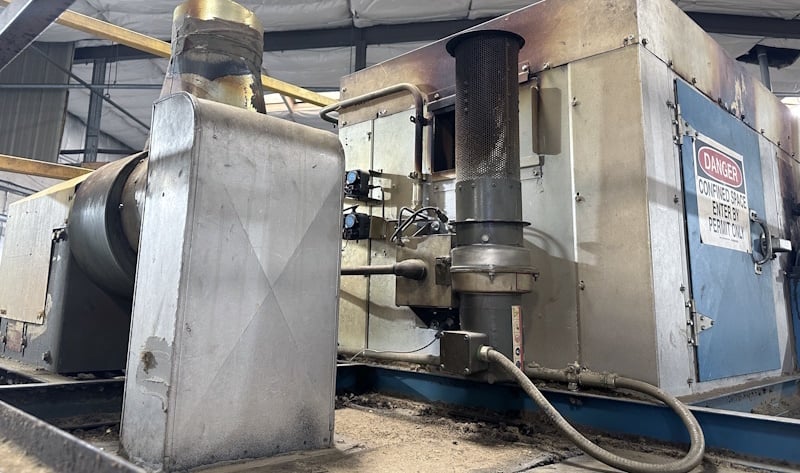

Blower: Exhaust Blower on Charge End

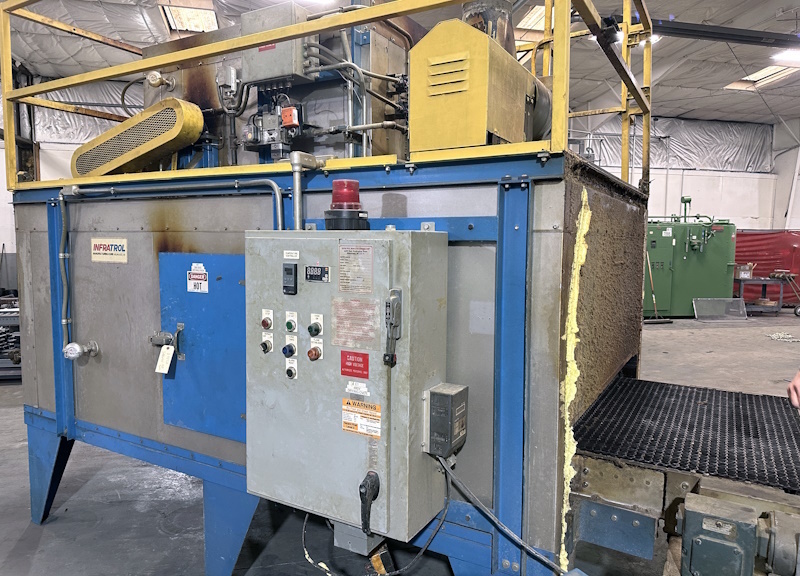

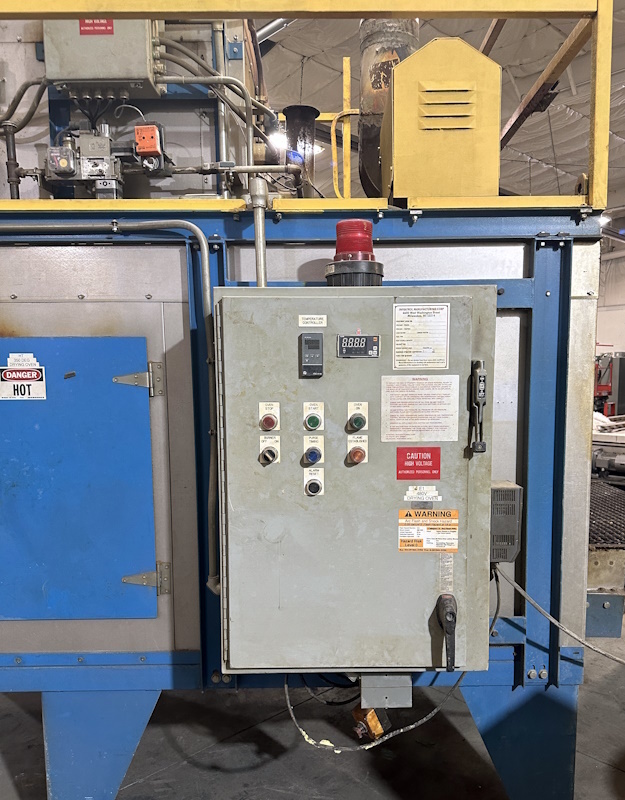

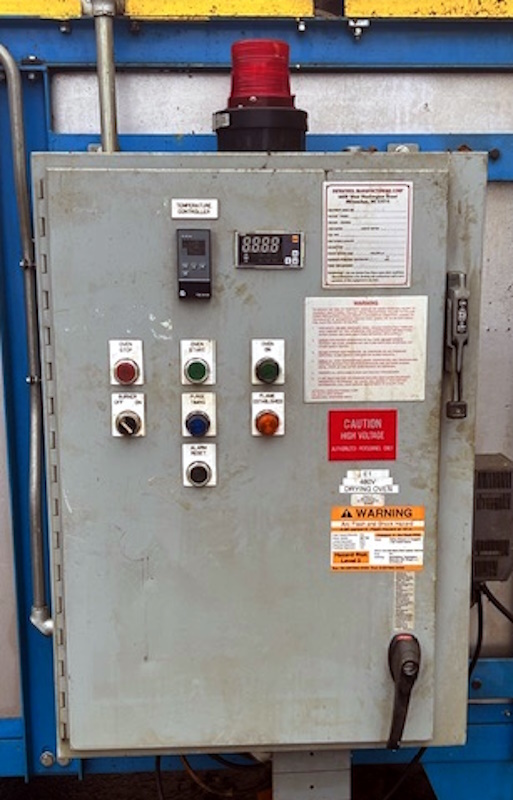

Controls:
Future Design Controls FDC8100 Temp Controller
Autronics TC400 Over-Temp Controller
Variable speed belt drive
