For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Tonnage | 48 tons |
| Max. Bending Length | 51 inches |
| Distance Between Frames | 48 inches |
| Throat Depth | 5.9 inches |
| Max. Open Height | 19.68 inches |
| Stroke Length (Y-Axis.) | 9.84 inches |
| Y- Axis Working Speed | 23.6 IPM |
| Y- Axis Max. Speed | 236 IPM |
| Y- Axis Repeating Accuracy | +/- 0.0000787 |
| X- Axis Movement | 23.62 |
| X- Axis Speed | 19.69 IPS |
| X- Axis Repeating Accuracy | +/- 0.00197 |
| R- Axis Movement | 7.87 inches |
| R- Axis Speed | 236 IPM |
| Main Servo Motors | 13.4 HP |
| Machine Dimensions (Width x Depth x Height) | 51 X 61 X 89.76 |
| Machine Weight | 6173 pounds |
Equipped With
Equipped With
Features:

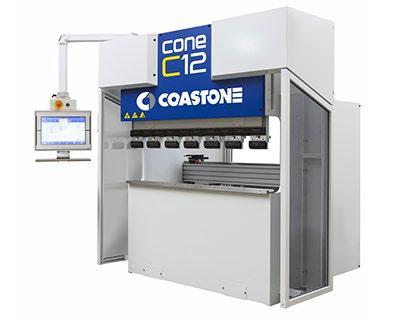

CoastOne represents the new generation of press brakes. The CoastOne C-12 is a servo driven press brake equipped with high class linear guides. The machine is designed for an extremely accurate and precise bending process for all of your demanding solutions. The cornerstones of the CoastOne development have been the ergonomic design, user friendly programming, as well as convenient working conditions for the operator. Also, Since the C-12 is a servo driven press brake, there are no oil changes needed and no waste oil exists. Many customers find a 2/3 energy savings by using our electric press brake, as opposed to a traditional hydraulic brake.
Equipped With:
CoastOne represents the new generation of press brakes. The CoastOne C-12 is a servo driven press brake equipped with high class linear guides. The machine is designed for an extremely accurate and precise bending process for all of your demanding solutions. The cornerstones of the CoastOne development have been the ergonomic design, user friendly programming, as well as convenient working conditions for the operator. Also, Since the C-12 is a servo driven press brake, there are no oil changes needed and no waste oil exists. Many customers find a 2/3 energy savings by using our electric press brake, as opposed to a traditional hydraulic brake.
Equipped With:
- Fully Integrated Lazer Safe System
- TC 15-2D Control (15” Touch Screen, Graphics, Unlimited Storage, USB)
- CNC-controlled Y-, X-, R -Axis.
- 2 pcs back gauge fingers.
Optional Features:
Optional Features:
- CoastOne Z1, Z2-Axis: Independent Finger Programmability (Left to Right): $7,750.00
- CoastOne Front Side Working Light: $1,140.00
- CoastOne Tilting Front Table: Adjustable Front Table for C-Series Machines $1,140.00
Delivery:
20 Weeks
Delivery:
20 Weeks
Get Your Price from Smith Machinery Co!
