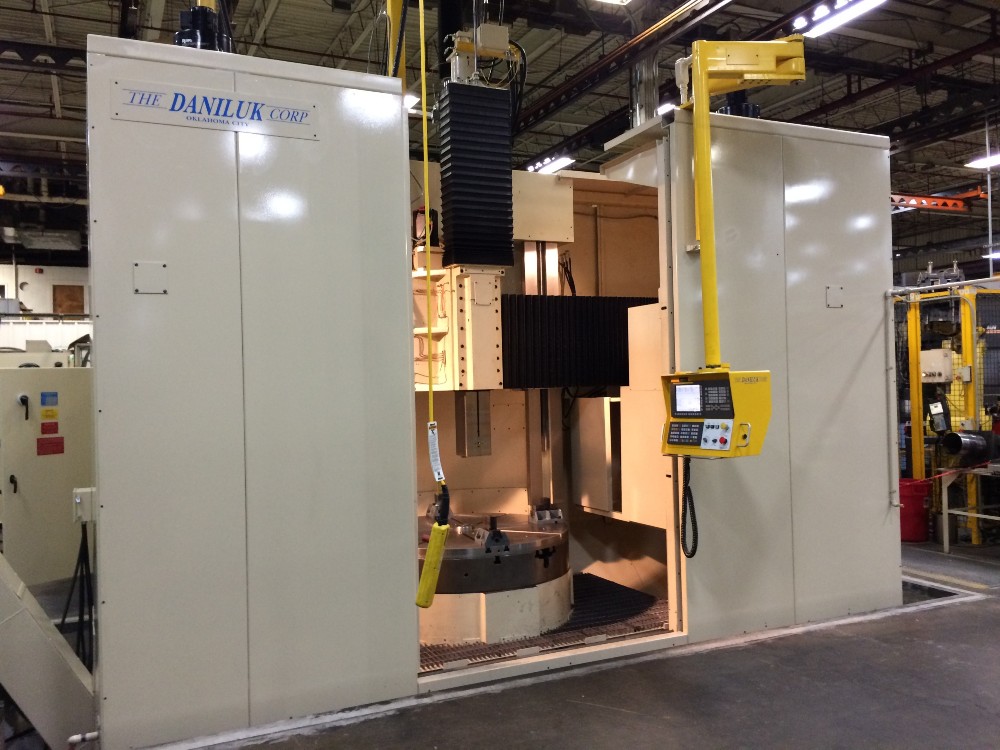

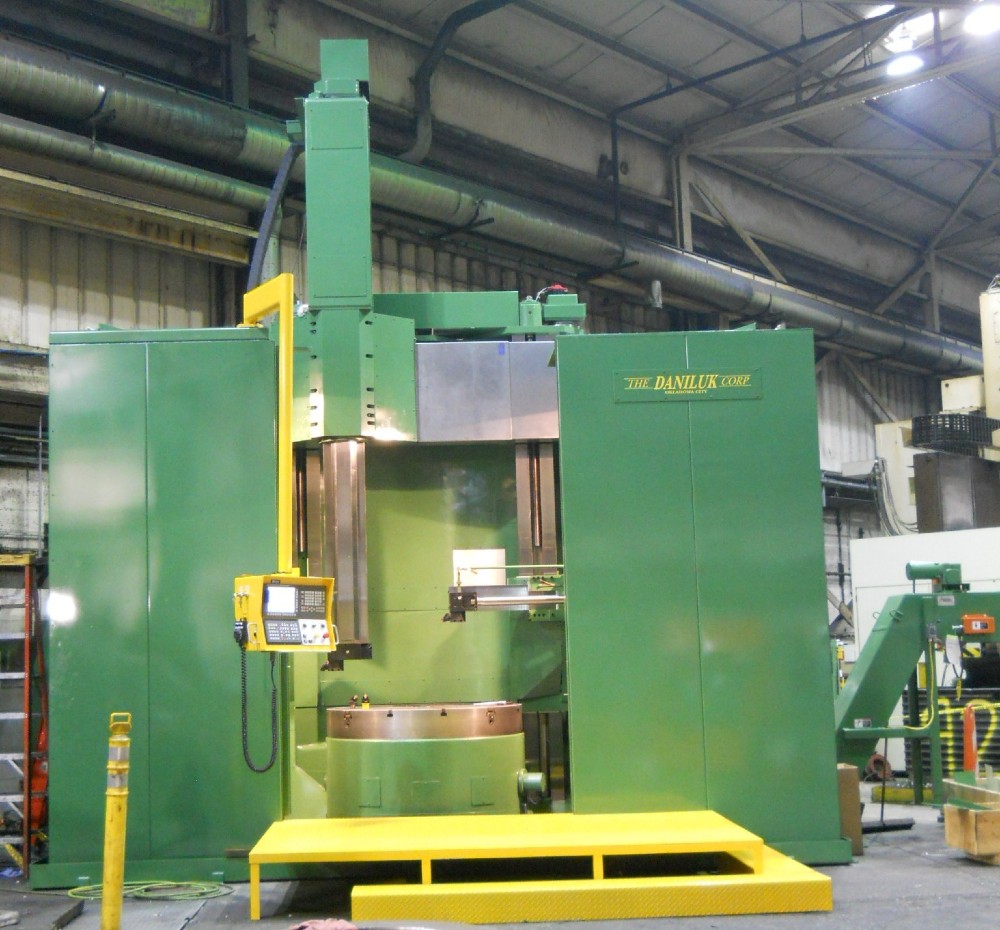

Description
| MANUFACTURER | Giddings & Lewis |
| MODEL NUMBER | 512-VBM |
| YEAR OF MANUFACTURE | 2025 |
| 4 JAW MANUAL CHUCK | 48” |
| MAX TURNING DIAMETER | 60” |
| HEIGHT UNDER TOOL | 49” (OPTIONAL PLUS 12” / 24”) |
| SPINDLE MOTOR | 75 HP AC VARIABLE SPEED |
| SPINDLE SPEEDS | 15-350 RPM |
| NUMBER OF TOOLS | 12 STATIONS |
| PROGRAMABLE AXIS | X 35” LEFT OF CL / 35” RIGHT OF CL / Z 36” |
EQUIPPED WITH:
Heidenhain scales on X and Z axis
Machine anchor system
Full enclosure with auto doors
Fanuc 2 axis CNC control
Chip Conveyor
Enclosure with 2 mist collectors.
Basic footprint of machine will be 14’ x 12’ X 17’ TALL
This is a “Flat Floor” machine (no pit required)
