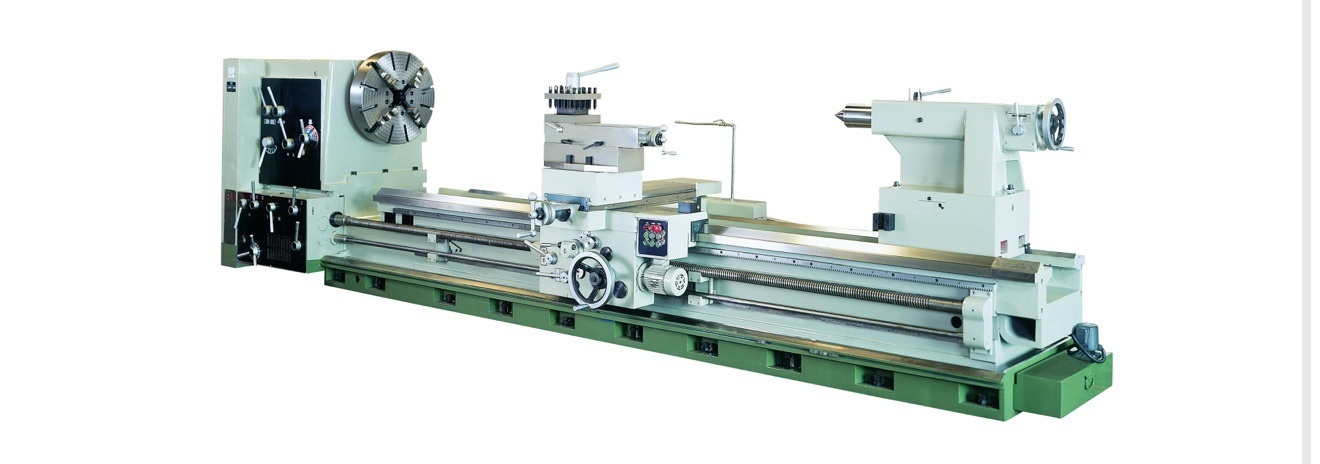

47" x 360" GMC #OCL-47160G, hollow spindle lathe, 12-1/8" bore, 50 HP, 9-300 RPM, A2-20, warranty

$397,850 USD

Request Formal Quote

Specifications
OCL- 47360G #7734
Max. swing over bed 47
Distance between centers 360
Max. swing over cross slide 33-1/2(830mm)
Width of bed 27-1/4 (692mm)
Spindle bore 12-1/8 (310mm)
Spindle nose A 2-20
Spindle speeds 4-420rpm , 12 steps
Max. weight of workpiece 9,000 LBS
Longitudinal auto feeds 0.004 0.055 IPR, 40 kinds
Cross slide auto feeds 0.004 0.022 IPR, 40 kinds
Inch threads 59 1 TPI, 35 kinds
Metric threads 0.5-18mm , 34 kinds
Max. travel of top slide 13-3/4
Longitudinal rapid traverse 12 / min.
Cross rapid traverse 6 / min.
Top slide rapid traverse 3 / min.
Diameter of tailstock quill 5
Max. travel of tailstock quill 12
Taper of tailstock quill center MT 6
Main Motor 50 HP, 220V or 440V, 3 phase
Rapid traverse motor 1/2 HP, 220V or 440V, 3 phase
Lubrication pump motor 1/8 HP, 220V or 440V, 3 phase
Coolant pump motor 1/8 HP, 220V or 440V , 3 phase
Weight, approx. LBS 33,580 LBS
Overall dimensions, LxWxH 465 x 79 x 82
Machine Standard Features and Equipment:
Made in Taiwan
ISO 9001 certified
Super large spindle bore 12-1/8(310mm)
Rapid traverse on carriage longitudinal, cross slide and top slide
Automatic feeding on carriage longitudinal, cross slide
2 speed Tailstock
solid cast iron machine base
Heavy Duty guideway width 27-1/4
Heavy Duty main motor 50 HP
16 spindle speeds from 9-300rpm
Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
