Manufacturer: Vickers
Model: PVH74C
Gallons per Minute: 45
Pounds per Square Inch: 3625
Stock # 1210933
1 / 5
Click to zoom in
1 / 5
For Sale by Savona Equipment
Surplus Record Dealer Since 2026
Location: Savona, BC Canada
Contact Sales Dept.
Phone Number: 250...> Show Phone Number 250-800-9179
Let the seller know you found their listing on Surplus Record!
Description
Specifications

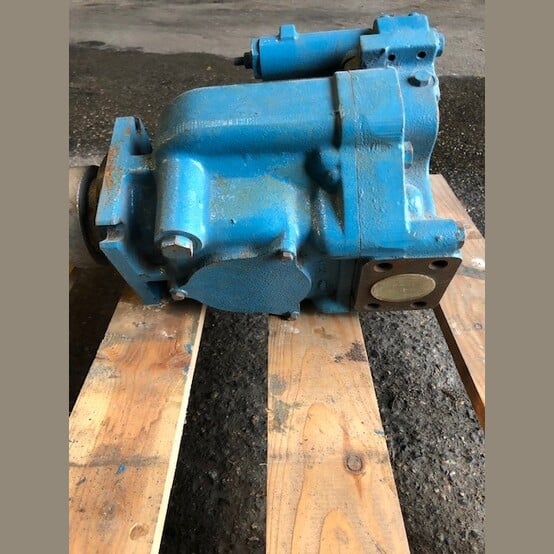

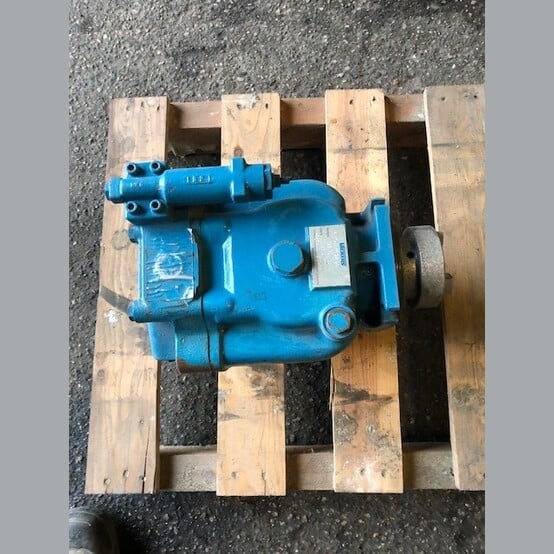

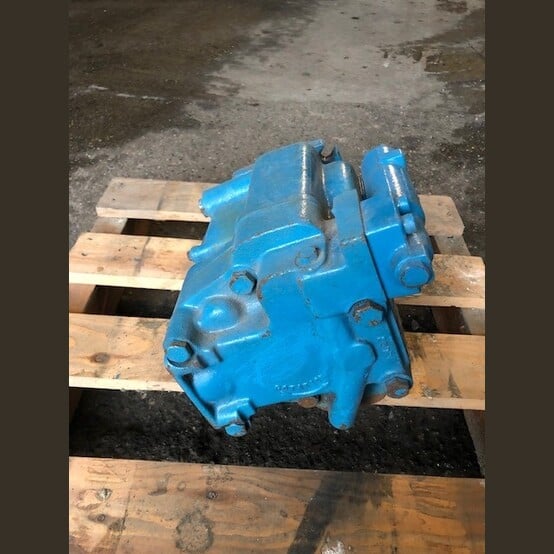

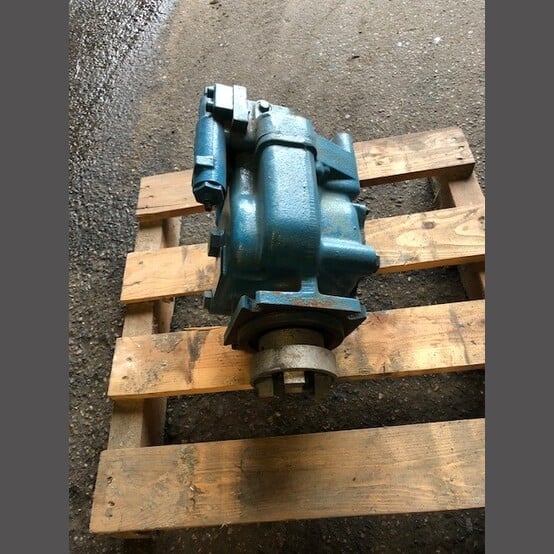

Vickers PVH74C Piston Pump

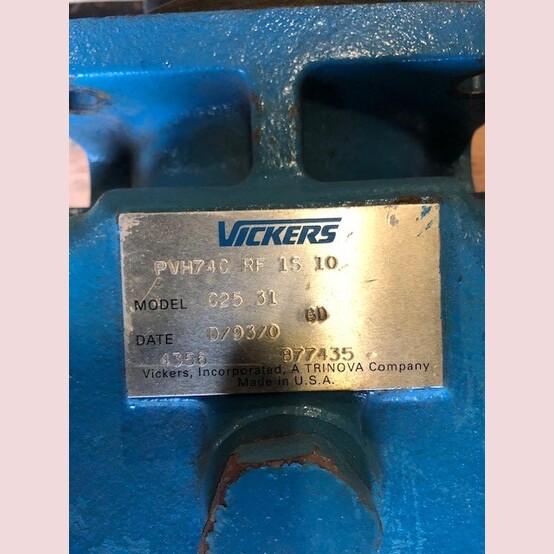

- Make: Vickers PH74C RF 1S 10
- Model: C25 31
- Condition: New
- Max Geometric Displacement 74: 73.7 cm³/r (4.5 in³/r)
- Application Style: Mobile Application (Rated Speed & 250/280 bar (3600-4000 psi) Pressures)
- Mounting Flange, Prime Mover End: SAE “C” 4–Bolt Type (SAE J744-127-4)
- Shaft Rotation, Viewed @ Prime Mover End: Right Hand, Clockwise
- Configuration: Non-Thru-Drive (Single Pump)
- Main Ports: SAE 4-bolt Flange Ports (Standard)
- Shaft-End Type, @ Prime Mover End: SAE-C Straight Key
- Shaft Seal, Prime Mover End: Single, One-Way
- Max Pressure: 250 Bar (3625 PSI)
- Rated Speed: 2200 RPM
- Flow @ 28 bar (400PSI): 154.1 - 171 l/min (40.7 - 45.2 US GPM)
- Max. Flow Loss @250 bar (3625 psi): 13 l/min (3.4 US GPM)
- Location: Western Canada
Get Your Price from Savona Equipment!
