41" x 6.3" Georg Slitting Line, Silicon, GO, GNO, Copper, Al., Turret Recoiler, 15000 lb., 1980

Model: KS160/250-1000W
Materials: GO, GNO, Copper, Alum., Silicon Steel
Min./Max. Coil Width: 2 - 41" (Trimmed)
Thickness Range: 0.006" - 0.018" (GO/GNO)
0.005" - 0.100" (Copper, Alum.)
Width Tolerance: +/- 0.001"
Max. Shear: 14,000 PSI (Alum.)
23,000 PSI (GO/GNO)
81,000 PSI (GO/GNO)
Max. Coil Weight (Entry): 20,000#
Max. Coil Weight (Exit): 6,000# @ 8" Dia. Drum
15,000# @ 24" Dia. Drum
Coil I.D. (Entry): 16" - 19" / 19" - 22" with Risers
22" - 24.5" with Risers
Coil I.D. (Exit): 8" & 24"
Max. Coil O.D.: 55"
Line Direction: Right to Left
Mode of Operation: Pull Thru / Driven
Line Speed: 0 - 660 FPM (GO/GNO)
0 - 260 FPM (Alum./Copper)

Consisting of the following:

-Entry Coil Storage Saddle:
Two (2) Full Width Coils

-Entry Coil Car:
Pit Type
Powered Lift and Traverse

-Uncoiler:
Single Mandrel Type
Hydraulic Expansion
Sliding Base
33.5 HP DC Motor Driven
Holddown with Powered Snubber Roll
Two (2) Sets of Bolt-On Risers (not confirmed)

-Automatic Edge Guide:
Photo Electric Operation

-Entry Unit:
Extending Blade Peeler
Powered Entry Pinch Rolls
Drag Type Tension Pad

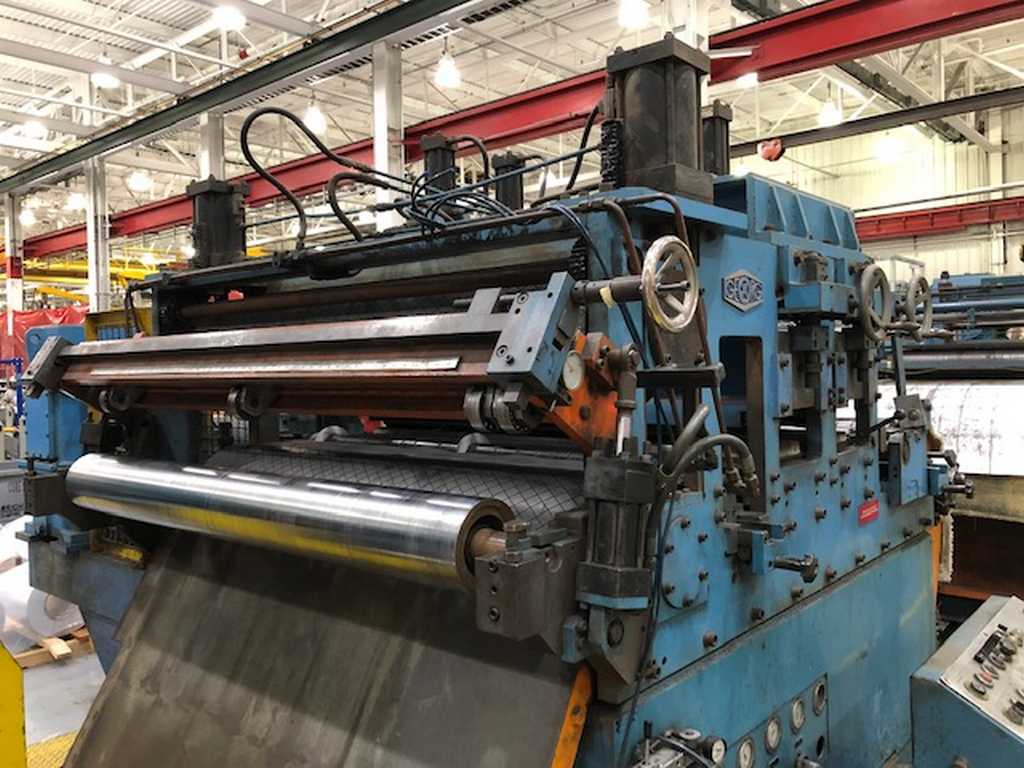

-(1) Slitter Head:
Crane Removal Type
Manual Side Guides
6.3" (160 mm) Dia. x 49" Wide (1244.6mm) Arbors
Knife Dia.: 9.8" (248.9mm)
Manual Top Arbor Adjust
Adjustable Fingers
Powered Entry Pinch Rolls
Manual Scrap Guides with Chute
20 HP DC Motor

-Scrap Baller:
DC Motor powered
Scrap Ball removal by Hydraulic Cylinder

-Pit Section:
Entry Centenary Section
Powered Carry Over Table

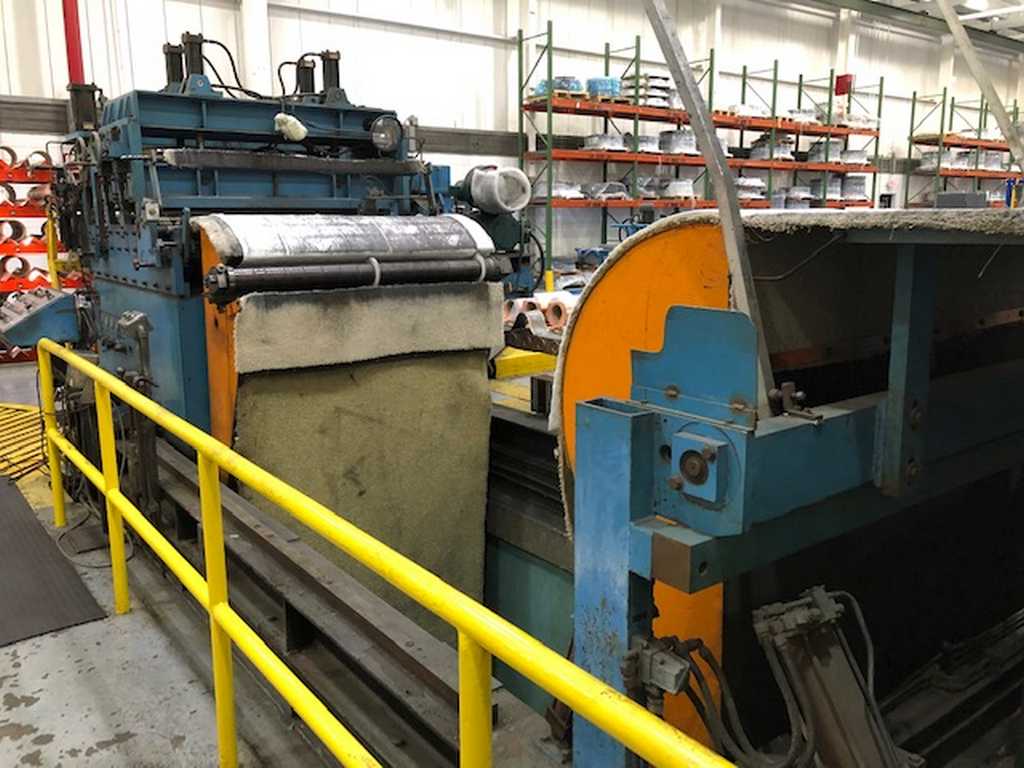

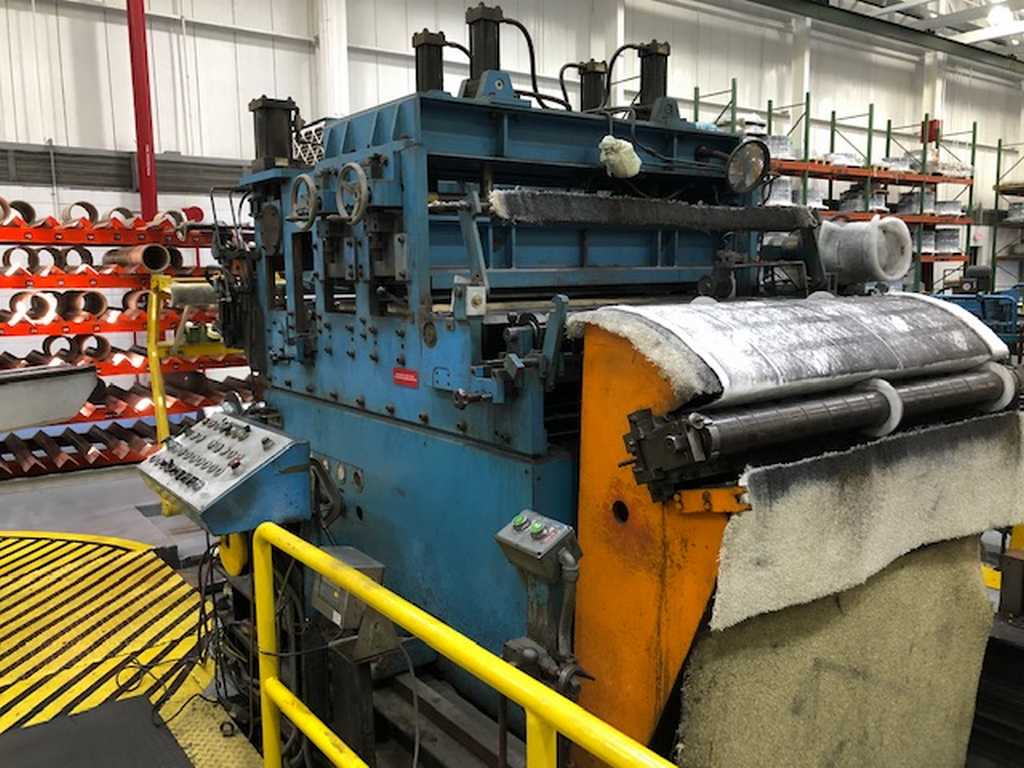

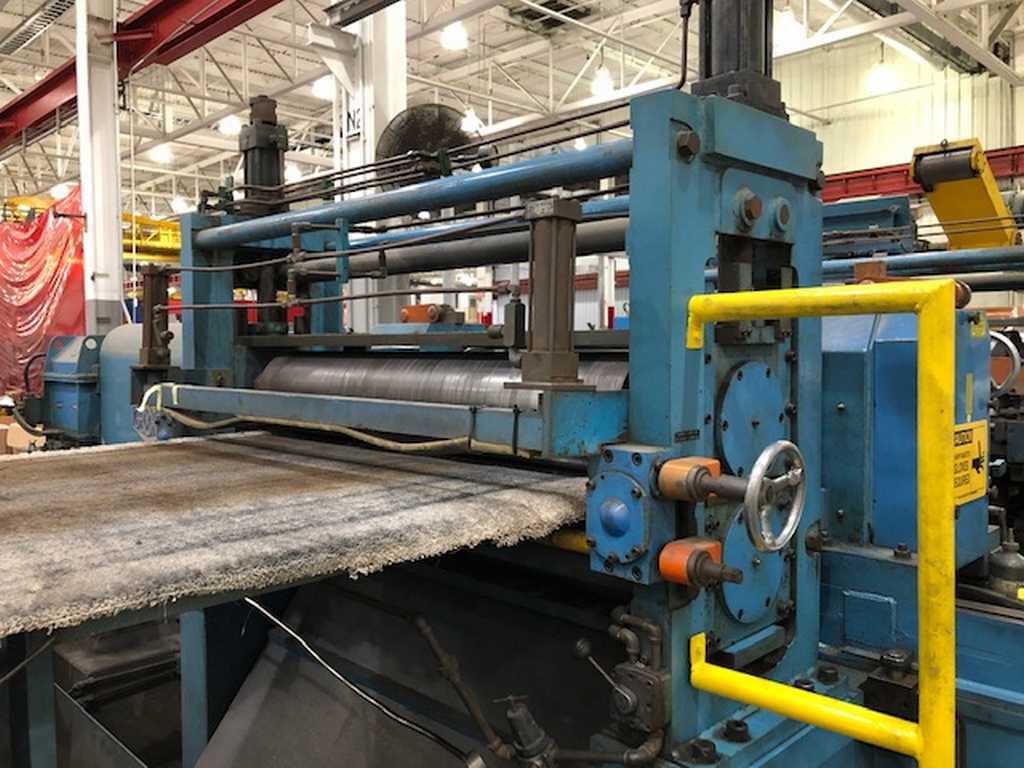

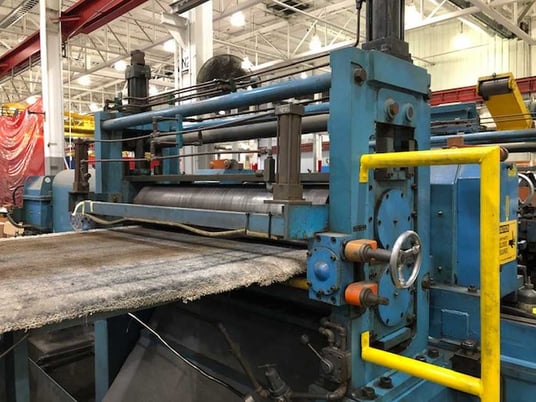

-Combination Tension Stand:
Powered Traverse to Carry Over Strip
Entry Centenary Section
Three (3) Separator Tooling Shafts
Two (2) Drag Boards
13.7" (350mm) Dia. Tension Rolls (Rubber Coated)
25 HP DC Motor Braking System
Exit Passline Rolls (Rubber Coated)
Recoiler Feed Table

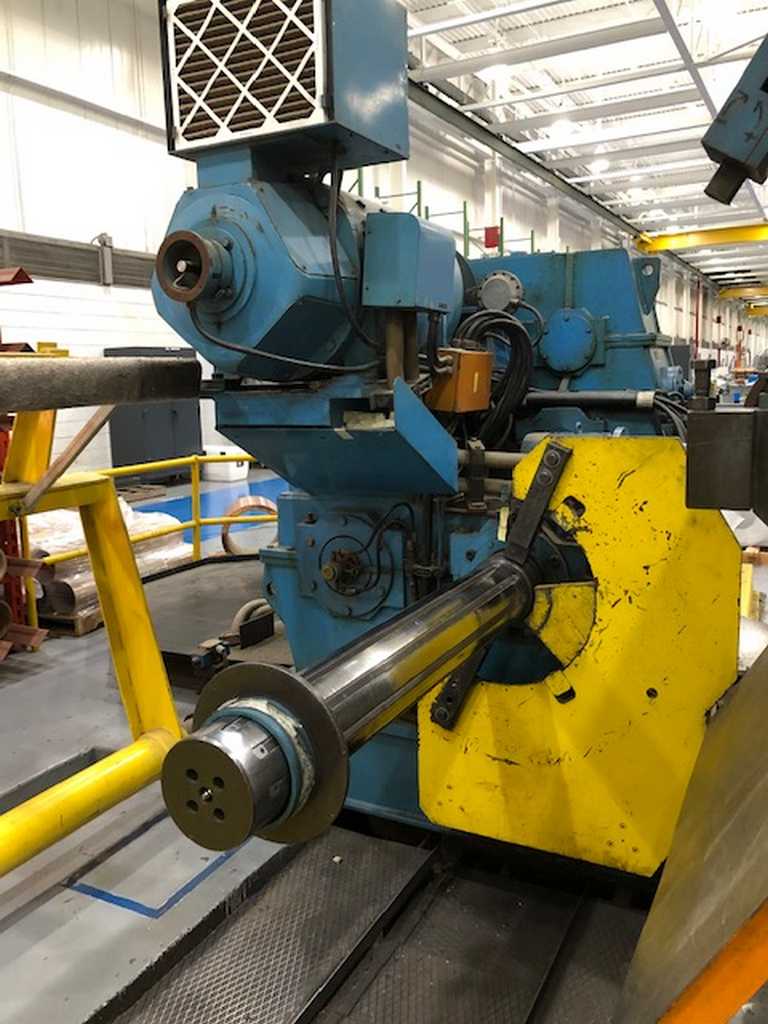

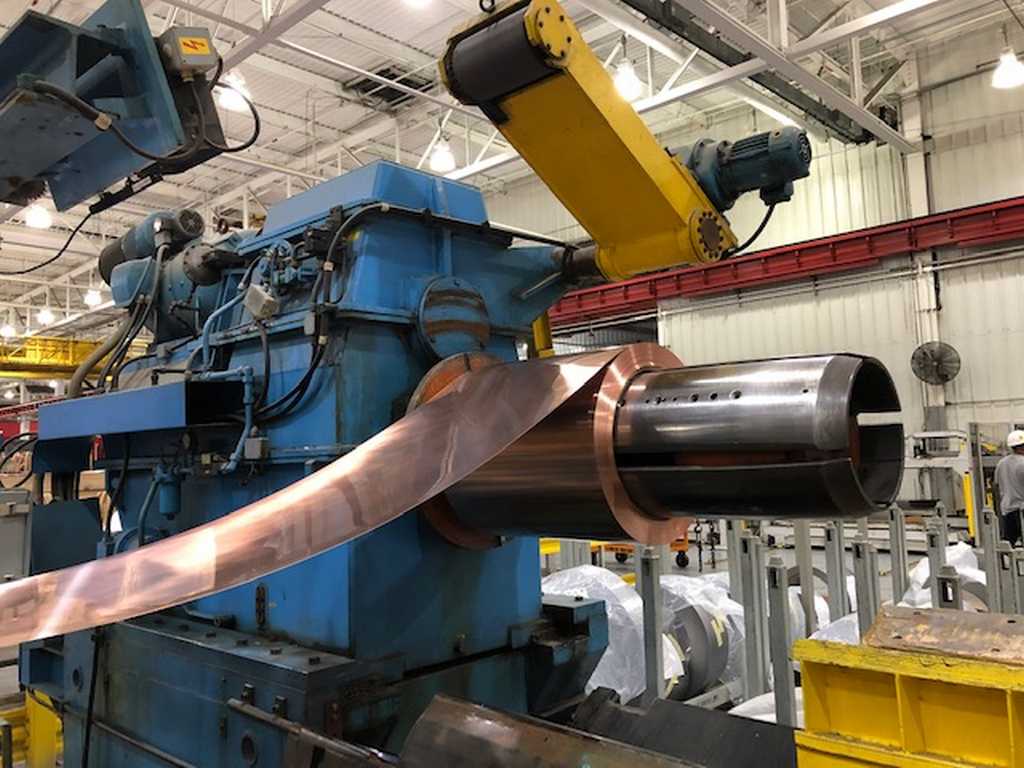

-Turret Recoiler: (2) Drums
8" Dia. and 24" Dia. x 55" Face Drums
Powered Horizontal Rotation
Hydraulic Pushoff (Base Mounted)
Powered Expansion (both drums)
Powered Gripper on 24" Dia. Drum
Holddown Arm
107 HP (80 KW) Westinghouse DC Motor, 500 to 2000 RPM
Gear Box Ratios, 15.4:1 and 11.36:1

-Exit Coil Car:
Pit Type
Powered Lift and Traverse

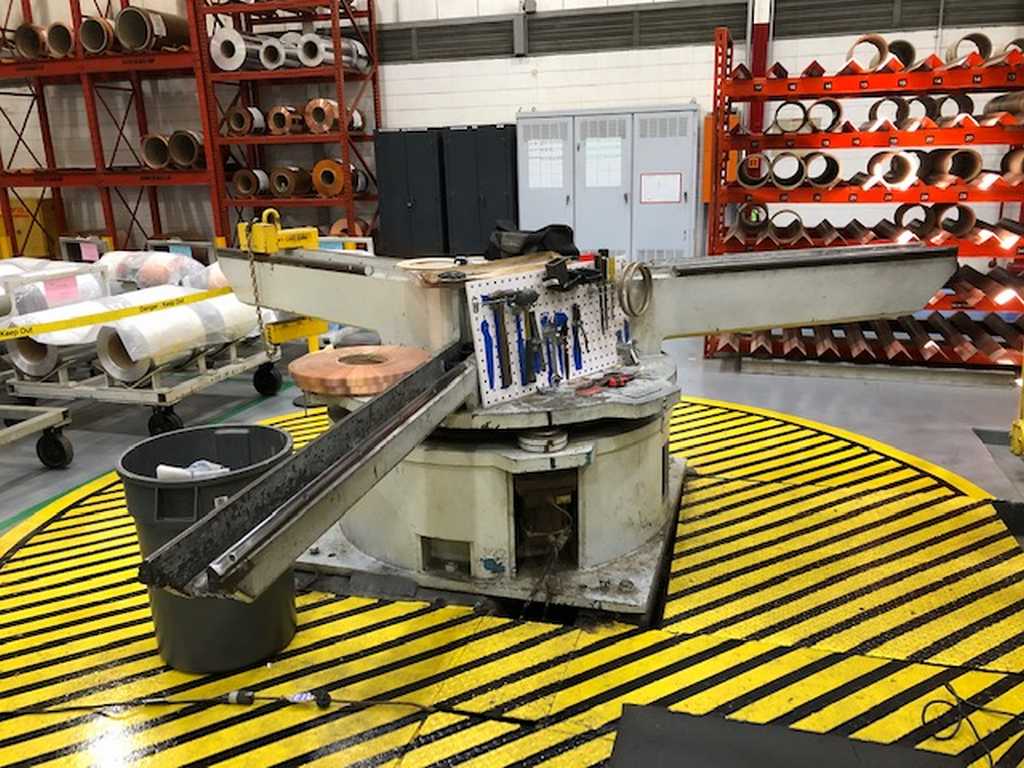

-Exit Turnstile:
Two (2) Arms x 15,000# Each Arm @ 24" ID
One (1) Arm x 6,000# @ 8" ID
C-Hook Type Arms
Powered Rotation

-Electrical Controls:
Main Operators Control Console
Auxiliary Operators Stations
AC & DC Control Cabinets
ABB Drive System (New in 2013)

-Slitter Tooling:
Hub and "Packed" Arbor Tooling
Carbide and standard Knives
Steel Spacers
Rubbers
Misc. Separator Tooling

-Hydraulic Systems:

-Spare Parts:

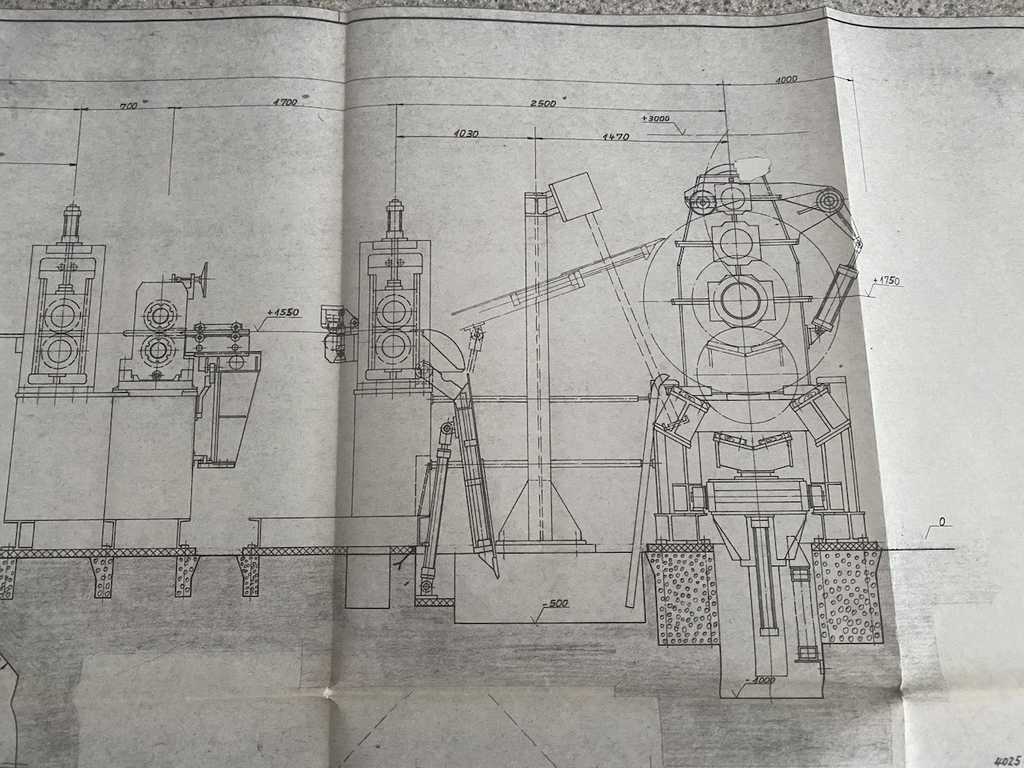

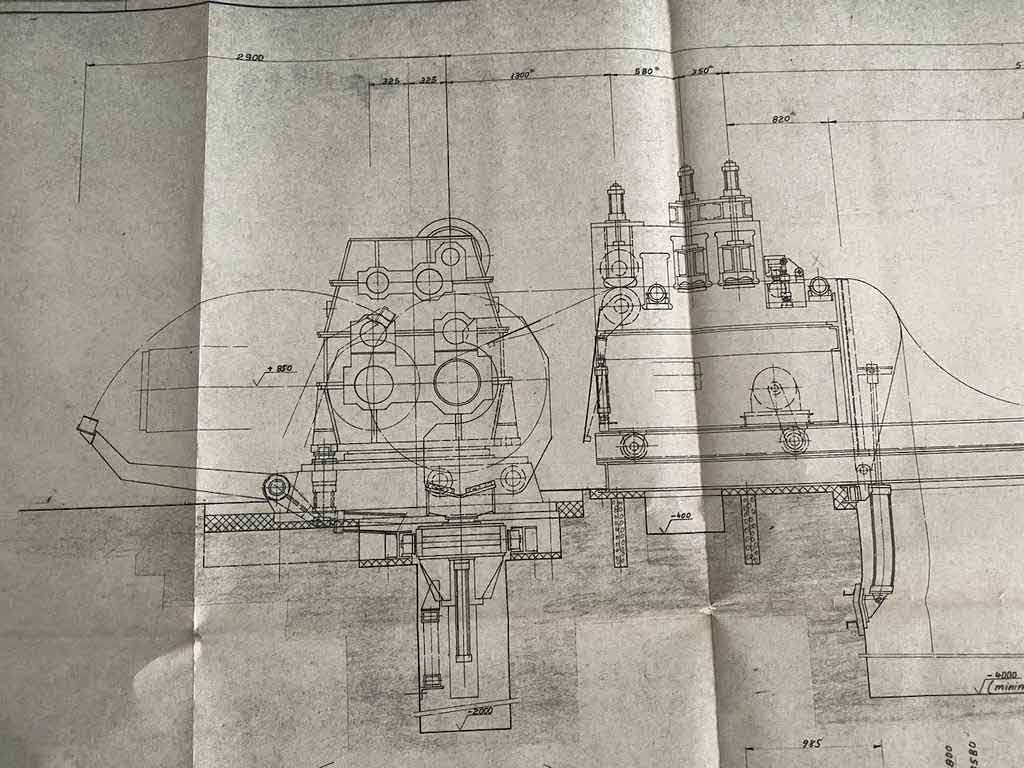

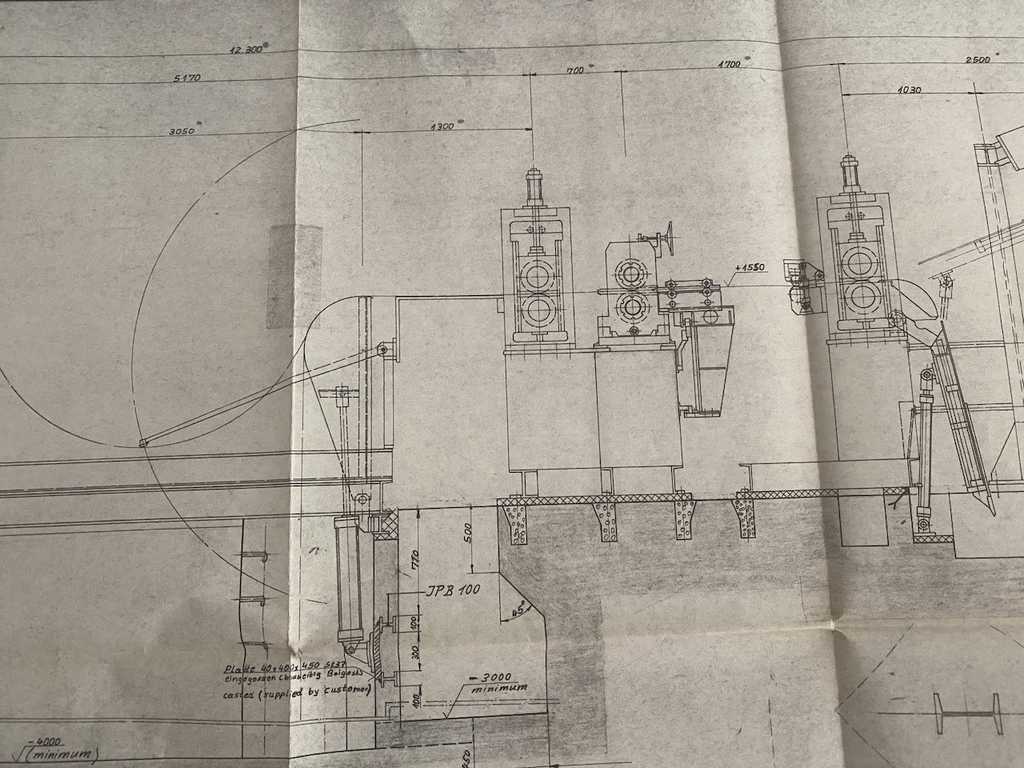

-Drawings Included

-Removed and in storage; Toledo, OH.
