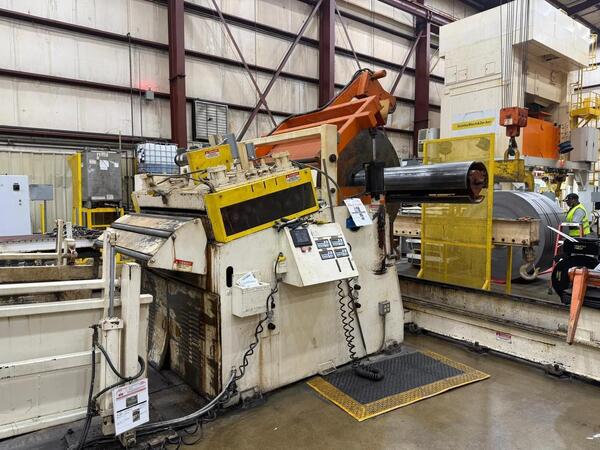

40,000 lb. Coe Press Equipment #CPRF-660, coil feed line, 60" width, .030" - .125" thick, 72" outside dimension, 19.25" - 24.75" ID, 240 FPM, 30 HP straightener

Specifications:
MATERIAL CAPACITY:
Material: M.C.R.S.
Maximum Material Capacity: .125" Thick x 60" Wide
Minimum Material Capacity: .030" Thick x 60" Wide
Passline Height: 59"
Electrical: 230/460 V, 3 Phase AC
ITEM 1: COE SERVO ROLL FEED
Model: CPRF 660
Width Capacity: 60"
Number of Feed Rolls: 2
Feed Roll Diameter: 6"
Feed Roll Body Width: 60"
Drive Ratio: 6.5:1
Acceleration: 30 Ft./Sec./Sec.
Maximum Roll Speed: 240 FPM
Feed Accuracy: ±.003"
Equipped With:
Sealed Precision Roller Bearings
Full-Width Upper and Lower Feed Rolls
#3 Crodon Chrome Finish on Upper and Lower Feed Rolls
3-Roll Catenary Support Section With Full Sideplates and Funnels
Air Pressure Regulator for Feed Roll Pressure
Cluster Gear Driven Upper Feed Roll With Mating Splined Shafts and Gears
Dual-Roll Hand Crank Edge Guides With Self-Centering and Independent Adjustment
Motorized Passline Adjustment
Air-Operated Anti-Backup Roller Assembly
AC Brushless Servo Motor
Remote Jog Pendant
Single-Cycle Pushbutton for Setup at Jog Speed
Emergency Stop
Fused Electrical Safety Disconnect
Heavy-Duty Cabinet Base With Press Mount Brackets
±6" Height Adjustment
Rigid Machined Tie-Bar Construction
ITEM 2: COE DUAL THREADING TABLE
Model: CPTT 6015
Size: 60" Wide x 15' Long
Passline Height: 59"
Equipped With:
Heavy-Duty Steel Solid-Top Construction
Dual-Sided Table Construction
Adjustable Passline
Air-Operated Raise and Lower
ITEM 3: COE POWER STRAIGHTENER
Model: CPPS 305 60
Size: 3" x 60"
Pinch Roll Diameter: 5"
Drive: 30 HP AC Variable Speed

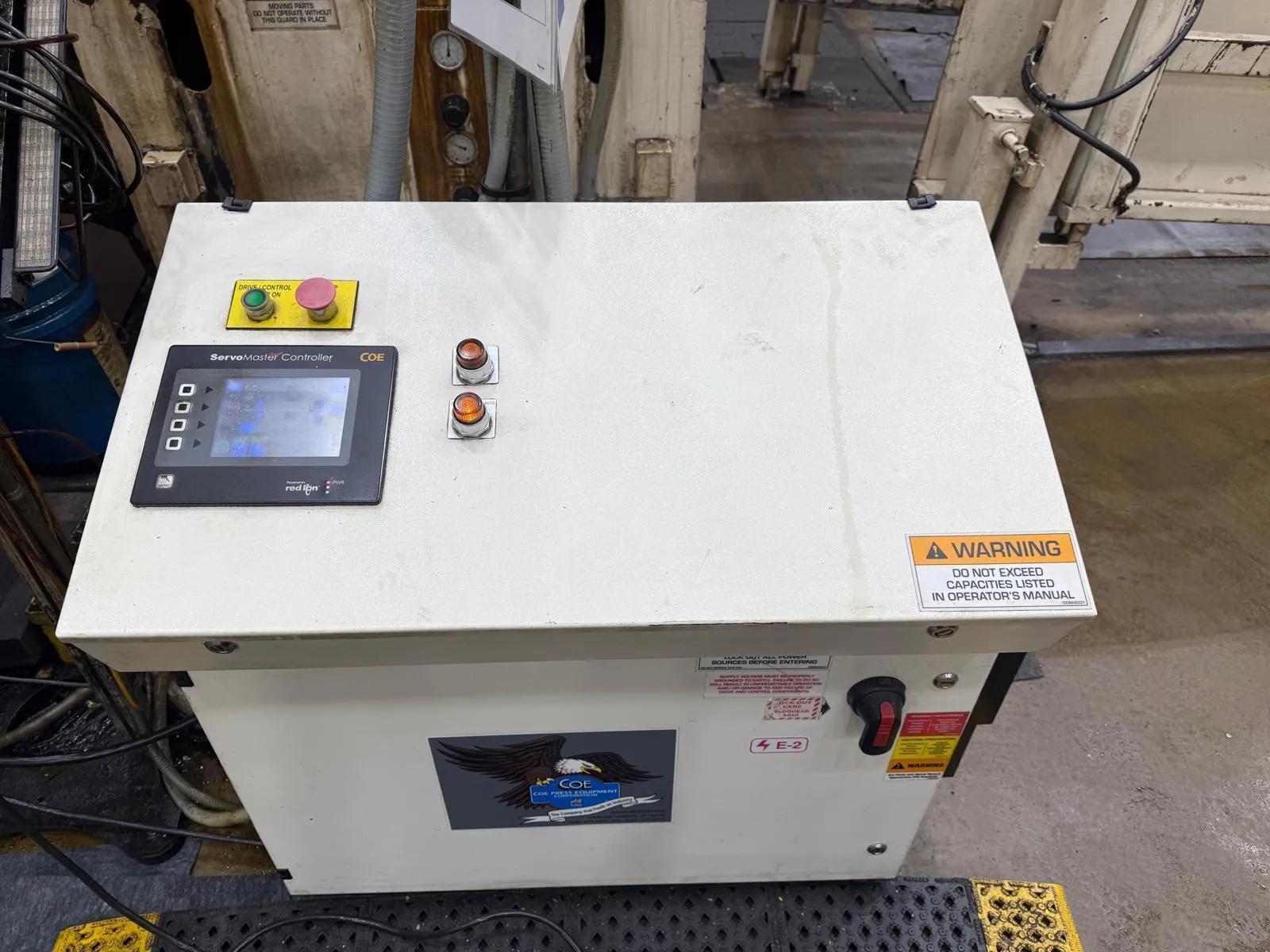

Controls: PLC With Operator Touchscreen
Equipped With:
Rigid Tie-Bar Straightener Head
3-Roll Catenary Support Section
Air-Operated Upper Pinch Roll
Crodon-Coated Upper and Lower Entrance Pinch Rolls
Independent Upper Straightener Roll Adjustment
Motorized Individual Straightening Roll Adjustment
Digital Upper Straightener Roll Height Indicators
Double-Row Upper and Lower Straightener Back-Up Rolls
Hand Crank Entrance Edge Guides
Peeler / Threader / Hold-Down Station With Motorized Endwheel
Ultrasonic Variable Speed Loop Control With 3-Position Selector Switch
Central Point Lubrication System
Reel-to-Straightener Tie-In Brackets
Remote Jog Pendant
Electrical Safety Disconnect

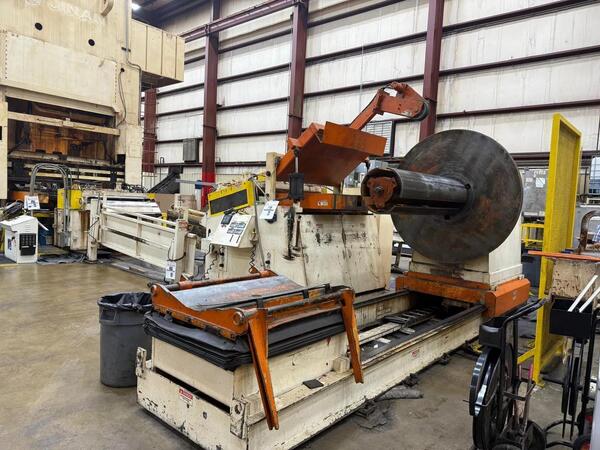

ITEM 4: COE TRAVELING COIL REEL
Model: CPTR-PO 40060
Maximum Coil Weight: 40,000 Lbs.
Maximum Coil Width: 60"
Maximum Coil O.D.: 72"
Mandrel Expansion Range: 19.25" - 24.75"
Equipped With:
3-Pad Mandrel
Bearing Tube Mandrel Support
Hydraulic Mandrel Expansion
Hydraulic Threading Drive
Material Width Scales on Mandrel Pads
Fail-Safe Drag Brake
Full-Radius Mandrel Pads With Matching Keepers
72" O.D. Backplate
Heavy-Duty Welded Steel Construction
COIL LOADING SYSTEM:
Stationary Load V-Nest
V-Nest Vertical Lift: 18"
Traveling Coil Reel
The coil reel travels to the stationary V-nest to pick up the coil. The automation package then positions the reel to the line centerline based on the programmed coil width, with the coil loaded against the backplate.
