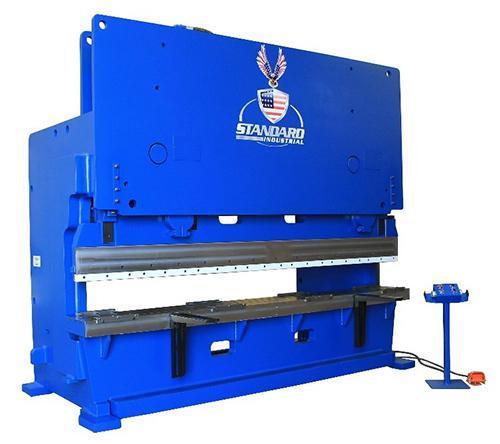

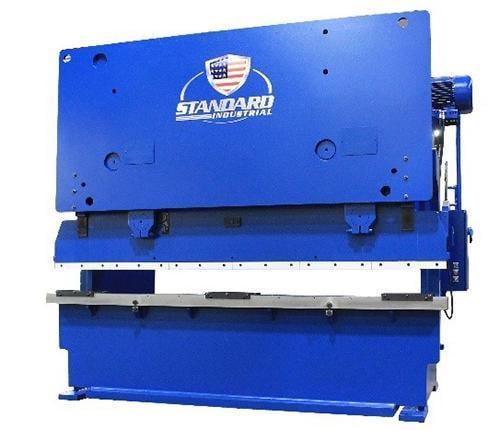

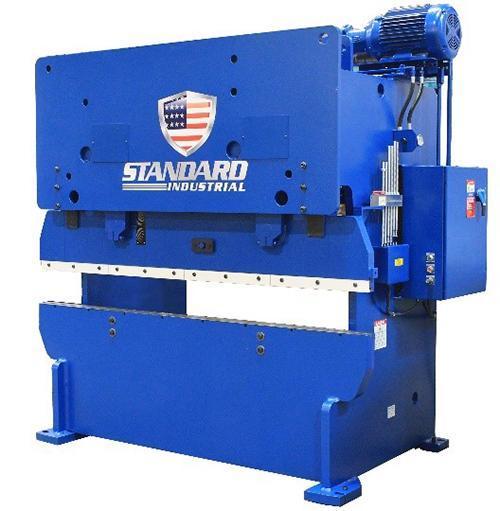

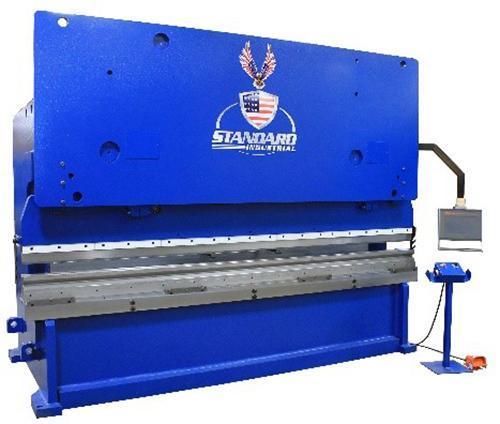

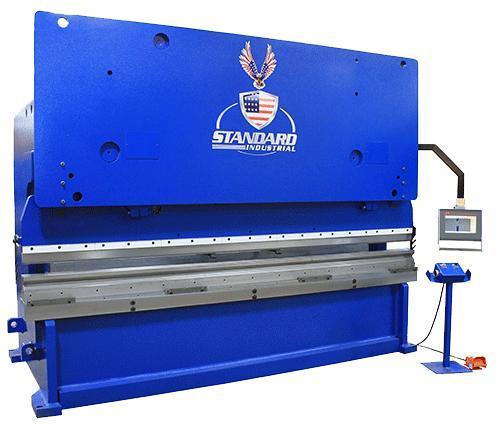

400 Ton, Standard #AB400-14, hydraulic, 149" between housing, 14' overall, 40 HP, 10" stroke, NEW

SPECIFICATIONS:
TONNAGE FORMING/PUNCHING ----------------- 400/260
DISTANCE BETWEEN HOUSINGS ---------------- 12 ft 5 in
BED/RAM OVERALL LENGTH ------------------- 14 ft
BELOW GRADE ------------------------------ NO
WEIGHT OF MACHINE (APPROX.) -------------- 80,000 LBS.
BED WIDTH -------------------------------- 26 in
BED HEIGHT ------------------------------- 40 in
OVERALL HEIGHT --------------------------- 144 in
THROAT DEPTH ----------------------------- 14 in
RAM STROKE (FULLY ADJUSTABLE) ------------ 10 in
OPEN HEIGHT (MAXIMUM HEIGHT) ------------- 20 in
CLOSED HEIGHT (MINIMUM HEIGHT) ----------- 10 in
HORSEPOWER ------------------------------- 40 HP.
RAM SPEEDS (IN INCHES PER MINUTE):
APPROACH ------------------------------- 110
PRESS ---------------------------------- 17
RETURN --------------------------------- 106
Features Include:
« Off The Shelf, Readily Available from Your Local Suppliers
« Power ram tilt
« Groove in Bed and Ram Clamps for American Style Tooling
« Perfect for full length and off-center loading applications
« Full Tonnage across Bed and Ram
« Full Tonnage throughout Stroke
« Simple limit switch ram control (CNC optional)
« Counterbalance for Punching applications
« UL508A compliant
« Typical +, - .001” Repeatability
« 5 Year Parts Warranty + 5 Year Limited Onsite Labor Warranty
« Lifetime Telephone Support at No Charge
« (2) 24” Work Support Arms
« Manifold centralized lube system
« Hand/Foot sequence w/footswitch
« T-slot across front edge of brake bed
OPTIONAL FEATURES:
November 2024 MODEL AB Press Brake Options--10' 12' and 14' up to AB400-14.pdf
