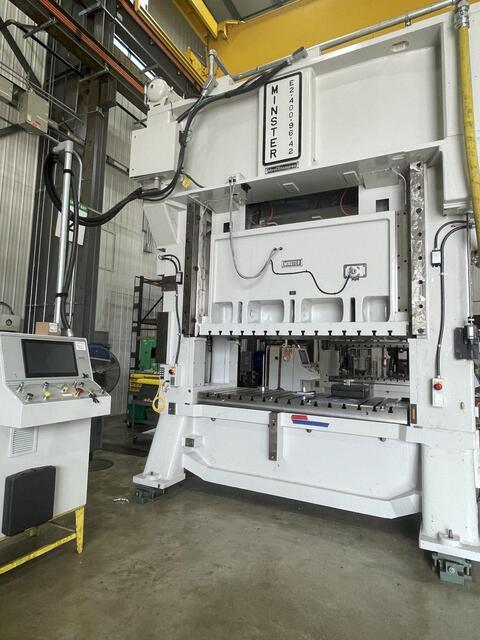

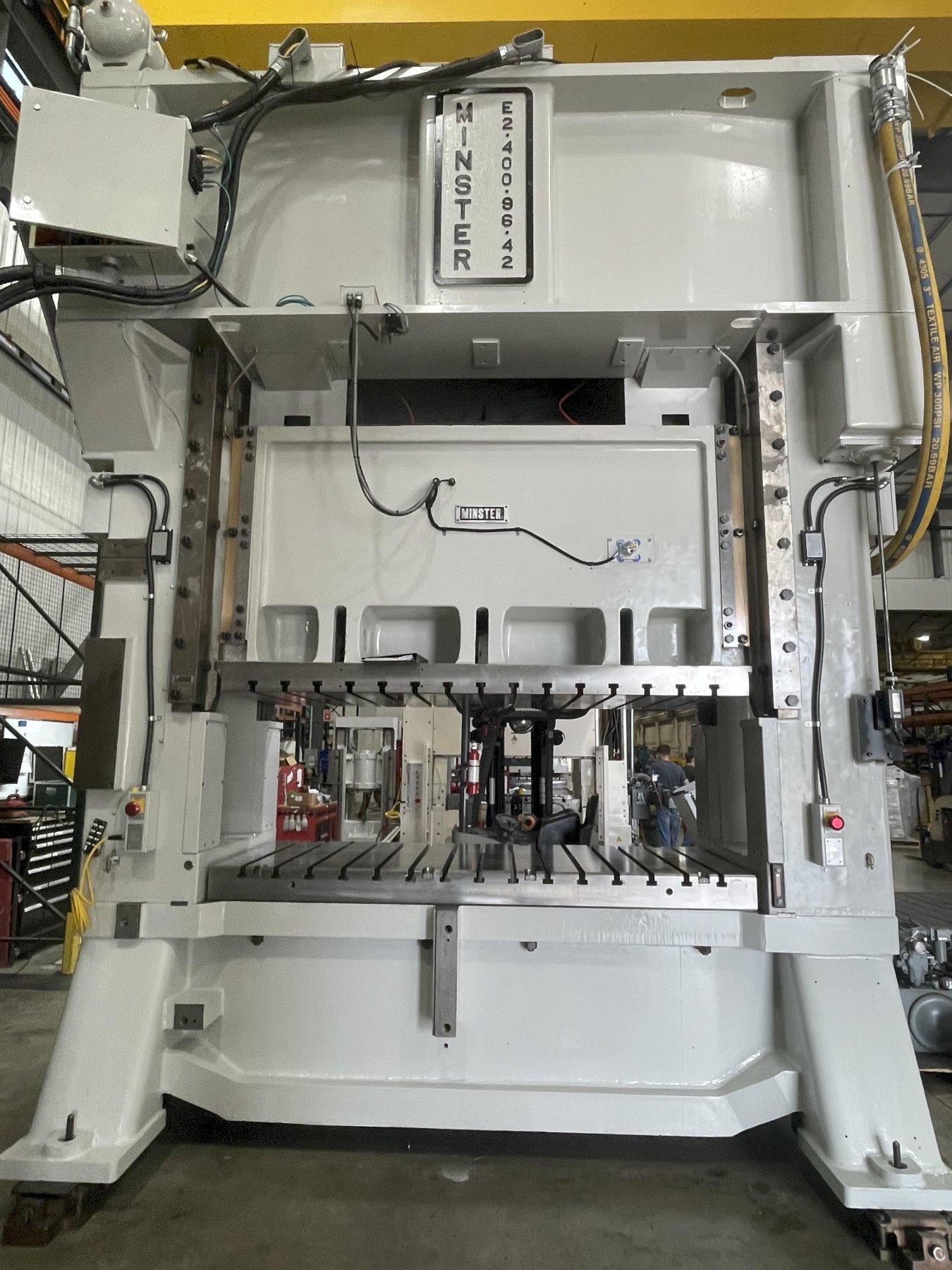

400 Ton, Minster #E2-400-96, straight side double crank Press, 8" stroke, 40" Shut Height, 96" x 42" Bed, 70 SPM, air clutch, 1981

Press Specifications:

· 400 U.S. Tons Capacity (3558 kN)

· 8.00 in. Stroke (203 mm)

· 6.00 in. Slide Adjustment (152 mm)

· 40.00 in. Shutheight, SDAU, on Bed (1016 mm)

· 6.00 in Bolster Plate Thickness (152 mm)

· 96.00 x 42.00 in. Slide Area (2438 mm x 1066 mm)

· 96.00 x 42.00 in. Bed Area (2438 mm x 1066 mm)

· 98.00 Distance between gibs (2489 mm)

· 90.00 x 15.00 Bed Opening (2286 mm x 381 mm)

· 26.00 in. Upright Opening (660 mm)

· 36.00 in. Floor to Top of Bed (914 mm)

· 35 - 70 SPM

· New Drive Motor

· TBD Incoming Voltage

Equipped With:

· Single Geared

· Minster Combination Air Clutch & Brake

· Oil Troughs on front and rear of bed

· Pneumatic Counterbalance System

· Recirculating Lubrication System

· New ABB Variable Frequency Drive

· New Minster Production Management Control

Note: All specifications contained herein are as the machine was originally manufactured and are subject to change at time of inspection.
