For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

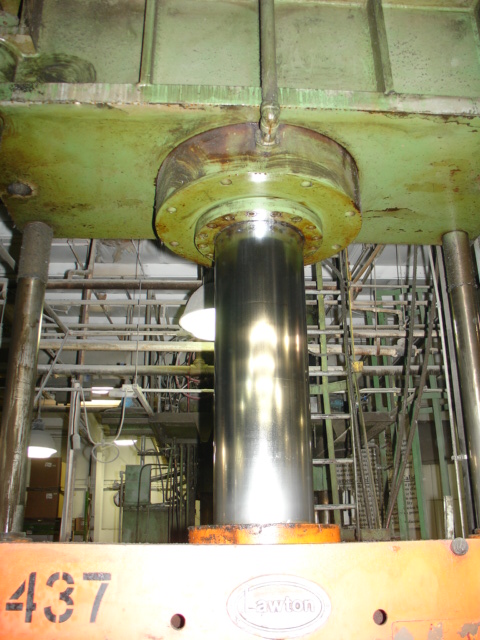

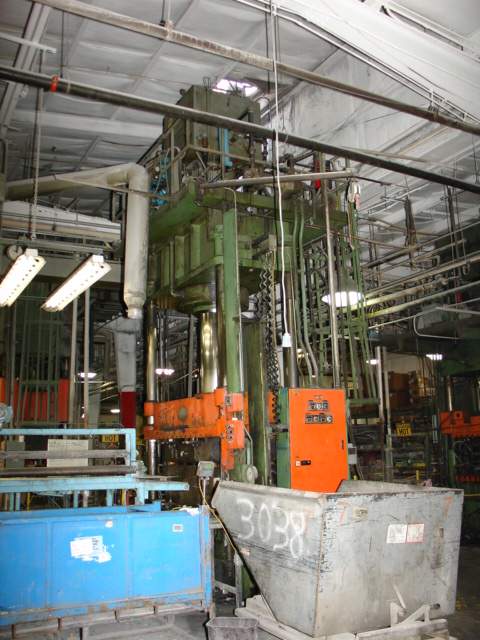

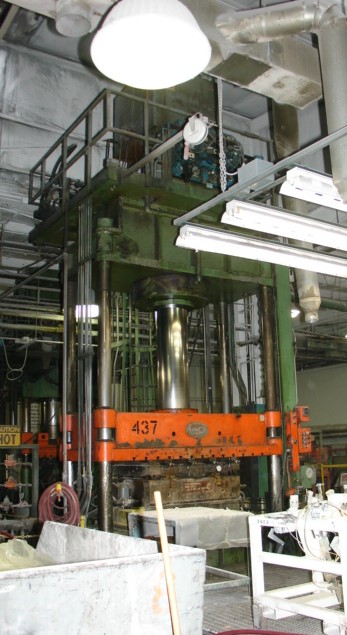

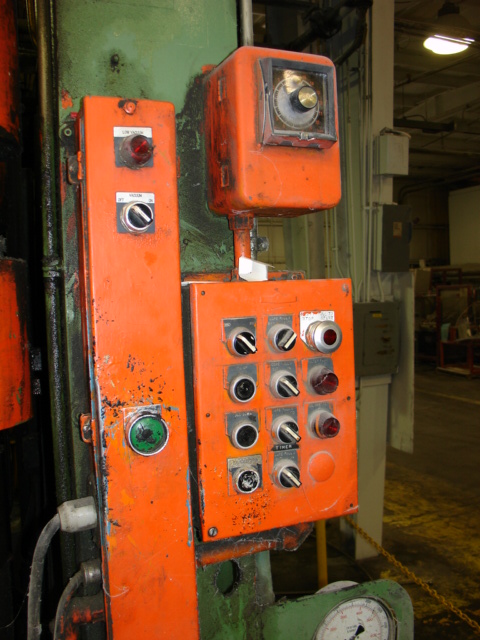

SERIAL # 4001594. FRONT TO BACK BETWEEN POSTS IS 32". NOMINAL BED SIZE IS 88" X 48". 19" BORE MAIN RAM WITH A 16.5" DIAMETER ROD. APPROX 80" MAX DAYLIGHT AND 60" STROKE. THIRTEEN T-SLOTS IN BED AND SLIDE FRONT TO REAR ON 6" CENTERS. 34.5" OPERATOR HEIGHT. FULLY GUIDED WITH TWO 8" BUSHINGS ON EACH 6" DIAMETER POST. TOP MOUNTED HYDRAULIC SYSTEM: 50 HP AND 35 HP MOTORS (BOTH 1800 RPM); APPROX SPEEDS: 600 IPM FAST CLOSE; 100 IPM INTERMEDIATE CLOSE; 0-25 IPM SLOW CLOSE AND STRIP; 500 IPM FAST OPEN. RELAY CONTROLS INCLUDING: PALM BUTTONS; TIMERS FOR EJECT, FAST OPEN AND BREAK-AWAY; TWO CORE-PULL CONTROLS (IN AND DELAY); START/STOP; JOG DOWN/UP; EJECT; FILTER FULL AND OIL OVER-TEMP WARNINGS. LADDER TO MEZZANINE. APPROX FOOTPRINT: 84" L TO R X 72" F TO B. OVERALL DIMENSIONS: APPROX 136" X 96" X 24' TALL. APPROX 70,000 LBS. SOME DRAWINGS. ITEM #1475C.
Get Your Price from Icon Industries, Inc!
