Description
Specifications
Tonnage
400
Stroke
10 inches
Shut Height
32 inches
Adjustment
10 inches
Bed Size
96" LR x 48" FB
Ram Area
96" LR x 48" FB
SPM
26-61

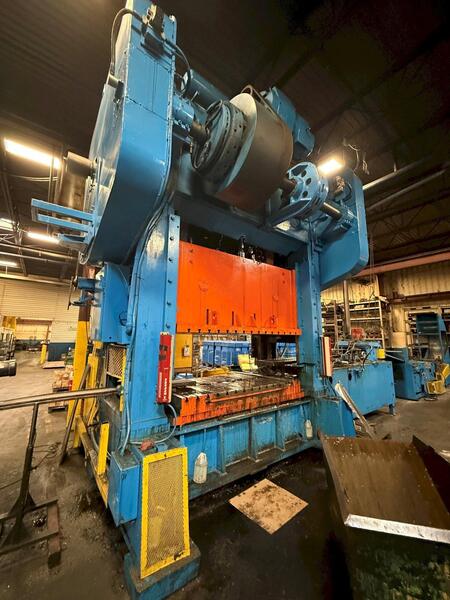

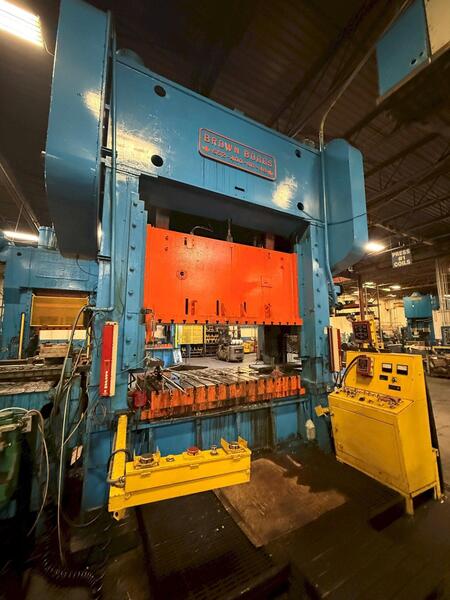

Brown Boggs Straight Side Mechanical Stamping Press
400-ton Capacity Metal Stamping / Progressive Die

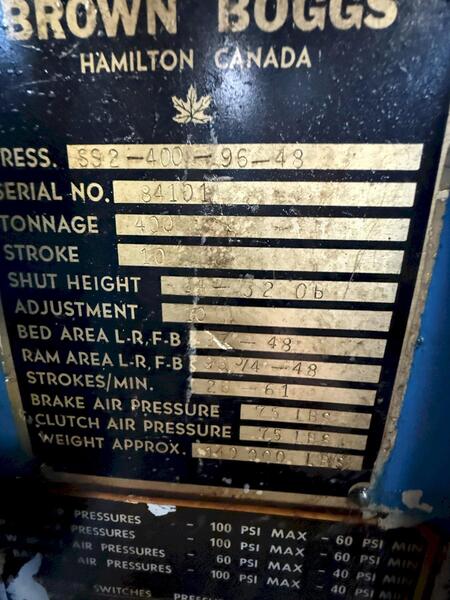

Model # SS2-400-96-48
400-ton Capacity 10" Stroke 32" Shut Heigh on Bed 24" Shut Heigh on Bolster 10" Motorized Adjustment 96" LR x 48" FB Bed Area 96" LR x 48" FB Slide Area 21-61 VSPM

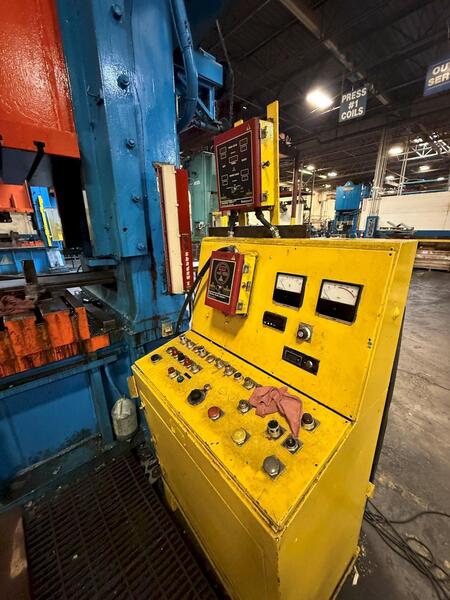

Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System 8" Thick T-Slotted Ram and Bolster Wintriss Shadow V Light Curtains Wintriss AutoSet 1504 Wintriss Brake Monitor Free Standing Console Controls Wide Windows Vibro Dynamic Floor Pads Floor Standing
Can be seen underpower in stamping operation. For more details or to schedule an inspection please do not hesitate to call or email.
Optimize your metalforming production with this heavy-duty 400-ton Brown Boggs SS2-400-96-48, a high-performance straight side mechanical stamping press. Engineered for precision progressive die applications, it features a massive 96" x 48" bed, 10" stroke, and variable speeds of 21–61 VSPM. Equipped with Wintriss Shadow V light curtains and AutoSet 1504 controls, this floor-standing used mechanical press ensures maximum safety and accuracy. Available for immediate inspection under power in a professional stamping operation.
