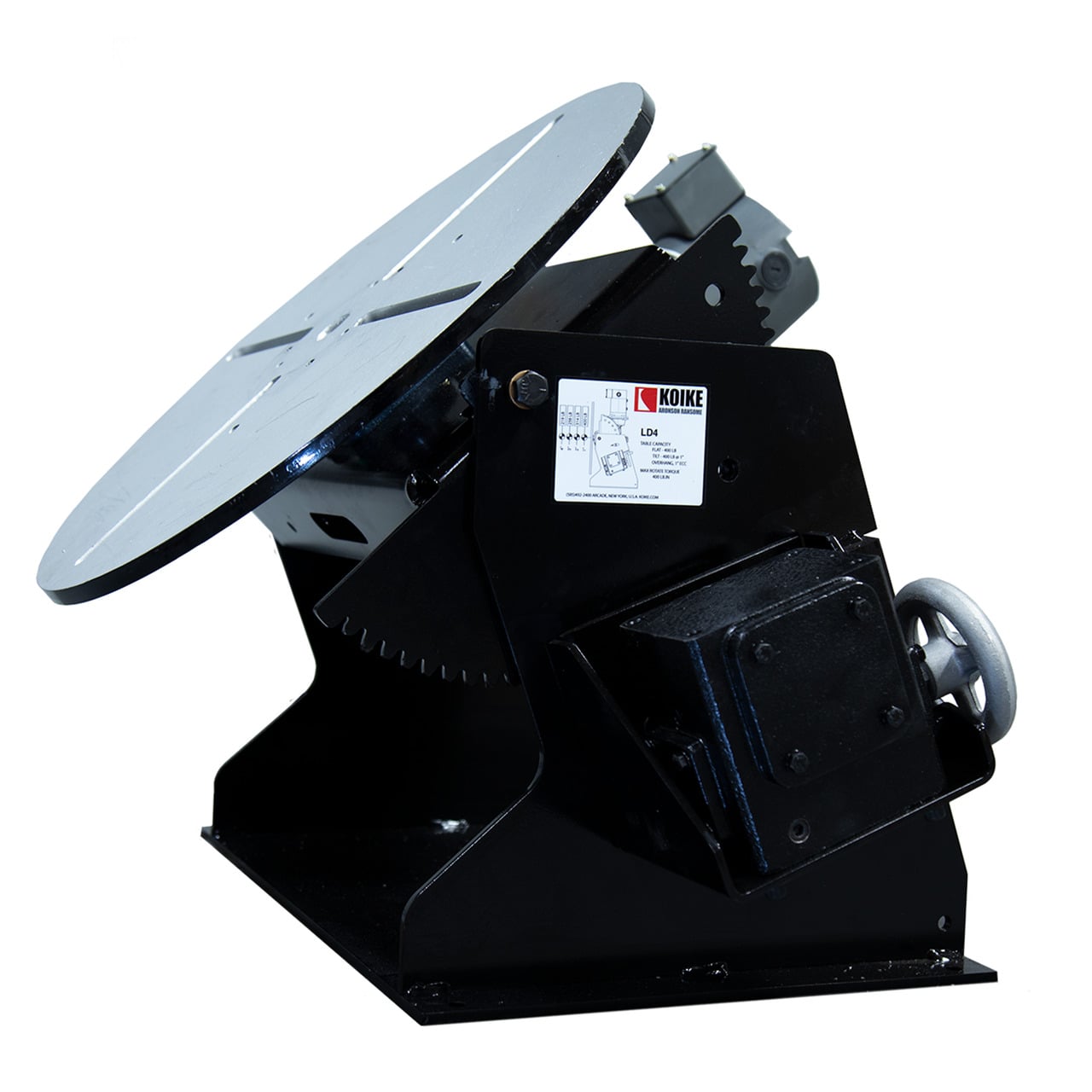

400 lb. Koike Aronson #LD4, Bench Welding Positioner, 20.5" Table, 3/8" ID Spindle thru Hole, 90 deg. Forward Tilt, 0.25-6.5 RPM, 115 V, new

Description

Koike Aronson 400 lbs. Bench Welding Positioner, LD4

Inventory # 9301

Model: LD4

Specifications:

Max. Load: 400 lbs. with a Center of Gravity 1″ Above the Table and 1″ Eccentric from the Table Rotation Center

Rotation: .25 to 6.5 RPM, Variable Speed @ 400″/ lbs.

Tilt: 90° Forward Tilt – Powered by Handwheel

Table: 20 1/2″ with Four T-Slots for 1/2″ Bolts

Spindle Through Hole: 3/8″ ID

Voltage: 115v / 1ph, 50-60 Hz

Standard Features:

Variable speed powered by a DC motor and drive produces a rotational torque of 400″ /lbs. The rotational speed is reversible and infinitely variable over the range of .25 to 6.5 RPM. Rotation motor and drive reducer are unitized

Manual hand wheel operated tilt gearbox provides infinite tilt angle adjustment

Freestanding base with heavy-duty welded construction for bench or pedestal mounting. 300 amps ground current conduction

Rotation forward, reverse, stop switch, and variable speed control potentiometer. Remote momentary off/on foot switch is provided with cable

Welding Chucks Available

FOB Factory – Contact us for Pricing and Availability
