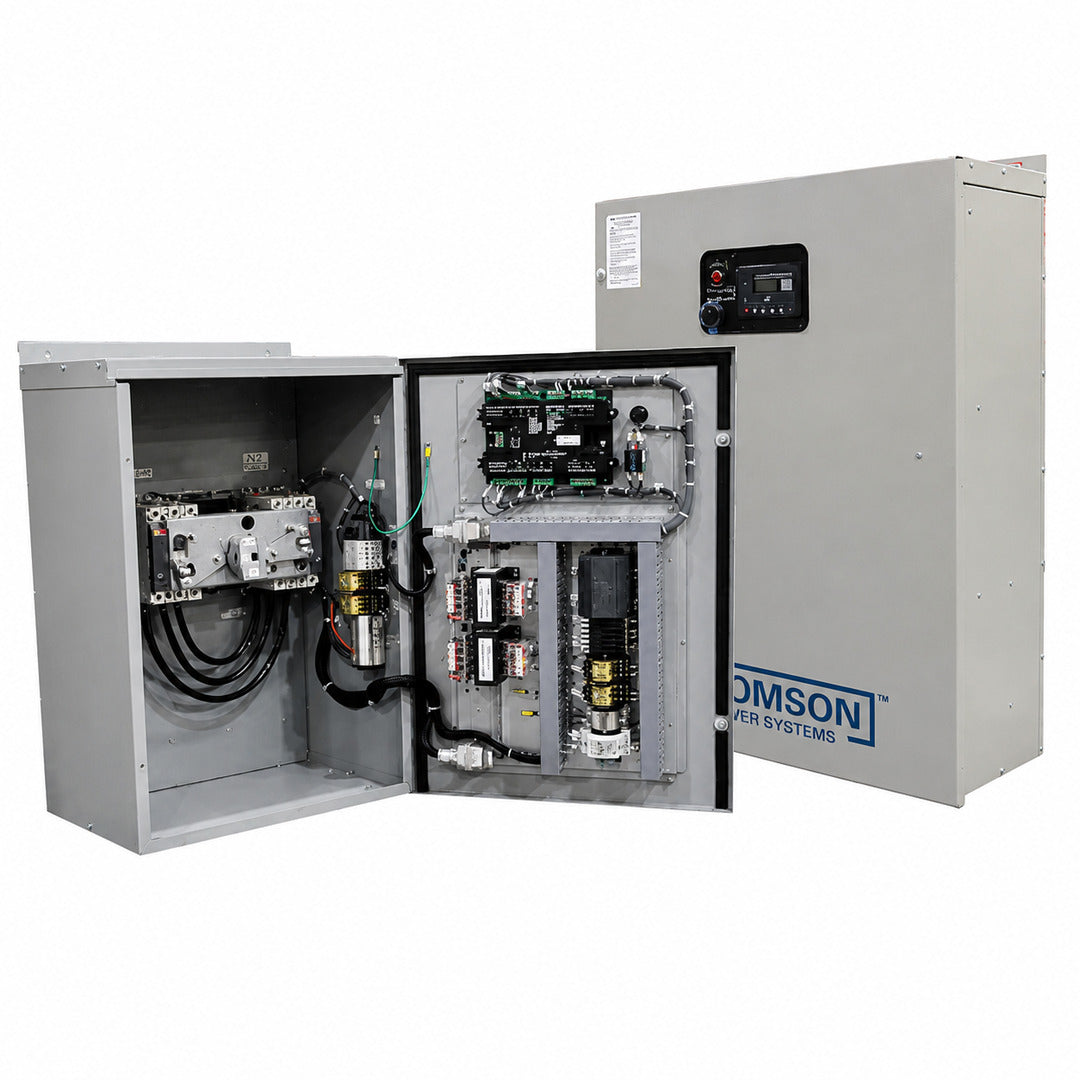

400 Amp. Thomson Power Systems #TS873A0400A1CN5EKKA, Automatic Transfer Switch, 3 Pole, 208-600 Multi-Voltage, NEMA 3R enclosure, 3PH, 50/60 Hz

$5,890 USD

Request Formal Quote

SKU: 155692
Model: TS873A0400A1CN5EKKA
Condition: New
Dimensions: 15.00 (H) x 35.00 (W) x 45.00 (L) inches
Additional Description:
Series: TS870
Type: Automatic Transfer Switch
Amperage: 400A
Poles: 3 Pole
Frequency: 50/60 Hz
Voltage Range: 208-600 VAC Multi-Voltage
Phase: 3 Phase
Transfer Type: Open Transition
Controller: TSC7320 Advanced ATS Controller
Display: 2.3" Backlit LCD
Communications: RS485 Modbus RTU
Enclosure: NEMA 3R
Certification: UL 1008, CSA C22.2 No.178
Continuous Rating: 100% Rated
Utility/Generator Monitoring: Yes
Event Logging: Yes
Generator Exerciser: Yes
Remote Test Capability: Yes
Seismic Certification: Yes
Key Features
Advanced TSC7320 Controller
Backlit LCD display
Utility and generator source monitoring
Event and alarm logging
Programmable inputs and outputs
Remote testing capability
Generator exercise scheduling
PIN-protected programming
Modbus RTU communications
Heavy-Duty Power Switching
Fully enclosed silver alloy contacts
100% continuous current rating
3-cycle withstand current tested
Mechanical interlocking
Brushless gearmotor operation
Front-access maintenance design
Commercial & Industrial Reliability
Suitable for:
- Emergency standby power systems
- Commercial buildings
- Data centers
- Healthcare facilities
- Manufacturing plants
- Municipal infrastructure
- Telecommunications facilities
- Government buildings
Electrical Ratings
400A Model Ratings
Continuous Current Rating: 400A
Maximum Voltage: 600V
Withstand Rating:
- 65,000A @ 240V
- 50,000A @ 480V
- 35,000A @ 600V
Physical Specifications
Height: 43.1" (1095 mm)
Width: 34.3" (873 mm)
Depth: 13" (330 mm)
Approximate Weight: 227 lbs (103 kg)
