Description

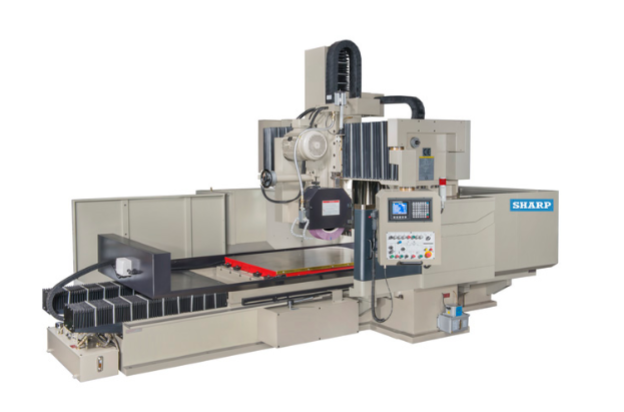

40” X 120” Dual Column Surface Grinder with ADI NC Controller, Table Mounted Diamond Dresser, Auto Down Feed with MPG, Ball Screw on Cross Feed, Automatic Down Feed, ADI (NC control with MPG) Lead Screw on Vertical, Criss Cross Grinding, Cross Feed Stroke Adjuster by Electronic One Touch System.
STANDARD EQUIPMENT:
- Table Travel: 47.2” x 124”
- Spindle Center to Table Surface: 43.3”
- Clearance Between Columns: 47.2”
Table
- Working Surface (W x L): 3 9.4” x118”
- Longitudinal Hydraulic Table Feed: 78.7- 984 IPM
Feed
- Intermittent Cross Feed, Per Feed: 0.004-1.38”
- Continues Cross Feed: 118 IPM
- Number of Graduations on Dial: 200
- Feed Per Graduation: 0.0008”
- Hand Feed Per Revolution: 0.19”
- Feed Per Graduation: 0.00004”
- Feed Per Revolution: 0.01”
- Rapid Traverse: 9.8 IPM
- Wheel Size (OD x Width x ID): 20” x 3.94” x 8”
- Horizontal Spindle Motor: 25 HP
- Hydraulic Motor (longitudinal): 10 HP
- Spindle Speed: 1150 RPM
- Approximate Net Weight: 55,880 lbs.
- Approximate Gross Weight: 58,300 lbs
- Dimensions: 331”x181”x153.5”
- Total Power Consumptions: 125 KVA
INCLUDES: ADI NC Controller, Table Mounted Diamond Dresser, Auto Down Feed with MPG, Ball Screw on Cross Feed, Automatic Down Feed, ADI (NC control with MPG) Lead Screw on Vertical, Criss Cross Grinding, Cross Feed Stroke Adjuster by Electronic One Touch System.
***All Price, Location and Specifications Subject to Change without Notice***
