Manufacturer: Edwards
Model: 50-TON
90° Angle Shear Capacity" L: 4.00
90° Angle Shear Capacity" W: 4.00
Shear Capacity: .375
Ton: 50
Stock # 82784
1 / 6
Click to zoom in
1 / 6
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With
SPECIFICATIONS:
PUNCH:
Rating -------------- 50 Tons
Max. Capacity ------- 1 in Dia. in 5/8 in A36 (65,000 PSI Tensile)
Stroke -------------- 1 7/8 in
Throat Depth -------- 7 in
Open Height --------- 8 1/8 in
Shut Height --------- 6 1/4 in
Work Height --------- 36 9/16 in
FLAT BAR SHEAR:
Max. Capacity ------- 1/2 in x 10 in
3/4 in x 4 in
Max. Round ---------- 3/4 in
Max. Square --------- 3/4 in
Work Height --------- 34 1/2 in
ANGLE SHEAR:
Max. Capacity ------- 3 in x 3 in x 3/8 in
4 in x 4 in x 1/4 in
Work Height --------- 39-7/8 in
COPER NOTCHER:
Max. Capacity ------- 2 in x 3 in x 5/16 in
Work Height --------- 39 1/2 in
GENERAL SPECIFICATIONS:
Standard Motor ------ 5 HP 3~ 208 V or 230 V, 1,725 RPM 14 A
Optional Motors ----- 5 HP 3~ 460 V, 1,725 RPM 7 A
5 HP 3~ 575 V, 1,725 RPM 6 A
5 HP 1~ 230 V, 1,725 RPM 23 A
Hydraulic Pump ------ 3 1/2 GPM - 1 Stage
Valve Pressure ------ 2,500 PSI
Reservoir ----------- 7 Gallons
Cylinder ------------ 2 1/2 in Ram
DIMENSIONS:
Height -------------- 54 1/2 in
Width --------------- 36 3/4 in
Depth --------------- 36 1/8 in
Shipping Weight ----- 2,020 lbs
FEATURES:
Compact and Versatile
- Four Available Workstations
- Punch Assembly Designed for Optional Tooling
- Dedicated Coper Notcher Station
- Electric Stroke Control

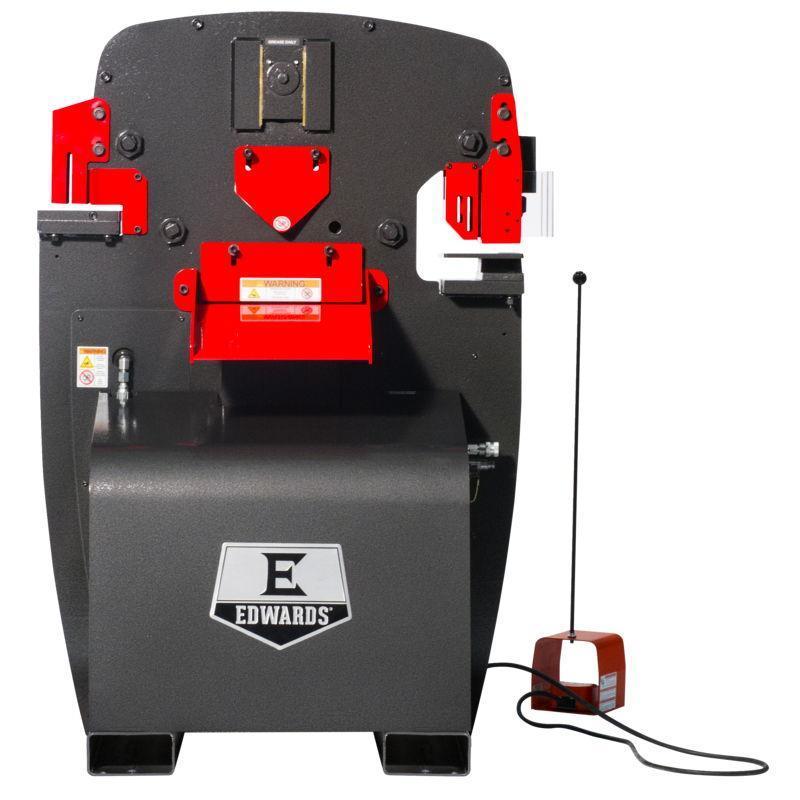

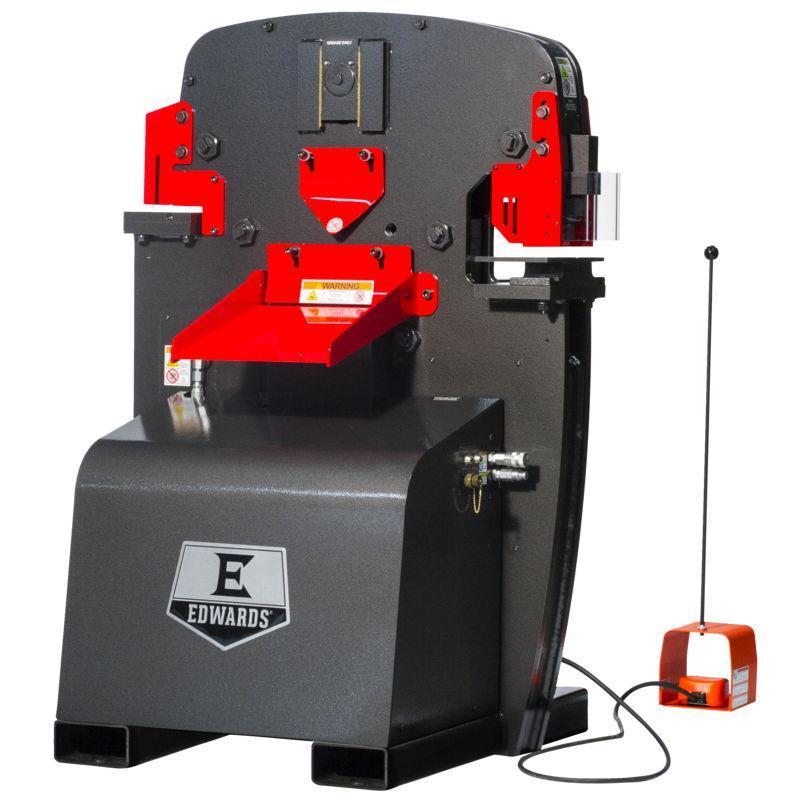

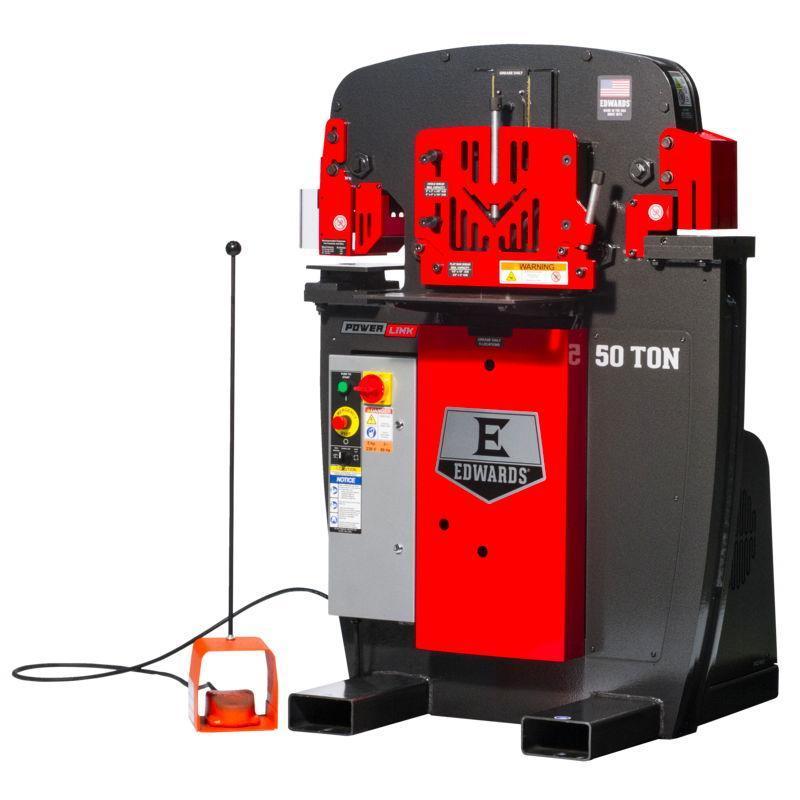

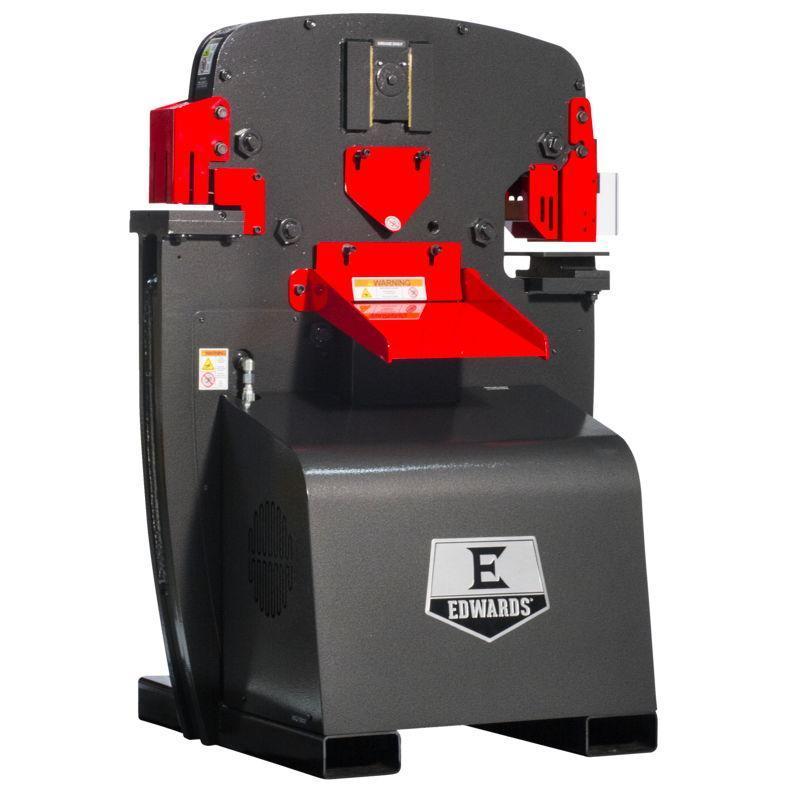

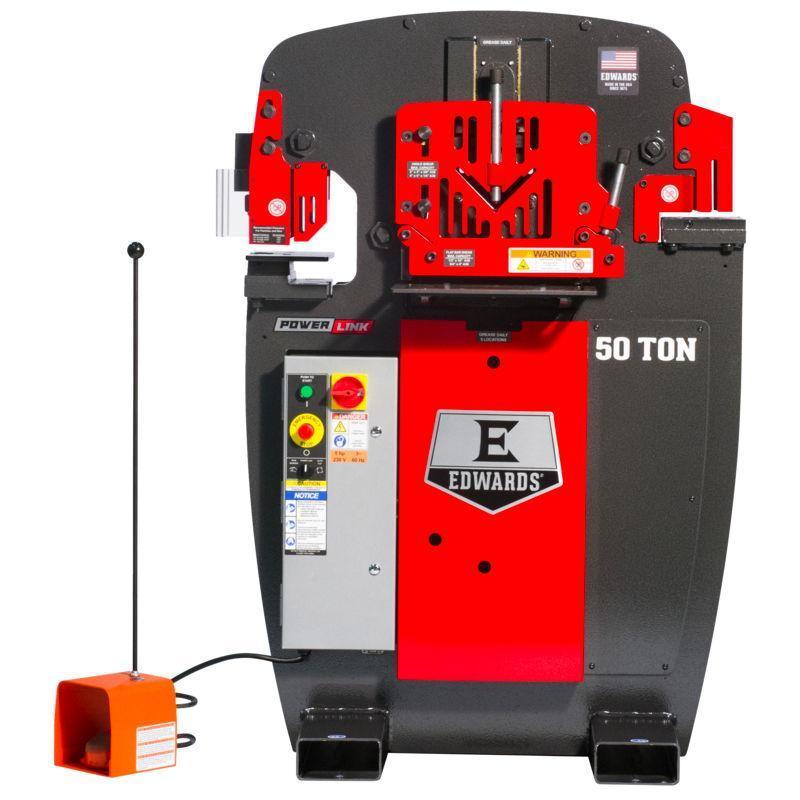

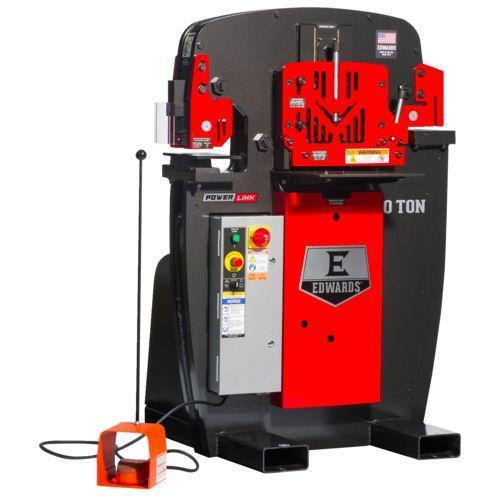

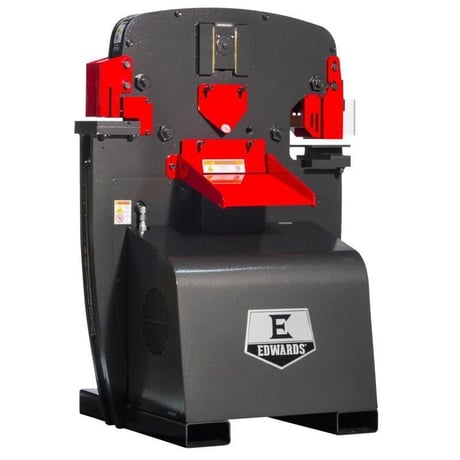

The Edwards 50 Ton JAWS Ironworker is the ideal Ironworker for the small shop that needs a powerful, versatile tool for all kinds of tasks. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a dedicated Coper Notcher station. The Punch Assembly quickly converts to an open tooling station designed to accept optional Tooling Accessories.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
EQUIPPED WITH:
HYDRAULIC ACCESSORY PACK(POWER LINK)
Dedicated Coper Notcher Station
Electric Stroke Control
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
1 PHASE, 230V ----------------------------------- $15,089.00
3 PHASE, 208 V ----------------------------------- $SAME
3 PHASE, 460V ----------------------------------- $15,089.00
3 PHASE, 575V ----------------------------------- $16,069.00
1 PH, 230 V W/ POWER LINK SYSTEM ---------------- $16,479.00
3 PH, 208 V W/ POWER LINK SYSTEM ---------------- $16,069.00
3 PH, 230 V W/ POWER LINK SYSTEM ---------------- $16,069.00
3 PH, 460 V W/ POWER LINK SYSTEM ---------------- $16,479.00
3 PH, 575 V W/ POWER LINK SYSTEM ---------------- $17,409.00
ACCESSORY LIGHT --------------------------------- $119.00
AUTO CUT 48" ---------------------------------------- $1,069.00
ANGLE NOTCHER 3 in X 3 in X 1/4 in -------------------- $1,699.00
7" BRAKE W/ 4-WAY DIE ---------------------------$1,239.00
8" BRAKE W/ 4-WAY DIE --------------------------- $1,349.00
COPER NOTCHER ASSEMBLY -------------------------- $STANDARD
MULTI SHEAR (ANGLE, BAR, ROD SHEAR) ------------- $1,799.00
PIPE NOTCHER HOUSING (SCHEDULE 40 - 1/2 in - 2 in ) -- $559.00
QUICK CHANGE PUNCH ASSEMBLY --------------------- $1,019.00
ROD SHEAR HOUSING:(1/4 in ,3/8 in ,1/2 in ,5/8 in ,3/4 in ,1 in ) - $2,039.00
OVERSIZED PUNCH ASSEMBLY ------------------------- $1,129.00
DELIVERY:
SUBJECT TO STOCK
PUNCH:
Rating -------------- 50 Tons
Max. Capacity ------- 1 in Dia. in 5/8 in A36 (65,000 PSI Tensile)
Stroke -------------- 1 7/8 in
Throat Depth -------- 7 in
Open Height --------- 8 1/8 in
Shut Height --------- 6 1/4 in
Work Height --------- 36 9/16 in
FLAT BAR SHEAR:
Max. Capacity ------- 1/2 in x 10 in
3/4 in x 4 in
Max. Round ---------- 3/4 in
Max. Square --------- 3/4 in
Work Height --------- 34 1/2 in
ANGLE SHEAR:
Max. Capacity ------- 3 in x 3 in x 3/8 in
4 in x 4 in x 1/4 in
Work Height --------- 39-7/8 in
COPER NOTCHER:
Max. Capacity ------- 2 in x 3 in x 5/16 in
Work Height --------- 39 1/2 in
GENERAL SPECIFICATIONS:
Standard Motor ------ 5 HP 3~ 208 V or 230 V, 1,725 RPM 14 A
Optional Motors ----- 5 HP 3~ 460 V, 1,725 RPM 7 A
5 HP 3~ 575 V, 1,725 RPM 6 A
5 HP 1~ 230 V, 1,725 RPM 23 A
Hydraulic Pump ------ 3 1/2 GPM - 1 Stage
Valve Pressure ------ 2,500 PSI
Reservoir ----------- 7 Gallons
Cylinder ------------ 2 1/2 in Ram
DIMENSIONS:
Height -------------- 54 1/2 in
Width --------------- 36 3/4 in
Depth --------------- 36 1/8 in
Shipping Weight ----- 2,020 lbs
FEATURES:
Compact and Versatile
- Four Available Workstations
- Punch Assembly Designed for Optional Tooling
- Dedicated Coper Notcher Station
- Electric Stroke Control
The Edwards 50 Ton JAWS Ironworker is the ideal Ironworker for the small shop that needs a powerful, versatile tool for all kinds of tasks. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a dedicated Coper Notcher station. The Punch Assembly quickly converts to an open tooling station designed to accept optional Tooling Accessories.
The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
EQUIPPED WITH:
HYDRAULIC ACCESSORY PACK(POWER LINK)
Dedicated Coper Notcher Station
Electric Stroke Control
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
1 PHASE, 230V ----------------------------------- $15,089.00
3 PHASE, 208 V ----------------------------------- $SAME
3 PHASE, 460V ----------------------------------- $15,089.00
3 PHASE, 575V ----------------------------------- $16,069.00
1 PH, 230 V W/ POWER LINK SYSTEM ---------------- $16,479.00
3 PH, 208 V W/ POWER LINK SYSTEM ---------------- $16,069.00
3 PH, 230 V W/ POWER LINK SYSTEM ---------------- $16,069.00
3 PH, 460 V W/ POWER LINK SYSTEM ---------------- $16,479.00
3 PH, 575 V W/ POWER LINK SYSTEM ---------------- $17,409.00
ACCESSORY LIGHT --------------------------------- $119.00
AUTO CUT 48" ---------------------------------------- $1,069.00
ANGLE NOTCHER 3 in X 3 in X 1/4 in -------------------- $1,699.00
7" BRAKE W/ 4-WAY DIE ---------------------------$1,239.00
8" BRAKE W/ 4-WAY DIE --------------------------- $1,349.00
COPER NOTCHER ASSEMBLY -------------------------- $STANDARD
MULTI SHEAR (ANGLE, BAR, ROD SHEAR) ------------- $1,799.00
PIPE NOTCHER HOUSING (SCHEDULE 40 - 1/2 in - 2 in ) -- $559.00
QUICK CHANGE PUNCH ASSEMBLY --------------------- $1,019.00
ROD SHEAR HOUSING:(1/4 in ,3/8 in ,1/2 in ,5/8 in ,3/4 in ,1 in ) - $2,039.00
OVERSIZED PUNCH ASSEMBLY ------------------------- $1,129.00
DELIVERY:
SUBJECT TO STOCK
