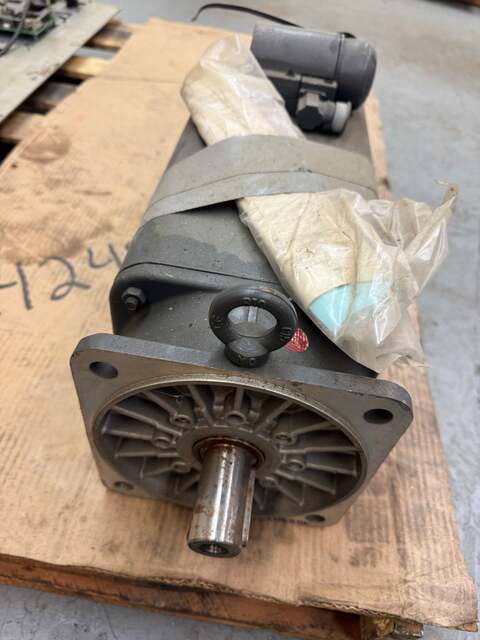

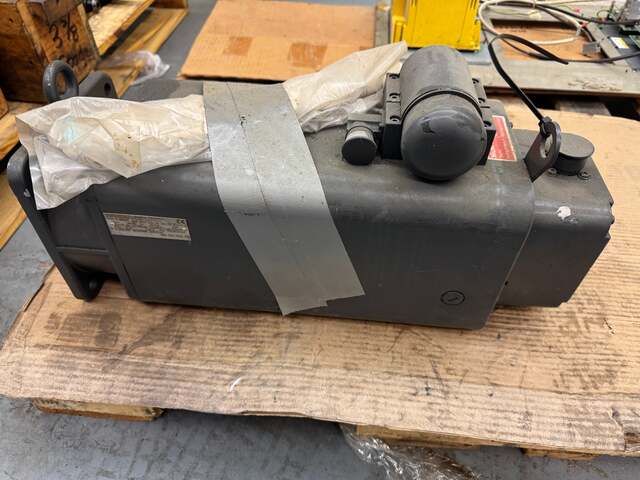

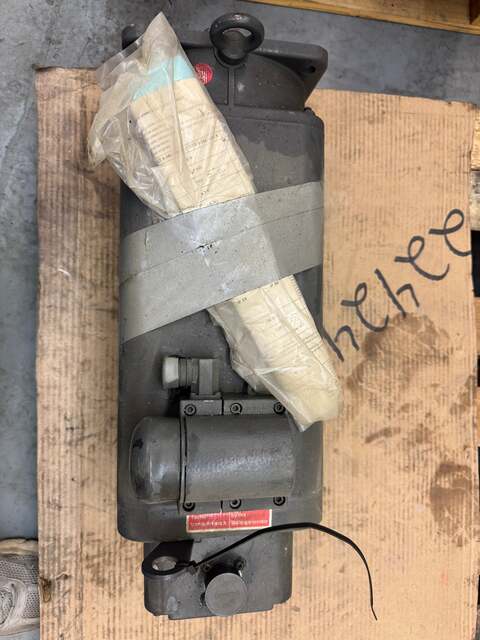

4 kW Siemens Brushless Servo Motor 1FT5106-0AF71-1-Z - 3000 RPM

Product Specifications

• Manufacturer: Siemens
• MPN / Model: 1FT5106-0AF71-1-Z
• Product Type: 3 Phase Brushless AC Servo Motor
• Condition: Surplus - Untested
• Standstill Torque (M0): 45 Nm at 60K
• Rated Torque (MN): 13 Nm at 3000 RPM
• Standstill Current (I0): 42.5 A
• Maximum Speed: 4500 RPM
• Mounting Type: IM B5
• Enclosure Rating: IP67
• Insulation Class: F
• Serial Number: YF M813 1053 01 002
• OEM / Alternate Part Number: 1FU1050-6MF

Product Description

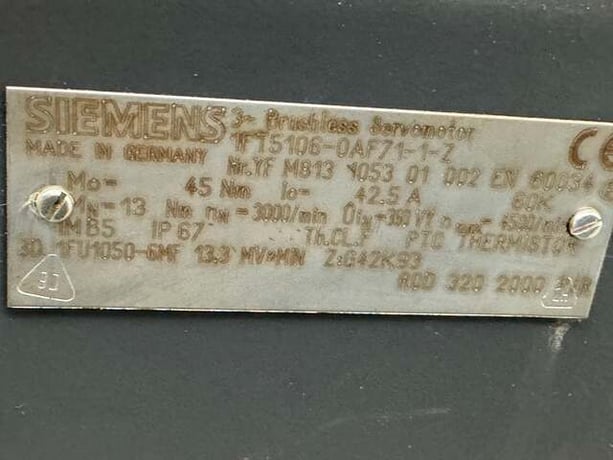

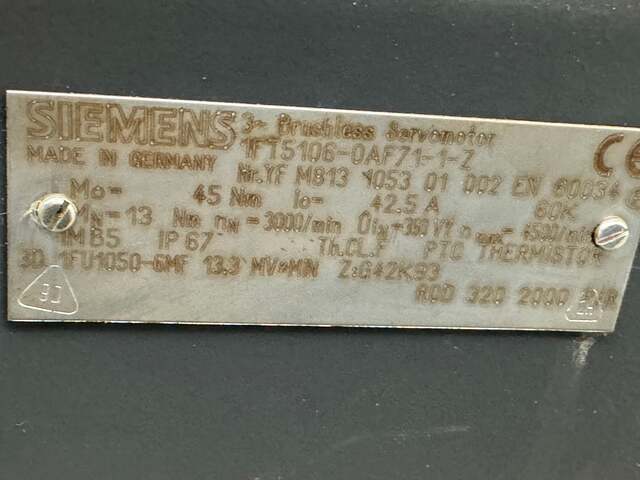

This Siemens 1FT5106-0AF71-1-Z is a 3 phase brushless permanent magnet servo motor from the SIMODRIVE 1FT5 family, made in Germany and listed in Surplus, Untested condition. The MPN is confirmed directly from the nameplate. Rated data shows a standstill torque of 45 Nm at 60K, a rated torque of 13 Nm at 3000 RPM, and a standstill current of 42.5 A, with a maximum speed of 4500 RPM. The motor uses an IM B5 flange mount, carries an IP67 ingress protection rating, and has F class insulation with an integrated PTC thermistor for thermal protection. Position feedback comes from a ROD 320 encoder with 2000 pulses per revolution. Serial number YF M813 1053 01 002 and the 1FU1050 6MF reference marked on the nameplate can help buyers cross reference this unit against Siemens SIMODRIVE documentation when matching it to CNC or automation servo axis applications.
