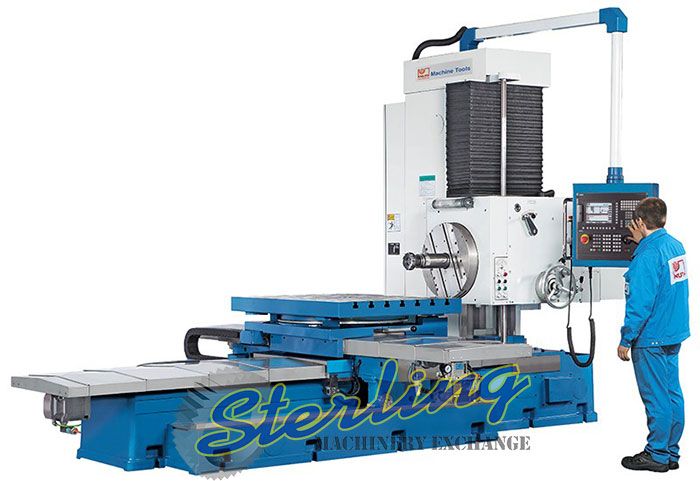

Click to zoom in
For Sale by Sterling Machinery Exchange - New Mach.
Surplus Record Dealer Since 1970
Location: South El Monte, CA
Contact Adam Mattes
Phone Number: 626...> Show Phone Number 626-444-0311
Let the seller know you found their listing on Surplus Record!
Description
DETAILED SPECIFICATION
| Drill Capacity | 1.97" |
| Facing Slide Travel | 7" |
| Table Size | 43" x 38" |
| Table Load Capacity | 5500 lbs |
| Spindle Axis to Table | 0 - 35.43" |
| Rotation Speed of Rotary Table | 1 rpm |
| Travel | |
| X-Axis Travel | 35" |
| Y-Axis Travel | 35" |
| Z-Axis Travel | 24" |
| Headstock | |
| Speed Range | (22) 8 - 1000 rpm |
| Spindle Diameter | 4" |
| Headstock Torque | 10,841 ft/lb |
| Spindle Mount | SK50 |
| Maximum Feed Force (Axial) | 12 kN |
| Facing Slide Speed | (18) 4 - 200 rpm |
| Maximum Facing Slide Torque | 17,346 ft/lb |
| Rapid Feed | |
| X Axis | 98"/minute |
| Y Axis | 98"/minute |
| W Axis | 98"/minute |
| Feed | |
| X Axis | (36) 0 - 0.24"/R |
| Y Axis | (36) 0 - 0.24"/R |
| Z Axis | (36) 0 - 0.24"/R |
| W Axis | (36) 0 - 0.24"/R |
| Facing Slide Feed | (18) 0 - 0"/minute |
| Horsepower | |
| Main Motor | 10.1 H.P. |
| Z Axis Drive | 5.4 H.P. |
| Hydraulic Pump | 0.5 H.P. |
| Dimensions (L x W x H) | 192" x 97" x 108" |
| WEIGHT | 25,300 LBS |
Features
Tailstock
3 Axis Position Indicator
Work Lamp
Alignment Wedges
Central Lubrication
Foundation Bolts
Table Rotates 360°
Lever Operated Shift Gears
Rigid, Hardened & Precision Ground Square Guides
Operating Tools
Operator Manual
Get Your Price from Sterling Machinery Exchange - New Mach.!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

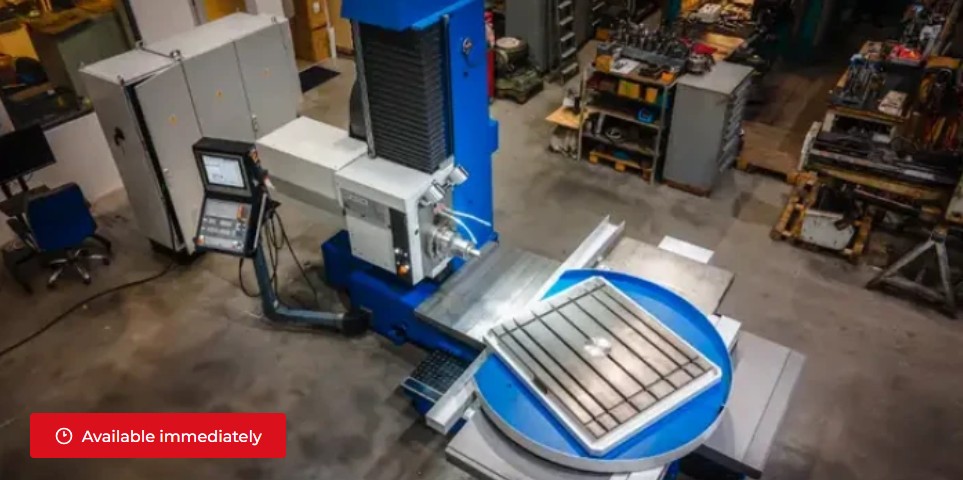

4" TOS #WH-10, CNC Horizontal Boring Mill, 49.2" X, 40.5" Y, 36.6" Z, 39.4" x 44.1" rotary table, 23.8 HP, Heidenhain iTNC 620 control, 2026
