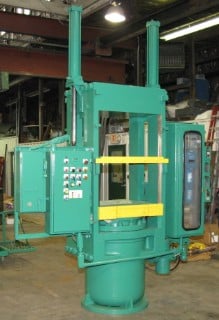

393 Ton, Up-acting slab-side press, 22" stroke, 20" ram, 37" daylight, 27.75" x24", #1816

20" DIAMETER MAIN RAM WITH APPROX 22" STROKE. 393 TON AT 2500 PSI. CURRENTLY SET UP WITH 2.5" THICK INTERMEDIATE PLATE RESULTING IN TWO DAYLIGHT OPENINGS THAT ARE 17. 5" AND 17"; WITH PLATE REMOVED THE MAX DAYLIGHT IS APPROX 37". OPERATOR HEIGHT IS 43.5". FULLY GUIDED WITH 45 DEGREE ADJUSTABLE GIBS. SLAB-SIDES ARE 3.5" THICK WITH 7" WINDOWS. TWO SIDE PUSH-BACK CYLINDERS THAT ARE 3.25" BORE WITH 25" STOKE. TOP MOUNTED HYDRAULIC POWER UNIT (CAN BE FLOOR MOUNTED): 10 HP (208-230/460 VOLTS; 1800 RPM); OILGEAR AXIAL PISTON PUMP RATED AT 6 GPM TO 3000 PSI (PVWH-06-LSA4-CNNN); CONTINENTAL DIRECTIONAL VALVES; RETURN FILTER; 3000 PSI GAUGES; AB PRESSURE SWITCH; 2.5 GALLON BOSCH ACCUMULATOR; ELECTRICAL JUNCTION BOX; APPROX 80 GALLON RESERVOIR; DRIP PAN; ETC… CONTROLS INCLUDE: TENOR SOLID-STATE PROGRAMMER MODEL 763. TENOR TIME/COUNT MODULE MODEL 763; TENOR MODEL II STEPPER MODULE #763-7-0115; TWO TENOR TRIAC MODULE 763-3-0116; FOUR TEMP CONTROLLERS; HEAT ON/OFF; STOP/START; E-STOP; MANUAL/AUTO; MANUAL DECOMPRESS; ETC… OVERALL DIMENSIONS OF POWER UNIT: 72" X 32" X 50" TALL. OVERALL DIMENSIONS OF PRESS WITH POWER UNIT ON TOP: 92" X 44" X 142" TALL (92" TALL WITHOUT POWER UNIT). APPROX 15,000 POUNDS. SOME DRAWINGS. ITEM#1816.
