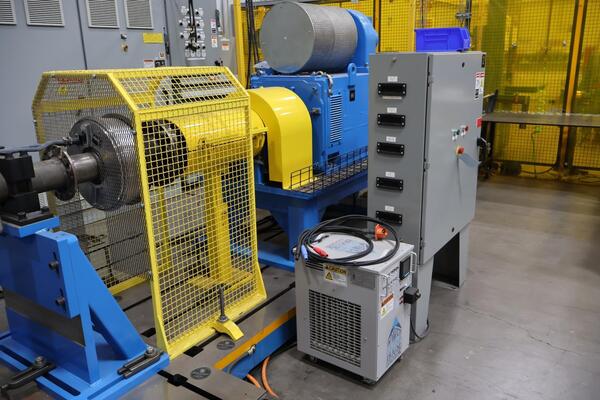

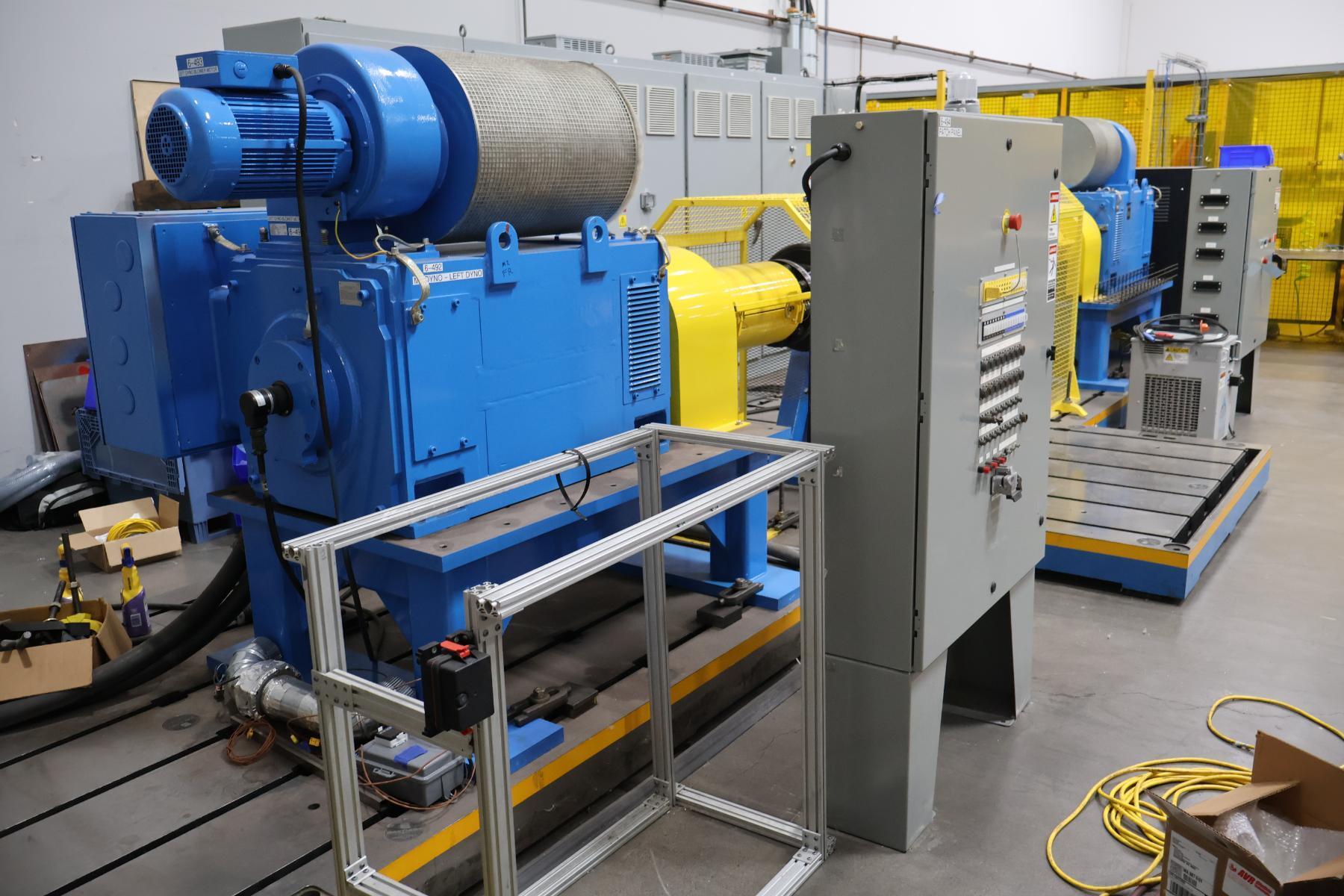

386 HP, 3500 RPM, Lloyd Dynamowerke G.m.b.h. #A5L-315-M42-04KT, Dynamometer Test System, 3694 lb.-ft. torque, Unico 2400 vector control, 1000 VDC battery simulator, 2020

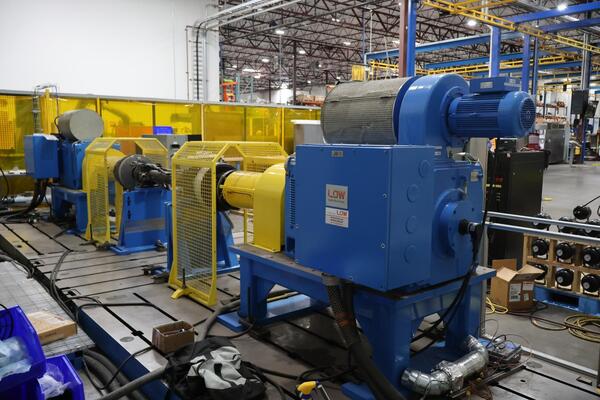

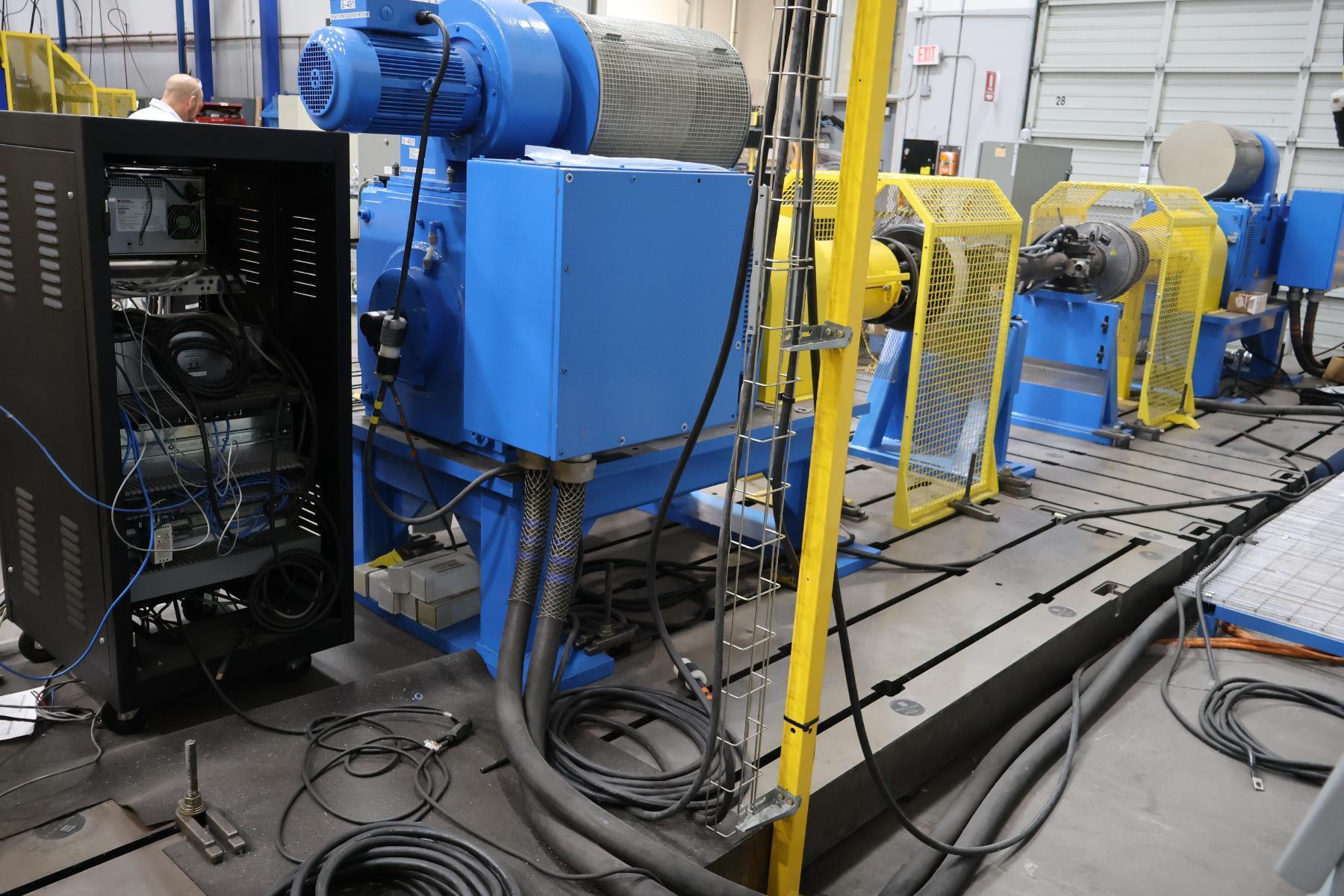

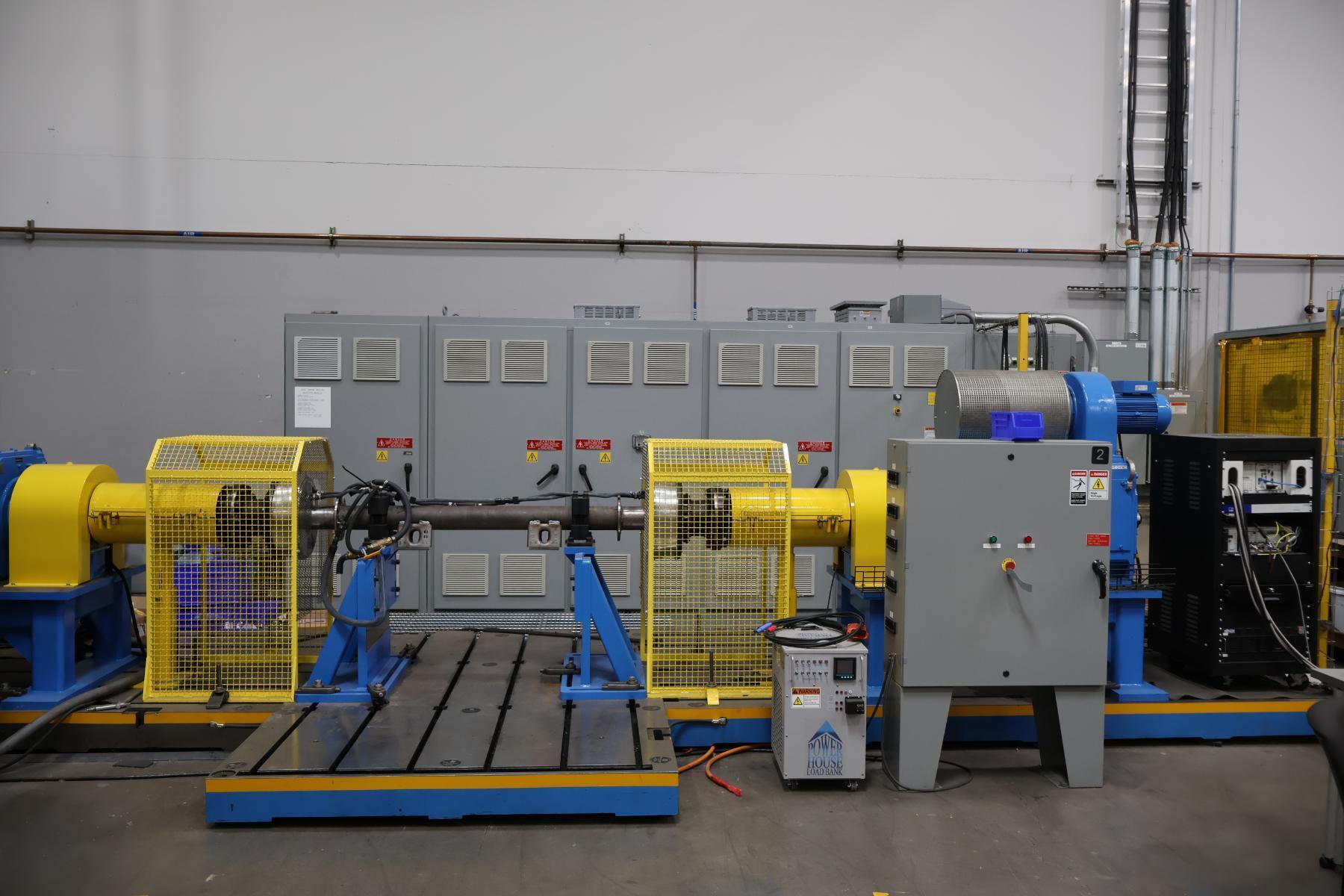

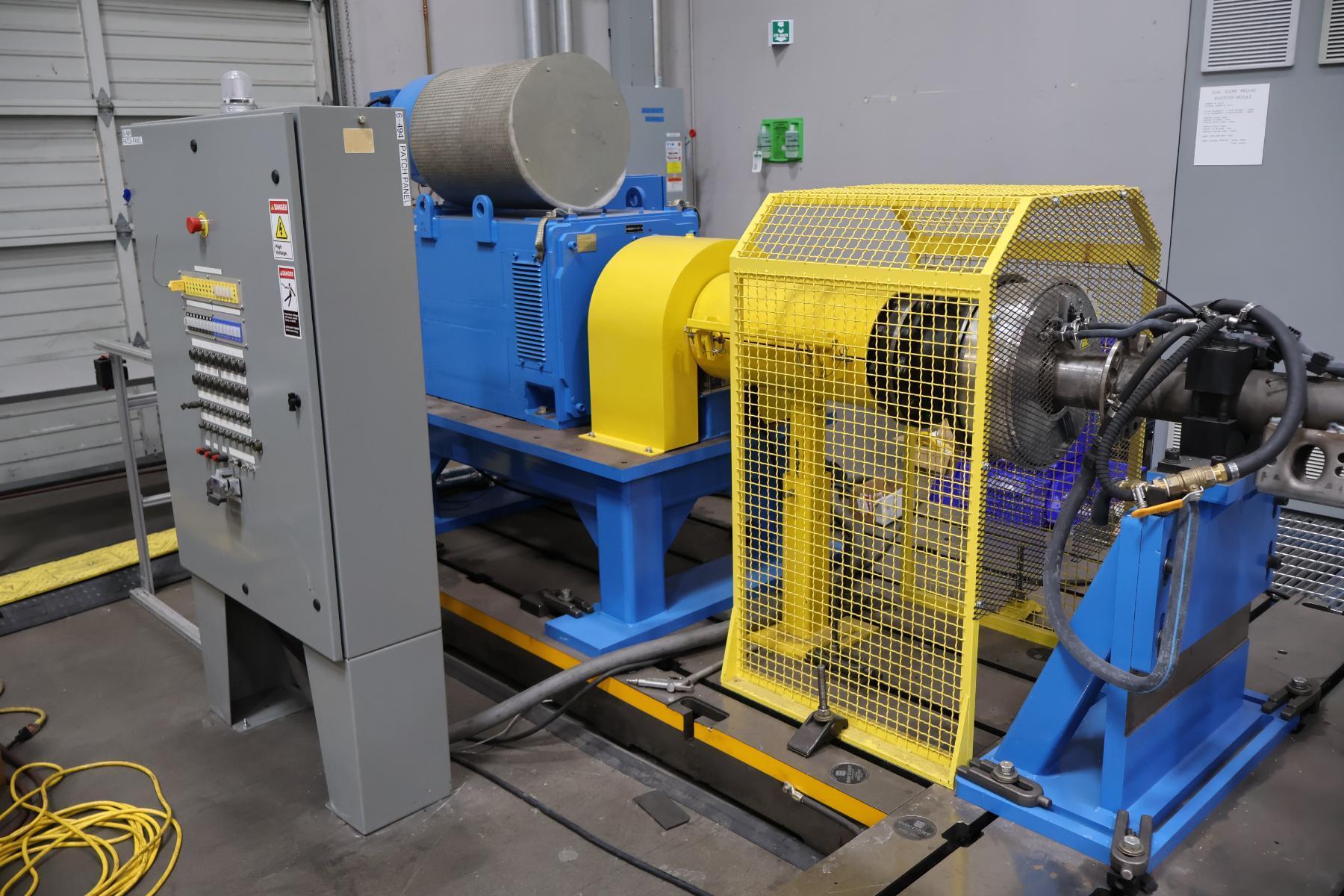

Dynamometer Test System

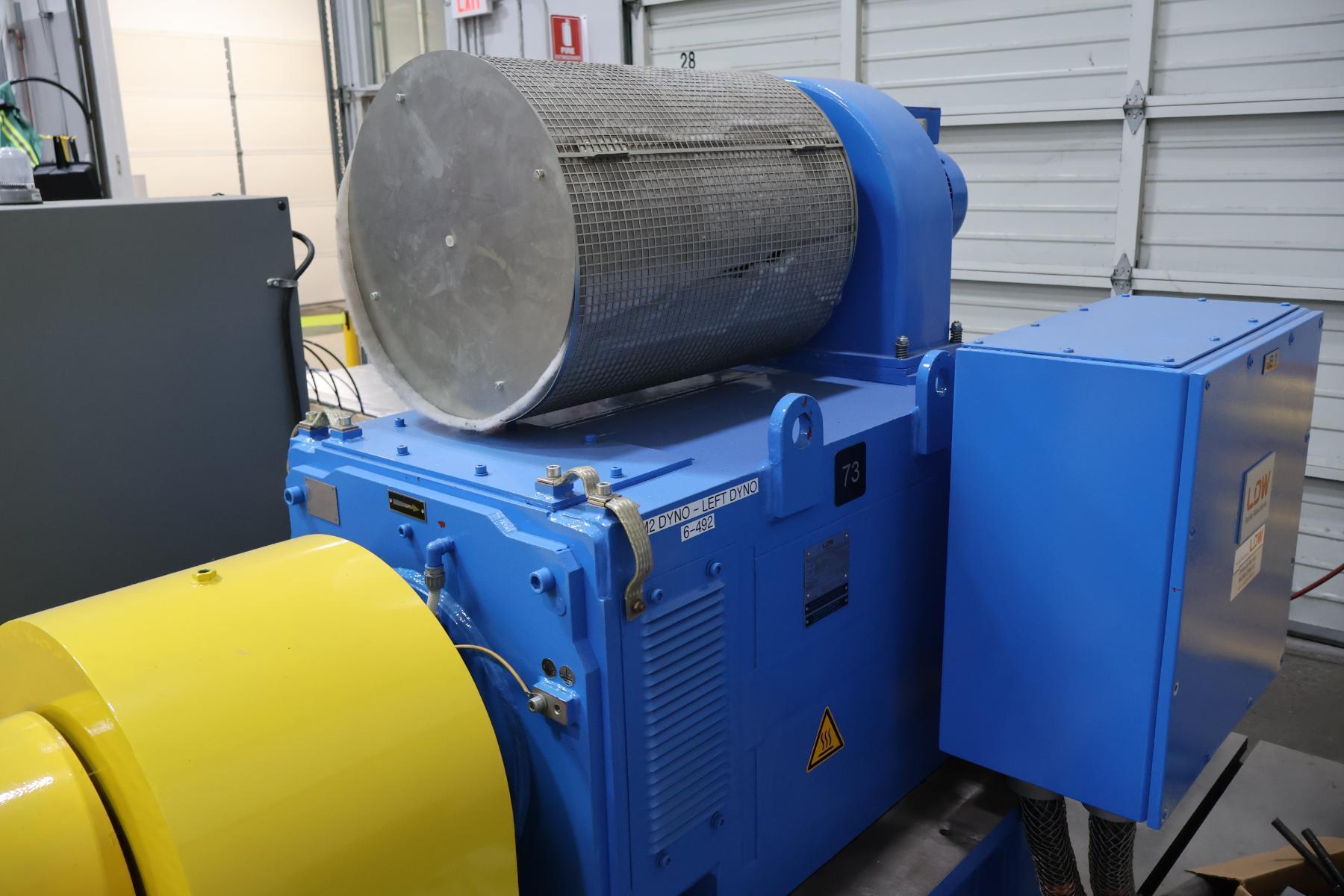

Output Dynamometers (2)
288 kW Continuous Operation from 550 – 3,500 RPM
Induction Type
5009 Nm Torque up to 550 RPM
Foot Mounted
120% Overload for 60 Seconds
Single-End Shaft
Encoder
DC – DC Inverter Battery Simulator (1)
1,000 VDC
1,000 A Continuous Operation up to 465 VDC
E27 Control Module w/ Ethernet Communications
Reverse-Voltage Protection Diode
120% Overload for 60 Seconds
IGBT Power Section
Common-Mode Filter Capacitors
Voltage Feedback Module
Voltage-Current Control Accuracy
Isolation Monitoring
Ripple Spec: 0.1% FS Current Ripple / 0.1% FS Voltage Ripple
Power Enclosure and Vector Control Package (1)
6-Door Upright Air Cooled Enclosure
500 Amp Disconnect
Cabinet Vents and Cooling Fans
Intercabling Terminals and Wireway for Power Enclosure
Control Fuses, Fuse Holders, and Motor Starters
Unico 2400 Regenerative Charging Unit
Unico 2400 Output Vector Servo Controllers
DC/DC Inverter
Drive Isolation Transformer (1)
RE Pro System (REPS) Overview
The Revolutionary Engineering Pro System is configurable and easy to use test cell automation system.
Has a Graphical User Interface that runs on a Windows PC.
Main processing is performed on a NI real-time PXI Controller.
Utilizes a Quad-Core PXI Controller and the LabVIEW real-time operating system.
Operator Interfaces (2)

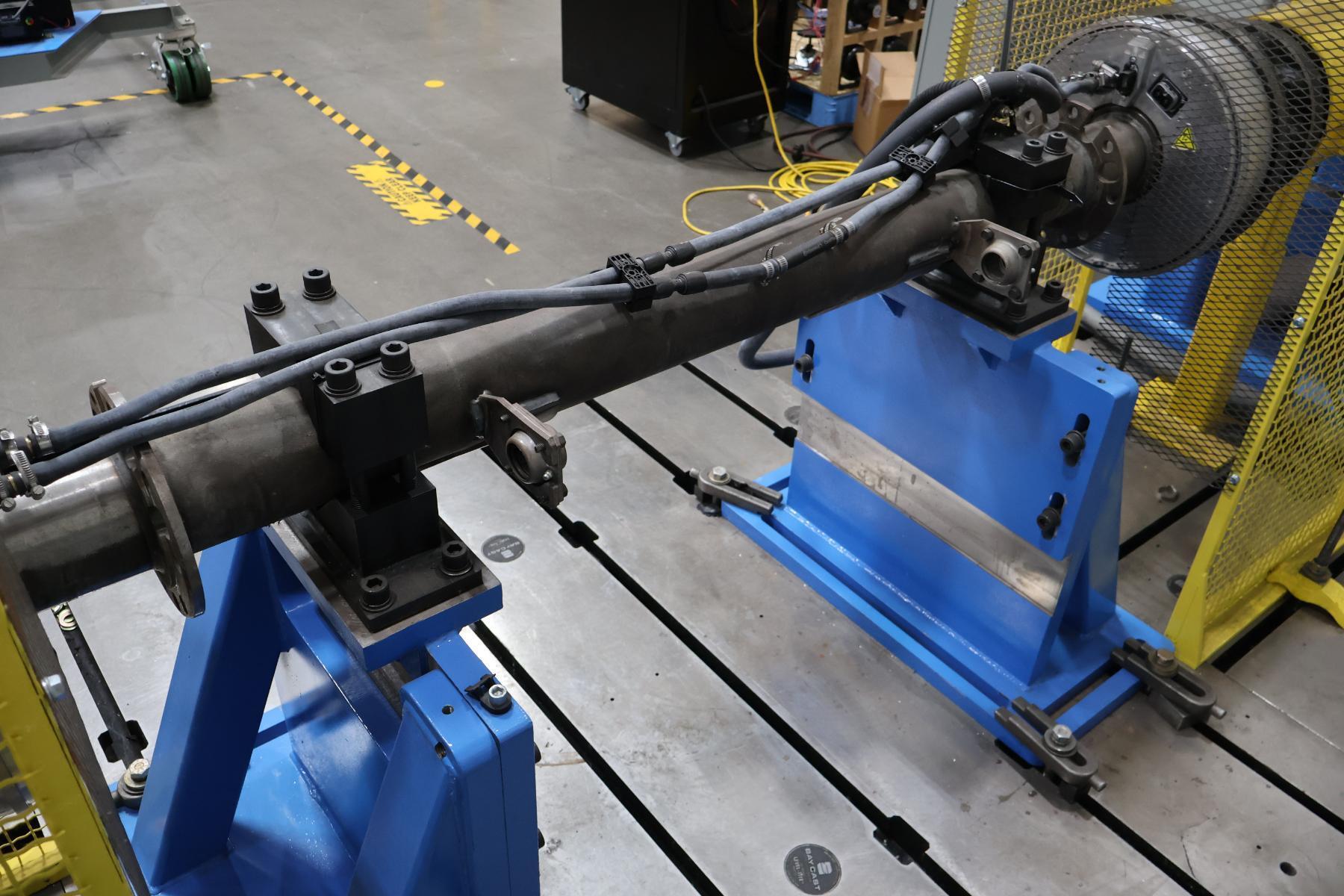

Output Bases (2)

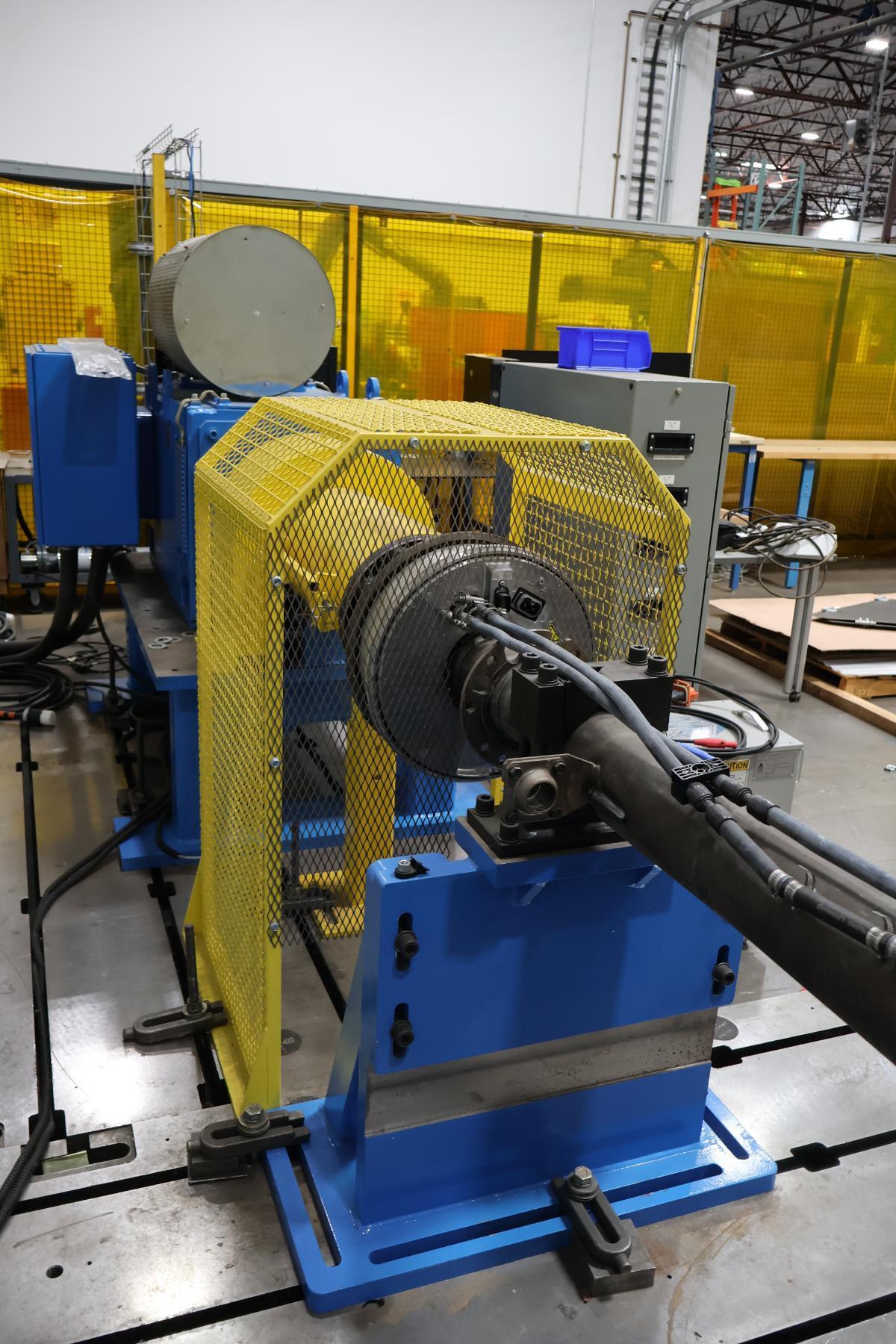

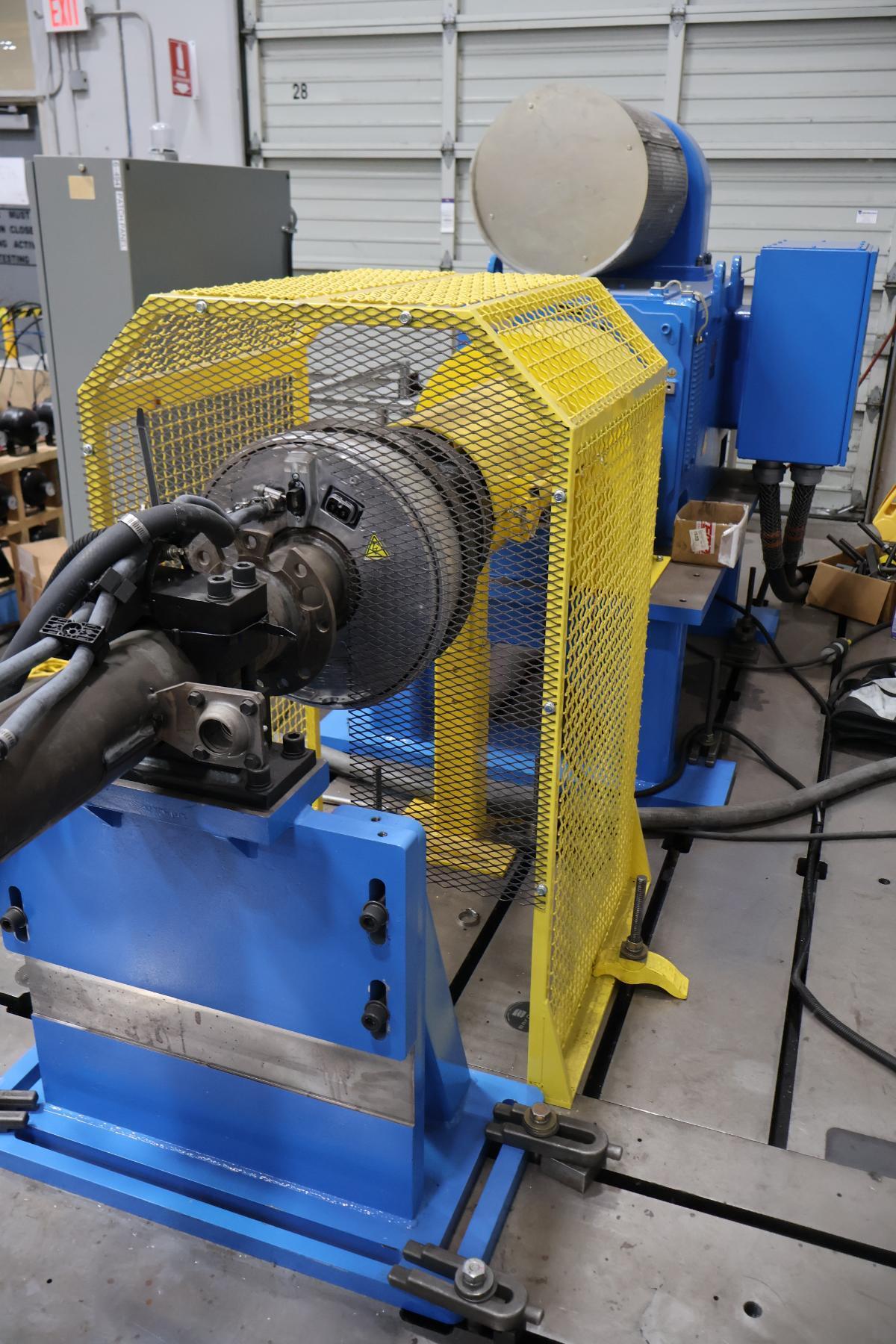

Guarding System (2)
5,000 Nm Torque Systems (2)
Overall Dimensions:
…Bedplate System:
……End Sections: 12’ x 6’ Each
……Input (Center) Section: 6’ x 9’
…Electrical Panels (approx.): 250” Long x 90” Tall x 36” Deep
Equipment Weight (approx.): 30,000 lbs.
Advertised specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes and History:
Owner purchased this system complete in 2020 to be used for testing performance of industrial gearboxes and drivetrains for heavy-duty semi-trucks. Have now decided to resell the system because of low utilization.
The system has low hours and is in excellent condition. It is presently under power and available for inspection and testing. Call for details, pricing, and to schedule an inspection of equipment
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Portland, OR Metro Area
Equipment is available for inspection; under power.
Buyer responsible for equipment loading expenses.
Buyer responsible for freight logistics and expenses.
MD Equipment Services will provide rigging, loading quotations.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
