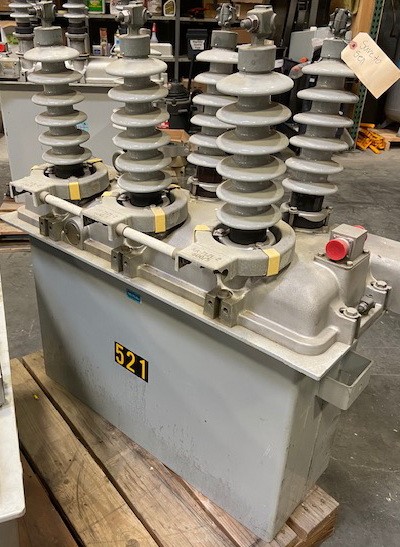

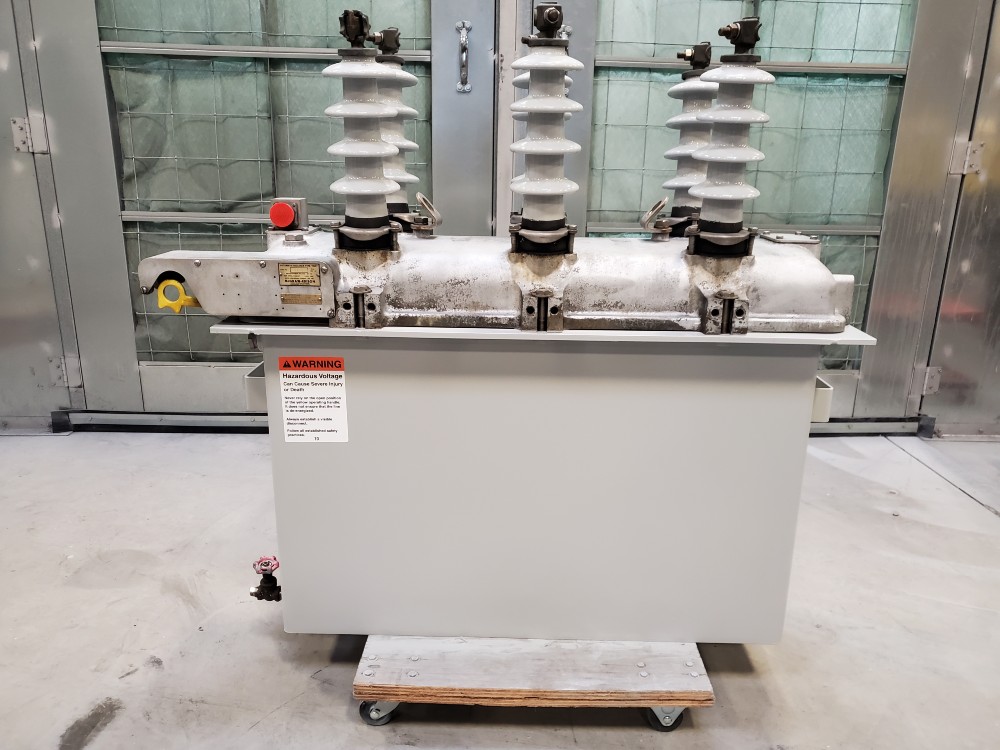

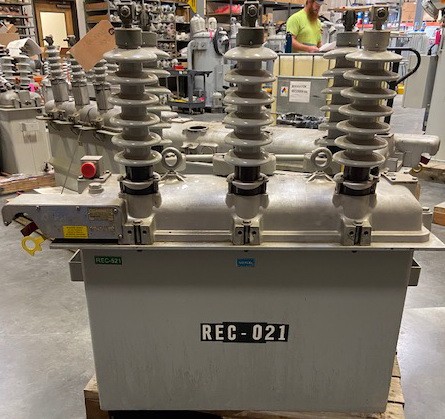

38 KV Mcgraw-Edison, 3 phase, 400 amp continuous, 6000 amp interrupt, hydraulic, automatic

Description and Features

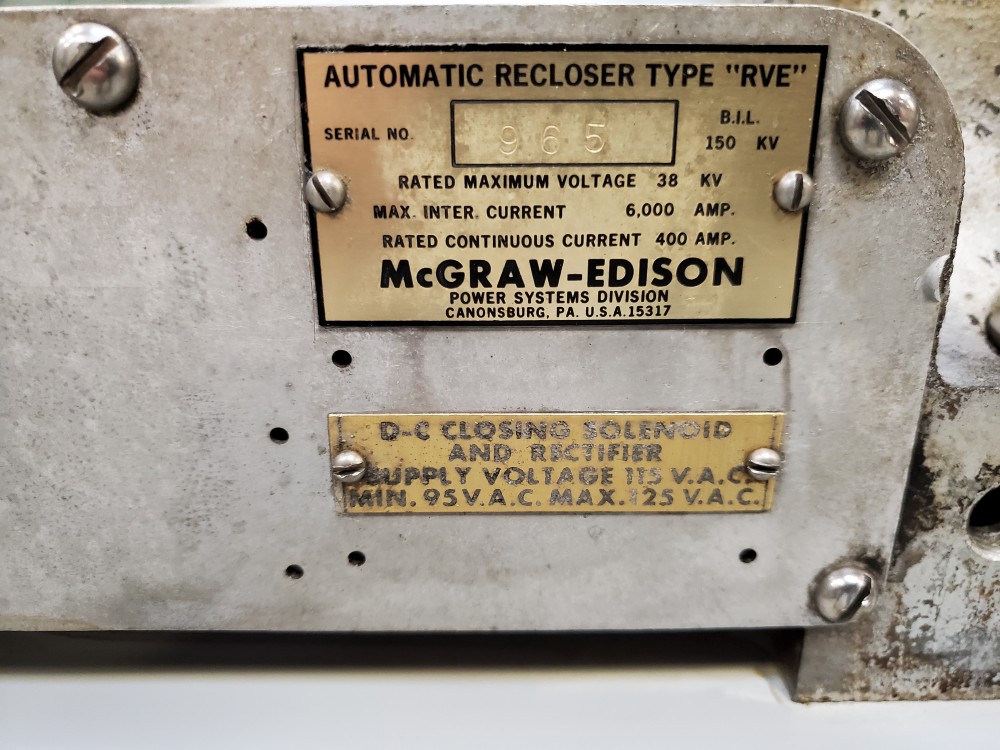

Manufacturer: McGraw Edison

Type: Automatic Voltage Recloser “RVE”

Max Interrupt Current: 6,000 amp

Rated Continuous Current: 400 amp

Rated Maximum Voltage: 38 kV

BIL = 150 kV

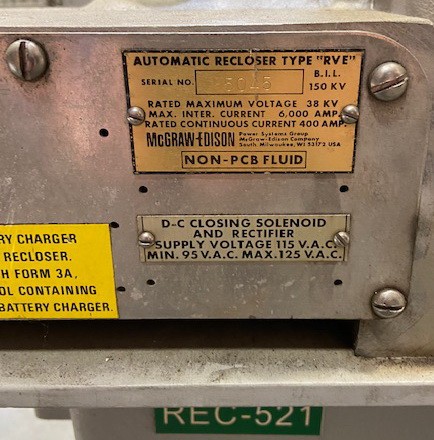

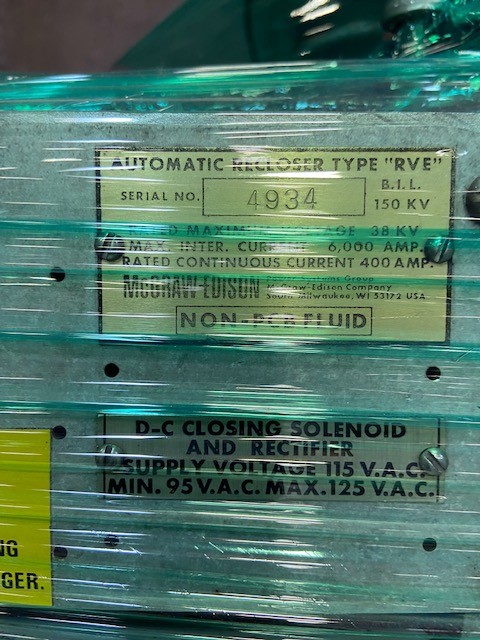

Other Nameplate Information:

Non-PCB Mineral Oil

DC Closing Solenoid and Rectifier

Supply Voltage = 115VAC (Min. 95VAC to Max 125VAC)

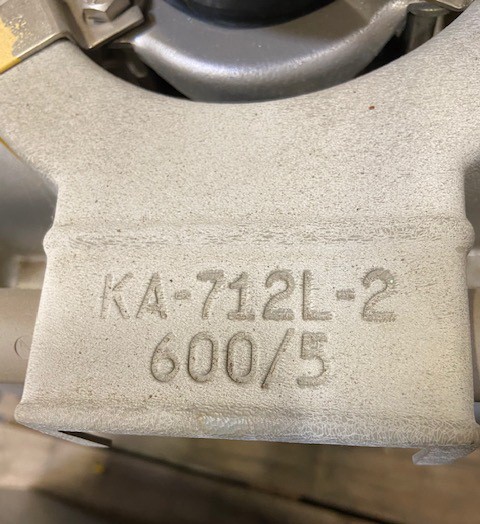

This recloser has been completely inspected, tested, and refurbished to ensure good remaining life of all electrical and mechanical components. Test report included. Recent upgrades include tank cleaning (inside and out), main tank exterior and head cover cleaned and painted, and oil filtered. Passed all electrical tests including insulation resistance, vacuum bottle integrity, overpotential, contact resistance, and current transformers.
