Manufacturer: Delta
kVA: 36000.0 - 48000.0 - 60000.0 - 67200.0
Primary Voltage: 138000 - 69000
Secondary Voltage: 13800
Stock # JVT-3966
1 / 3
Click to zoom in
1 / 3
For Sale by Belyea Company Inc
Surplus Record Dealer Since 1926
Location: Easton, PA
Contact Shepard Belyea
Phone Number: 610...> Show Phone Number 610-515-8775
Let the seller know you found their listing on Surplus Record!
Description
T-6349

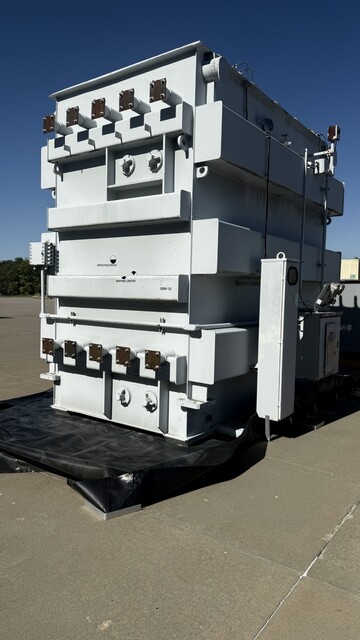

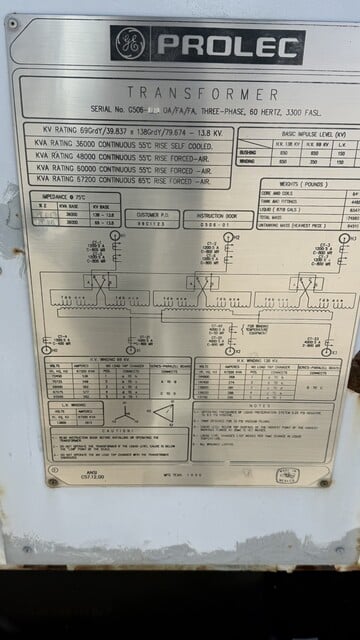

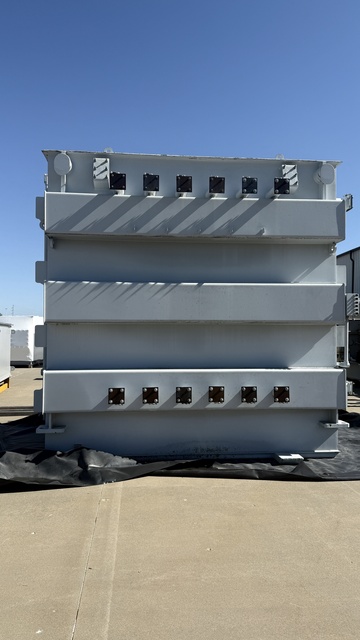

One (1) 36/48/60/67.2 MVA GE Prolec Dual Primary Substation Transformer
3 ph, 60 Hz, OA/FA/FA, 55/65 Deg C Rise,
All Copper Windings, 9.99% Impedance, Liquid Level Gauge,
Liquid Temp Gauge, Vacuum Pressure Gauge, Pressure Release Valve,
Drain & Sample Valve, Top-Top Bushings
HV1: 69000 Grd Wye BIL: 650 KV
HV2: 138000 Grd Wye BIL: 650 KV
LV: 13800 Delta BIL: 150 KV
HV1 Taps: 72450-70725-69000-67275-65550
HV2 Taps: 144900-141450-138000-134550-131100
Taps run parallel
CORE & COIL WEIGHT lb
TANK & FITTINGS WEIGHT lb
FLUID WEIGHT lb
FLUID GALLONS 8718 gal (US)
TOTAL WEIGHT 174660 lb
Shipping Dimensions: 180" x 150" x 175"H
Overall: 210" x 256" x 227"H
One (1) 36/48/60/67.2 MVA GE Prolec Dual Primary Substation Transformer
3 ph, 60 Hz, OA/FA/FA, 55/65 Deg C Rise,
All Copper Windings, 9.99% Impedance, Liquid Level Gauge,
Liquid Temp Gauge, Vacuum Pressure Gauge, Pressure Release Valve,
Drain & Sample Valve, Top-Top Bushings
HV1: 69000 Grd Wye BIL: 650 KV
HV2: 138000 Grd Wye BIL: 650 KV
LV: 13800 Delta BIL: 150 KV
HV1 Taps: 72450-70725-69000-67275-65550
HV2 Taps: 144900-141450-138000-134550-131100
Taps run parallel
CORE & COIL WEIGHT lb
TANK & FITTINGS WEIGHT lb
FLUID WEIGHT lb
FLUID GALLONS 8718 gal (US)
TOTAL WEIGHT 174660 lb
Shipping Dimensions: 180" x 150" x 175"H
Overall: 210" x 256" x 227"H
Get Your Price from Belyea Company Inc!
