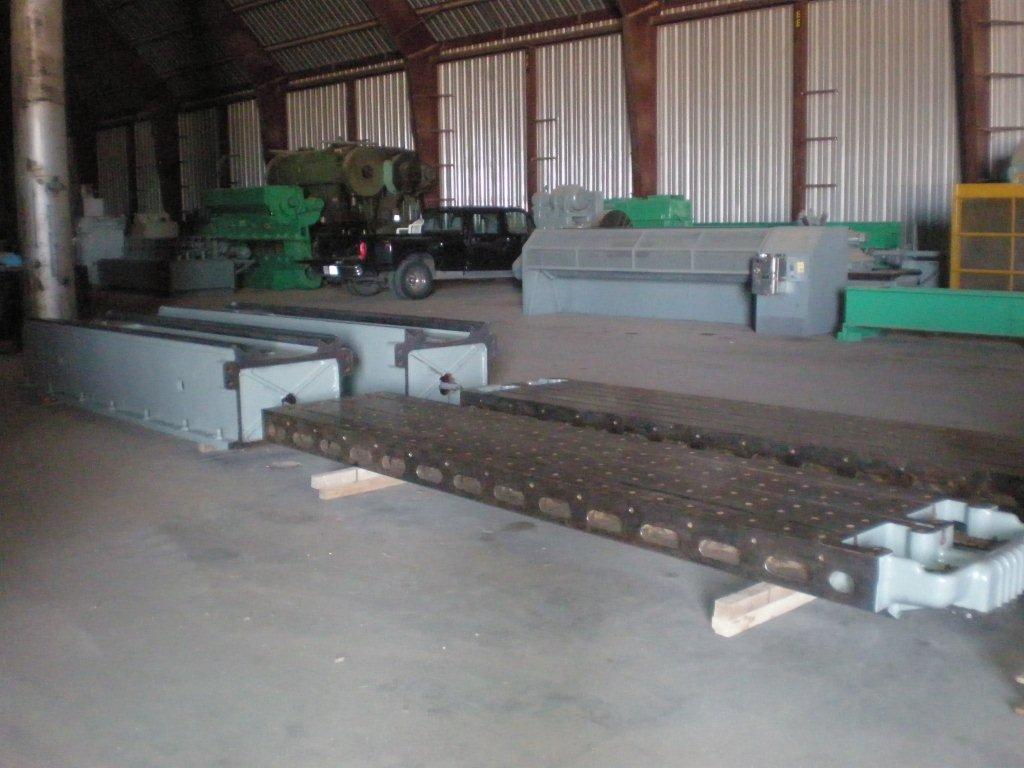

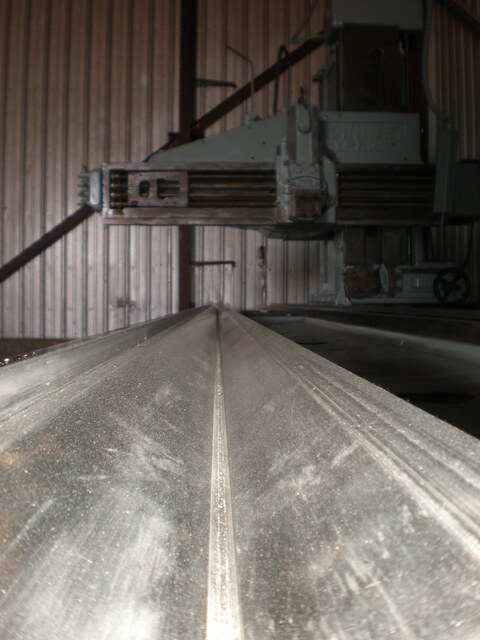

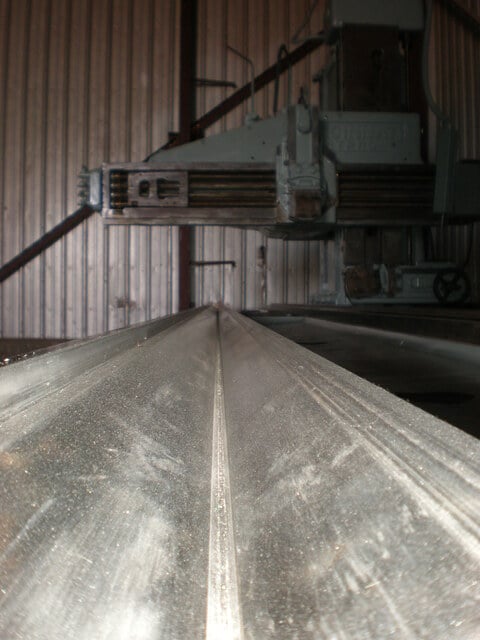

36" x 38" x 28' Cincinnati Hypro, 36" x324" table, 2 rail head, side head, 50 HP variable speed, 1 owner

Manufacturer Cincinnati
Table Width 36.00" Table Width
Height Under Rail 38.00" Height Under Rail
' Table/Travel Length 28.00' Table/Travel Length
Stock # 2329

For Sale by Peterson Machinery Sales

Platinum Level Dealer
Surplus Record Dealer Since 1982

Description

REC#2329-280
1.

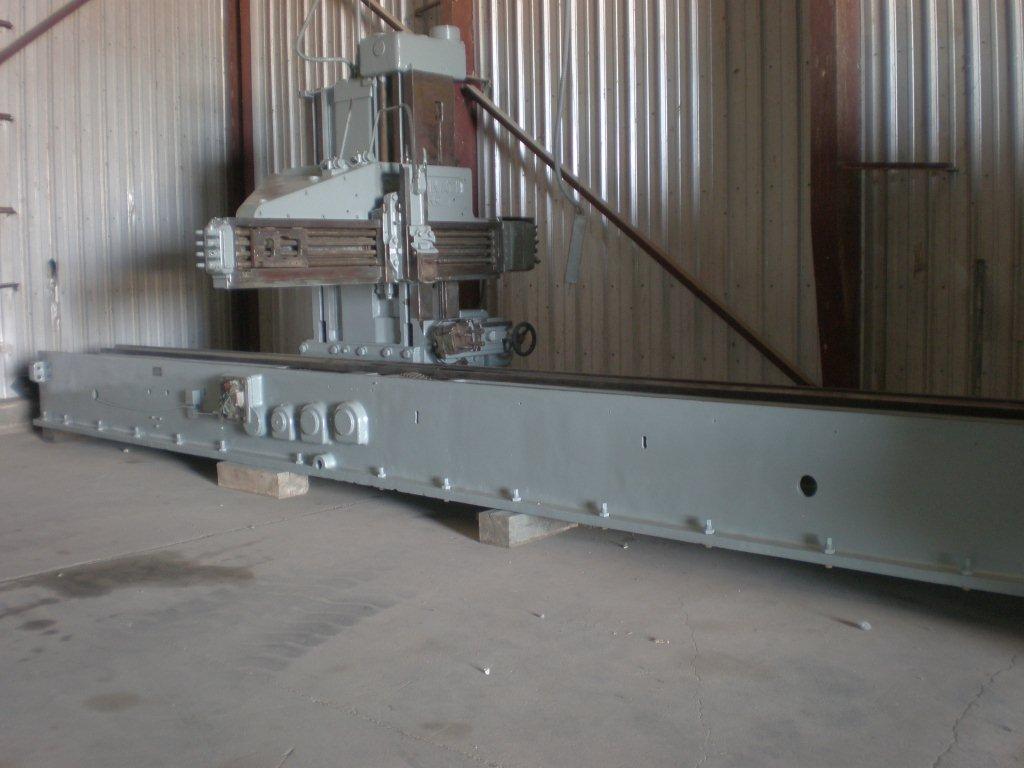

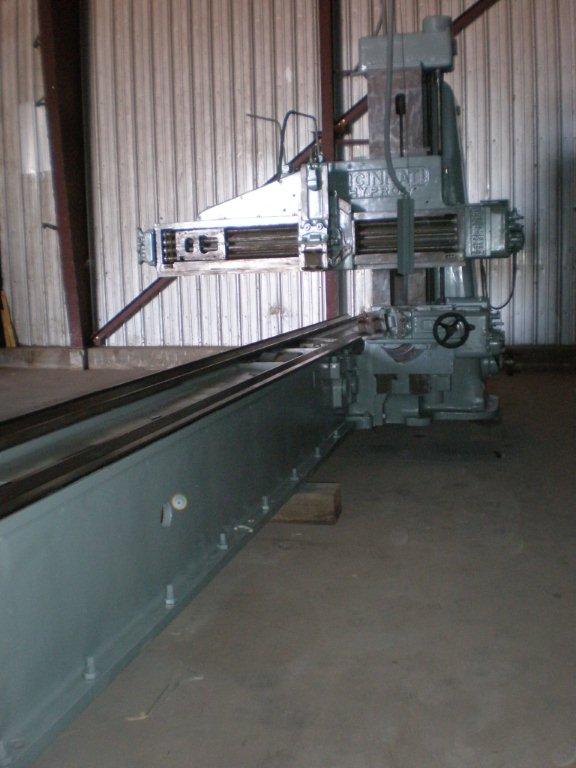

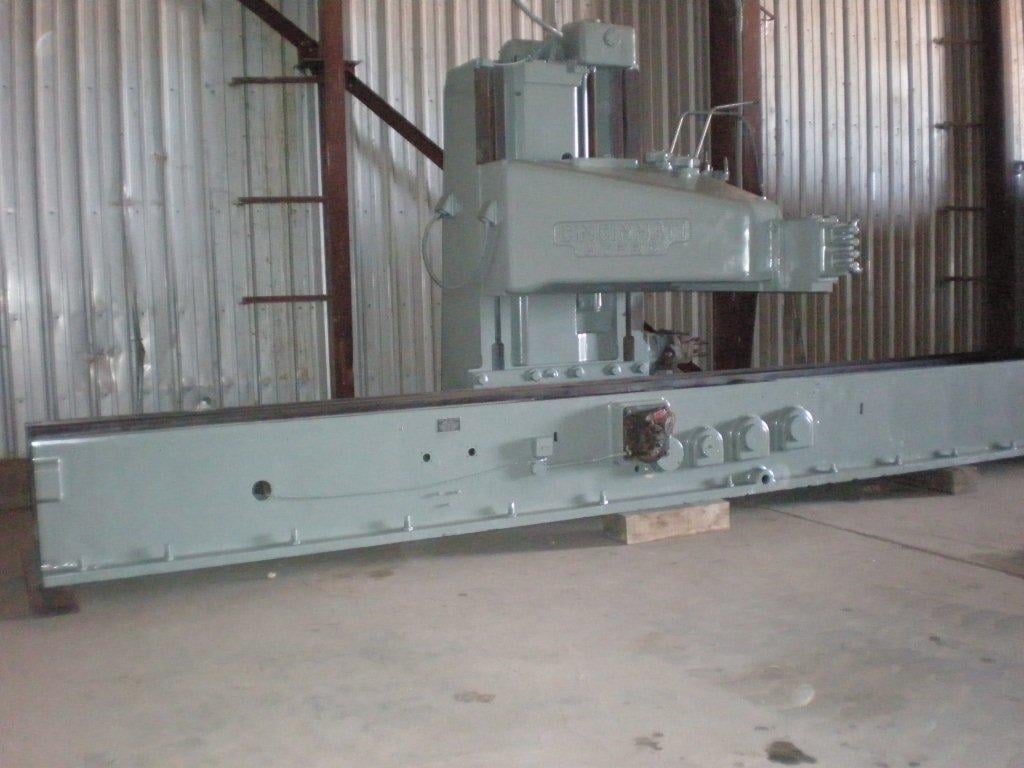

USED CINCINNATI "HYPRO" 3' x 26' Openside Planner; S/N 7321
Specifications:

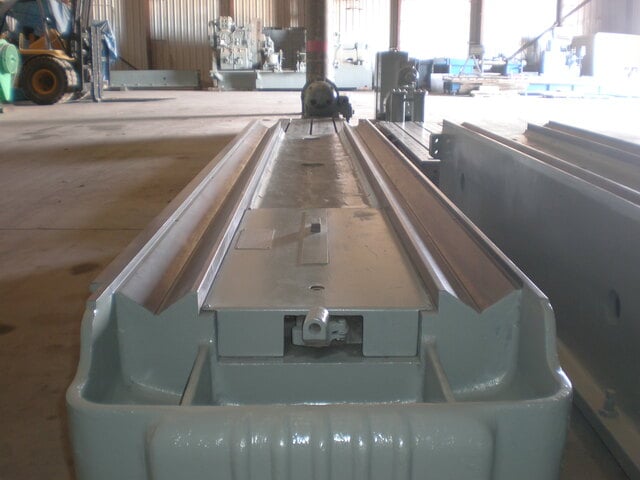

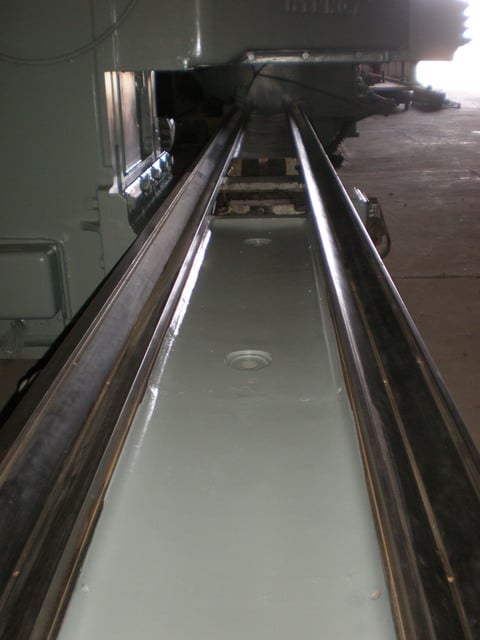

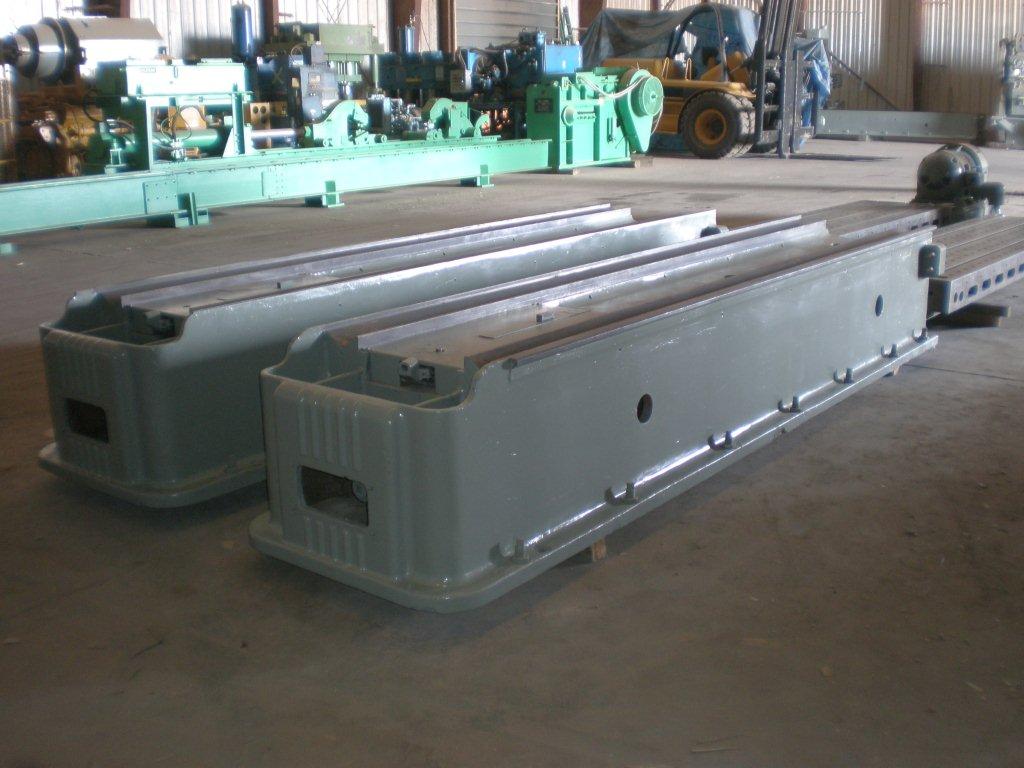

Area of Table.................................... 36'' x 27' F-B (working)
36'' x 29'2" F-B (O.A.)
Maximum Table Stroke......................... 27'
Maximum Under Rail........................... 38"
Maximum Planing Width....................... 36"
Cutting Speed....................................
Return Speed.....................................
Feeds, Horizontal and Vertical.................
Vertical Travel of Rail Head Slide............ 15"
Horizontal Travel of Side Head Slide.........
Vertical Travel of Side Head................... 12"
All Heads Swivel (left or right)................ 45°
Electrical Characteristics:

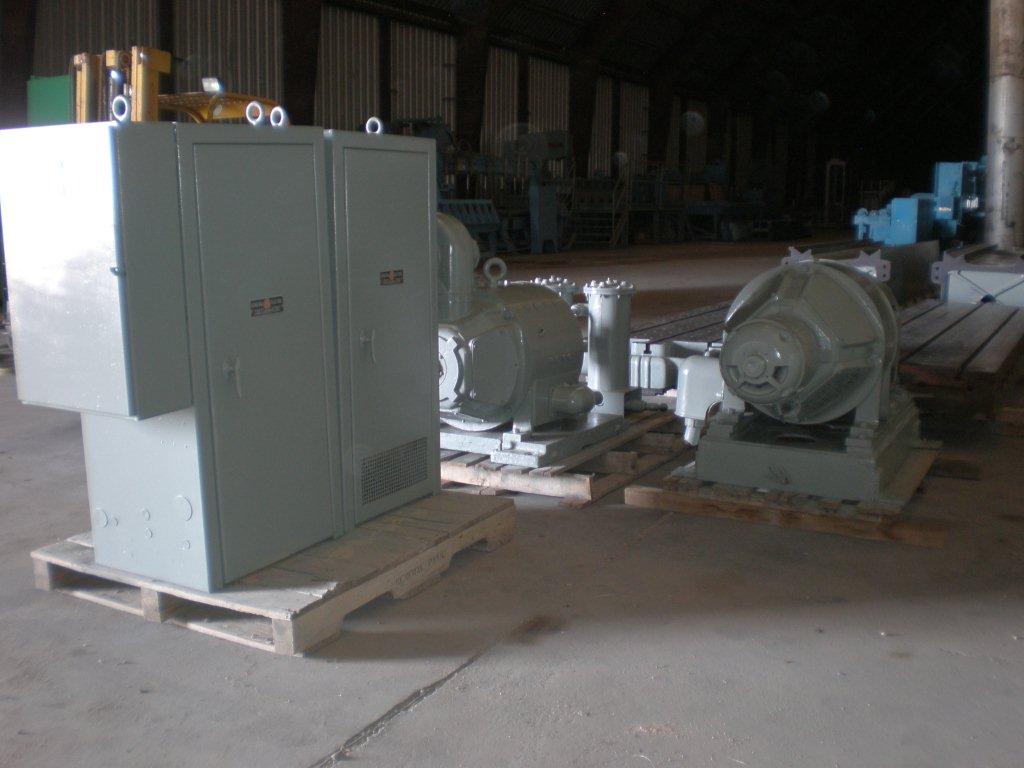

All G.E. Drive System
50 HP M.G. Set25 HP D.C. Motor(direct)
220/440VAC; 3ph; 60HZ; 60/120AMP; 1765RPM - 107/240V; 88/212AMP; 250-1200RPM
Equipped With:

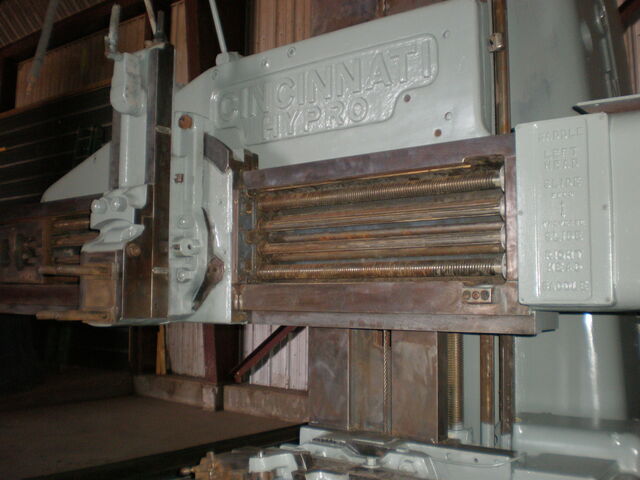

2 Rail Heads
1 Side Head
Auto Reciprocating Lube System
Power Feeds and Rapid Traverse on all Heads
Operators Pendant Control
Dimensions:
Height....................................... 10' 4"(w/o pendant)
Width........................................ 120"(w/o drive)
Length....................................... 56' 6"(complete)
29' 2"(min. shipping length)

Submit Inquiry to Peterson Machinery Sales
