36" x 3/16" Coe Press Equipment, coil servo feed line, 20000 lb.

Description

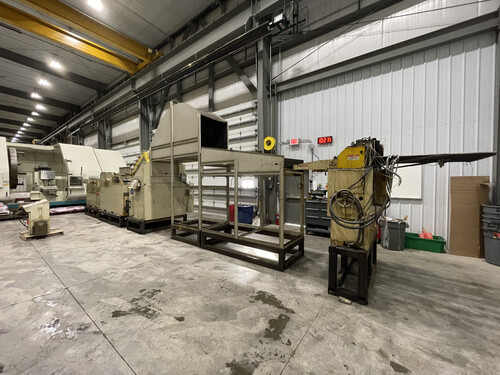

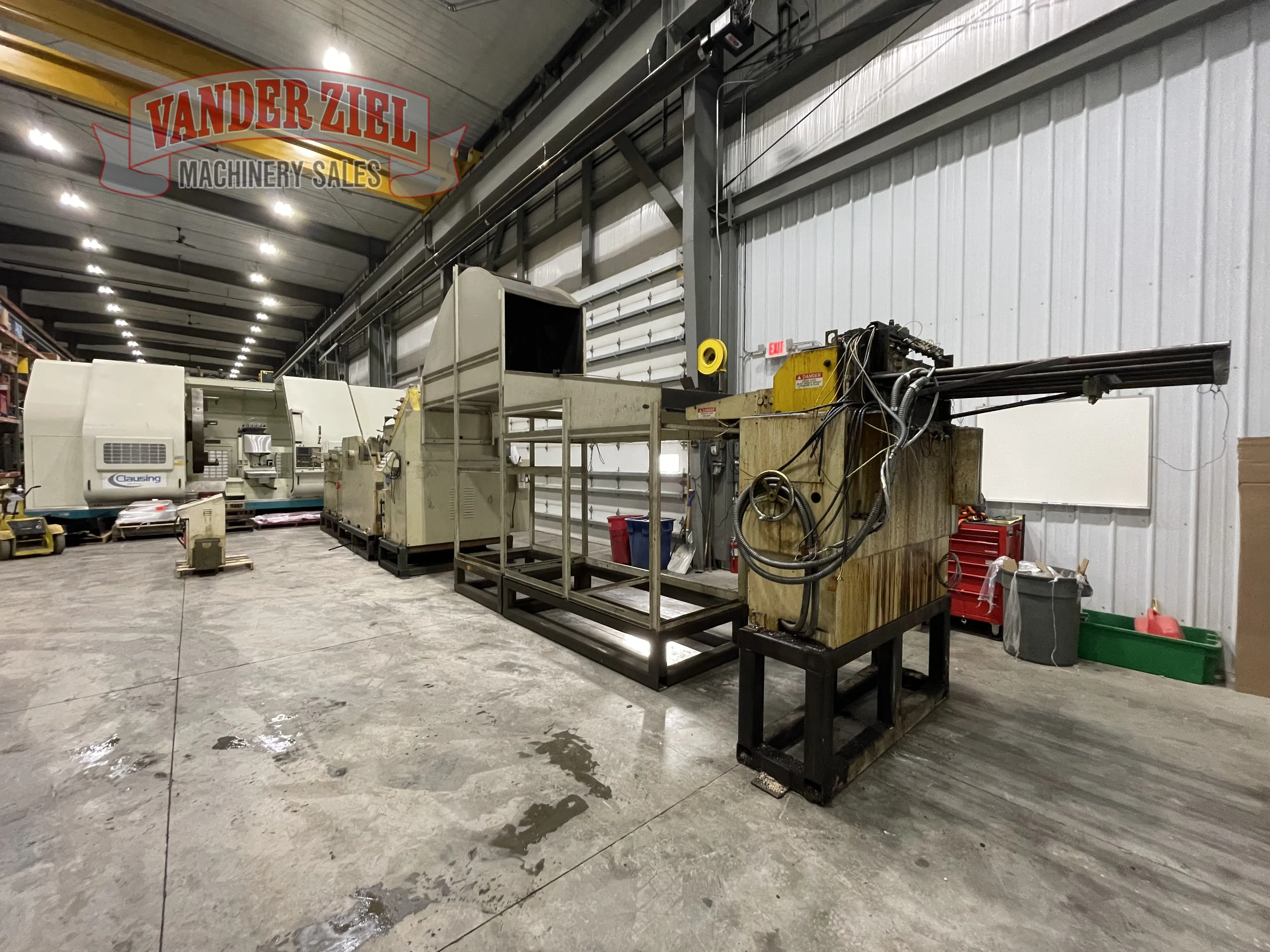

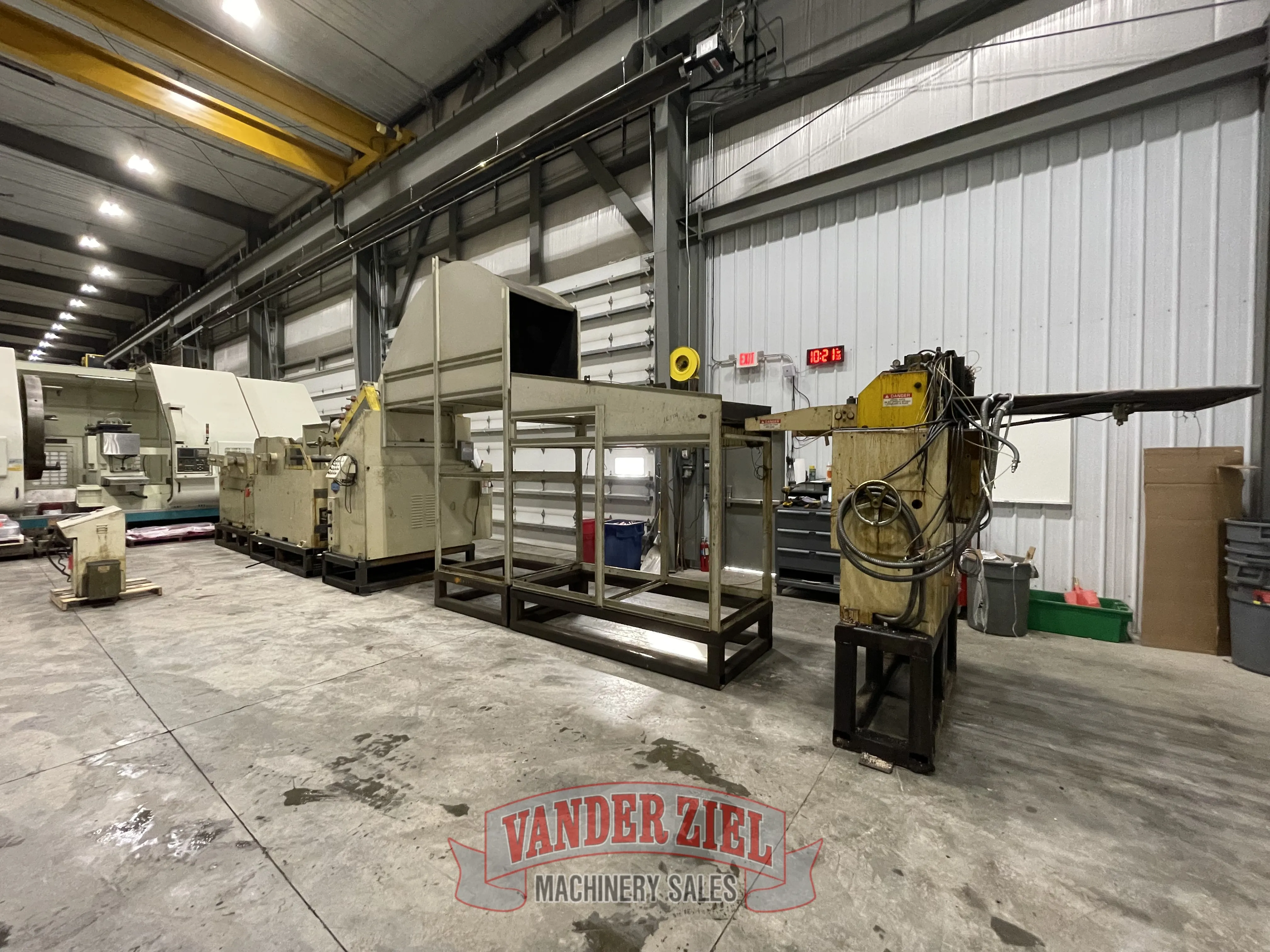

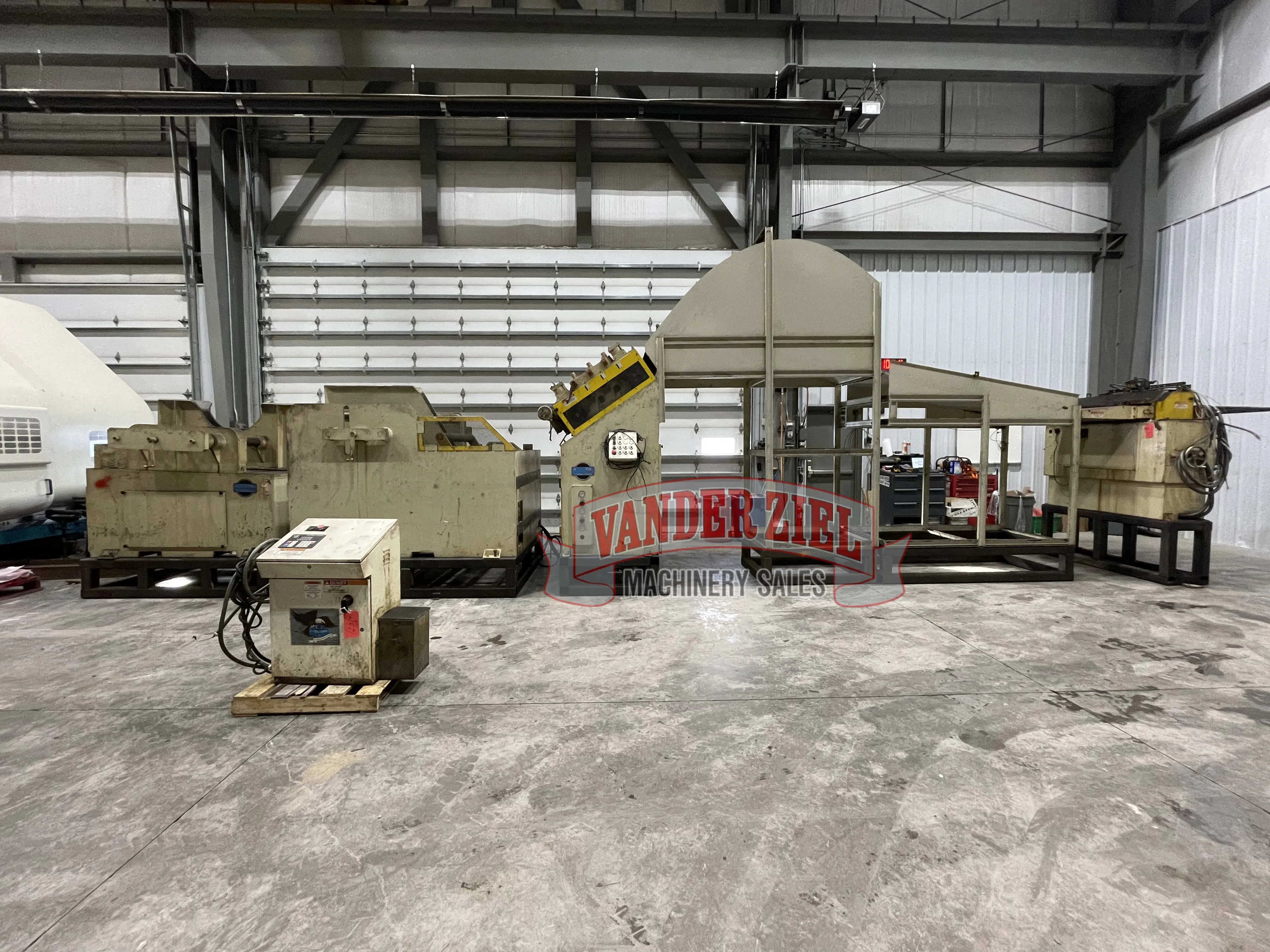

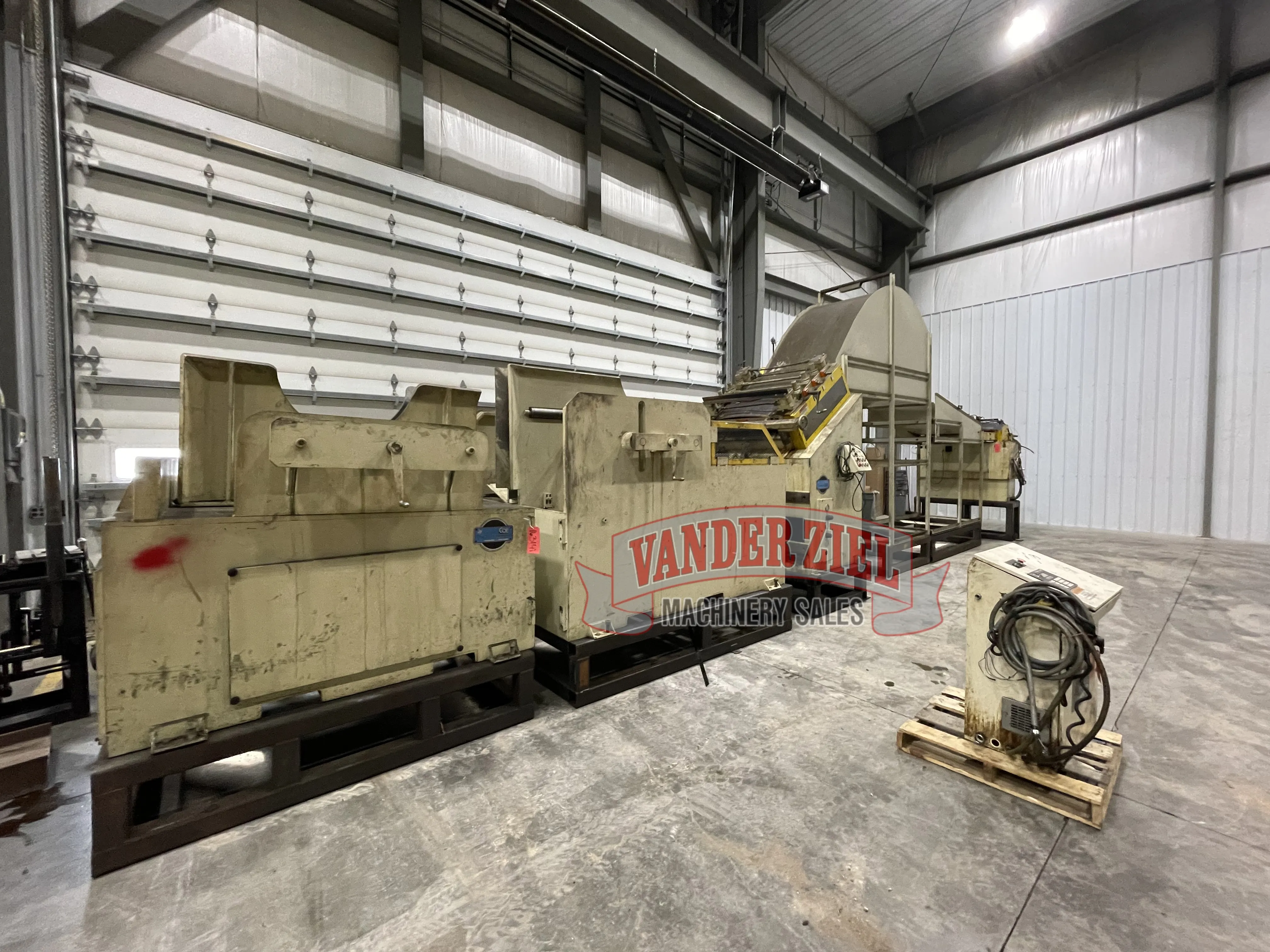

Coe 36″ x 3/16″ x 20,000-Lb Coil Servo Feed Line

Asset #16314

Consisting of:
Coe CPCC-20036 Coil Cradle|
Coil Staging & Loading Ramp

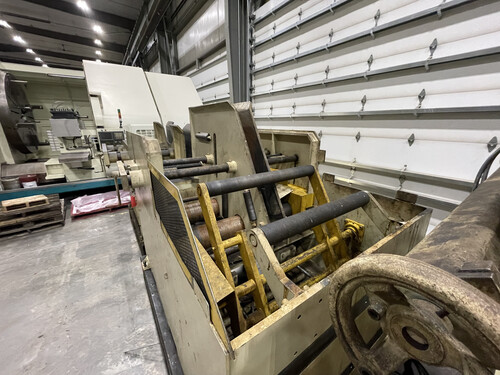

Coe CPPS-400-36 7-Roll Coil Straightener w/ (2) Sets of Power Driven Pinch Rolls
Overhead Loop Support Chute

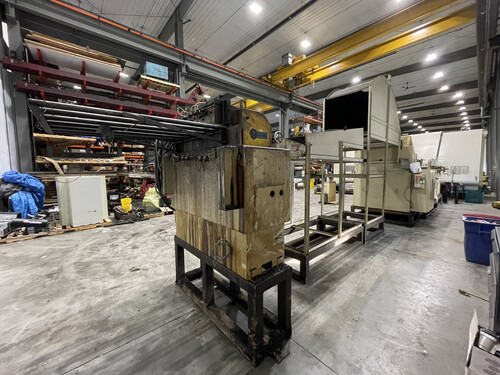

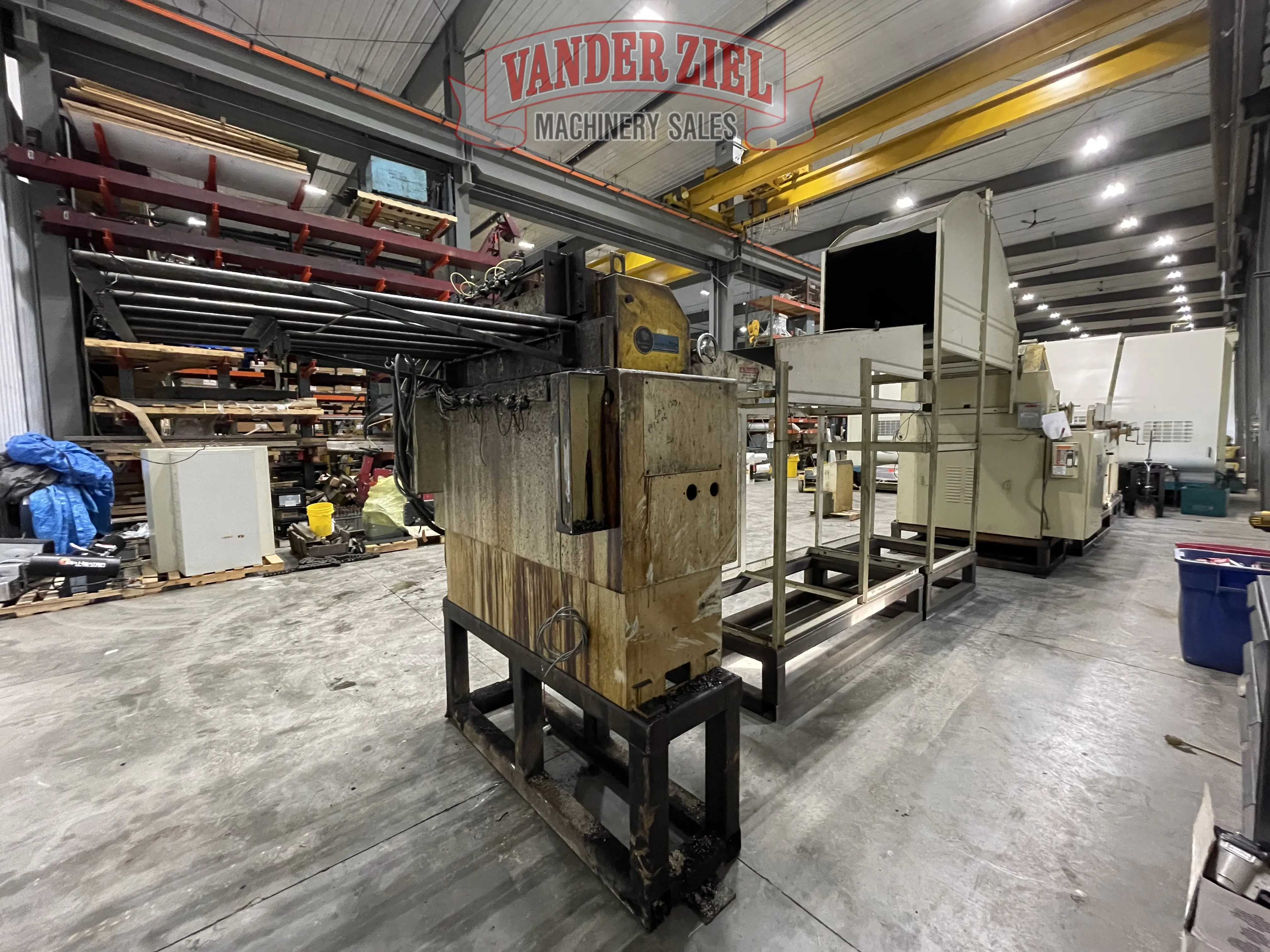

Coe 36″ Servo Feed (S/N 22189) w/ ServoMaster Control Console

Coe Press Equipment Corporation AC Servo Drive Digital Rollfeed
Model No. CPRF-436-PLUS
Material Specifications:
. Material Type: Pre-Straightened MCRS
. Material Width: 36 Inches
. Maximum Material Thickness: .187” x 36” Wide
Performance Specifications:
. Feed Angle: 180-240 Degrees
. Maximum Speed: 218 Feet/Min
. Acceleration: 40 Feet/Sec/Sec
. Feed Accuracy: +/-.003 Inch
Feed Specifications:
. Number of Feed Rolls: 2
. Feed Roll O.D.: 4.00 Inches
. Feed Roll I.D.: 0 Inches-Solid Rolls
. Feed Roll Body Width: 18 Inches
. Drive Ratio: 4.8:1

Standard Features:
. Close tolerance cluster-geared upper & lower feed rolls
. Air operated pilot release mechanism
. Regulators for feed roll raise & lower
. Crodon coated upper and lower feed rolls
. AC brushless servo drive
. Motor shaft encoder
. Master control station (free standing)
. 8 foot cable set
. Jog forward and reverse
. Single cycle pushbutton
. Emergency stop button
. Electrical safety disconnect
. Remote jog with coil cord
. Heavy duty cabinet base with passline adjsutable +/-5” by means of 10,000 lb. leg jacks
. Entrance edge guide with self centering & independent handcrank adjustment with dual 2 ¼” diameter rolls
. Material support section with funnel
Standard Options:
. C.P.E.C. Controller – BG-2
. Key pad length & speed input
. Alpha-numeric control parameter diagnostics
. 200 job memory (alpha-numeric, 8 digit)
. Adjustable accel & decel rates
. Footage meter
. Programmable dwell for pilot release
. Batch counter

Item No. 2

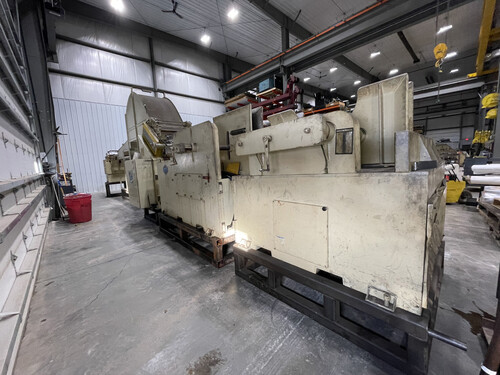

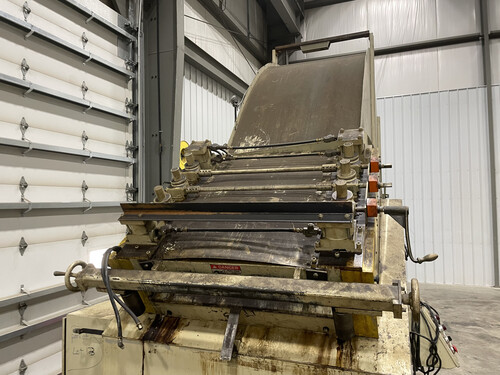

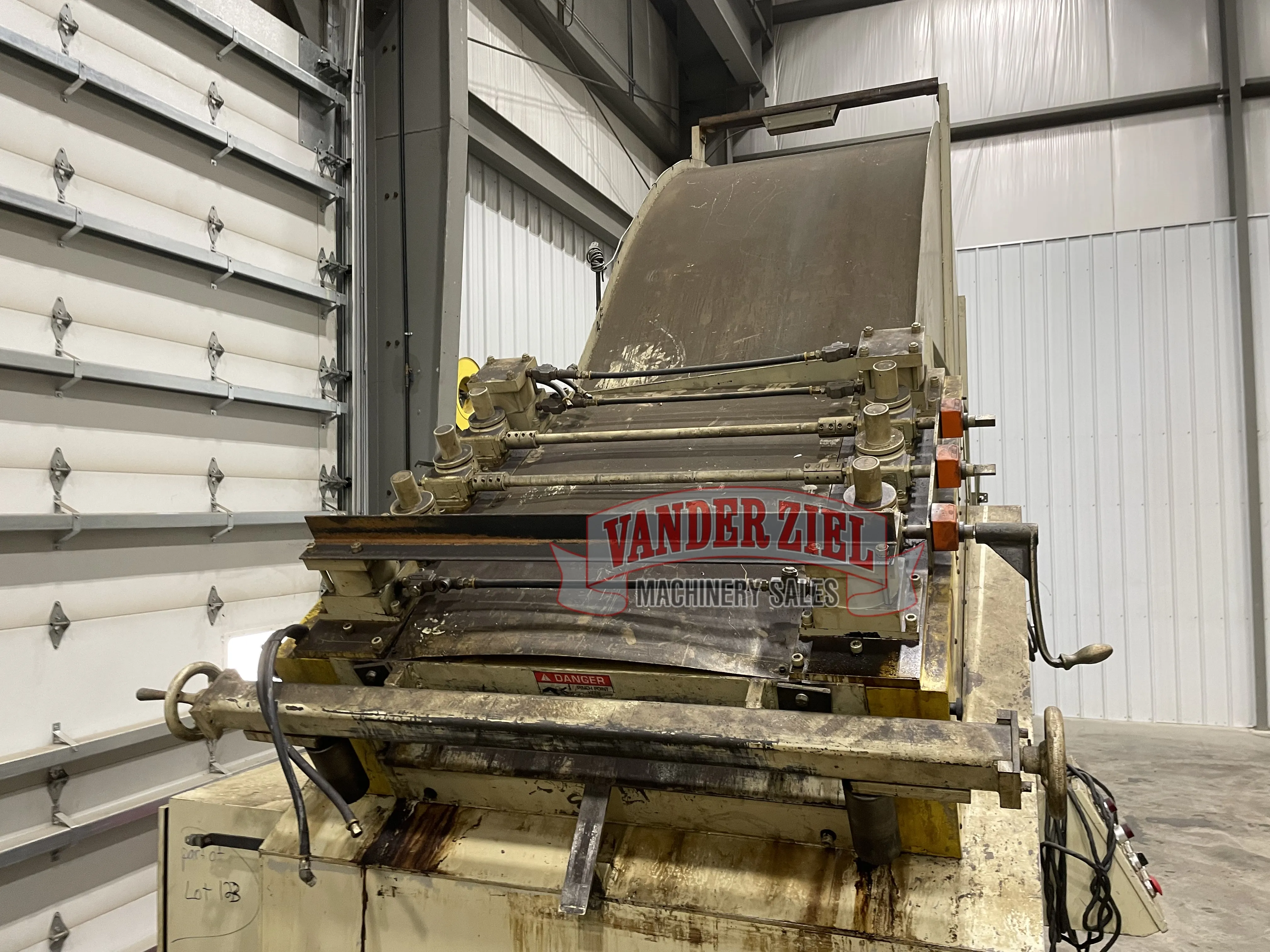

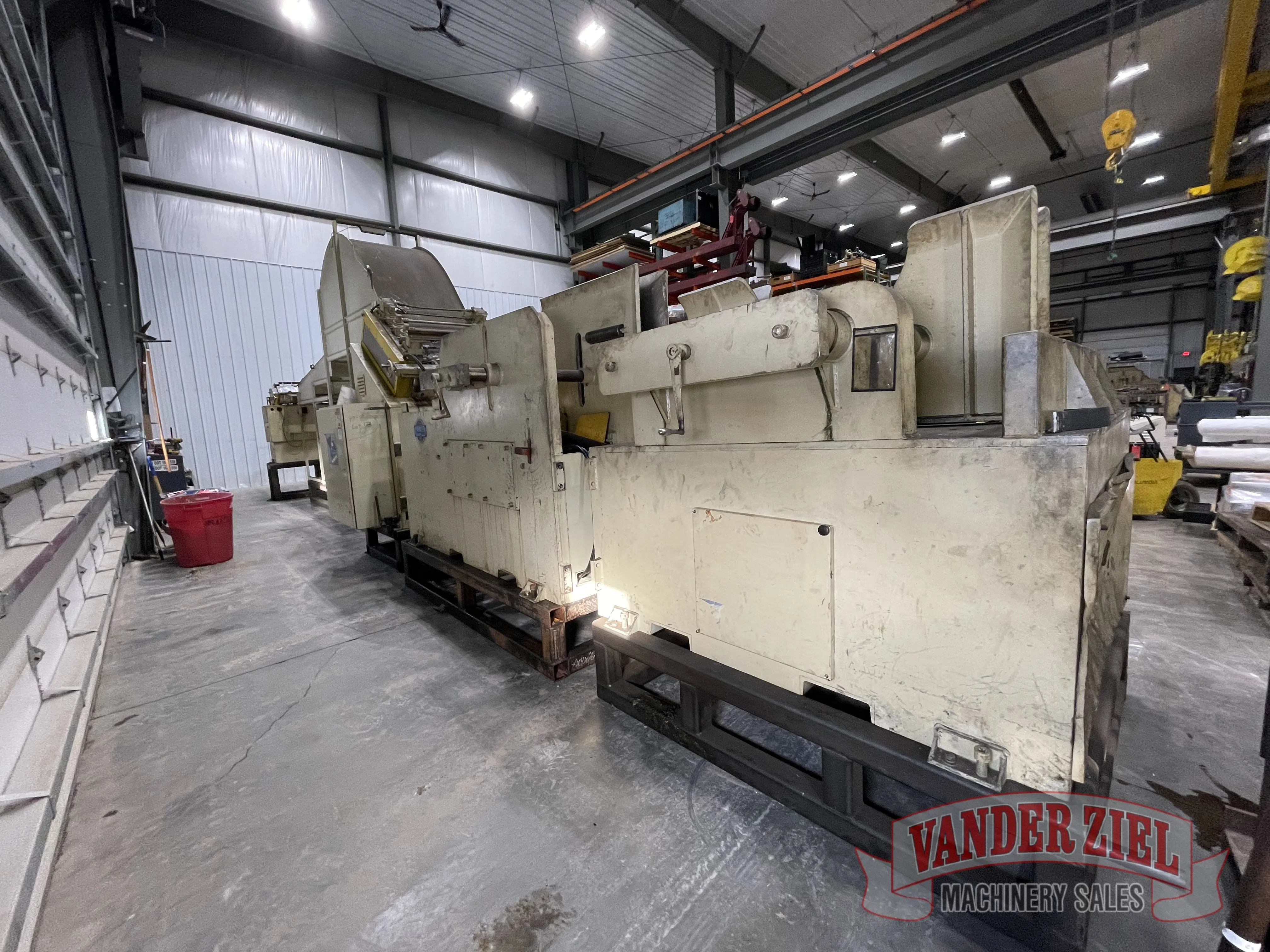

Coe Press Equipment Corporation Free Standing Power Straightener
Model No. CPPS-PO-400-36
7 Roll, 4 Inch Diameter Design
Material Specifications:
Maximum Coil Width: 36 Inches
Maximum Stock Thickness: .187″ x 36″ Wide
Payoff Rate: 90 Feet/Minute
Standard Features:
. Independently adjustable breaker rolls, raise and lower by means of 2 ½ ton screw jacks
. Breaker roll height indicators and scales
. Matte chrome finished upper and lower entrance pinch rolls
. Entrance & exit cluster gear driven pinch rolls
. Air operated entrance pinch rolls raise and lower with 5″ bore cylinders
. Air operated exit pinch rolls raise and lower with 5″ bore cylinders
. Pressure regulators for pinch roll pressure adjustment
. Push button operated pneumatic control valves
. Jog or automatic operation
. Single operator station centrally located for the straightener and coil cradle operation
. Central point grease lubrication system
. 460 volt AC, 3 phase operation
Standard Options:
. 20 HP DC variable speed drive
. Remote jog pendant with coil cord for thread up
. The straightener cabinet base is to be configured with an angled top to pay off into an overhead loop tunnel out of a cradle
. Entrance vertical edge guide rolls, 2 ¼” diameter with hand crank, self-centering adjustment
. Ultrasonic loop control system mounted by customer above the tunnel for automatic operation
. Fused electrical safety disconnect

Item No. 3

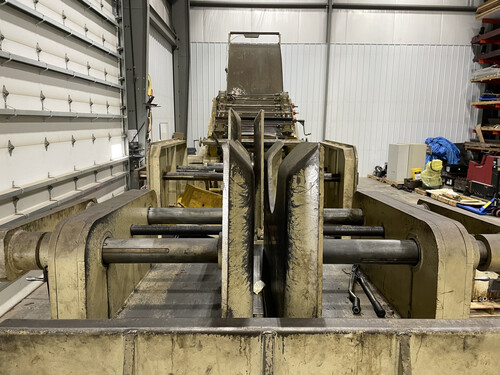

Coe Press Equipment Corporation

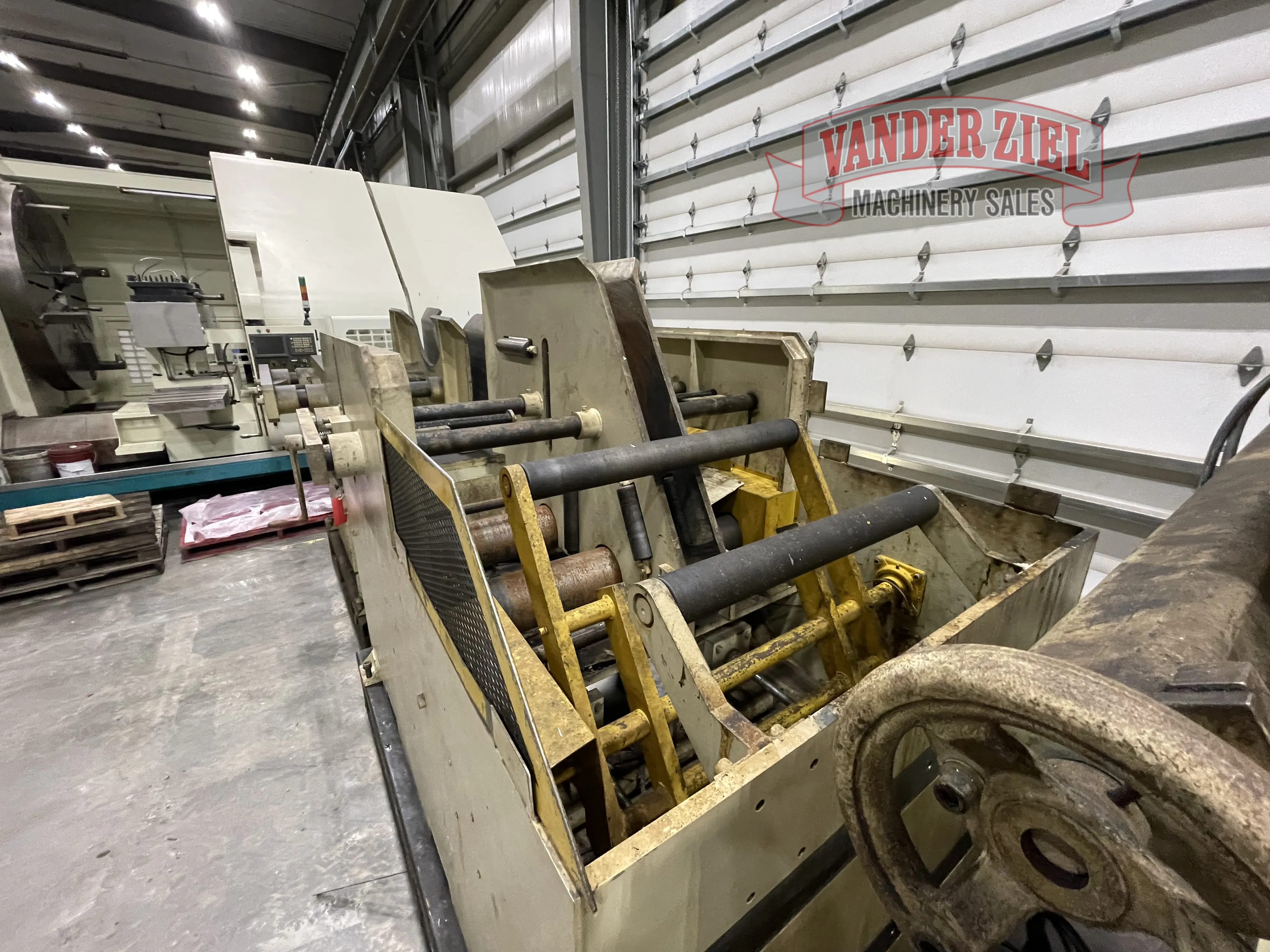

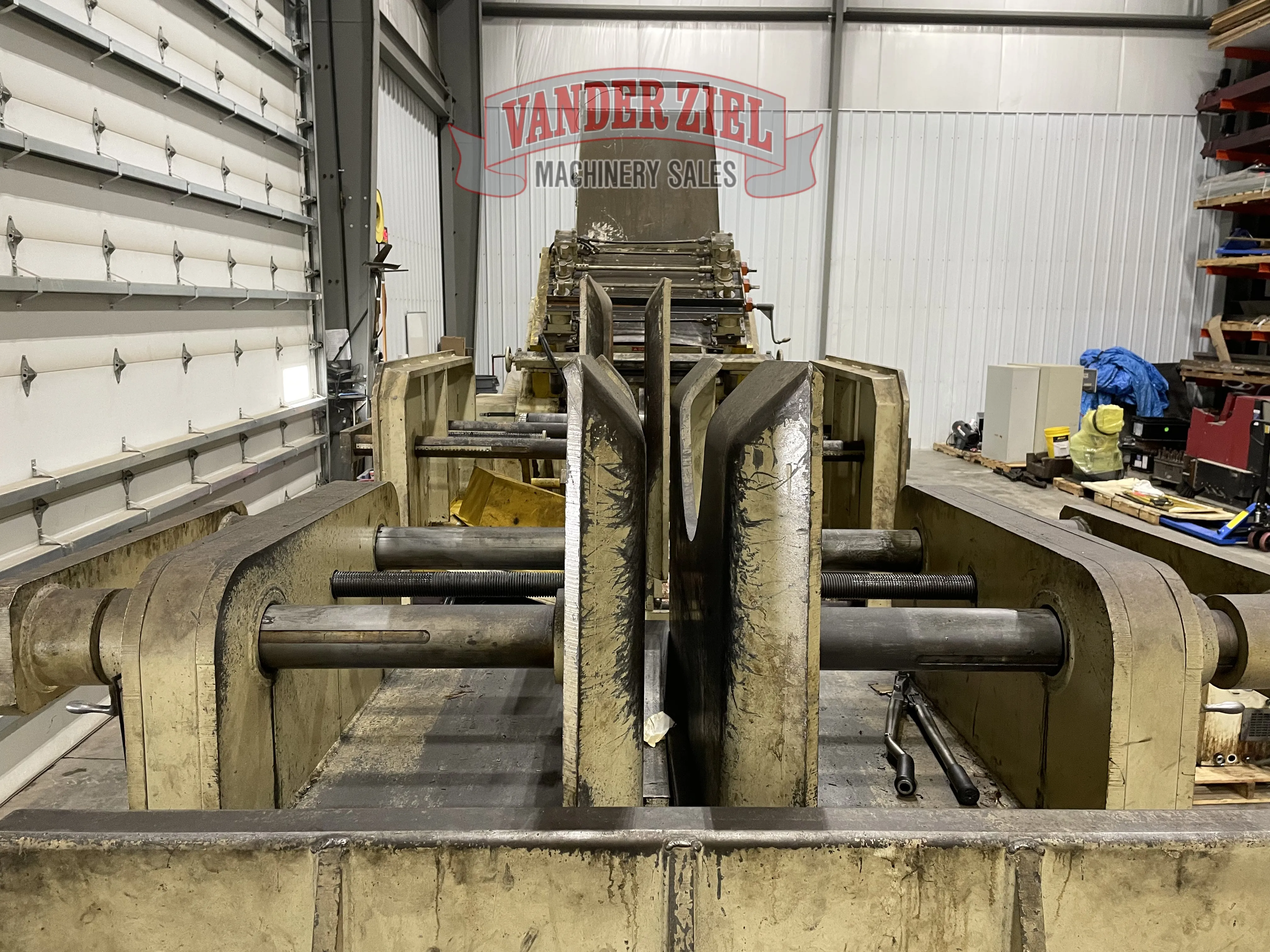

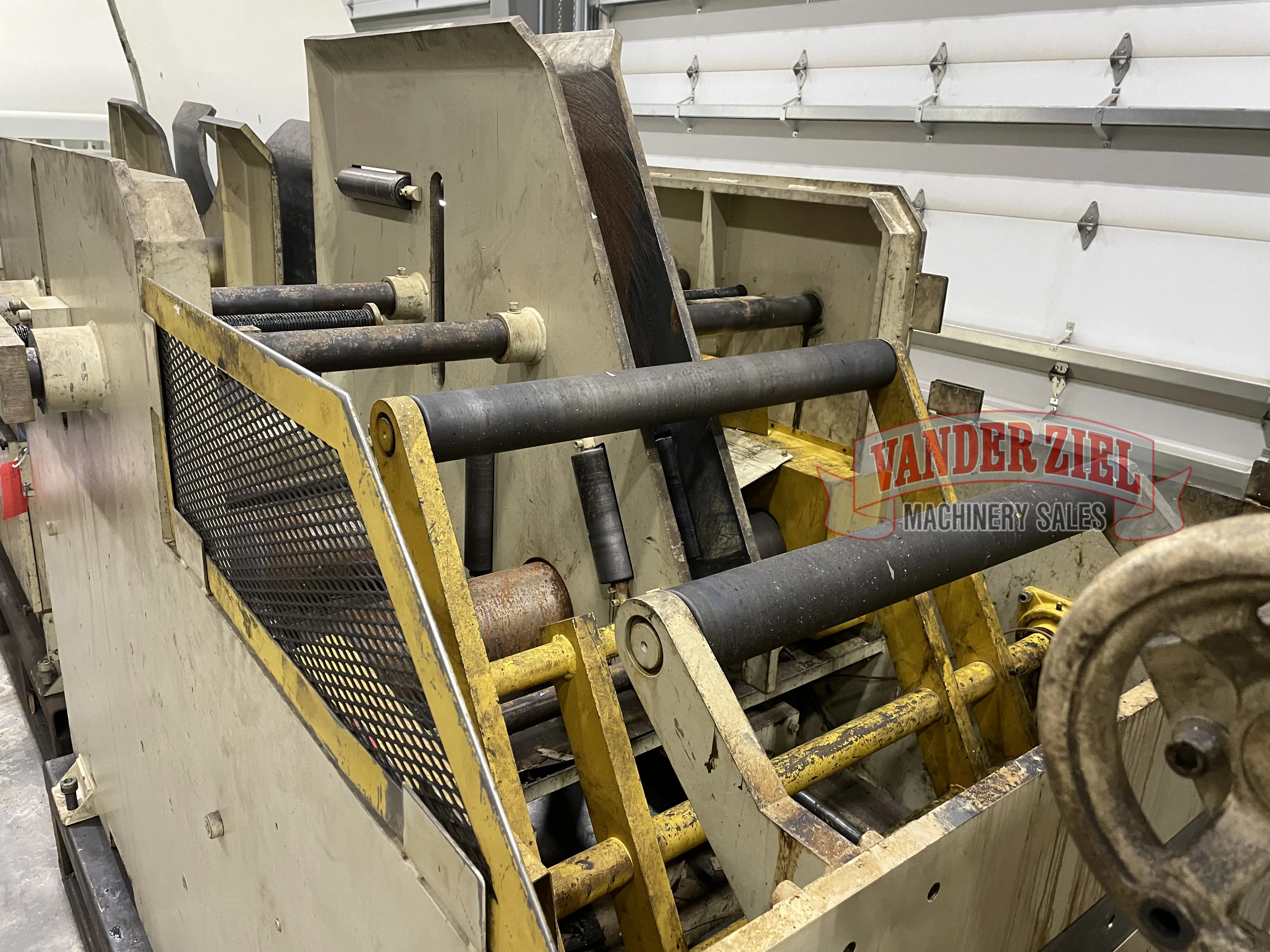

Coil Cradle Model No. CPCC-20036
Material Specifications:
. Maximum Coil Weight: 20,000 lbs.
. Maximum Coil Width: 36 Inches
. Maximum Coil O.D.: 60 Inches
. Maximum Stock Thickness: .187″ x 36″ Wide
. Maximum Payoff Speed: 110 Feet/Minute
Standard Features:
. 5” diameter nest rolls
. Hand crank independent inside plate adjustment
. Air operated peeler/breaker rolls for threading
. The cradle will be powered by the straightener drive
. Drive is to be mounted underneath the straightener in the straightener cabinet
Standard Options:
. (3) side rollers in each inside plate
. Air operated spare coil storage and loading ramp with hand crank adjusted side plates

Feed Direction: Right to Left
Voltage: 460 volt 3 phase
