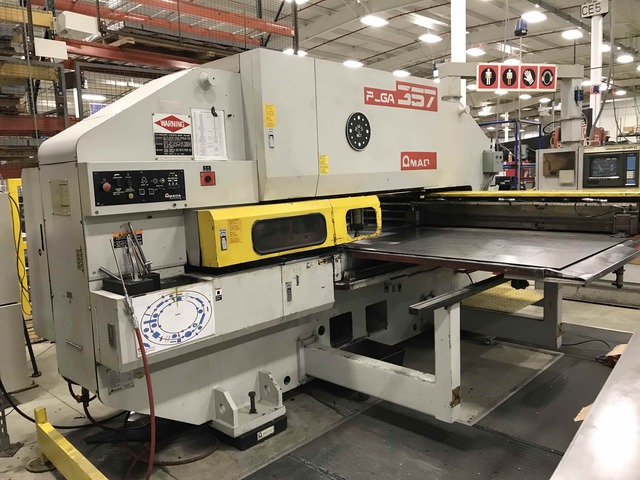

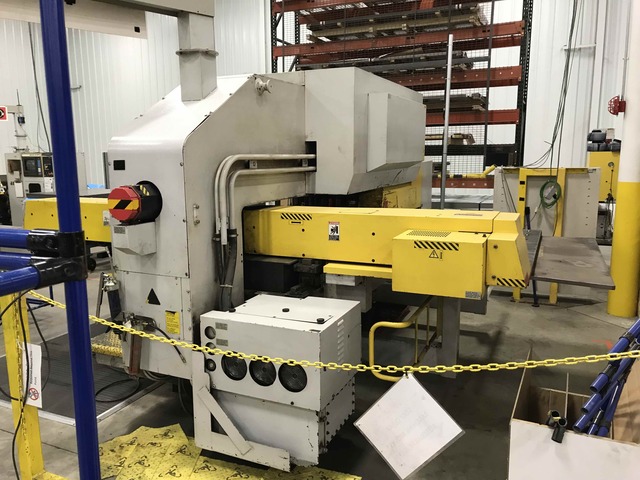

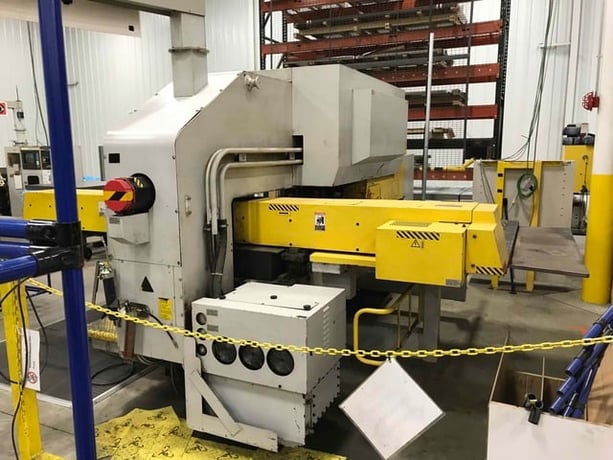

33 Ton, Amada #Pega-357, CNC turret punch, GE Fanuc 04PC, 44 station, automatic repositioning, hydraulic clutch & brake, ball transfer table, 1995

Pre Owned 1995 Amada Pega 357 CNC Turret PunchGENERAL SPECIFICATIONS
Maximum Traverse 50” X 72”
Maximum Sheet Size (With Repositioning) 50” X 144”
Maximum Punching Capacity (Mild Steel) ¼”
Maximum Hits Per Minute 350
Maximum Sheet Weight 220 LBS
Maximum Positioning Speed 2795 Inches Per Minute
Total Tool Stations in Turret 44
Turret Configuration- H-Type Thick Turret
18 @ 1/2" Dia
16 @ 1-1/4" Dia.
4 @ 2" Dia.
2 @ 3-1/2" Dia.
2 @ 4-1/2' Dia.
2 @ Auto ndex (1-1/4" DIA.)
auto index configuration
Angular Increment 0.01 Degree
Maximum Nibbling Angle 8 Degree
B—Directional Rotation
AC Servo Drive
60 RPM
Turret Speed 30 RPM
Air Requirement 80 PSI
Main Motor Horsepower 5.5 kW
EQUIPPED WITH
GE Fanuc 04PC Control
Auto Repositioning
Hydraulic Clutch & Brake

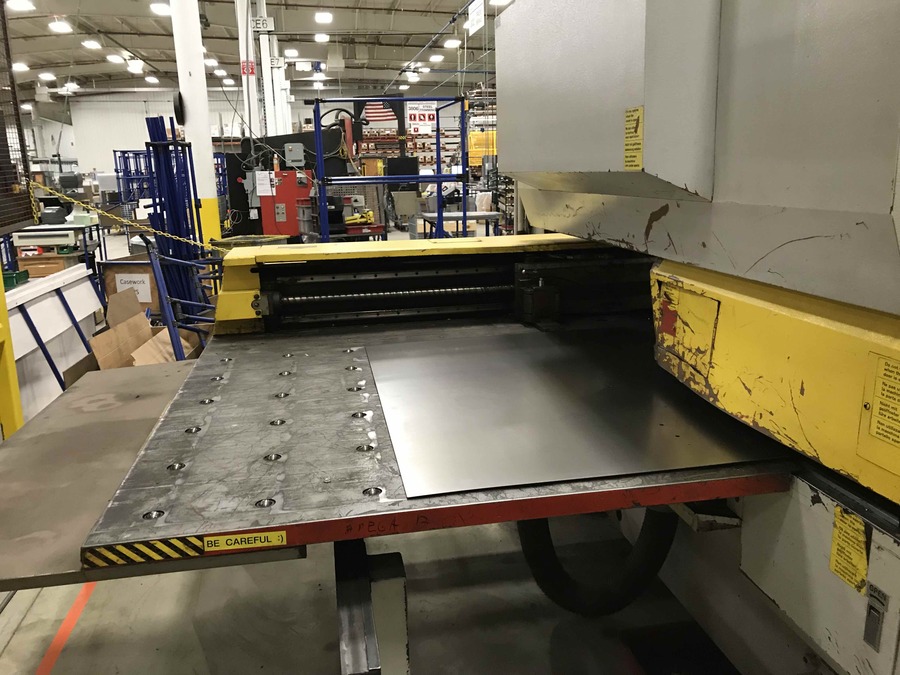

Ball Transfer Table
Approximate Overall Dimensions 9’ W X 7’H X 16’ L
Approximate Overall Weight 23,000 LBS
