For Sale by D'Angelo International
Surplus Record Dealer Since 2011
Location: Bellingham, WA
Contact Keith D'Angelo
Phone Number: 360...> Show Phone Number 360-734-1046
Let the seller know you found their listing on Surplus Record!
Description

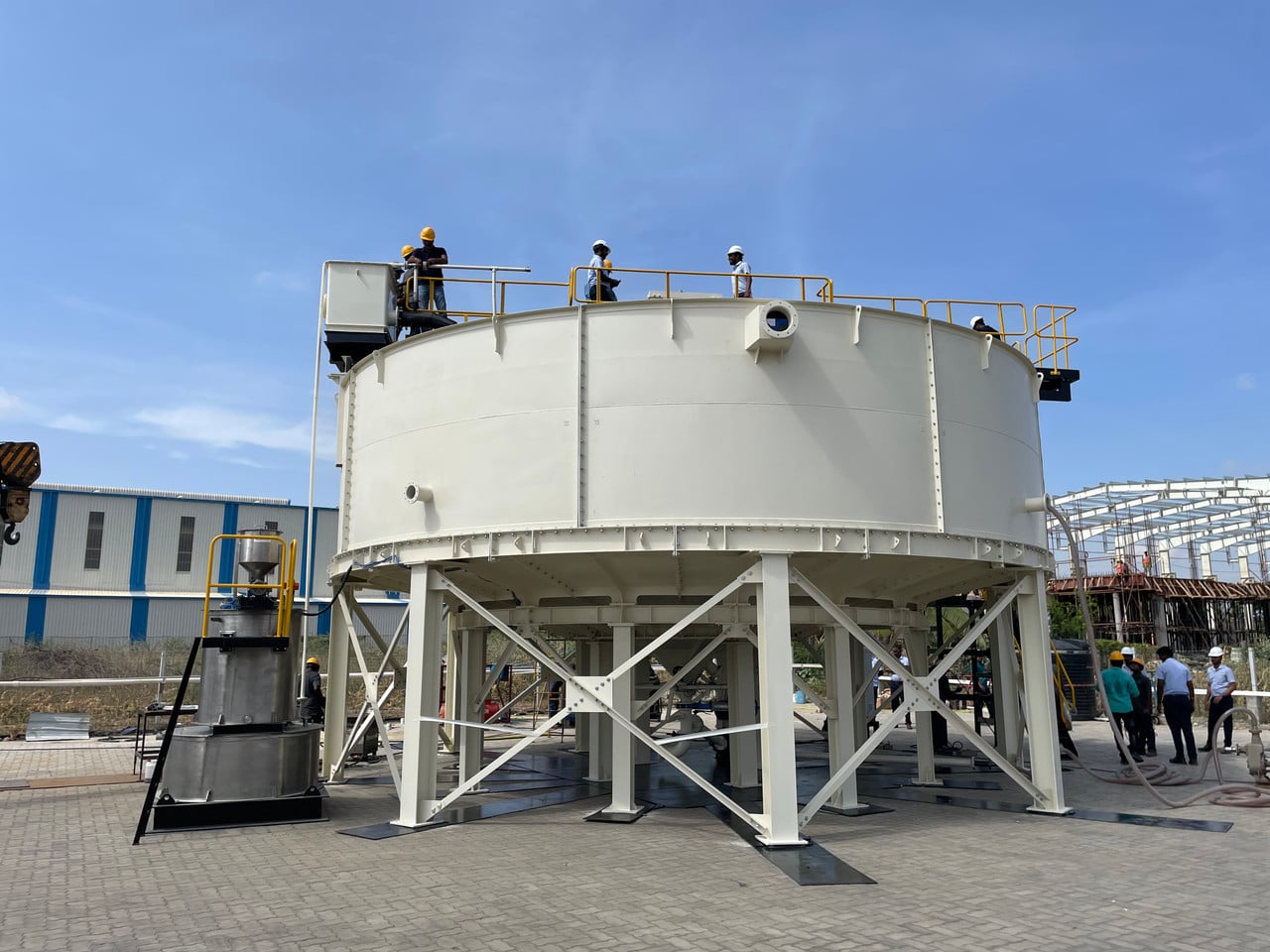

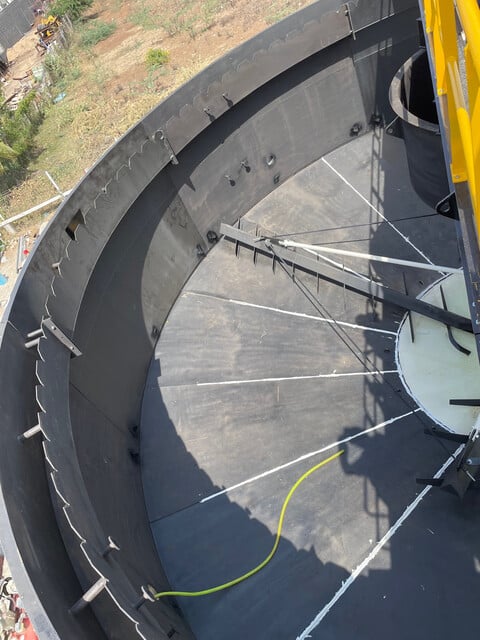

-New unused surplus thickener-Manufactured by Propel-In Excellent Condition-32.8 feet or 10 meter diameter-Side Wall depth of Tank , 2.7 m-Floor Slope, 15°-Drive System Hydraulic, 3.7 kW-Volume of Tank, 205 m3-Feed well, 2.2 m Dia.-Feed pipe / Drain , 200 NB Dia.-Rake Arm Lift, 300 mm-Rake Speed , 0.13 to 0.3 rpm-Solid Throughput Capacity, 30 TPH-Agitator Motor Power, 0.75 kW-Screw Feeder, 0.18 kW-Slurry Pump Motor Power, 11 kW-Motor Type, TEFC Squirrel Cage(Control Panel Operation)Includes the following components:-Gear Box-Hydraulic Motor-Hydraulic cylinder

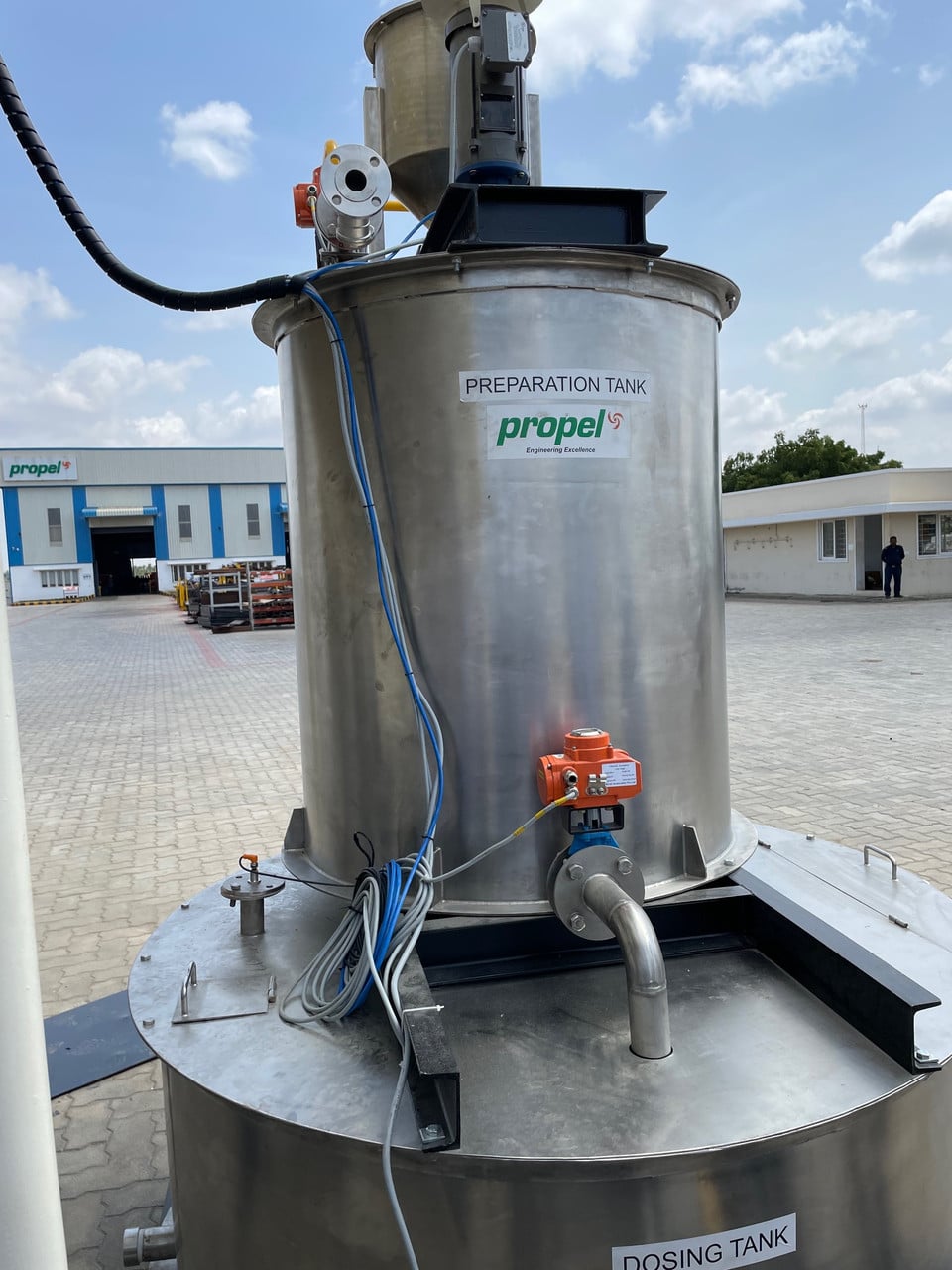

(Hose & Connector, etc..)-Flocculent dosing system
Motor
Valve
Sensor
Agitator
Screw feeder

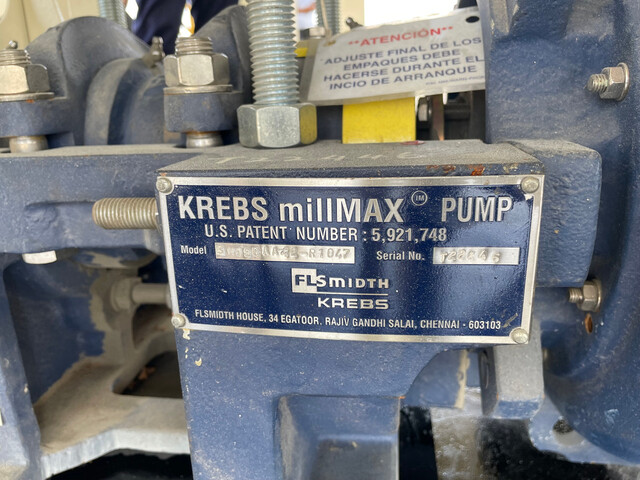

Pump
Limit switch-Flow Transmitter-Power Pack
Motor
Valves
Pump
Heater
Float switch filters
Pressure sensor
Pressure gauge-Control Panel For FDS-Control Panel For Drive-Drawings available
(Hose & Connector, etc..)-Flocculent dosing system
Motor
Valve
Sensor
Agitator
Screw feeder
Pump
Limit switch-Flow Transmitter-Power Pack
Motor
Valves
Pump
Heater
Float switch filters
Pressure sensor
Pressure gauge-Control Panel For FDS-Control Panel For Drive-Drawings available
